Motor iFlight XING2 2207 Unibell 1750KV (6S)

Kod: X011032
Brak oceny
Marka: iFlight
€25,81 €21,33 bez VAT
In stock (20 szt)
Możemy doręczyć do:
08.11.2024
Opcje dostawy

Informacje szczegółowe

Opis szczegółowy produktu

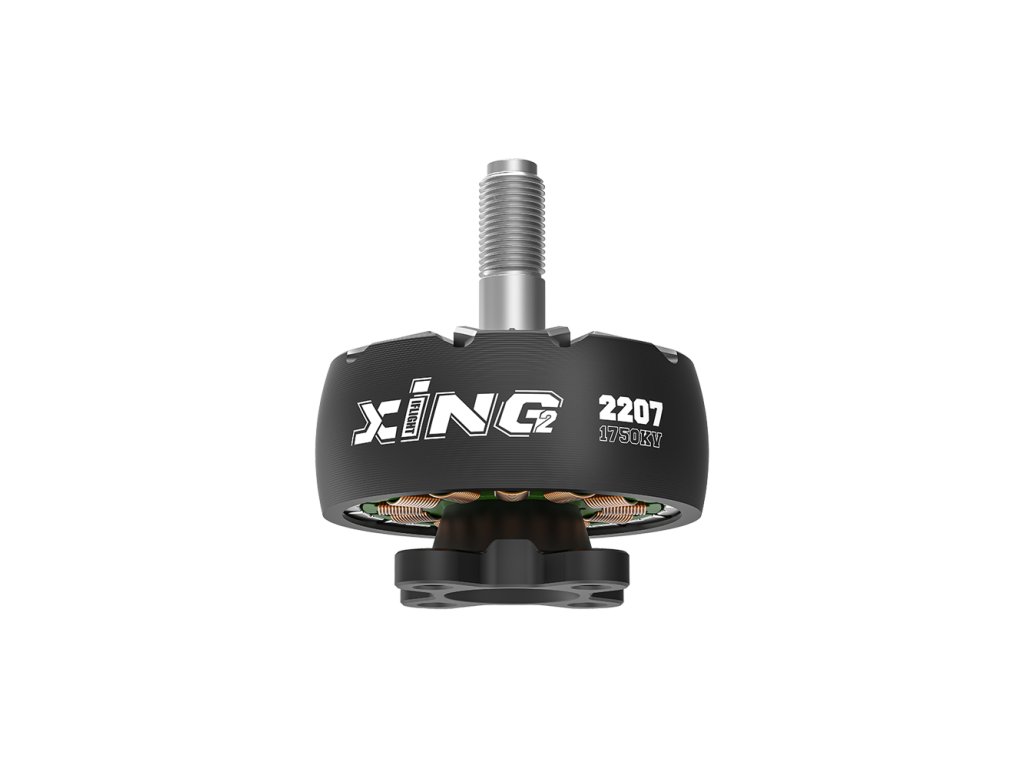

XING2 2207 FPV Motor Unibell 1750KV (6S)

Features

- 5mm titanium alloy shaft, our strongest prop shaft ever!
- Crash resistant 7075 aluminum bell
- Smooth and long-lasting NSK 9x4x4 bearings
- Center slotted N52H curved arc magnets
- XING O-ring bearing gap protection
- Motor wires protector
- Dynamically balanced

Specifications:
KV: 1750KV
Weight(included wire): 30.5g
Dimension: φ29*19.25mm
Interphase Resistance: 74.23mΩ
Input Volts: 25.2V
Peak Current: 36.3A
Max Watt: 898W
Mounting Holes: 16*16 φ3mm
Rotor Specifications:  Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding

Package includes:
1 x XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 Flanged Nylon Insert Lock Nut

Parametry dodatkowe

Kategoria: FPV Drone Motors
Motor KV: 1750KV
Motor Size: 2207
Power Supply: 6S
Shaft Diameter: 5mm
Type: Brushless
