Motor iFlight XING-E 2809 Cinelifter Motor 800KV

Opis szczegółowy produktu

XING-E 2809 Cinelifter Motor 800KV

Features
- High-strength 5mm Steel shaft
- N52H High-temperature magnets
- 19x19mm hole pattern
- Single strand copper winding

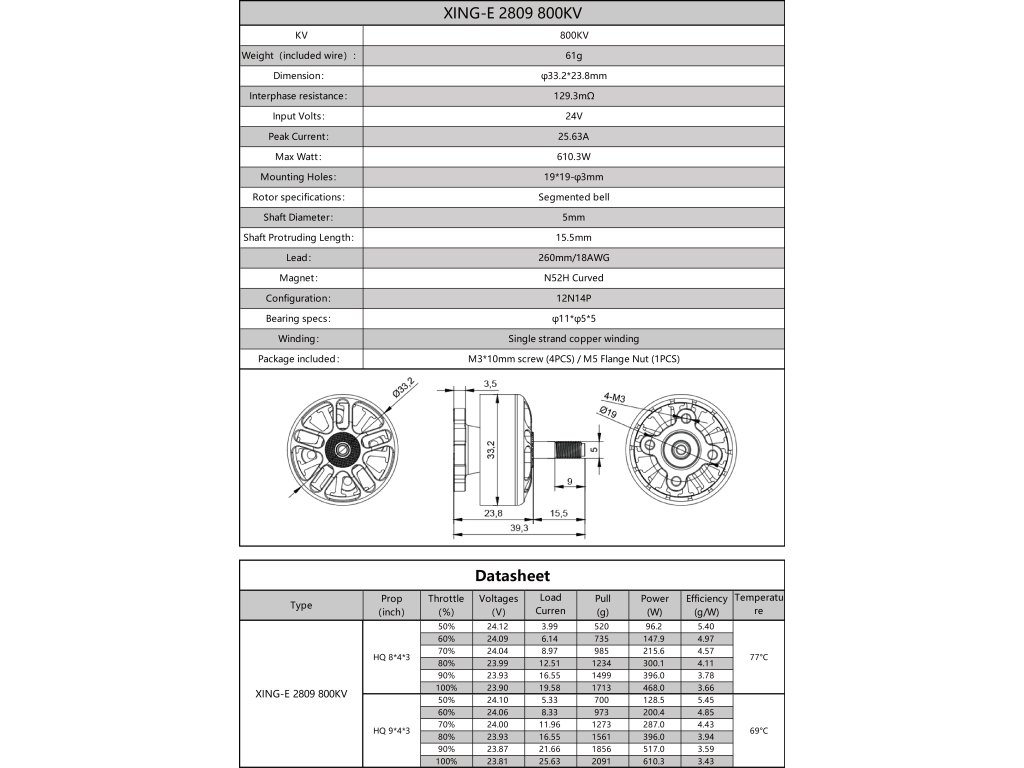

Specifications:

Model: XING-E 2809 Motor
KV: 800KV
Weight(included wire): 61g
Dimension: φ33.2*23.8mm
Interphase Resistance: 129.3mΩ
Input Volts: 24V
Peak Current: 25.63A
Max Watt: 610.3W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*φ5*5
Winding: Single Strand copper winding

Package Includes:
1 x XING-E 2809 Brushless Motor
4 x M3x10 screws
1 x M5 Flange Nut
