VTX TBS Unify Pro32 DP (MMCX)

Opis szczegółowy produktu

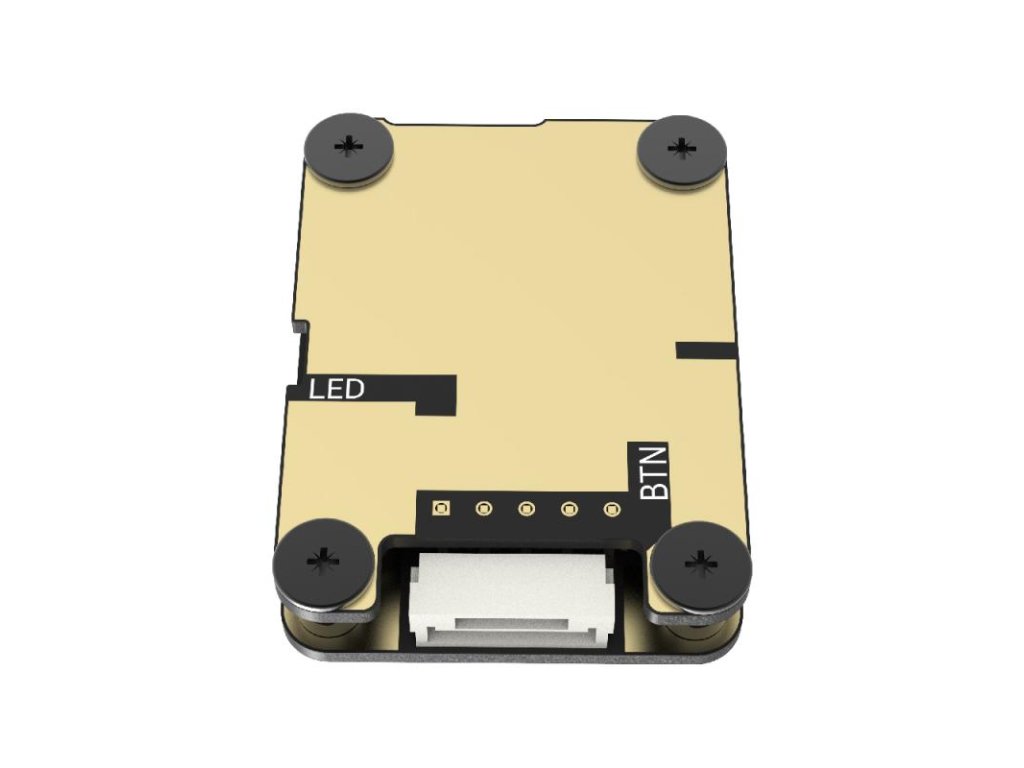

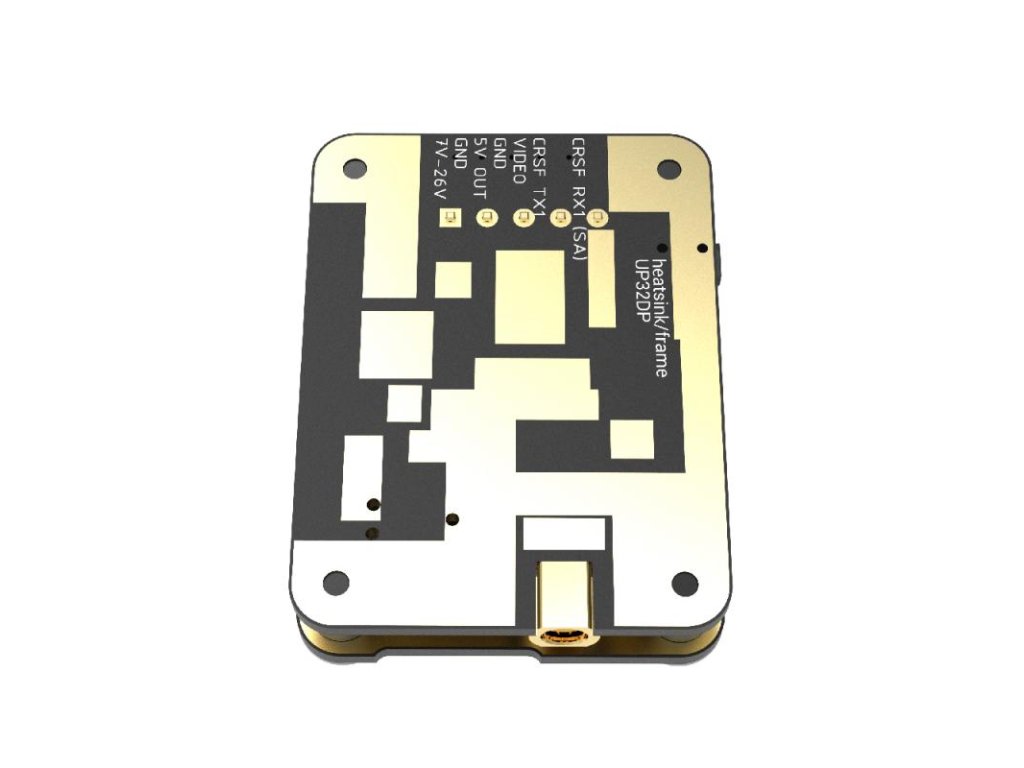

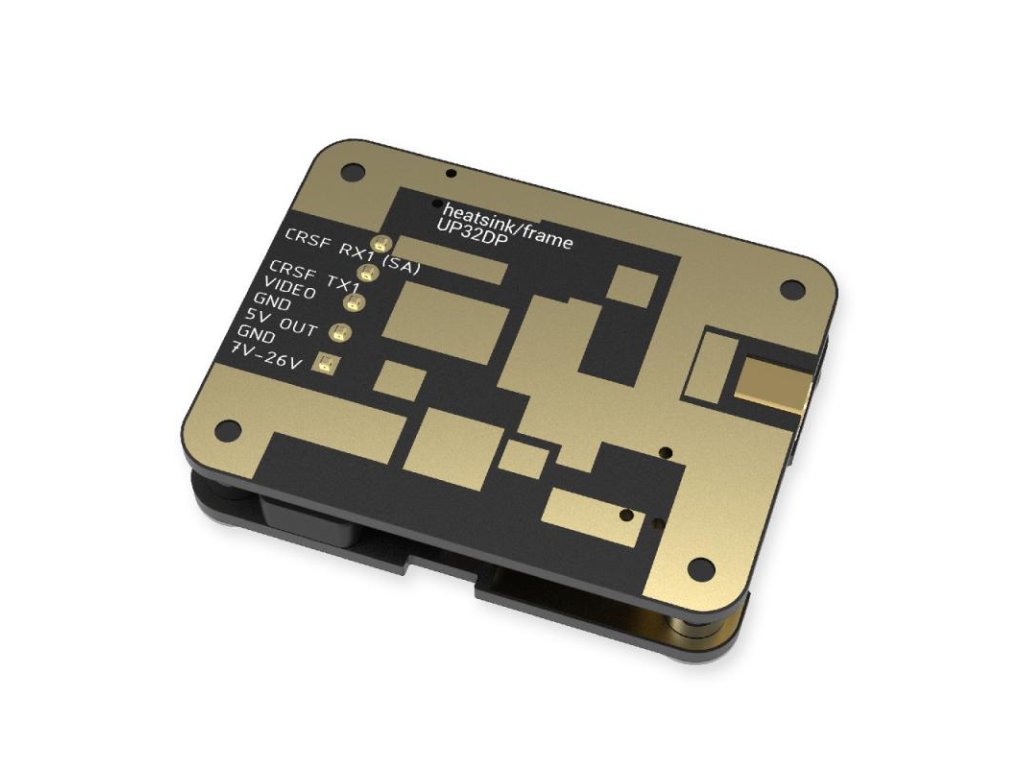

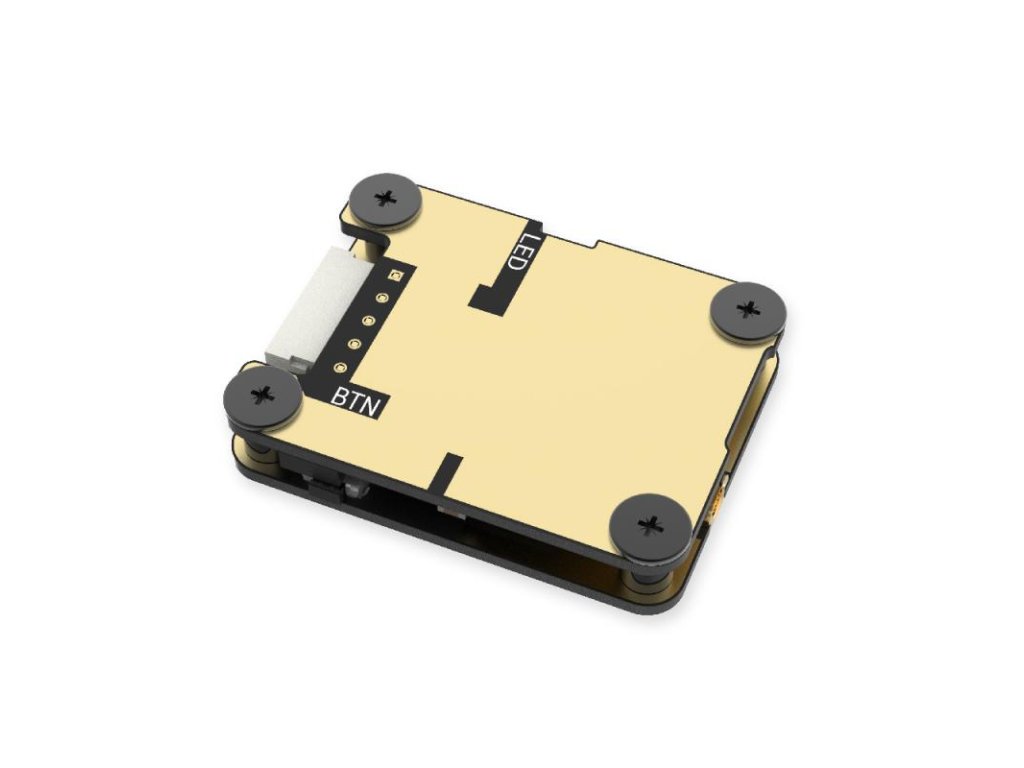

TBS UNIFY PRO32 DP (MMCX) Video Transmitter

The TBS UNIFY PRO32 DP (MMCX) is an industry-leading video transmitter (VTx) designed specifically for FPV drones. It delivers enhanced robustness, reduced size, and lower power consumption while providing top-tier performance and reliability. The advanced heat dissipation design ensures optimal durability without the need for additional cooling, such as a heatsink or fan.

Key Features:

• World’s Lightest 3-Watt VTx: Delivers a high output power in a compact package, ensuring long-range performance.
• Frequency Range: Operates between 4990 MHz - 6030 MHz, offering flexibility for various FPV setups.
• TBS Smart Audio 2.1 OSD Configuration: Easily adjust settings through Betaflight, TBS Crossfire/Tracer, or Ardupilot.
• One-Button Frequency & Power Setup: Quick and easy frequency and power adjustments at the push of a button.
• LUA Support for CRSF Users: Advanced compatibility with CRSF protocols for streamlined control.
• MMCX Connector: Secure, high-quality connection for reliable performance.
• Wide Input Range: Accepts 2-6S input, with voltages from 6V to 25V.
• Double Noise Filtering: Exceptional noise reduction with >63dB signal-to-noise ratio (SNR).
• Optimized Heat Dissipation: No heatsink required, keeping the transmitter cool in any condition.
• Optional Circular Polarized Antenna: Available for superior signal transmission.

Specifications:

• Operating Voltage: 6V - 25V (2-6S)
• Video Input Impedance: 75 Ohm
• SNR: >63dBm
• Weight: 8.7g
• Dimensions: 37 x 28 x 10mm
• Antenna Connector: MMCX
• Video Format: NTSC/PAL
• Output Power Options:
  • 10mW (10dBm)
  • 25mW (14dBm)
  • 100mW (20dBm)
  • 200mW (23dBm)
  • 400mW (26dBm)
  • 500mW (27dBm)
  • 999mW (30dBm)

Included in the Box:

• 1x TBS UNIFY PRO32 DP 5G8 HV Video Transmitter
• 1x Silicone Cable (pre-tinned ends)
• 1x MMCX to SMA Pigtail
• 1x Heat Transfer Tape (for easy mounting)
