VRX HDZero 4

Opis szczegółowy produktu

VRX HDZero 4

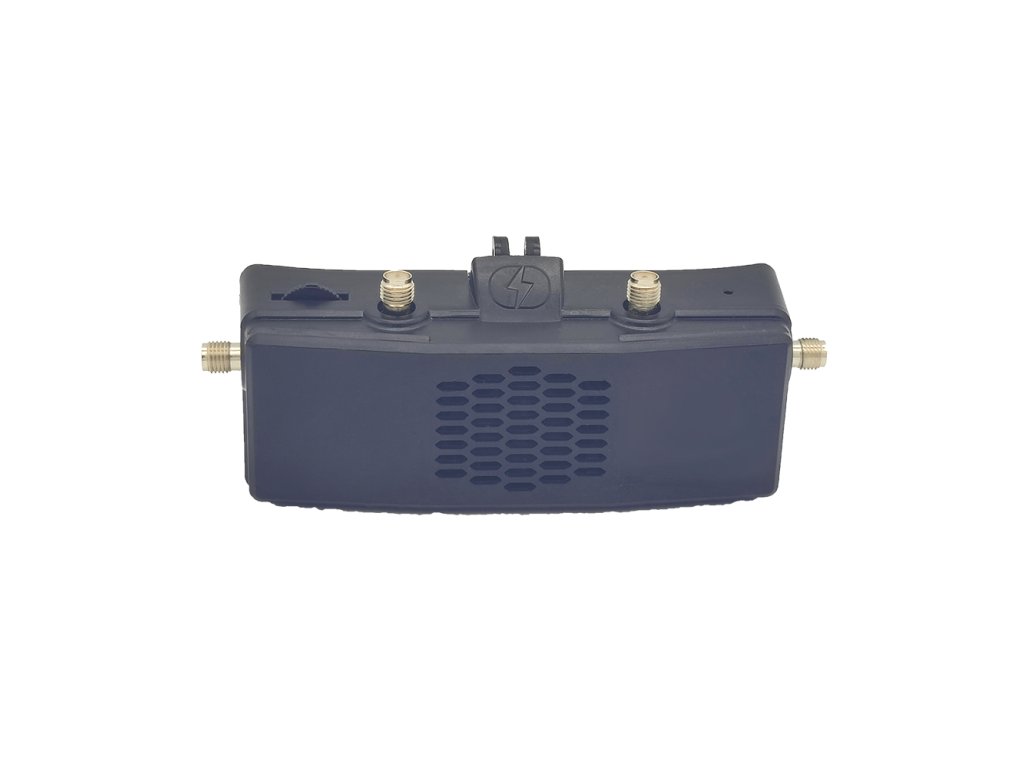

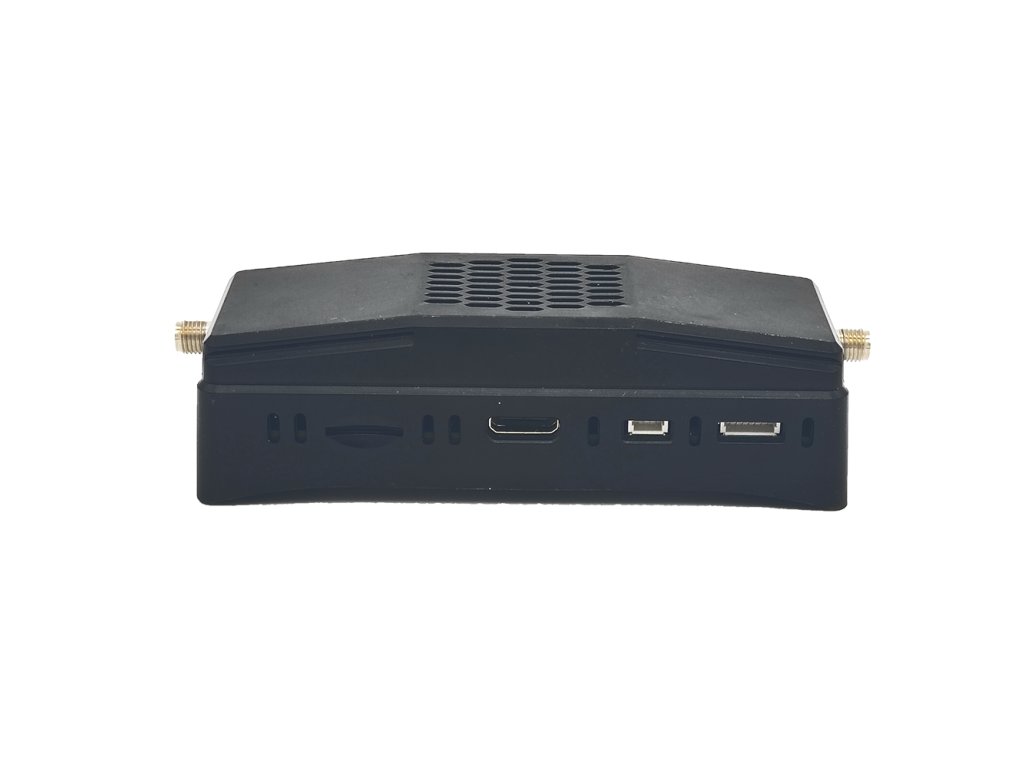

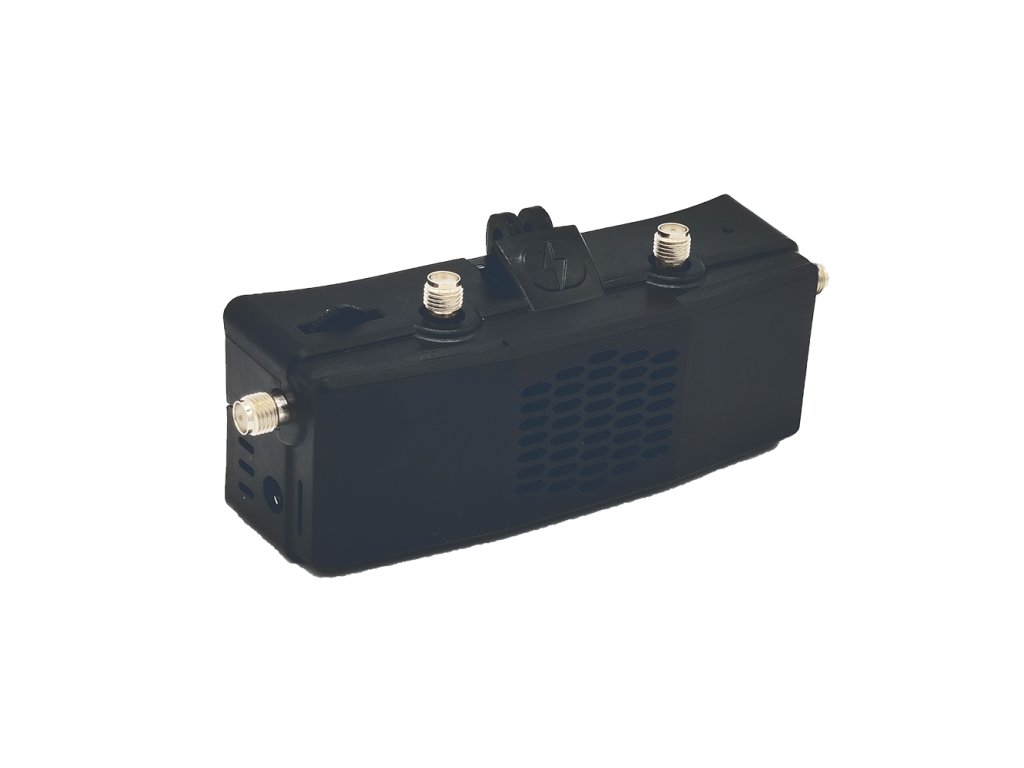

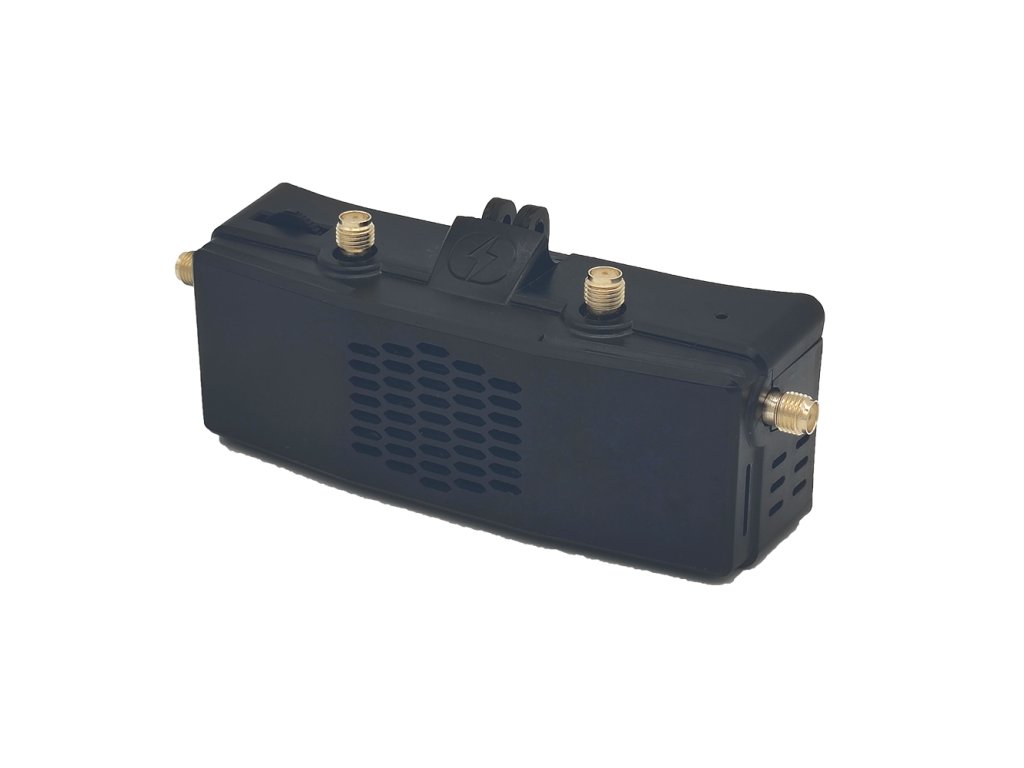

The HDZero VRX 4 is a digital HD 720p 60fps video receiver on 5.8GHz. It works with the HDZero/Shark Byte VTX module to transmit video.

HDZero VRX 4 mounts to the front of your goggle in the same manner as before using the included fan guard mount. The VRX is compatible with any goggle which supports HDMI input.

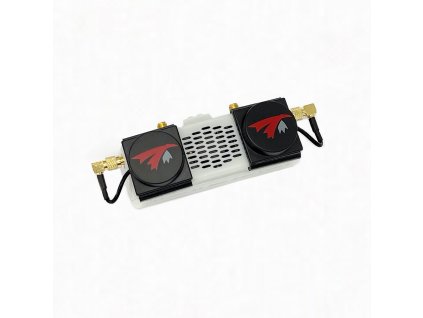

• Four SMA jacks allow you to pick the right antennas for your situation. Racing or flying around the house? All omni antennas work well. Outdoor applications benefit from the TrueRC slide on patch antennas which can mount to the front rails or design your own slide on antenna solution.
• The real time clock (RTC) automatically timestamps your DVR recordings to make it easier to review footage.
• ELRS Backpack expansion plug makes it easy to add automatic channel switching and other features from Express LRS.
• Ambient audio recording captures the sound near you so you can hear lap times called out and pilot commentary.

Specifications:

Model: HDZero VRX 4
SKU: HDZ3500
Frequency: 5.725-5.850GHz
Resolution Default: 1280x720 60fps
RF Sensitivity: 105dBm
RF Connector: 4 x SMA
Video Connector: HDMI
Additional functions: Real time clock, ELRS Backpack expansion plug, Audio Recording
Size: 105mm x 47mm x 30mm
Weight: 85g
Power: 12W
Power input: 7V-26V(2S-6S)
Mounting: Remove the Goggle’s fan cover

Package includes:
1x HDZero VRX4
1x HDMI Cable
1x DC Cable (Direct-Pass)
1x 15cm Programming Cable
1x ELRS Backpack expansion plug Cable
1x Keyboard

Important Notes:
Direct-Pass Cable, no regulator inside
Check Goggle input voltage range first to avoid goggle damage:
HDZero VRX supports 2S-6S
