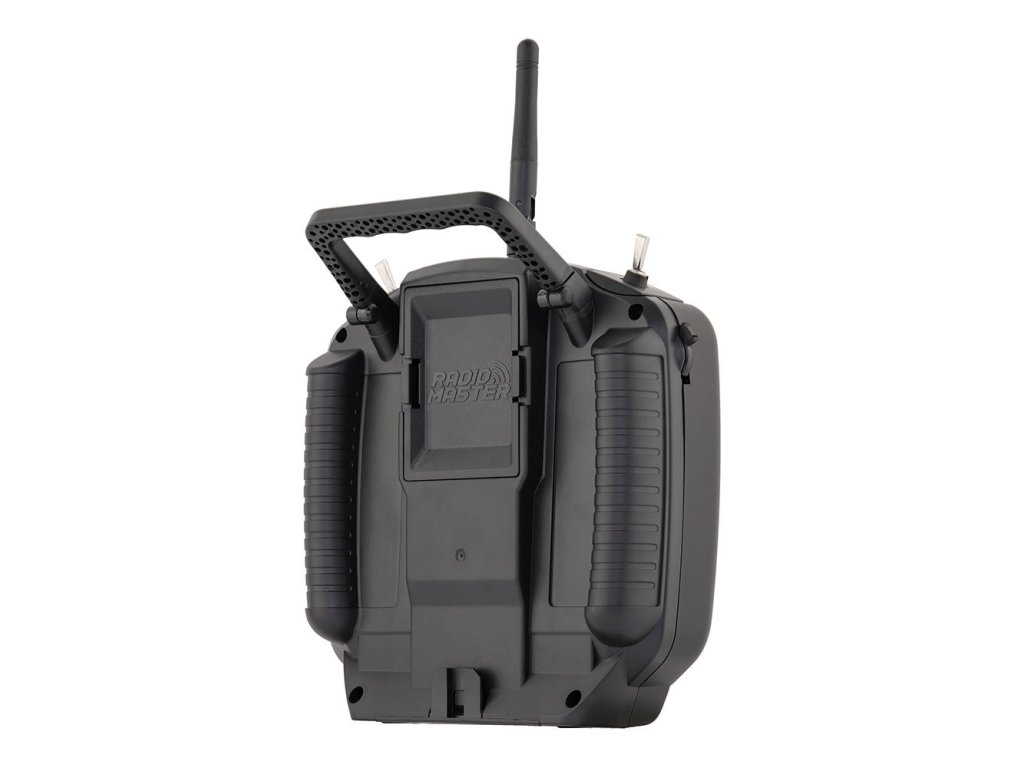

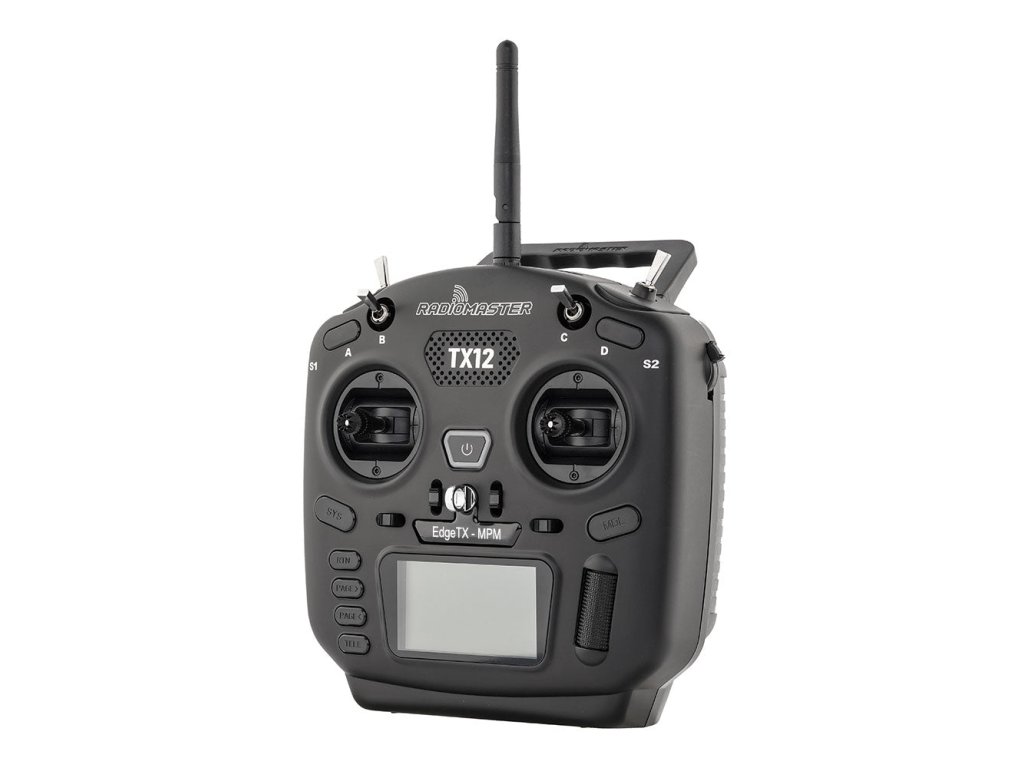

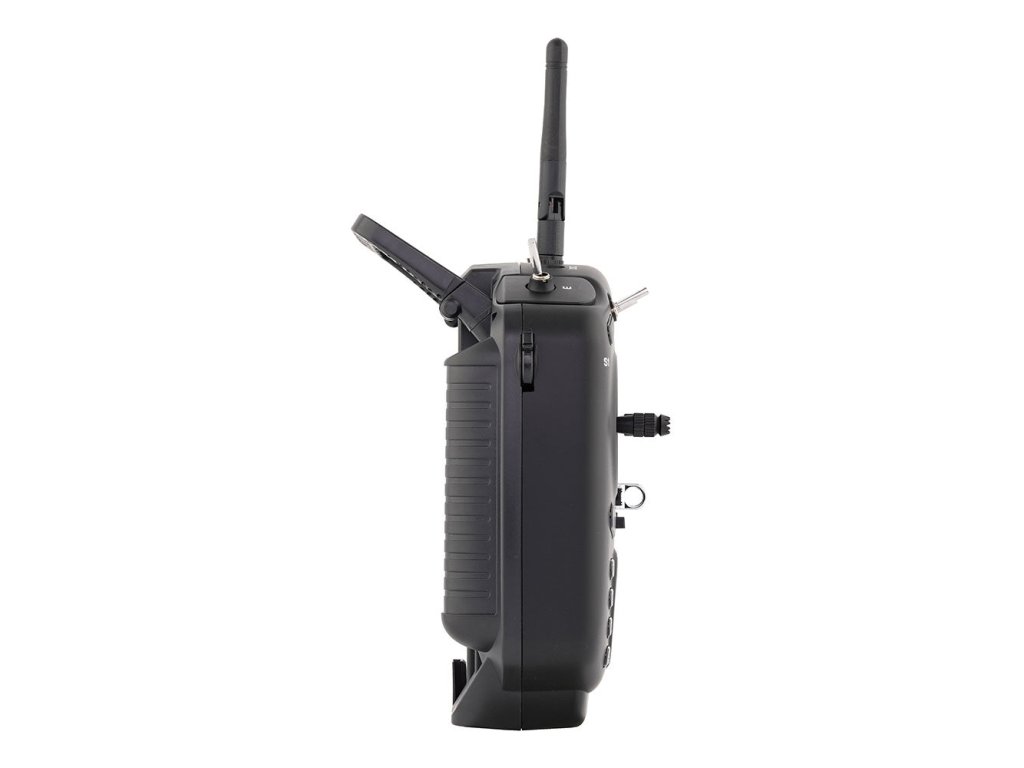

Controller RadioMaster TX12 MKII ExpressLRS EdgeTX

Opis szczegółowy produktu

TX12 MKII ExpressLRS EdgeTX (LBT, Left throttle)

The TX12 MKII is a class-leading compact radio by RadioMaster, with updated ergonomics, hardware, and software.

New to TX12 MKII
- Updated rear case with comfortable grips
- Improve S1 / S2 Grips
- Improved USB-C QC 3.0 Charging
- Updated main board design
- Updated MCU STM32F407
- EdgeTX factory installed
- SD Card included
- Internal ExpressLRS RF Module

Notes: ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Size: 170x159108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power ExpressLRS: Max 20dBm (EU LBT)
Working Current: 320mA@8.4V
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on the receiver)
Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128x64 Monochrome LCD display
Gimbal: High-precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included
