TX Module BetaFPV Micro V2 915/868 MHz

Opis szczegółowy produktu

TX Module BetaFPV Micro V2 915/868 MHz

The BETAFPV Micro TX V2 Module is expertly designed for long-range pilots who demand reliable performance and signal stability. With a maximum RF output of 2W and support for up to 200Hz packet rate, this module ensures robust connectivity and minimal interference, even over extended distances.

Equipped with an efficient cooling system, the Micro TX V2 features an integrated TCXO for improved temperature stability, enlarged airflow vents, and a high-speed 2507 axial fan that optimizes heat dissipation, allowing for consistent performance in varying conditions. Flashing firmware is made simple with the 5D button and a clear OLED display, enabling quick, on-the-go updates and adjustments. With support for multiple RF power levels, it’s flexible enough for a variety of flight requirements.

Specifications:

• Item: BETAFPV Micro TX V2 Module | ELRS 915/868MHz
• Weight: 54.8g
• Color: Black
• Antenna Connector: SMA-KE
• RF Power Options: 10mW / 25mW / 50mW / 100mW / 250mW / 500mW / 1000mW / 2000mW
• Packet Rate: 25Hz / 50Hz / 100Hz / 100Hz Full / 200Hz / D50
• Frequency Band: 915MHz (FCC) / 868MHz (EU)
• Backpack Support: Yes
• Input Voltage: 7V–13V DC
• Rated Current: 10V, 1A @ 2000mW, 200Hz, 1:128
• USB Port: Type-C
• Fan Voltage: 5V
• Default Firmware Version: ExpressLRS V3.4.3
• Target Name: BETAFPV Micro 900MHz TX V2

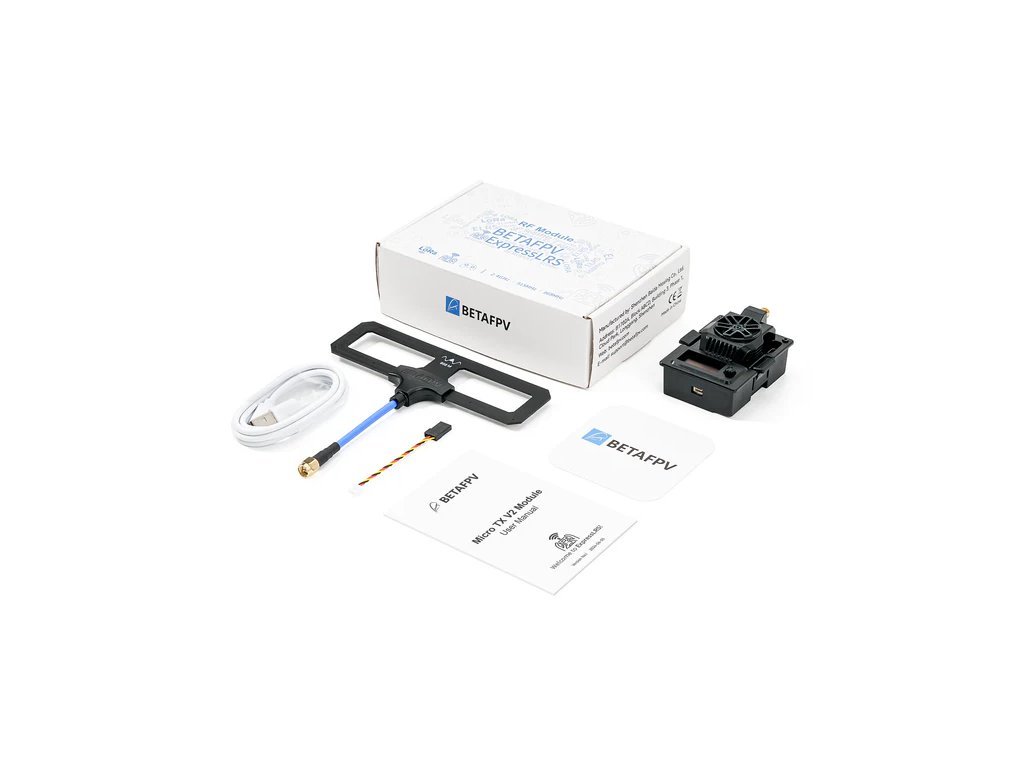

Package Includes:

• 1 x Micro TX V2 Module
• 1 x Moxon Antenna V2
• 1 x GH1.25-FUTABA Male Adapter Cable
• 1 x User Manual
• 1 x USB to Type-C Data Cable
• 1 x Service Card
