Transmitter Diversity Adapter Pilotix (2pcs)

Opis szczegółowy produktu

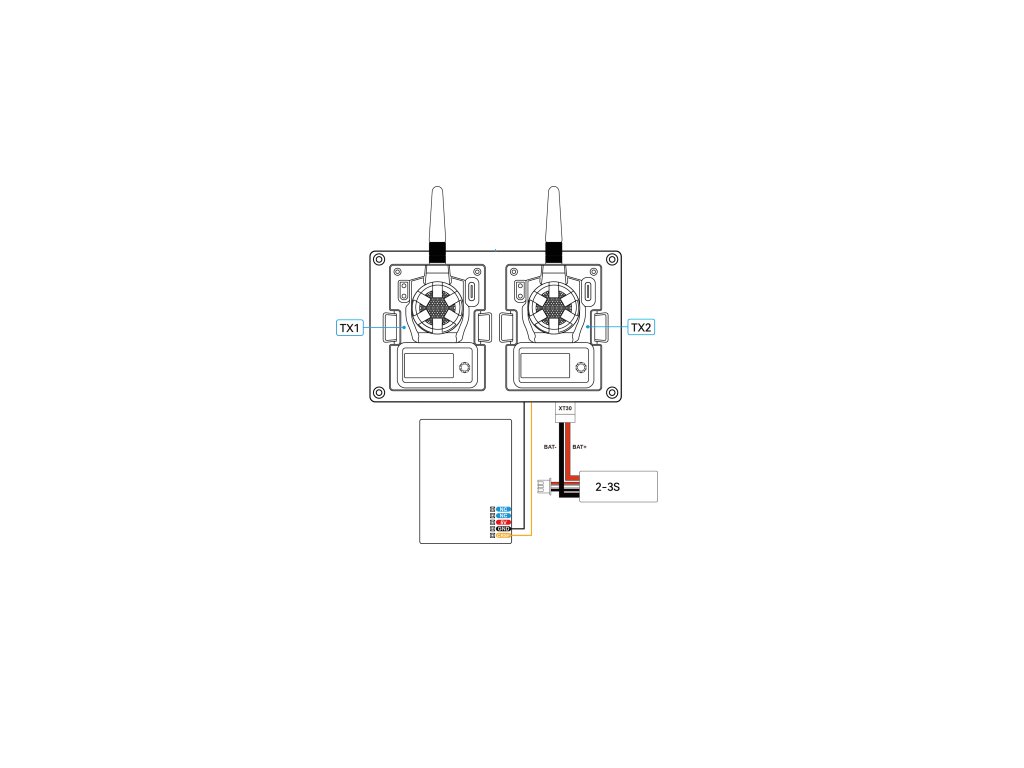

The Transmitter Diversity Adapter, Pilotix (2 pcs), is an advanced accessory designed to enhance the reliability and range of your drone's communication system. By allowing the installation of two different JR modules with varying frequencies (e.g., ELRS 2.4 GHz and TBS or ELRS 868 MHz and FrSky), this adapter provides a more robust control system, minimizing the risk of signal loss and interference.

Key Features:

• Dual Module Support: Compatible with two JR modules of different frequencies, making it adaptable to various receiver setups.
• Redundant Operation: Provides a backup communication channel if one frequency encounters issues, ensuring continued stable control.
• Simultaneous Signal Handling: Transmits control signals to both modules at the same time, allowing for real-time control and telemetry from multiple channels.
• Easy Integration: Designed for simple installation and compatibility with most remote controllers that use JR modules.

Usage Tips:

• External RF Mode: Ensure your remote controller is configured in this mode.
• Baud Rate Adjustment: Set the CRSF serial port baud rate on the remote control to 921K.
• Telemetry Rate: Configure both transmitters with the same telemetry rate, recommended at 1:64.
• Packet Rates: Keep the packet rates of both transmitters on the adapter under 250Hz.

Technical Specifications:

• Power Input Range: 6-35V
• Recommended Batteries: 2-3S

Package Includes:

• 2x Transmitter Diversity Adapter (JR modules not included)
