Sunnysky X4-series Combo

Opis szczegółowy produktu

Combo kit Sunnysky X4-series

The Combo Kit Sunnysky X4-series offers a propulsion solution for high-performance RC models. It includes the efficiency and powerful X4120 III-550KV motor, a reliable 100A ESC for optimal control, and two EOLO 15 x 8 propellers designed for smooth, stable flight. It is ideal for those seeking a balanced combination of thrust and durability.

Specifications:

-Motor -
Model / KV: X4120-Ⅲ / KV550
Stator/Rotor Poles: 12N14P
Internal resistance: 18.5mΩ
Motor size: φ49.7*70.0mm
Shaft diameter: 6.0mm
AWG: 20AWG 110mm
Motor weight (wire included): 293g
Rated operational voltage: 6S
No-load current: 1.9A/10V
Maximum continuous power: 2500W
Maximum continuous current: 100A/30s

-ESC-
Name: 100A HV OPTO
Continuous output current: 100A
Peak output current: 120A
CPU frequency: 170MHz
Power supply: 6-14S LiPo
Dimensions: 81x37x22.8mm
Weight: 144g
Power Wire Specifications: 12#175mm (red * 1/black* 1)
Motor Wire Specifications: 12#195mm (black * 3)
Software Upgrade Capability: support
Signal Wire Specifications: 60C 1250mm black and white 2pin special JR Connector
Data Wire (Telemetry) Specifications: 30C 400mm yellow 1 pin both ends JR Connector

-Propellers-
Brand name: EOLO/15*8
The type of Propeller: Integrated propeller
Product material: Plastic propeller
Storage temperature: -10℃~50℃
Storage Humidity: <85%
Propeller specification: 15*8
Dynamic balance value: 4000rpm ≤15mg
Single weight: 40g
MAX working speed: 10400rpm
Working temperature: -20℃~60℃

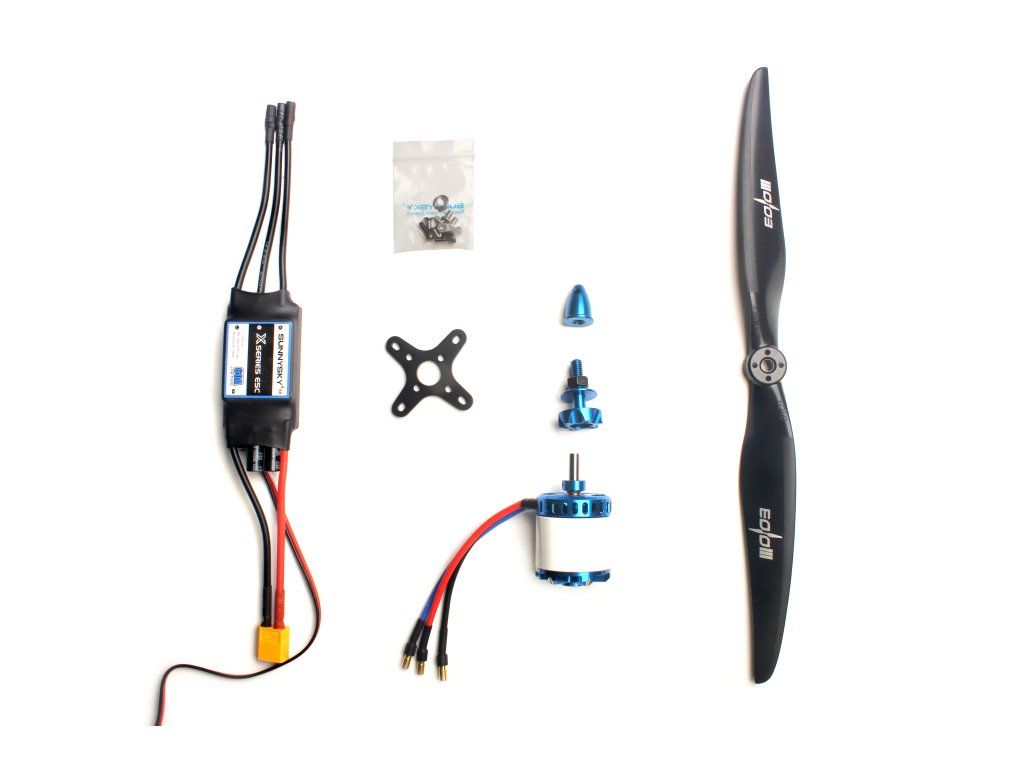

Package Includes:
1x Motor X4120 III-550KV
1x ESC 100A
2x Propeller EOLO 15 x 8
