Sunnysky X2-series Power Combo

Kod: 5352
Brak oceny
Marka: SunnySky
€86,02 €71,09 bez VAT
In stock (10 szt)
Możemy doręczyć do:
25.12.2024
Opcje dostawy

Informacje szczegółowe

Opis szczegółowy produktu

Sunnysky X2-series Power Combo

The Sunnysky X2-series Power Combo is designed for reliable and efficient RC model performance. This package features the X2820 III-KV570 motor, delivering smooth power and high thrust for various operating conditions. Paired with a 60A ESC, it provides stable and responsive power control. Additionally, the EOLO 12 x 6.5 propeller ensures balanced lift and precise maneuverability. This combo is ideal for those seeking a versatile and high-performance setup for their RC model projects.

Specifications:

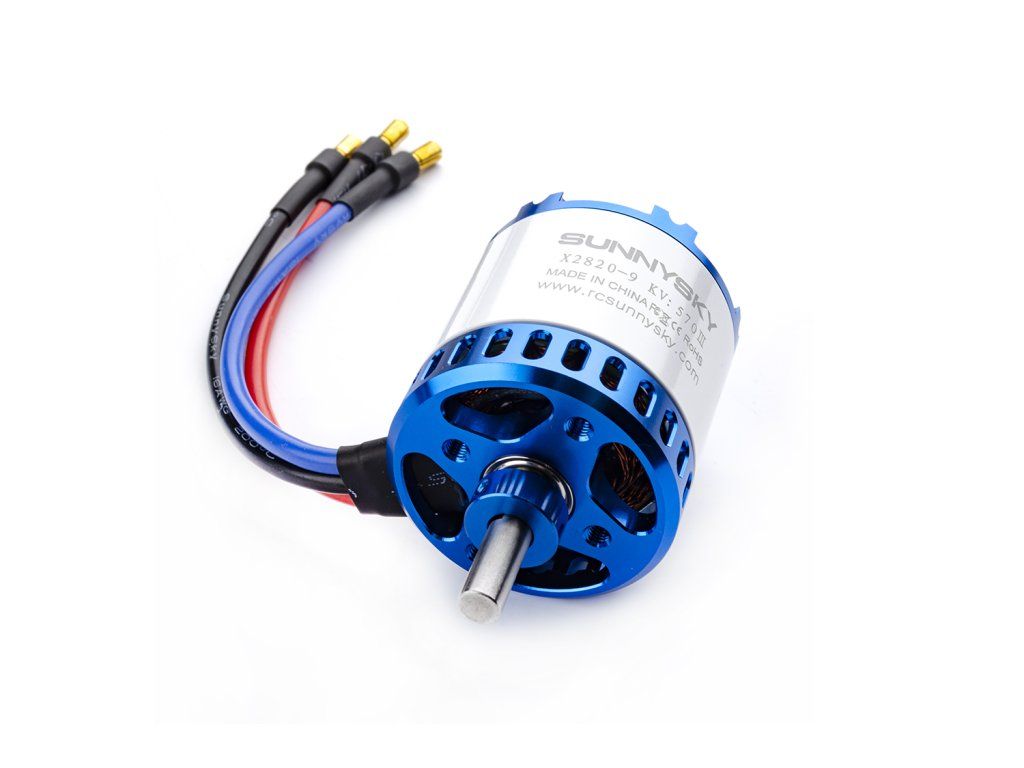

-Motor -
Motor Model / KV: X2820-III / KV570
Stator/Rotor Poles: 12N14P
Internal resistance: 53 mΩ
Motor size: Motor length: 61 mm
Shaft diameter: 5.0 mm
AWG: 100 mm
Motor weight (wire included): 146 g
Rated operational voltage: 22.2V (6S)
No-load current: 0.83A
Maximum continuous power: 1325W
Maximum continuous current: 53A
Maximum thrust: 3000-4000 g
ESC recommended use: 60A
Propeller size recommended use: 1260", 1370"
Motor mount: 19x25 mm; 44x44 mm
Sensorless: Yes
Configuration: Outrunner

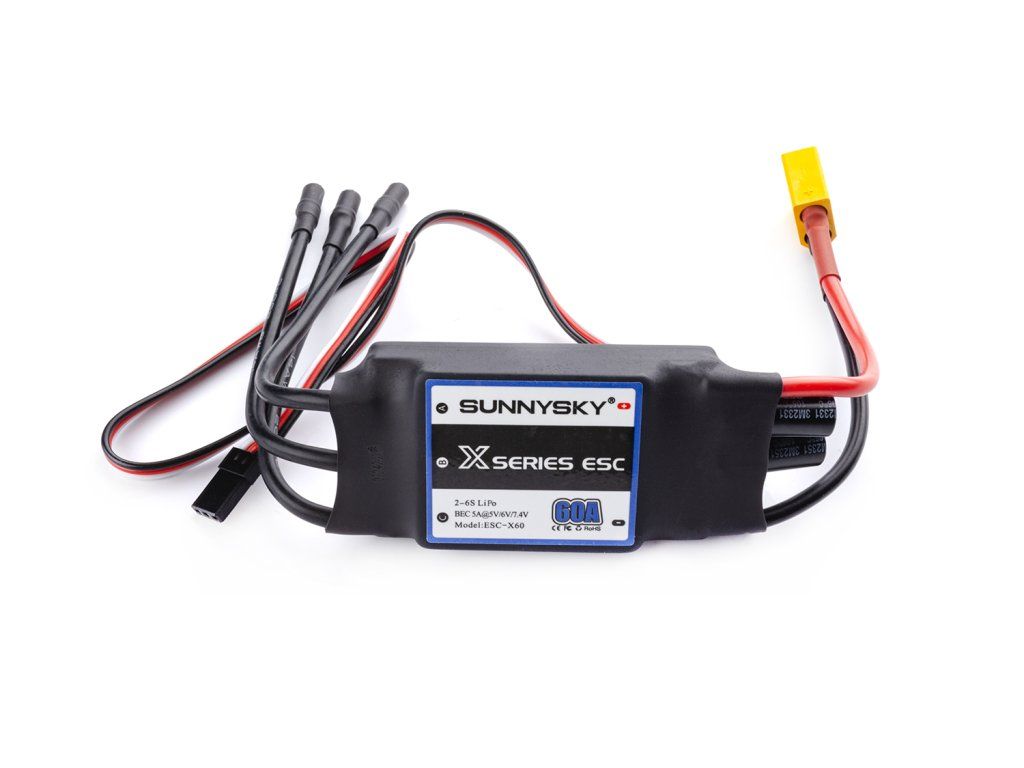

-ESC-
Continuous current: 60A
Burst current: 80A (≤ 10s)
Input voltage: 2-6S LiPo
BEC output: 5V/6V/7.4V @ 5A
Motor connector: 3.5mm banana plug
Battery connector: XT60
Dimensions: 82×36×18mm (wires excluding)
Weight: 94g

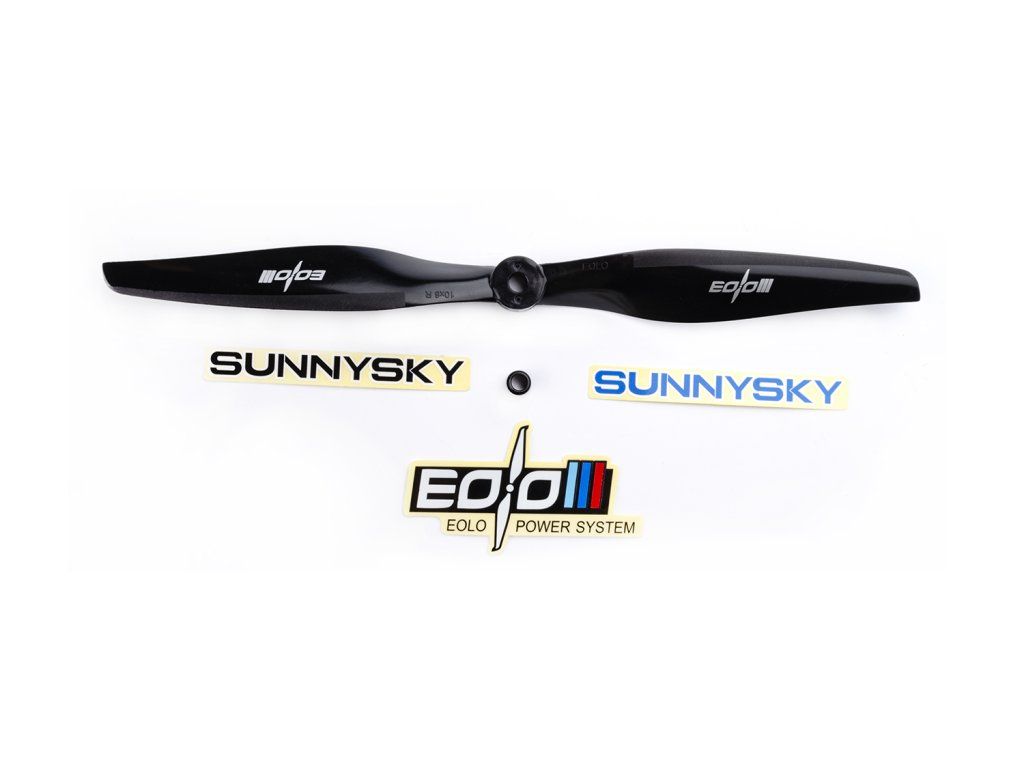

-Propellers-
Brand name: EOLO/12*6.5
The type of Propeller: Integrated propeller
Product material: Plastic propeller
Storage temperature: -10℃ - 50℃
Storage Humidity: <85%
Propeller specification: 12x6.5
Dynamic balance value: 4000rpm ≤15mg
Single weight: 21g
MAX working speed: 11370rpm
Working temperature: -20℃~60℃

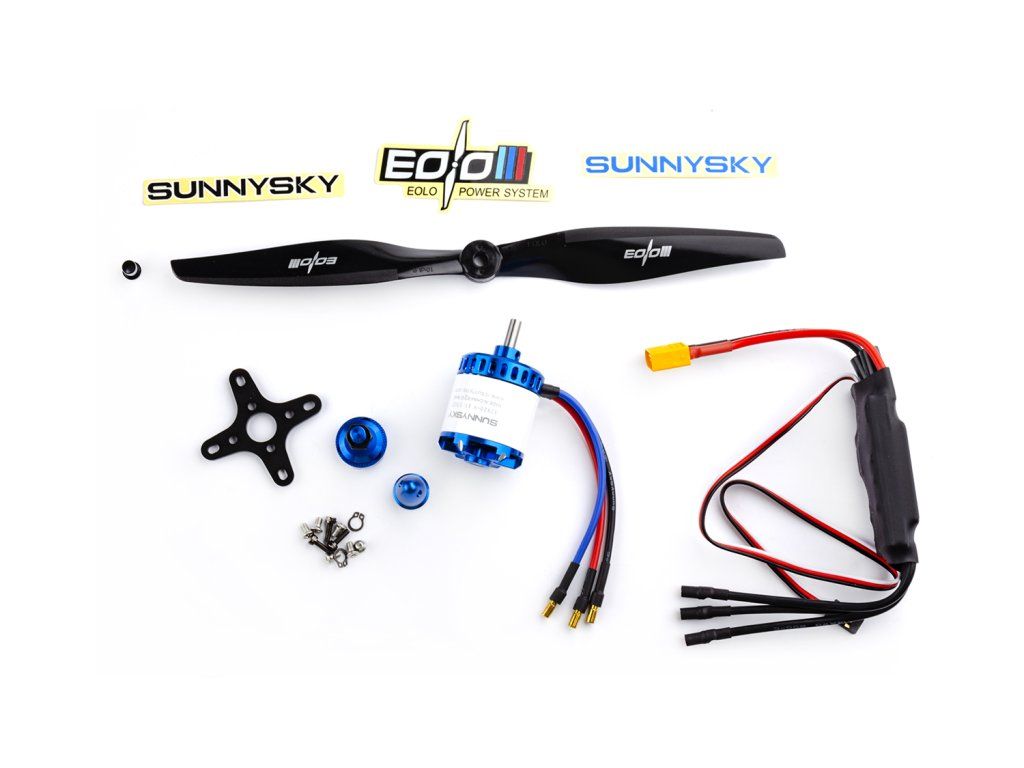

Package Includes:
1x Motor X2820 III-KV570
1x ESC 60A
1x Propeller EOLO 12 x 6.5

Parametry dodatkowe

Kategoria: Fixed Wing Motors
Color: Black
Continuous Current: 60A
ESC Type: Single
Material: PC
Motor KV: 570KV
Motor Size: 2820
Mounting Size: 82×36×18mm
Number of blades: 2
Power Supply: 6S
Shaft Diameter: 5mm
Size: 12 inch
Type: Brushless
