Sunnysky X2-series Combo 3

Opis szczegółowy produktu

Sunnysky X2-series Combo 3

The Sunnysky X2-series Combo 3 offers an exceptional performance package for RC models. This kit includes the X2820 III-KV860 motor, delivering powerful thrust and reliability with its 12N14P configuration. Paired with a 60A ESC, it ensures smooth and efficient power management. Completing the set are two EOLO 13 x 7 propellers, designed to enhance lift and stability for optimal flying conditions.

Specifications:

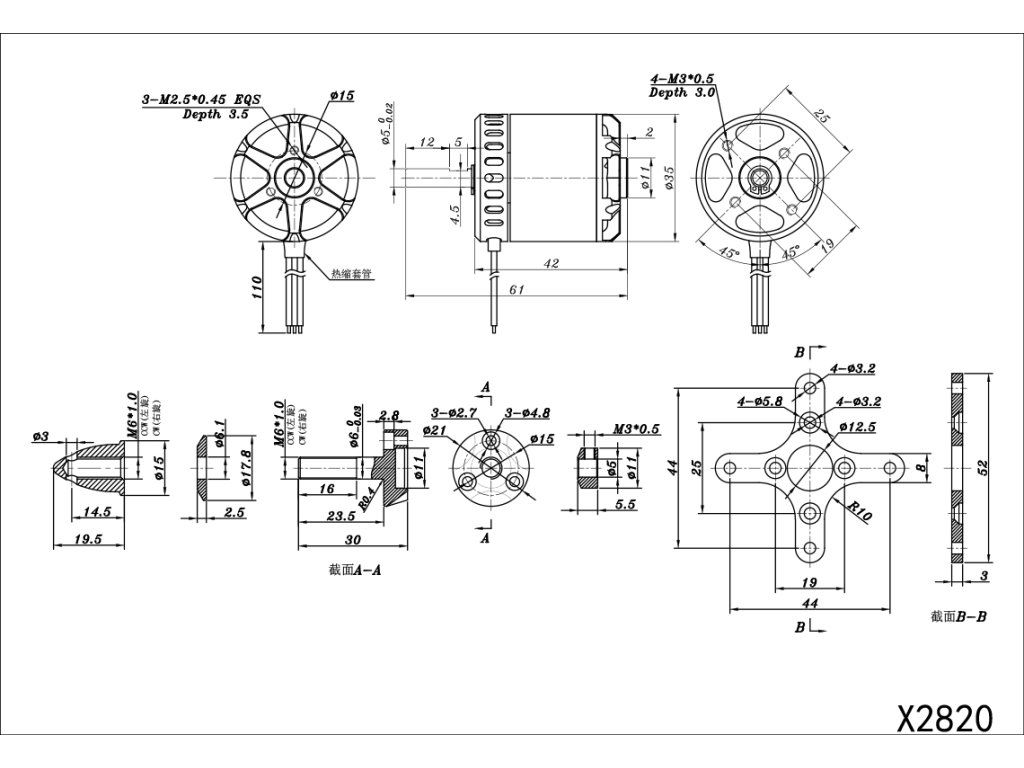

-Motor -
Model / KV: X2820-III / KV860
Stator/Rotor Poles: 12N14P
Internal resistance: 25.8 mΩ
Motor size: Motor length: 42 mm
Shaft diameter: 5.0 mm
AWG: 20AWG 110 mm
Motor weight (wire included): 143 g
Rated operational voltage: 3-4S
No-load current: 1.3A/10V
Maximum continuous power: 960W
Maximum continuous current: 65A/30s
ESC recommended use: 50-60A
Propeller size recommended use: EOLO 12x6, EOLO 13x7, APC 13x6.5, APC 12x6, APC 12x8

-ESC-
Continuous current: 60A
Burst current: 80A (≤ 10s)
Input voltage: 2-6S LiPo
BEC output: 5V/6V/7.4V @ 5A
Motor connector: 3.5mm banana plug
Battery connector: XT60
Dimensions: 82×36×18mm (wires excluding)
Weight: 94g

-Propellers-
Brand name: EOLO/13*7
The type of Propeller: Integrated propeller
Product material: Plastic propeller
Storage temperature: -10℃ - 50℃
Storage Humidity: <85%
Propeller specification: 13x7 CW
Dynamic balance value: 4000rpm ≤15mg
Single weight: 26g
MAX working speed: 11370rpm
Working temperature: -20℃~60℃

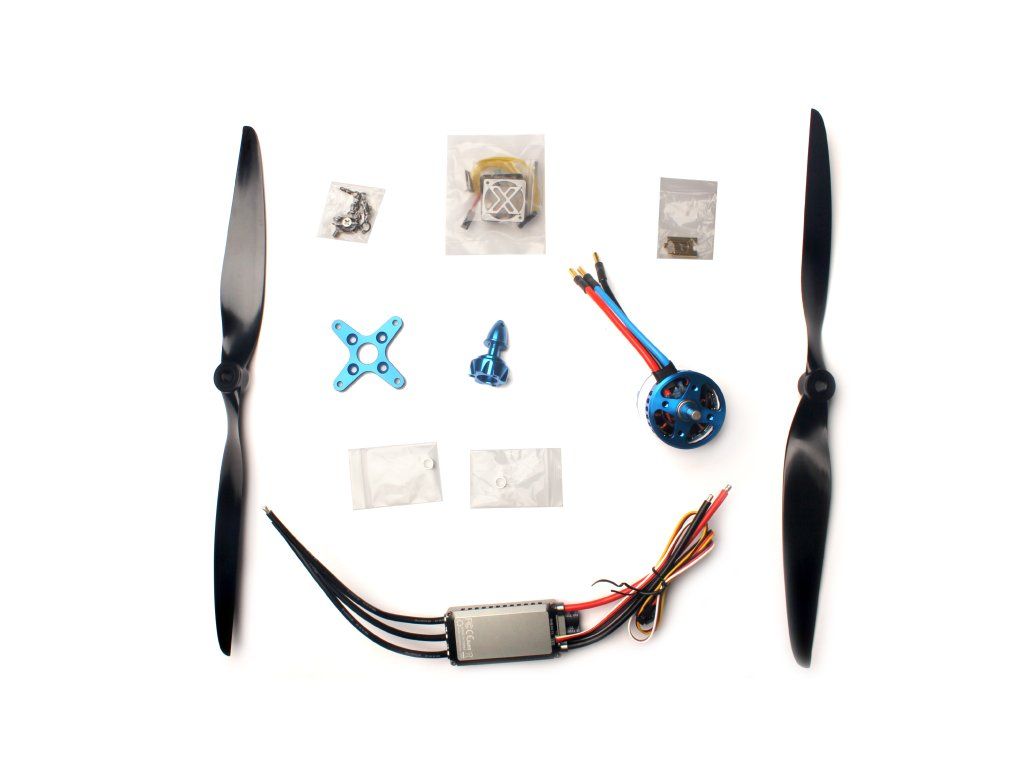

Package Includes:
1x Motor X2820 III-KV860
1x ESC 60A
2x Propeller EOLO 13 x 7
