Stack Pilotix F460 (F405 V2 FC + 60A ESC)

Opis szczegółowy produktu

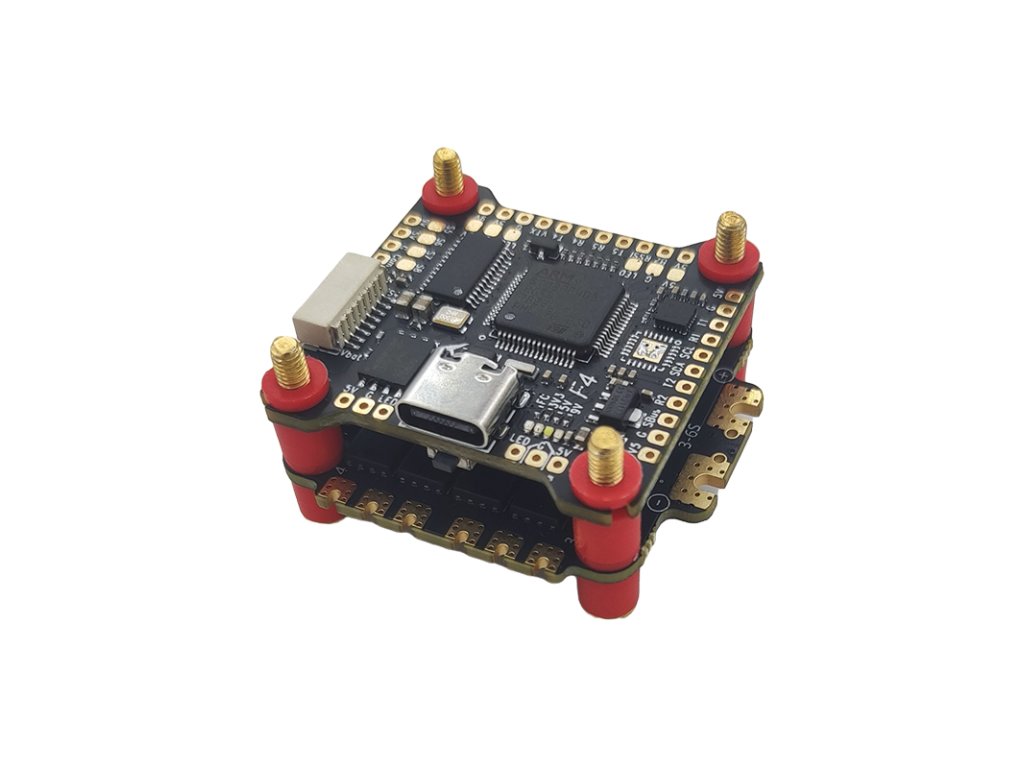

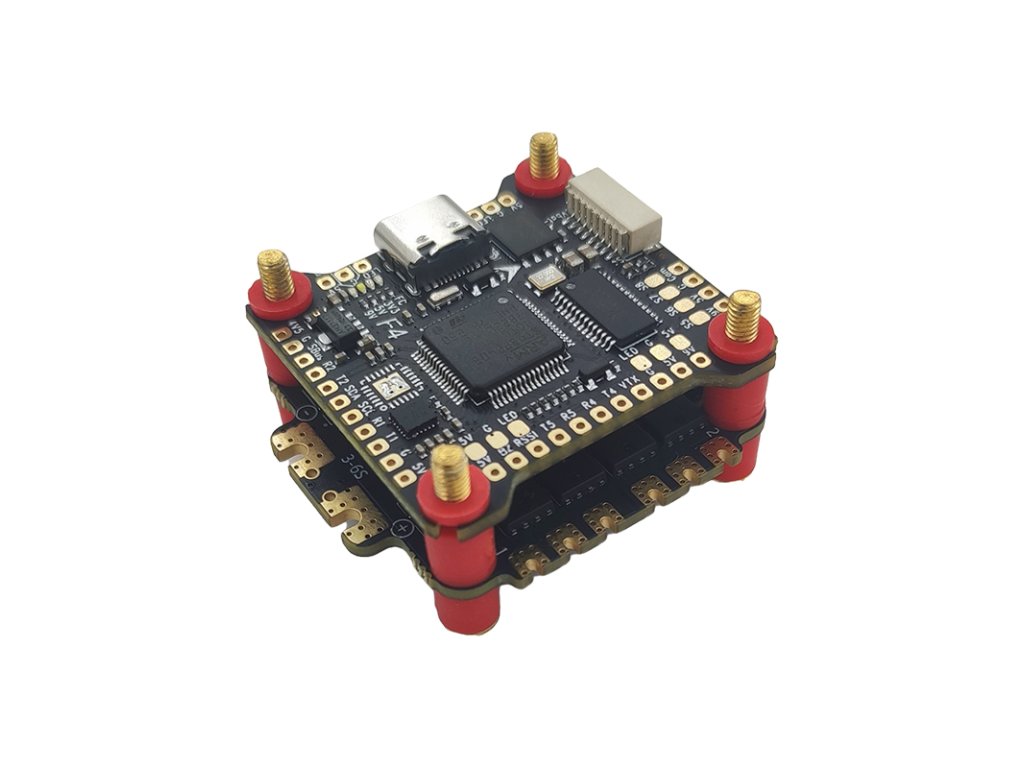

Stack Pilotix F460 (F405 V2 FC + 60A ESC)

The Pilotix F460 Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high-performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides ample power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.

Specifications

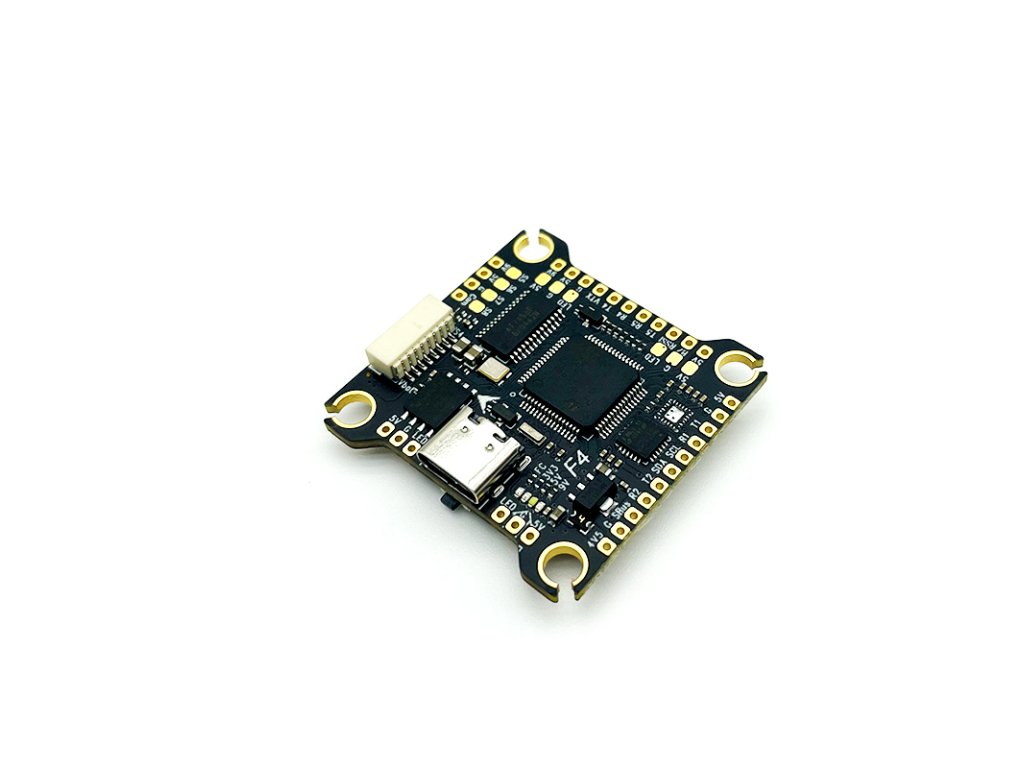

FC Specifications:
CPU: STM32F405RGT6
Gyro: MPU6500
Baro: BMP280/DPS310
OSD: Support
BEC Output: 5V/2.5A  9V/2A
BlackBox: 16MB
Uart: 5ch
Light strip buzzer: support
Receiver Protocol:  ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
USB Connector: Type-C
DJl/Vista Digital Sky End: support
Weight: 8.2g
Mounting Hole: 30.5X30.5mm,M3
Size: 36X36 mm
FC Firmware: AOCODARCF405V2MPU6500

ESC Specifications:
Continuous Current: 60A X4
Burst Current: 70A X4
Power Supply: 3-6S  Lipo
Default protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC Telemetry: No output
Current sensor: support
ESC Firmware: Bluejay H-H50
Weight: 10.4g
Size: 40x 40.7mm
Mounting Hole: M3 30.5×30.5mm

Package Includes:
1x F405 V2
1x 3060S
2x SH1.0 8P Cable
1x Electrolytic capacitor 1000uF 35V
1x XT60 AWG12 Power Cable 130MM
8x M3*8  Shock absorbing ball
8x M3 Nylon Nut
4x M3*25mm Metal Screw
