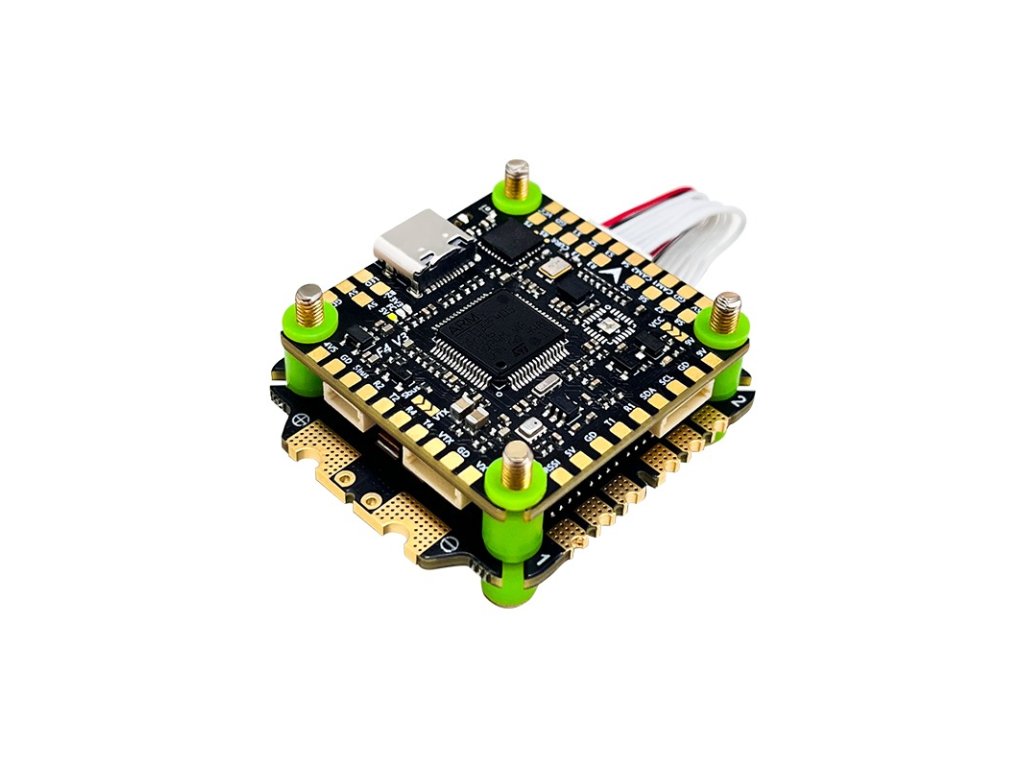

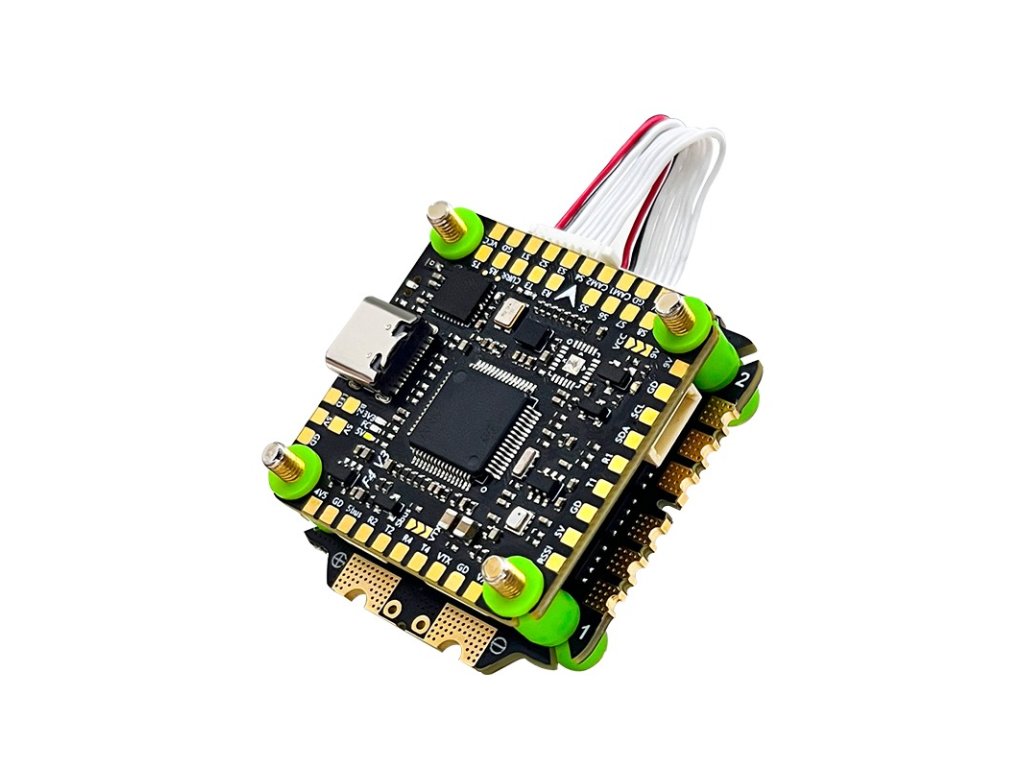

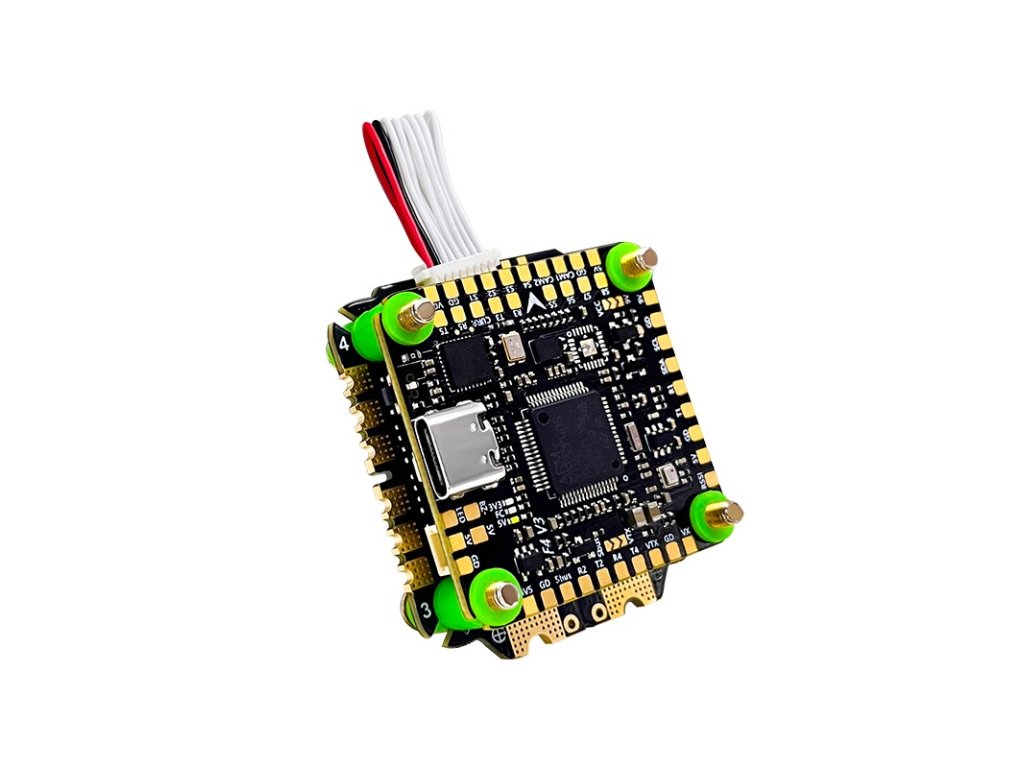

Stack Pilotix F405 V3 ICM42688 BLS 75A

Opis szczegółowy produktu

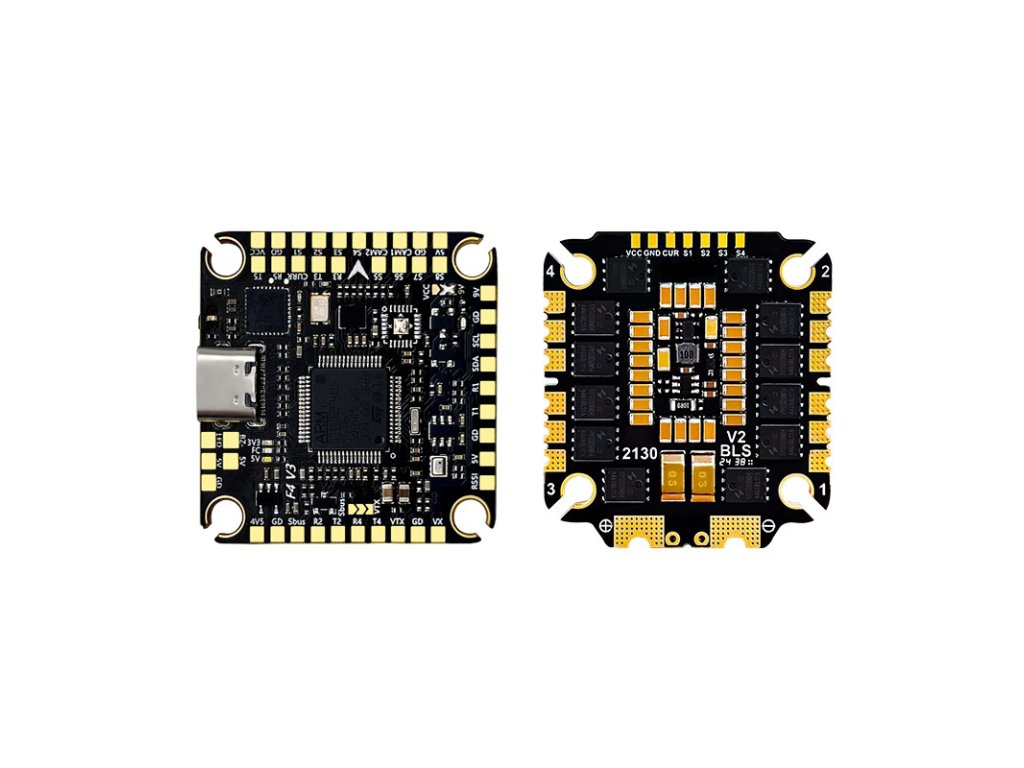

F405 V3 Flight Controller

The F405 V3 Flight Controller is a high-performance control board designed for drone enthusiasts seeking advanced functionality and seamless integration. Powered by the STM32F405RGT6 master chip, this controller delivers precise control and stability.

• Master Chip: STM32F405RGT6
• Gyroscope: ICM42688
• Barometer: SPL06
• On-Screen Display (OSD): Supported
• Black Box: 16MB onboard, or microSD support for expanded logging
• Motor Output Channels: 8CH
• LED Light Strip: Supported
• Buzzer: Supported
• Receiver Protocols: ELRS, CRSF, SBUS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX
• Universal Serial Ports: 5-way optional
• Output Power Supply: 5V/2.5A, 9V/3A
• USB Connector: Type-C
• DJI/Vista Digital Video Transmission: Supported
• Camera Switching: Supported
• SBUS and VTX Jumper Switching: Supported
• 9V and VCC Jumper Switching: Supported
• Weight: 9.6g

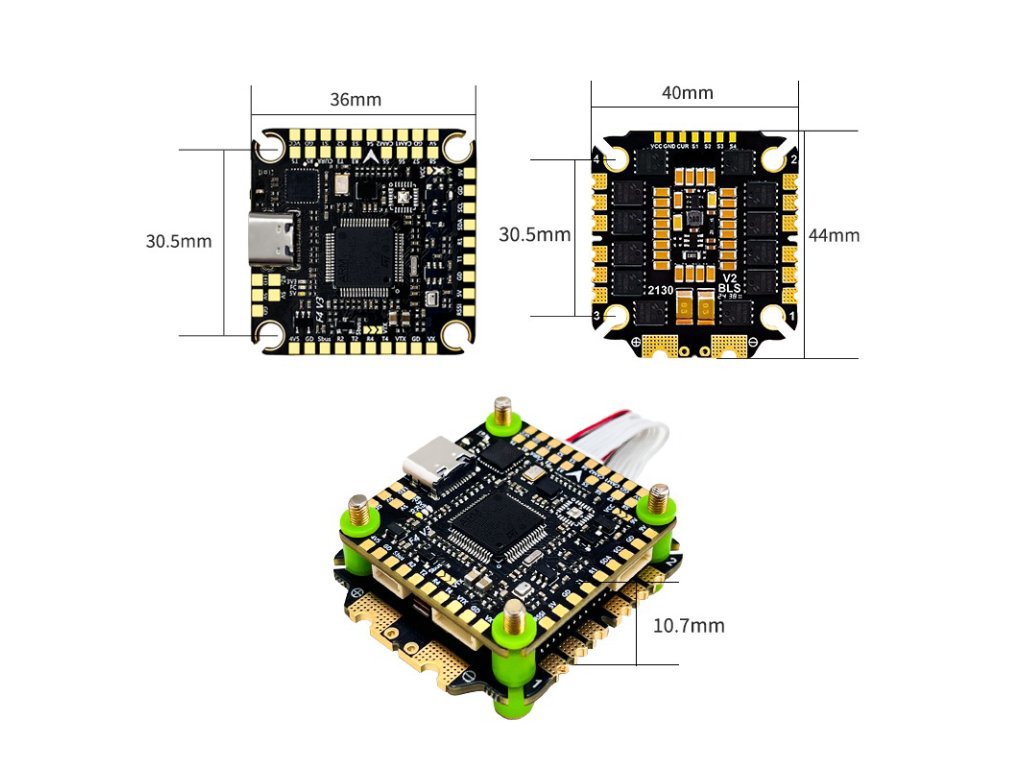

• Dimensions: 36mm x 36mm
• Mounting Hole Spacing: 30.5mm x 30.5mm
• Firmware Name: F405V3/F405V3SD

3075S Electronic Speed Controller (ESC)

The 3075S ESC is engineered for high power handling and reliable performance, perfect for demanding drone setups. It supports a wide range of protocols and is equipped with telemetry and an onboard ammeter for enhanced monitoring.

• Continuous Max Current: 75A x 4
• Instant Max Current: 85A x 4
• Input Voltage: 3-6S LiPo
• ESC Protocols: 150/300/600/1200 & MultiShot, OneShot, Proshot, PWM, etc.
• MCU: EFM8BB51F16G
• Onboard Ammeter: Supported
• ESC Telemetry: Supported
• Firmware: BluejayD X 30 24 v0.21.1-RC1.hex
• Weight: 15.1g
• Dimensions: 40mm x 44mm
• Mounting Hole Spacing: M3, 30.5mm x 30.5mm
