Stack Partizan F722 60A

Opis szczegółowy produktu

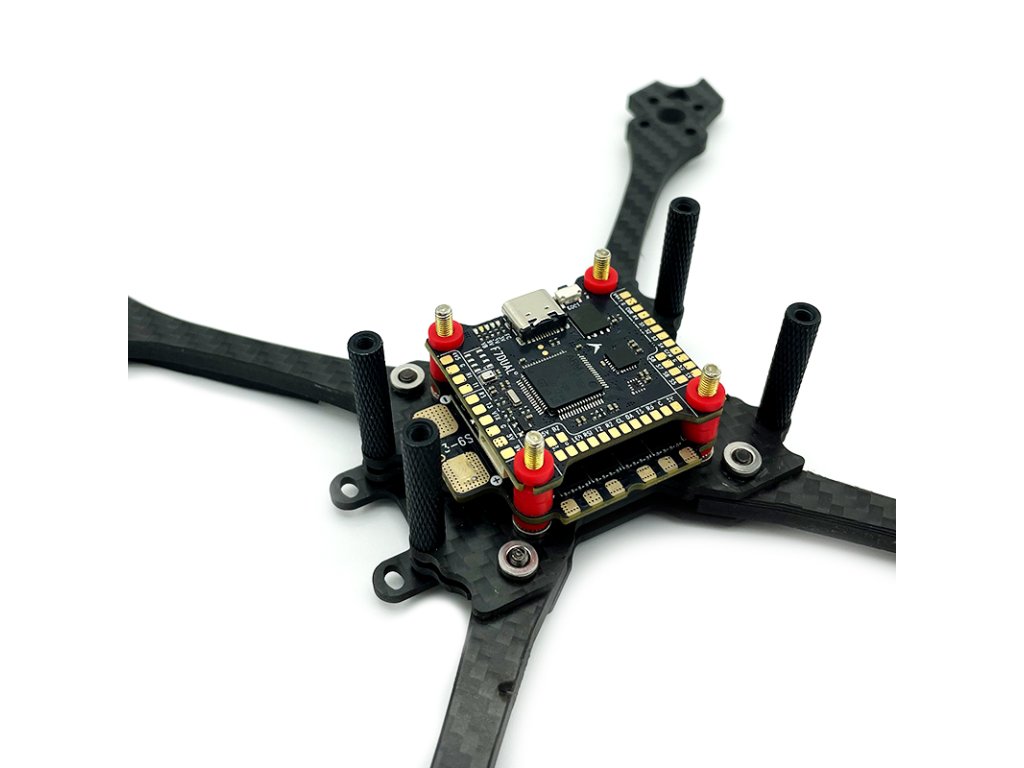

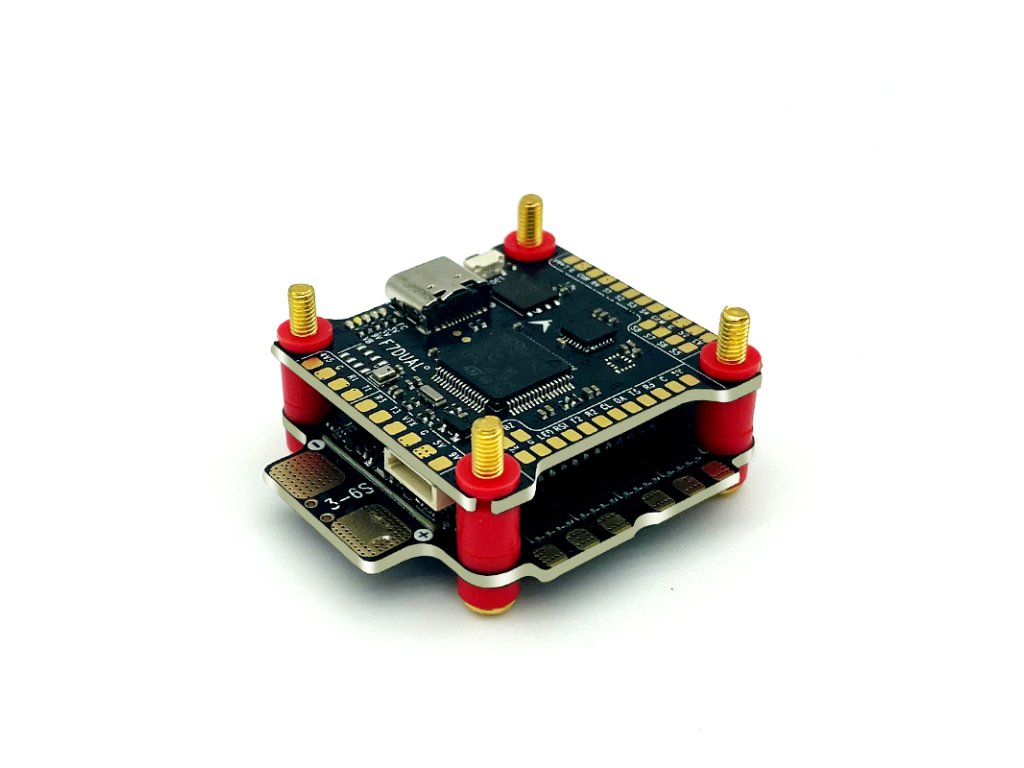

Stack Partizan F722 60A

The Partizan F722 60A Stack combines a high-performance flight controller and electronic speed controller (ESC) for precise and stable drone control. With its powerful F722 processor, this stack offers rapid response times, ensuring smooth flight maneuvers and reliable performance. Featuring a 60A ESC rating, it provides ample power for a wide range of motor and propeller configurations.

Specifications:

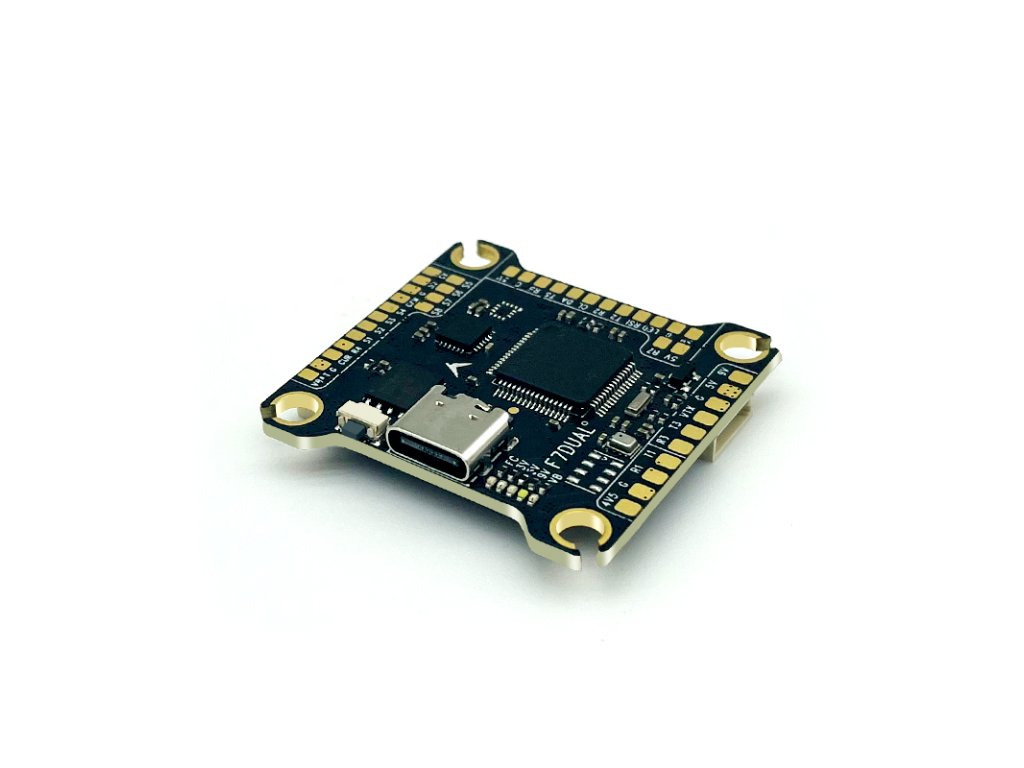

FC Specifications

CPU: STM32F22RET6
Gyro: MPU6000
Baro: BMP280,DPS310
OSD: Support
BEG Output: 5V/2.5A 9V/3A
BlackBox: 16MB
Uart: 5ch
BEC: 5V/2.5A,9V/3A
USB Connector: Type-C
Weight: 8.8g
Mounting Hole: 30.5X30.5mm,M3
Size: 37X37mm
FC Firmware: AOCODAF7DUAL

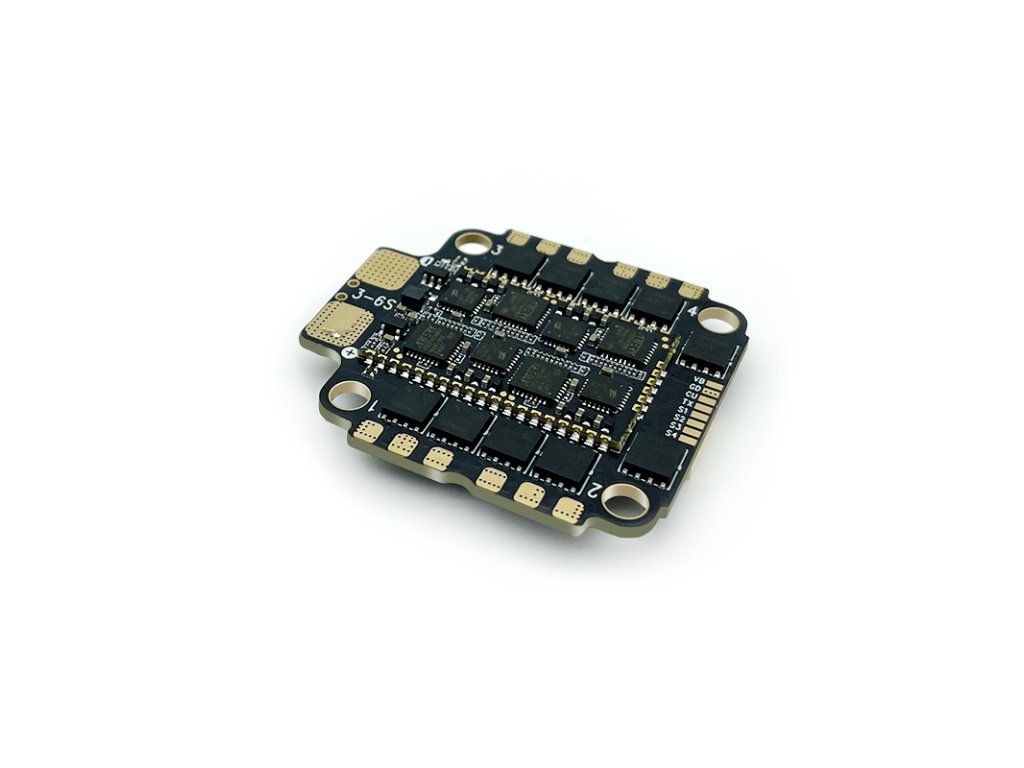

ESC Specifications

Power Supply: 3-6S Lipo
MCU: G071
Continuous Current: 60A X4
Burst Current: 70A X4
Current sensor: Support
Current scale: 125 (recommend)
ESC Telemetry: Support
Weight: 13.8g
Mounting Hole: 30.5X30.5mm, M3
Size: 41X44.5mm
Default protocol: 150/300/600/1200 & MultiShot/0neShot/Proshot/PWM etc.
ESe Firmware: BL32 41N1 60A
Model: 3060ESC

Packing List:
1x F7DUAL
1x 3060 ESC
2x SH1.0 8P Cable
1x Electrolytic capacitor 1000uF 35V
1x XT60 AWG12 Power Cable 13CM
8x M3*8  Shock absorbing ball
8x M3 Nylon Nut
4x M3*25mm Metal Screw
