Stack iFlight BLITZ H7 Pro Combo Set（E80 Pro 4-IN-1 ECS)

Opis szczegółowy produktu

Stack iFlight BLITZ H7 Pro Combo Set（E80 Pro 4-IN-1 ECS)

Introducing the BLITZ H7 Pro Flight Controller - a powerhouse with a dual-sided shielding design that not only protects against interference but also safeguards the controller from debris, ensuring seamless operation. The detachable shielding allows for easy TF card replacement. Upgraded with a robust STM32H743 MCU, it supports input voltages up to 12S and is compatible with ArduPilot firmware, offering customers endless possibilities. Upgrade to the BLITZ H7 Pro for unparalleled performance.

FC Features:

• Features 35x35mm mounting holes, providing a larger size for optimized flight controller PCB wiring.
• GH1.25 connector design enhances terminal connection reliability and ensures easy assembly.
• Utilizes an SD card for the flight controller's black box, offering increased capacity to record more flight data.
• Dual-sided shielding design offers interference protection and safeguards the flight controller from foreign object malfunctions.
• Removable expansion soldering pad board enables advanced users to easily connect additional peripherals.
• Incorporates a high-voltage DC-DC buck converter with a chip voltage endurance of up to 100V, delivering stable and reliable voltage for the flight controller and video transmission.
• Supports Betaflight and Ardupilot firmware.

FC Specifications:

• Product Name: BLITZ H7 Pro Flight Controller
• MCU: STM32H743
• Gyro: ICM42688
• Baro: DPS310
• OSD: AT7456E
• Input Voltage: 14.8V-50.4V (4S-12S LIPO)
• Blackbox: SD Card
• UARTS: 7
• Smartaudio / IRC Tramp VTX protocol supported
• LED Controller: Yes
• Beeper Pad: Yes
• Mounting Pattern: 35x35mm/φ4
• Dimensions: 42x42x11.3mm
• Weight: 20g
• BEC: 5V 3A, 12V 2.5A
• BF Firmware Target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
• Ardupilot Firmware: BlitzH743Pro

FC Wiring Suggestion:

• UART1: for VTX HD/Analog
• UART2: for Receiver
• UART4: for GPS
• UART5: for ESC Telemetry
• 8×Dshot/PWM outputs
• 2×I2C for GPS Mag

ESC Description: The MOSFET used in the BLITZ E80 is the PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. The BEC power supply uses a TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor, with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!

ESC Features:

• Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection.
• G071 MCU, 48MHz maximum clock speed.
• TDK MLCC Low ESR ceramic capacitors.
• Top-grade PSMN1R0-40YLD MOSFET.
• 8 layers double-sided PCB board.

ESC Specifications:

• Product Name: BLITZ E80 4-IN-1 ESC
• Input Voltage: 2-8S
• Max. Continuous Current: 80A
• Max. Burst Current: 100A
• MCU: G071
• BEC: No
• Firmware: BLHeli32
• Current Sensor: Yes
• Telemetry: Supported
• Target: IFLIGHT_BLITZ_G2
• Mounting Dimensions: 35x35mm/Φ3mm
• Dimensions: 35x42mm
• Weight: 65g(±10)
• Supported Protocols: DShot DShot150/300/600/MultiShot/OneShot, etc.

Packing List:

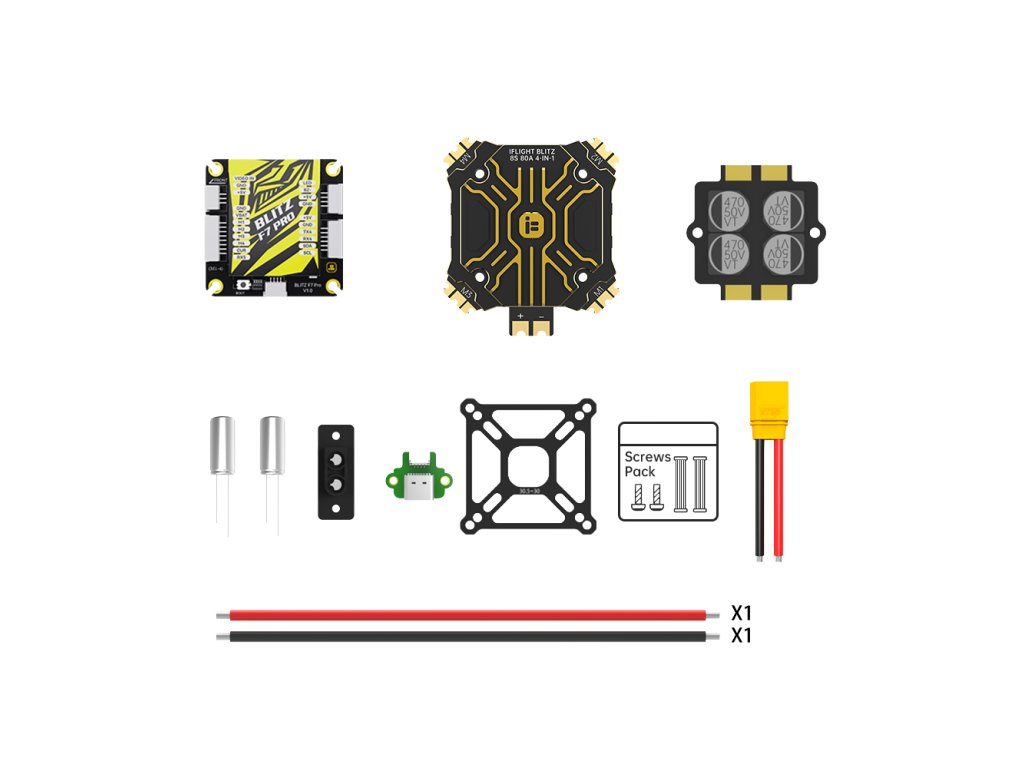

• 1 x BLITZ H7 Pro Flight Controller
• 1 x 50V 470UF Capacitor Plate
• 2 x 50V 1000UF Capacitors
• 1 x Wiring Set
• 1 x USB Adapter Board
