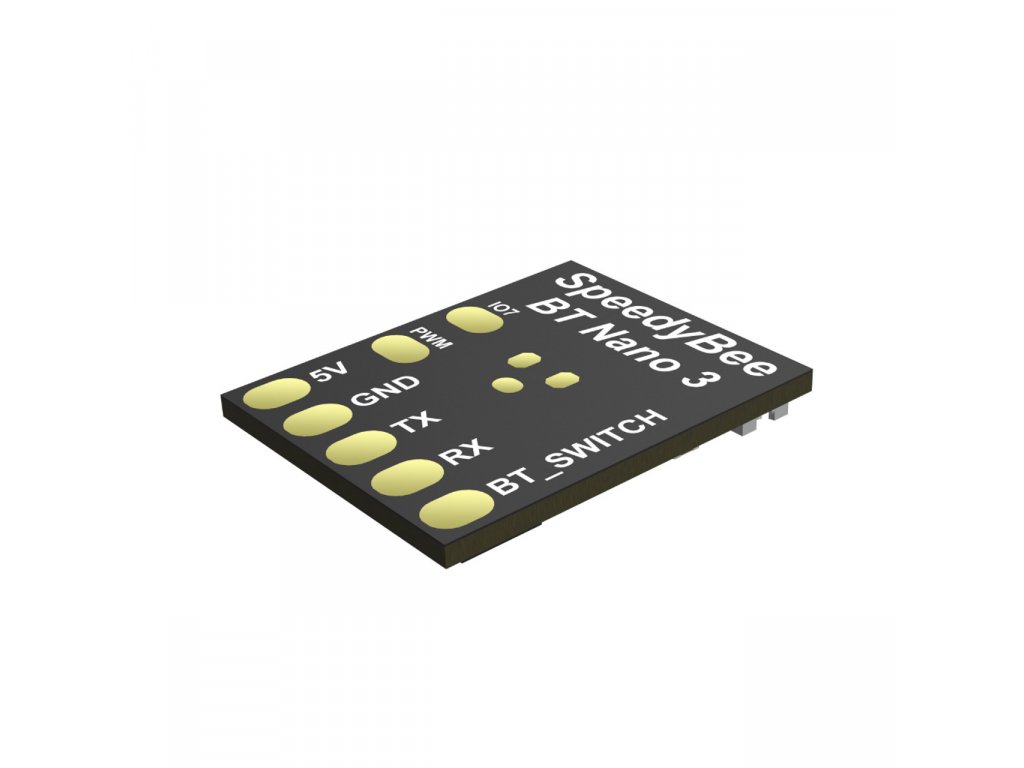

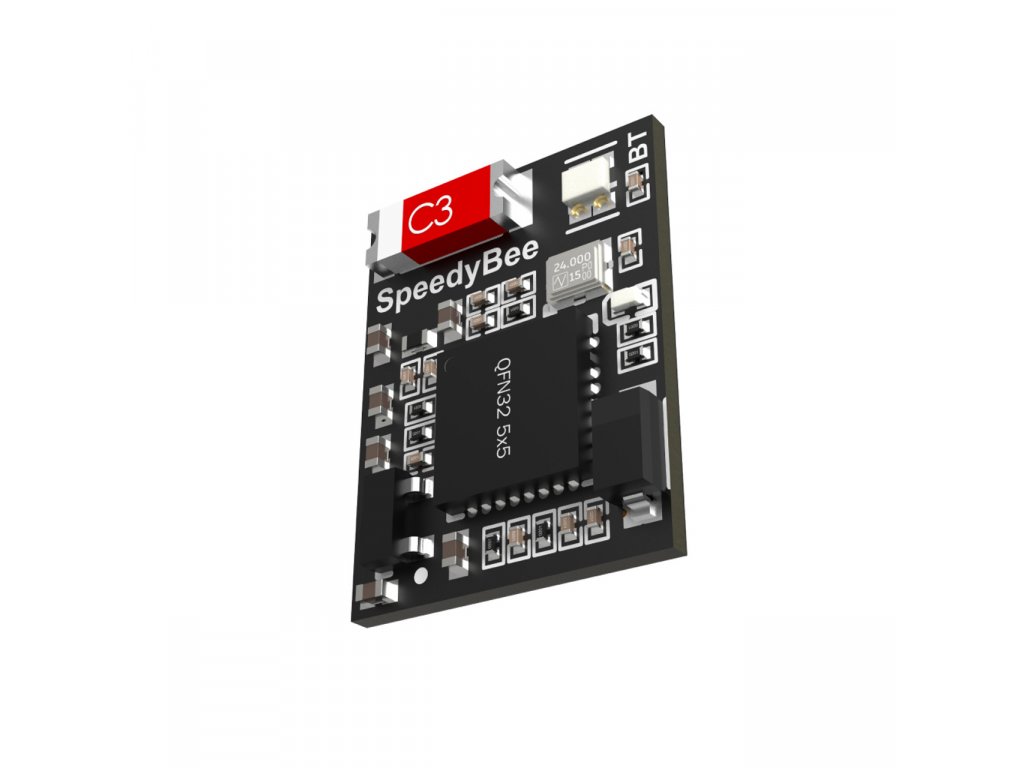

SpeedyBee BT Nano 3 Wireless FC Configuration

The SpeedyBee BT Nano 3 is a wireless Bluetooth module that allows you to easily control your flight controller settings through the SpeedyBee App. The module automatically determines the status of the controller "armed/disarmed" to turn off Bluetooth during the flight to prevent various interference and interference with the signal of the equipment.

-Fully wireless flight controller setup
-Bluetooth auto-off to avoid interference
-Password protection
-Compact Nano size, lightweight, and easy to install

Specifications:
Product Name: SpeedyBee BT Nano 3
Operating Voltage: 5V
Working Current: MAX-87mA(5V)
Bluetooth Low Energy: Supports
WiFi: Supports. It will be turned on automatically only when upgrading the firmware of the module itself.
Communication Port: UART
Baudrate: 115200
Bluetooth Automatically Turns Off: Enabled by default, the module will automatically detect the armed/ disarmed status of the FC. During the flight of the drone, the Bluetooth function will be disabled to prevent other wireless devices from being interfered by the Bluetooth signal.
BT Switch Pad: The Bluetooth function will be disabled when it receives a Low signal. In the BT Switch section of the manual, you can learn about the detailed instructions
Power Indicator: Solid Red - Indicates that the module is powered.
Working Status Indicator:
- Flashing white: Indicates that the UART communication with FC is abnormal, please check whether the wiring and settings are correct.
- Solid White: Indicates that the communication with FC is normal, you can use the App for wireless parameter adjustment
- Flashing green: Indicates that the wireless signal is being connected
- Solid Green: Indicates that the connection with the App has been successful

Size: 14x11x0.8mm
Weight: 5g
