Stack RushFPV RUSH BLADE F722 mini Stack + mini 60A racing

Opis szczegółowy produktu

RUSH BLADE F722 mini Stack + mini 60A racing

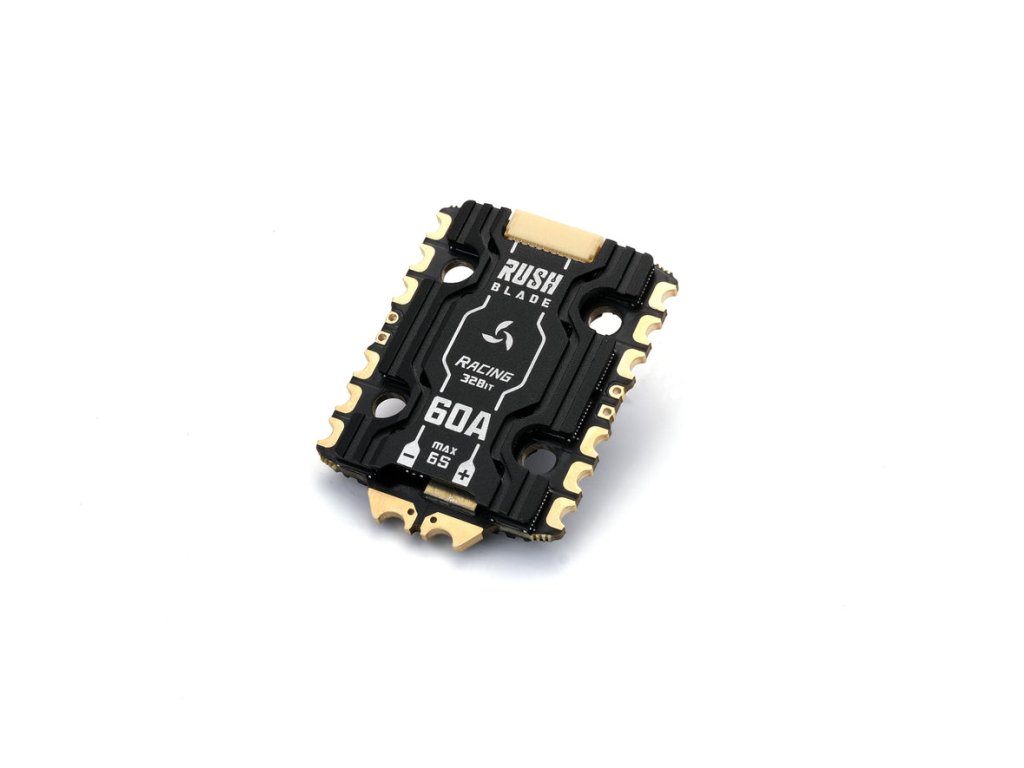

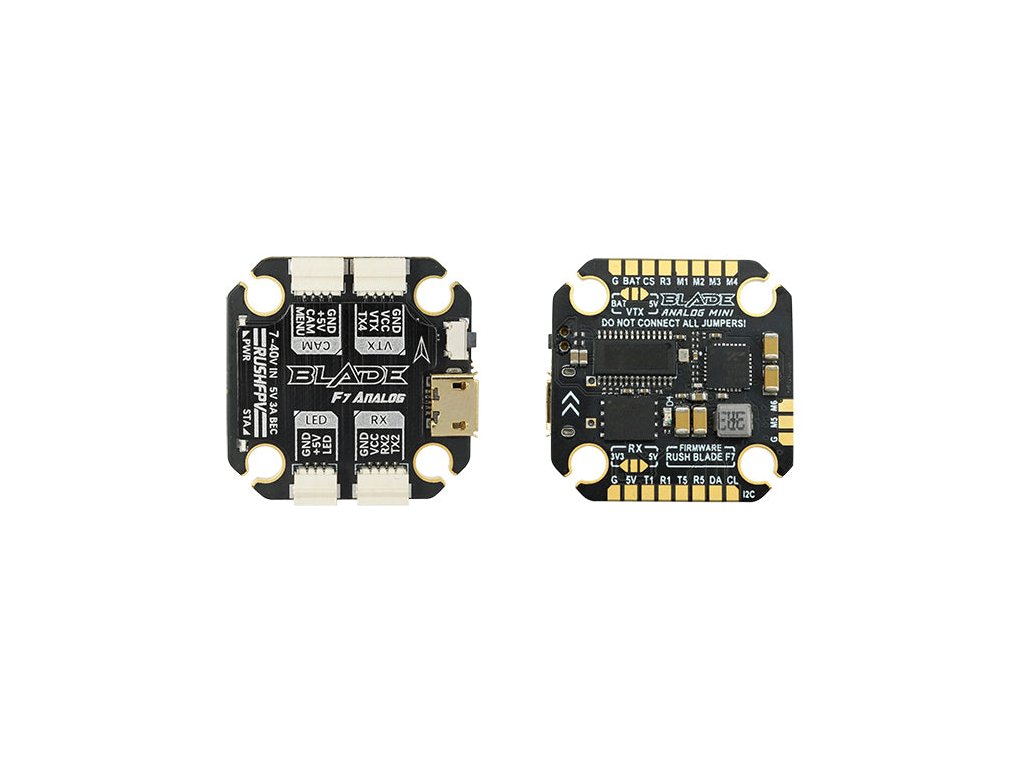

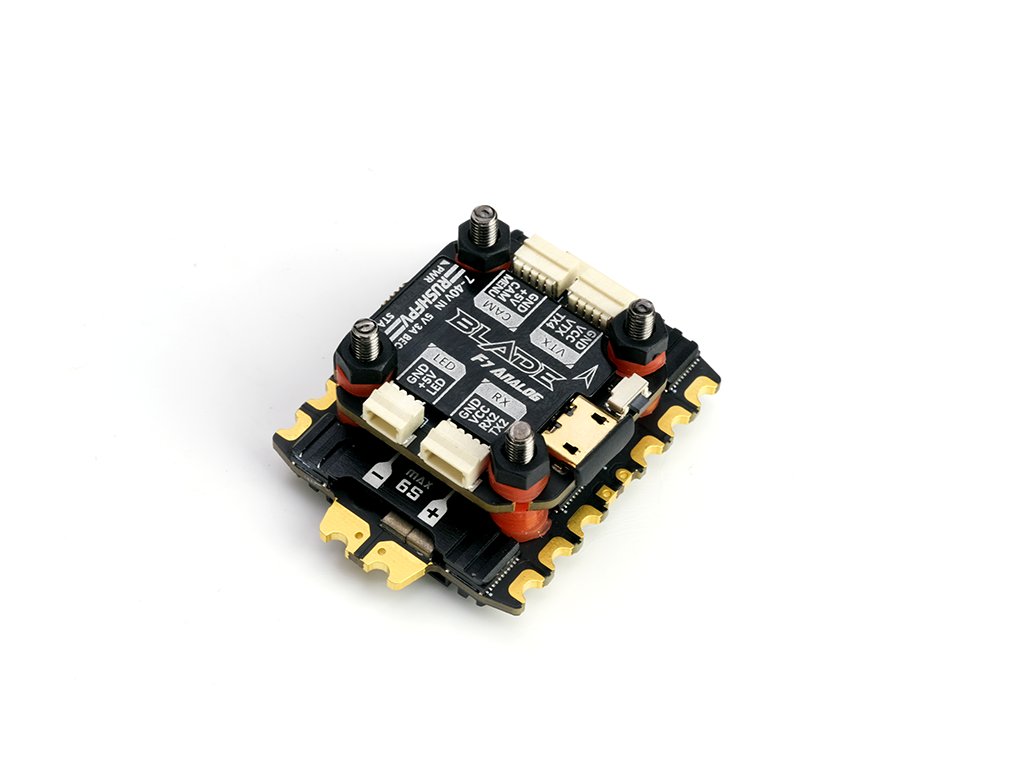

The RUSH BLADE F722 MINI STACK with MINI 60A RACING V1.2 3-6S BLHELI_32 4-IN-1 ESC for the analog system.

Features:
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- Using MPU600 with integrated accelerometer and gyroscope, stable and reliable.
- Built-in analog video OSD, 16M black box, 5 UART ports, 6PWM output ports, 2 ADC ports, 1 I2C port, 1 camera control port.
- Integrated 36V input power supply, up to 6Slipo battery power supply, 5V 5A output.
- Modular cable design, with a reliable locking structure, can be installed quickly while retaining full-featured pads on the back, providing more expansion support.
- Optimized for stack installation, the single-sided component placement method makes the thickness thinner, and the bottom Is covered with complete copper to resist ESC interference.

Specifications:
MCU: STM32 F722 RET6
GYRO: MPU6000
BEC input: 7-36V 3-6S LiPo
BEC output: 5V 2A
OSD: CVBS PAL/NTSC
Blackbox: 16mb SPI Flash
Target: RUSH_BLADE_F7
Port: 6xPWM 5xUART 1xI2C
ADC: Battery voltage/current
LED: Support WS2812 LED strip
Navi: Supports compass/GPS
Mounting holes: 20x20mm
Size: 29x29x6.8mm
Weight: 5g(without cable)
