Motors Emax RS2205 + 30A BLHeli lightning ESC Combo (2300KV)

Opis szczegółowy produktu

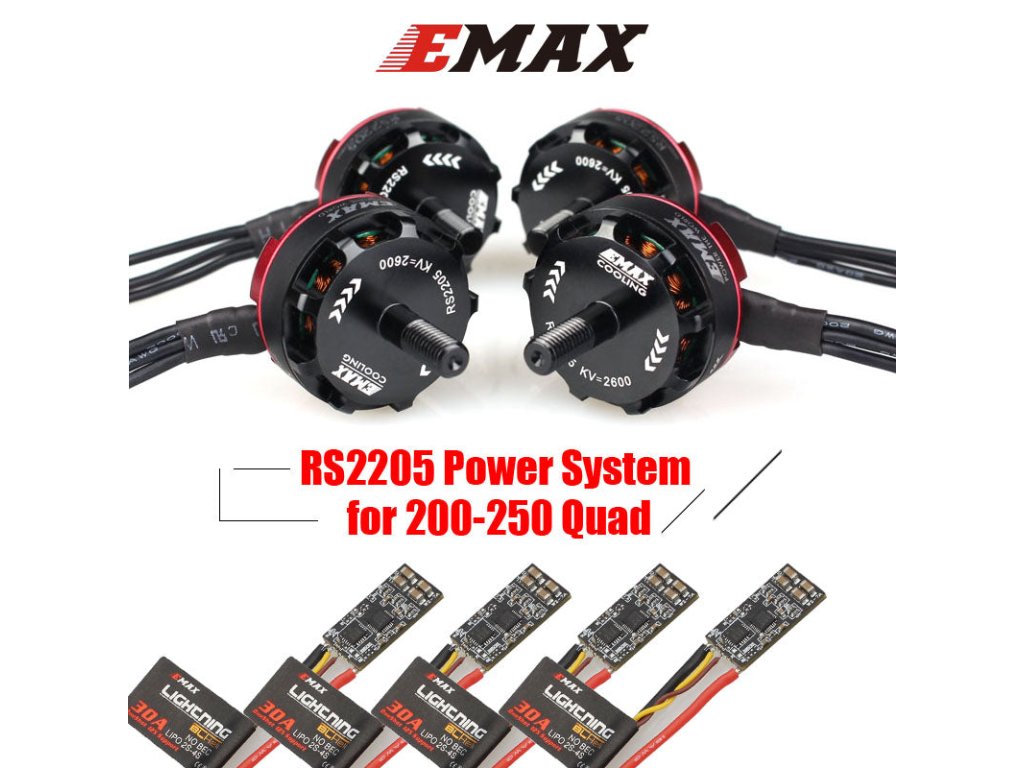

RS2205 Motor + 30A BLHeli lightning ESC Combo (2300KV)

The complete combo package of RS2205 Motors and Lightning 30Amp ESC. The set also includes extra parts for maintenance-free operation.

Emax RS2205 Race Spec Motors features:
- 1K+ Thrust with 4s battery and recommend propeller combo
- Cooling Series Bell Design reduces motor temperature by at least 30%
- Highest Grade N52 Neodymium magnets
- Genuine Japanese NMB Bearings
- Each Motor is Dynamically Balanced in the factory.
- 15mm Extended Prop Shaft allows virtually any prop with 5mm hole.
- 3 Lock nuts and 2 sets of motor screws for 3mm and 4mm thick frames.
- Windings made from copper of high purity

Emax Lightning 30A ESC features:
1. The first BLHeli ESC with Synchronous Rectification hardware design in the market
2. Utilizes high-performance F396 MCU
3. Lightweight: 5.5g including power wires and signal wires / Small Footprint: 24.5*12.5*5.0 (mm)
4. Supports active braking
5. FW upgradable via signal wire
6. Anti-counterfeit code of authenticity
7. Supports up to 4S High Voltage (4.35v max per cell)
8. Smallest F396 powered 30A ESC in it's class
9. Oneshot Enabled / Multishot Ready
10. High-current burst rating

Specifications:

Motor Model: RS2205
KV: 2300kv
Weight: Approx. 30g with wires
Wire AWG: 20AWG
Stator Diameter: 22mm
Stator Height: 5mm
Shaft Diameter: 3mm
Configuration: 12N14P
Motor Diameter: 27.9mm
Motor Height: 31.7mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 - 16.8v)
KV2300 With HQ5045 BN Max.thrust:1024g

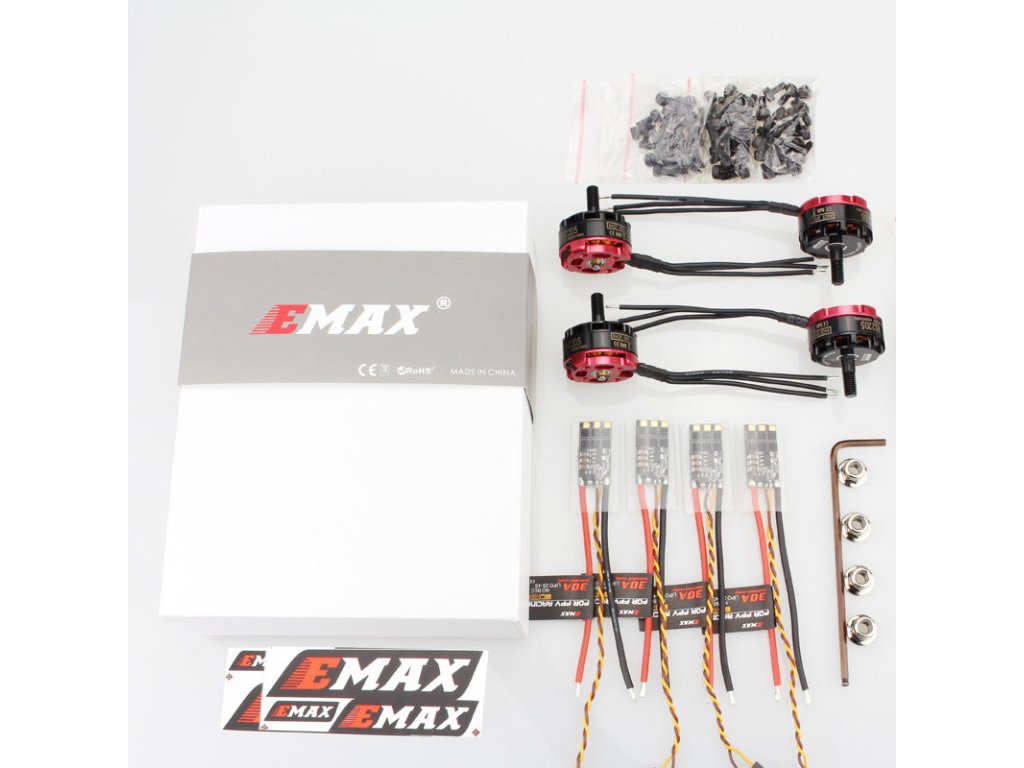

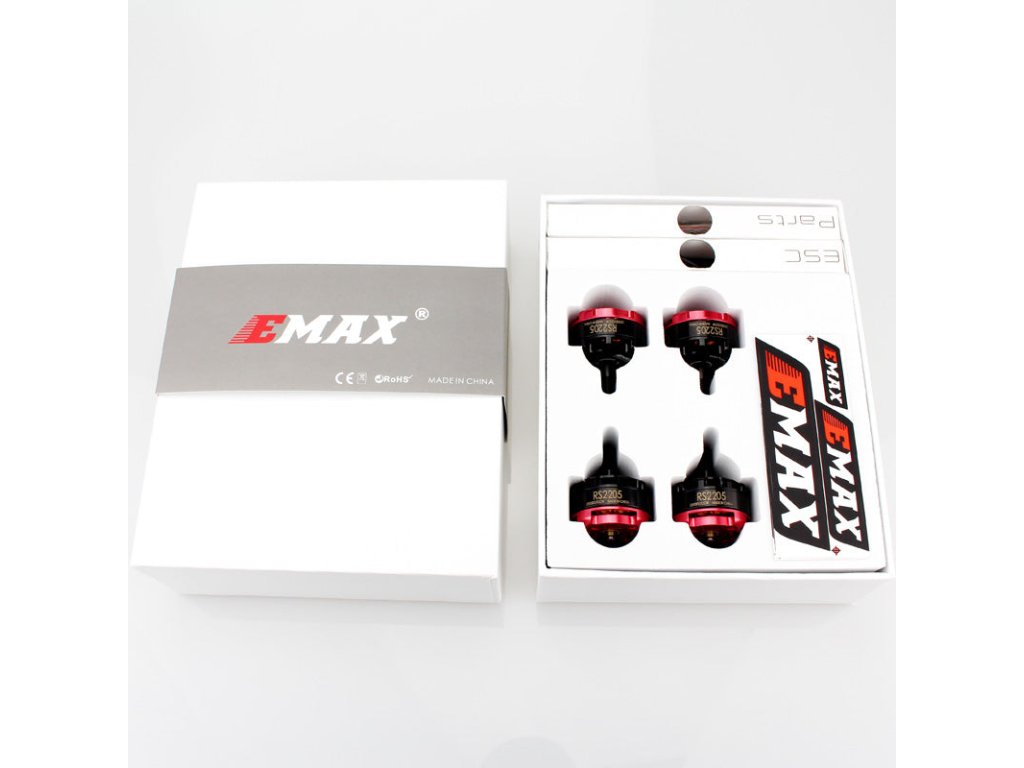

Package includes:
4x RS2205-2300KV CW
4x Lightning 30A
1x L-Wrench
20x Screw
20x Screw
20x Screw
4x Nut
