Receiver RadioMaster RP3 V2 ELRS 2.4GHz Nano

Opis szczegółowy produktu

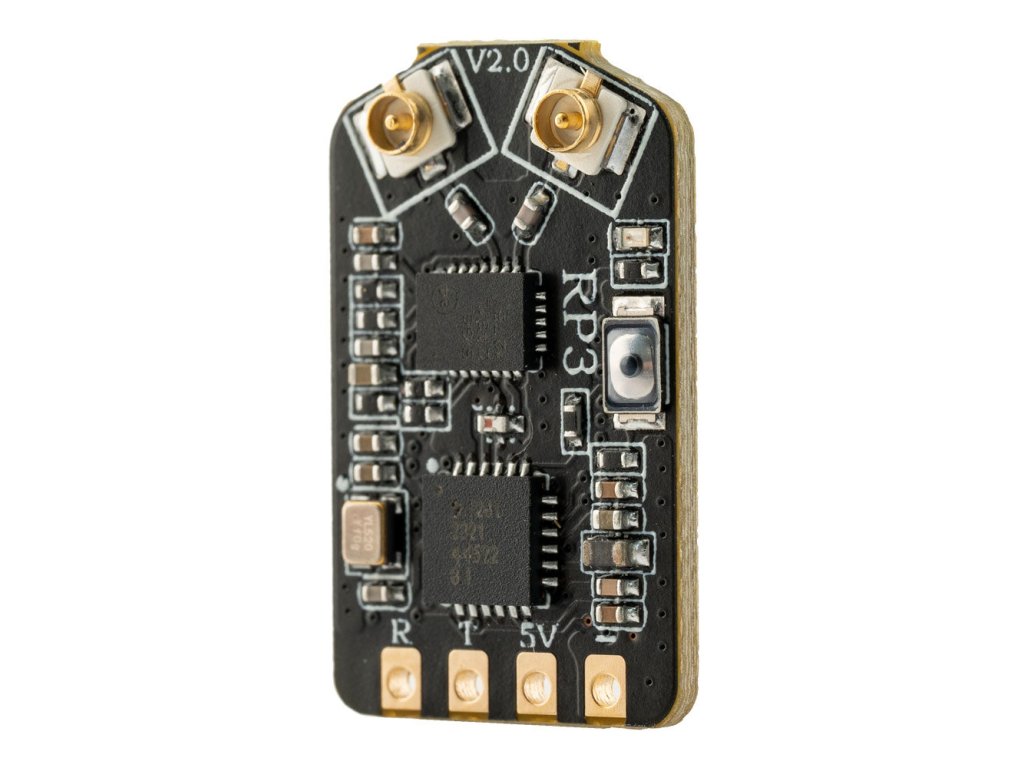

RP3 ExpressLRS 2.4ghz Nano Receiver (LBT)

The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip the RP series offers Lora and FLRC 2.4ghz RF links offering incredible range and low latency. With Wifi built-in FW updates can be done without removing the receiver. Binding can be done using a bind phrase meaning no more bind plugs or fiddly button presses while trying to plug in your battery.

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry performance, and antenna switching for antenna diversity.

Features:
- Optimized PCB design for better heat dissipation.
- LNA for better Receiver range.
- PA for better telemetry range.
- Antenna Diversity for improved signal stability and range.

Notes: Available with standard ISM or EU LBT FW. EU LBT FW is required for use with Radios and Modules with EU LBT FW Installed.

Specification:
Item: RP3 Diversity Receiver
Type: ISM
MCU: ESP8285
RF Chip: SX1280IMLTRT
TCXO: Yes
Telemetry RF power: max 250mw
Antenna: 65mm 2.4ghz T Antenna x 2
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz / F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 4.6g (Including two antenna)
Dimension: 22x13x4mm
Firmware Version: ExpressLRS v3.0 pre-installed
FW Target: RadioMaster RP3 Diversity 2400 RX
Bus interface: CRSF
