Antenna Maple Wireless RP-SMA 11dB circular polarization

Opis szczegółowy produktu

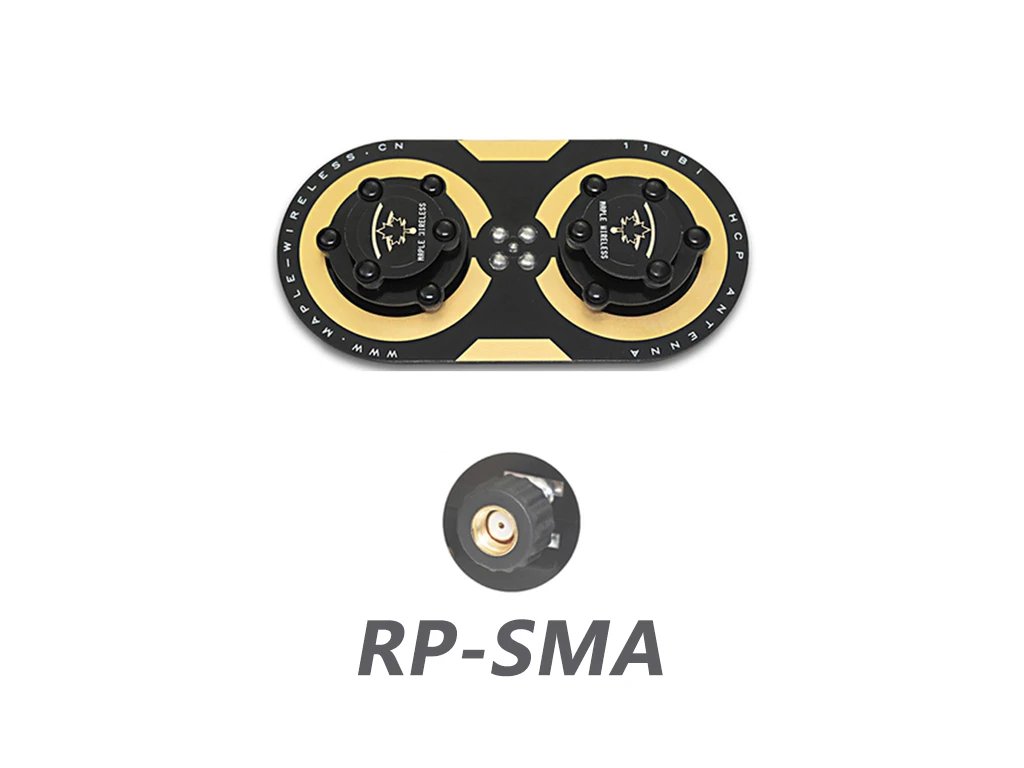

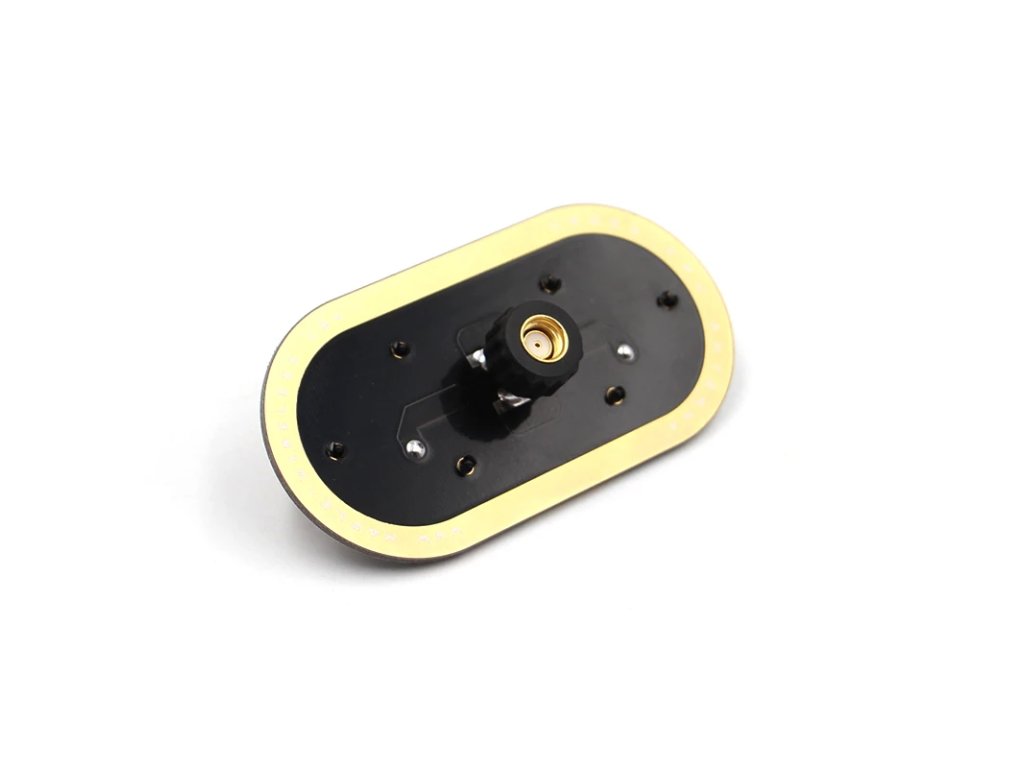

RP-SMA 11dB circular polarization antenna

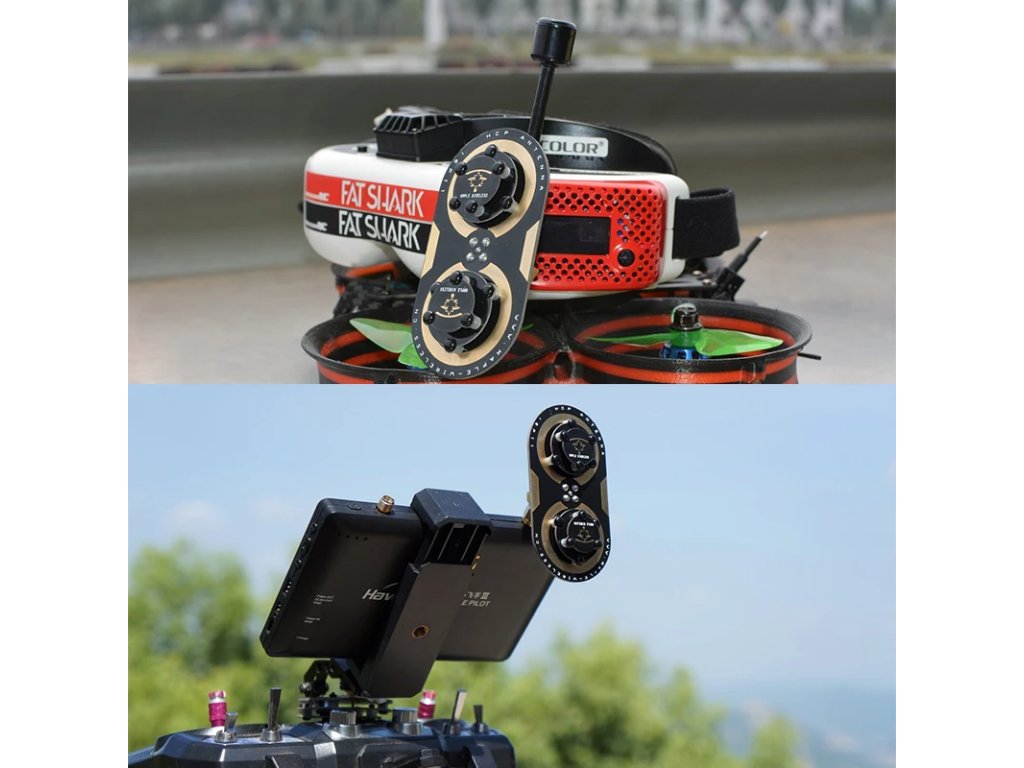

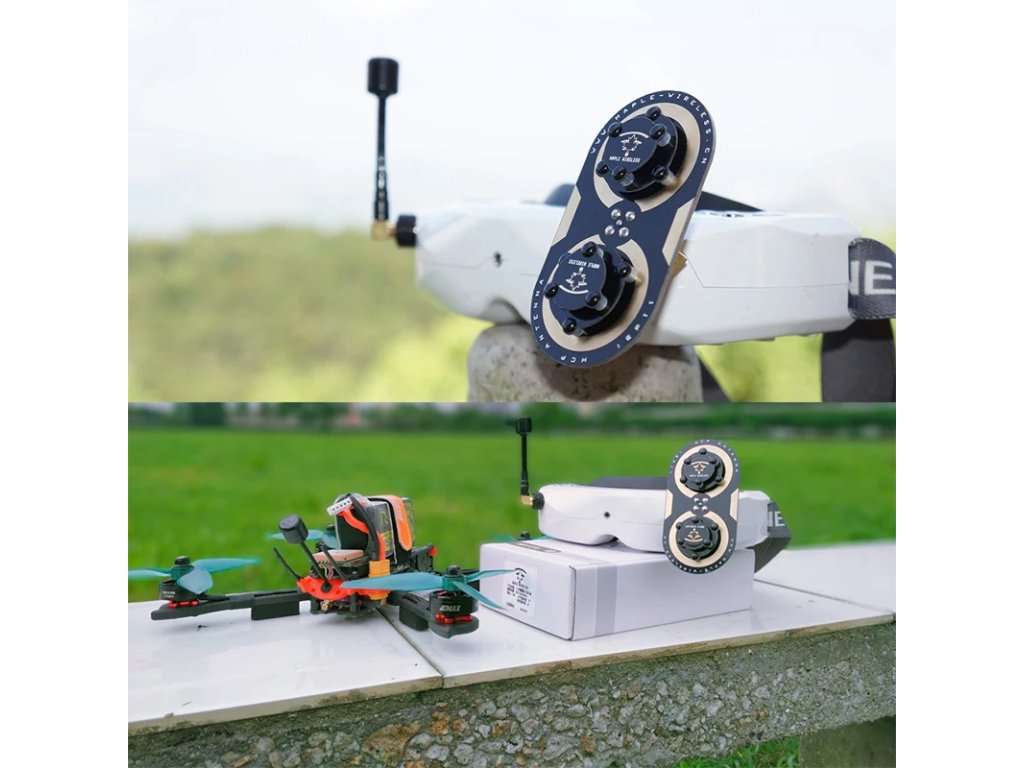

The 11dBi Circularly Polarized Maple Leaf FPV Antenna offers excellent signal reception and transmission for extended range, ideal for drone racing and aerial photography. Its compact, lightweight design ensures easy installation, while its durability guarantees reliable performance even in challenging environments.

This antenna is compatible with a wide range of FPV drones and equipment, including popular models from DJI, Fat Shark, and other manufacturers. It can be used with FPV goggles, receivers, and transmitters that support RP-SMA connectors.

Specifications:

Frequency range (MHz): 5500-5800
Input resistance (Q): 50
Standing wave ratio coefficient: <1.5
Gain (dBi): 11
Half power beam: 75° H-plane -- 40° E-plane
Front-to-back ratio (dB): >10
Power capacity (W): 10
Polarization method: right-hand circular polarization
Connector: RP-SMA
Ambient temperature (C): -40 ~ +60
Antenna size (mm): 82*42*24
Net weight (g): 19

Package includes:
1x 11dBi Circularly Polarized Maple Leaf FPV Antenna RP-SMA
