Receiver BAYCK ELRS 2.4Ghz diversity

Opis szczegółowy produktu

Receiver BAYCK ELRS 2.4 Nano

The BAYCK ELRS 2.4 Nano Receiver is a compact and high-performance receiver designed for FPV drones. Operating on the 2.4GHz frequency, it ensures reliable and low-latency signal reception. The ELRS (ExpressLRS) protocol provides robust and long-range connectivity, making it ideal for both racing and freestyle applications. The nano-sized form factor allows for easy installation, and its lightweight design ensures minimal impact on your drone's performance.

Specifications:

Item: ELRS 2.4GHz Dual Core Rx

Frequency: 2.4G FCC(AU,EU Update Firmware)

Chip: ESP8285MCU+SX1276

Telemetry Power: 200mW

Maximum Receive Refresh Rate：500HZ

Minimum Receiver refresh rate: 25Hz

Working Voltage: 5V

Weight : 0.6g(receiver only )

Work Protocol： CRSF

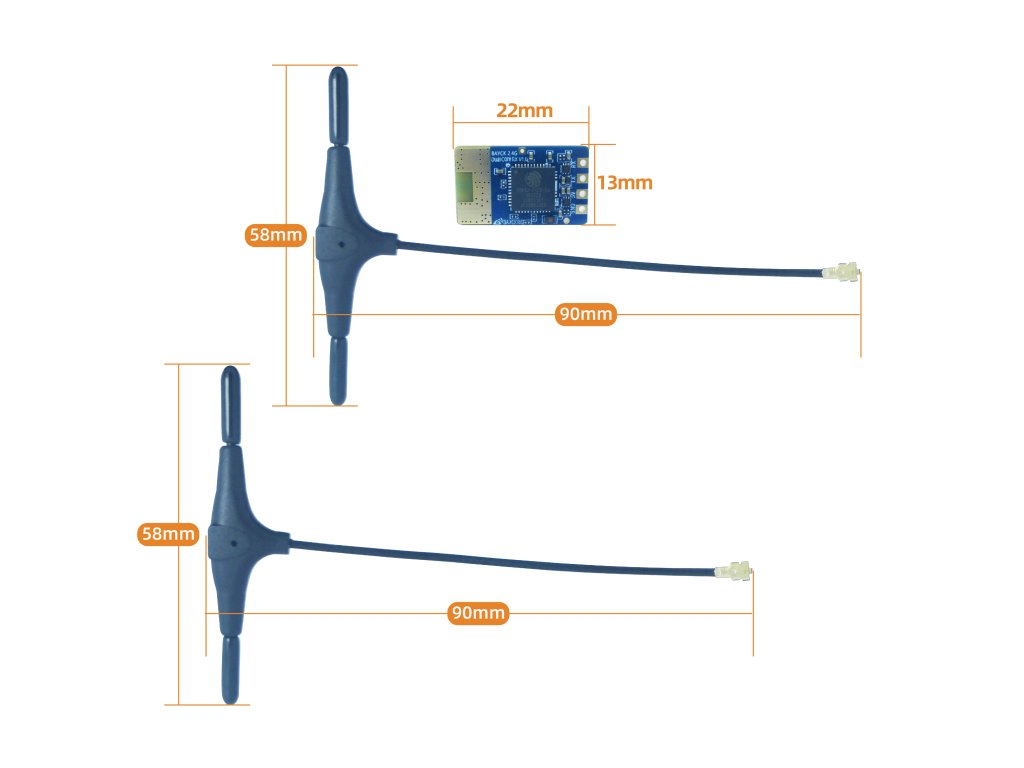

Dimension: 13mmx14mmx3mm

Antenna Connector: IPEX1

Build-in a TCXO

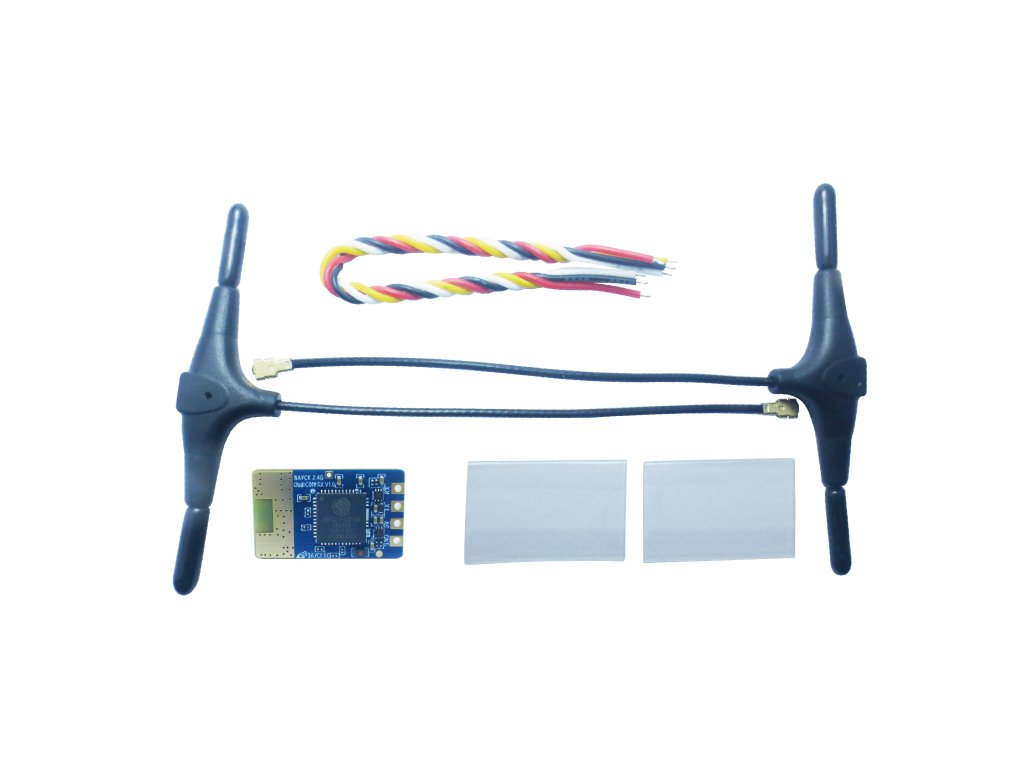

Package Includes:
1x Receiver BAYCK ELRS 2.4Ghz diversity
