TX Module RadioMaster Ranger Nano 2.4GHZ ExpressLRS Combo LBT

Opis szczegółowy produktu

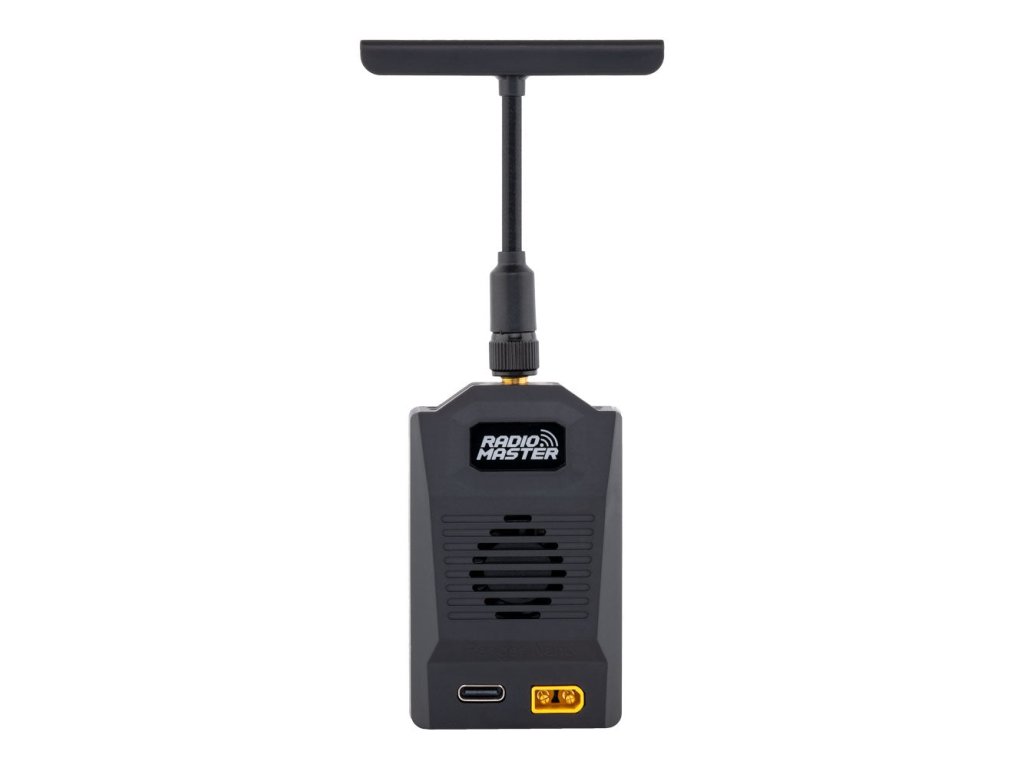

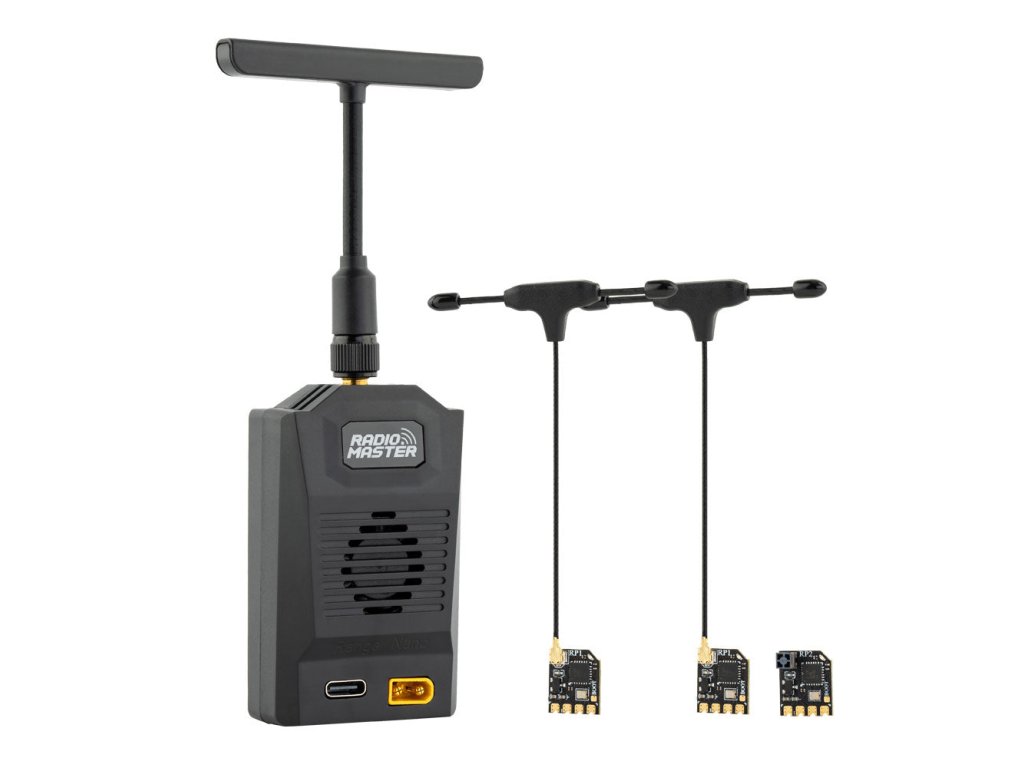

Ranger Nano 2.4GHZ ExpressLRS RF Module Combo (LBT)

Featuring up to 1W output, F-1000Hz refresh rates, and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Compatible with RadioMaster Zorro and more.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Notes:

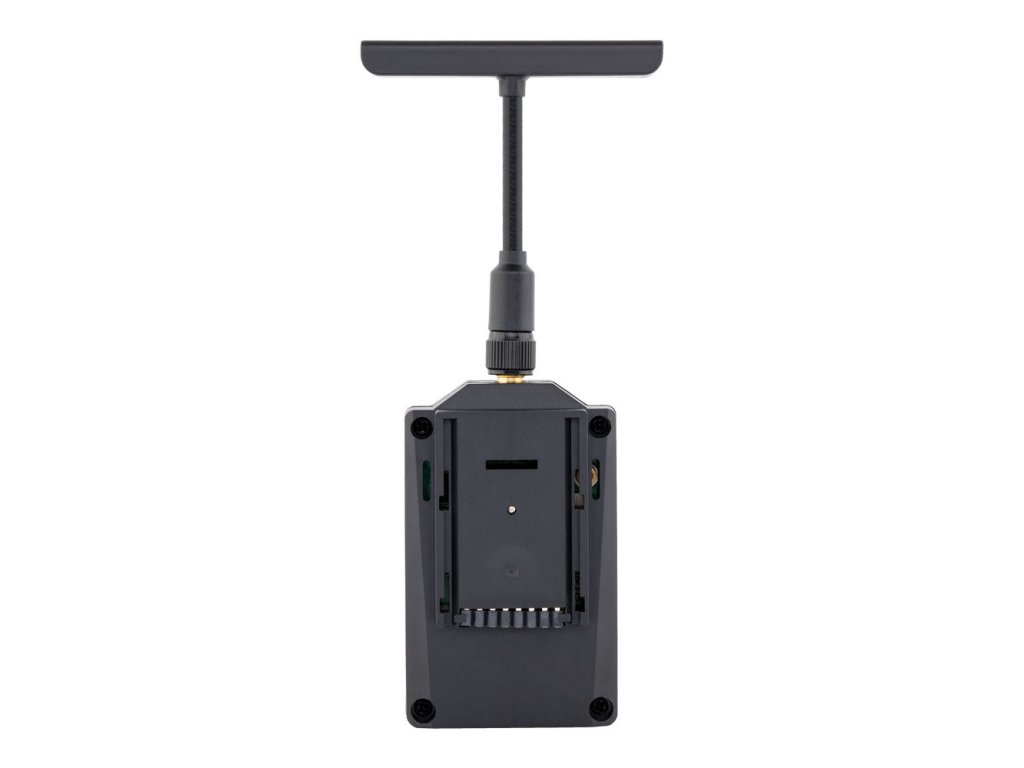

- The Ranger Nano 2.4GHz ELRS Module fits Nano module bays
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Features:
- High-efficiency cooling system
- Wi-Fi and Bluetooth support
- Packet rates up to F-1000Hz
- Up to 1Watt Power output
- T-antenna included
- With the Nano connector, support Zorro radio

Specification:
Item: Ranger Nano Module Combo (LBT)
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

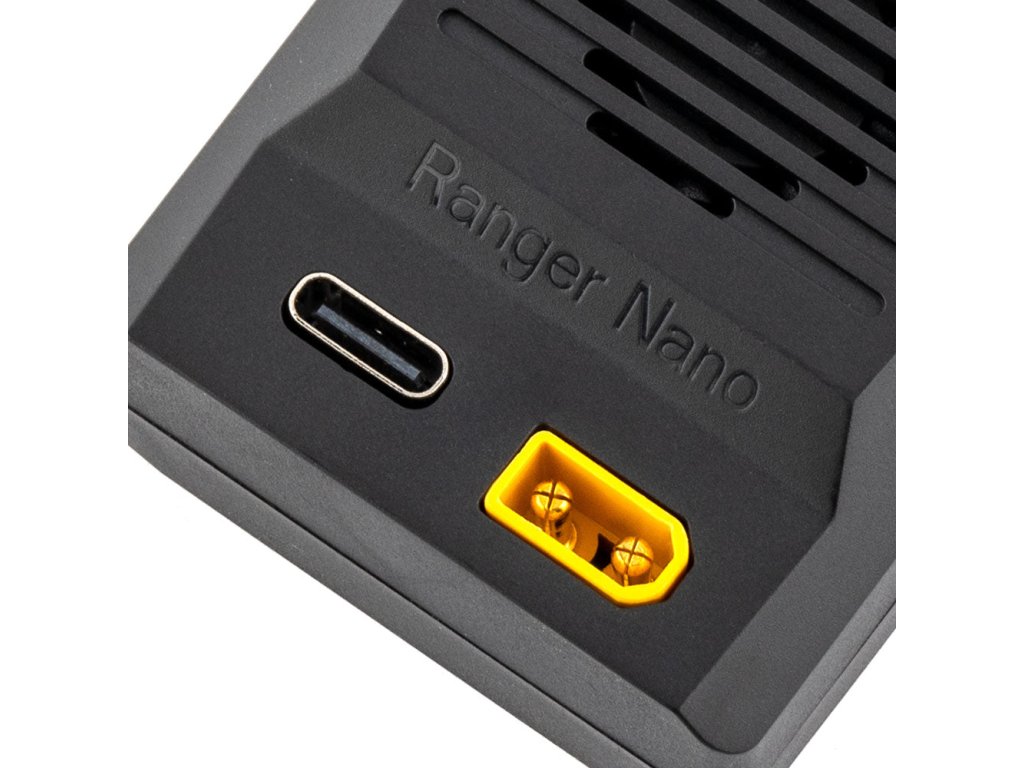

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 48g (with antenna) / 39g (without antenna)
Dimension: 136x42x26mm (with T antenna) / 74x42x26mm (without antenna)
