TX Module RadioMaster Ranger Micro 2.4GHZ ExpressLRS LBT

Opis szczegółowy produktu

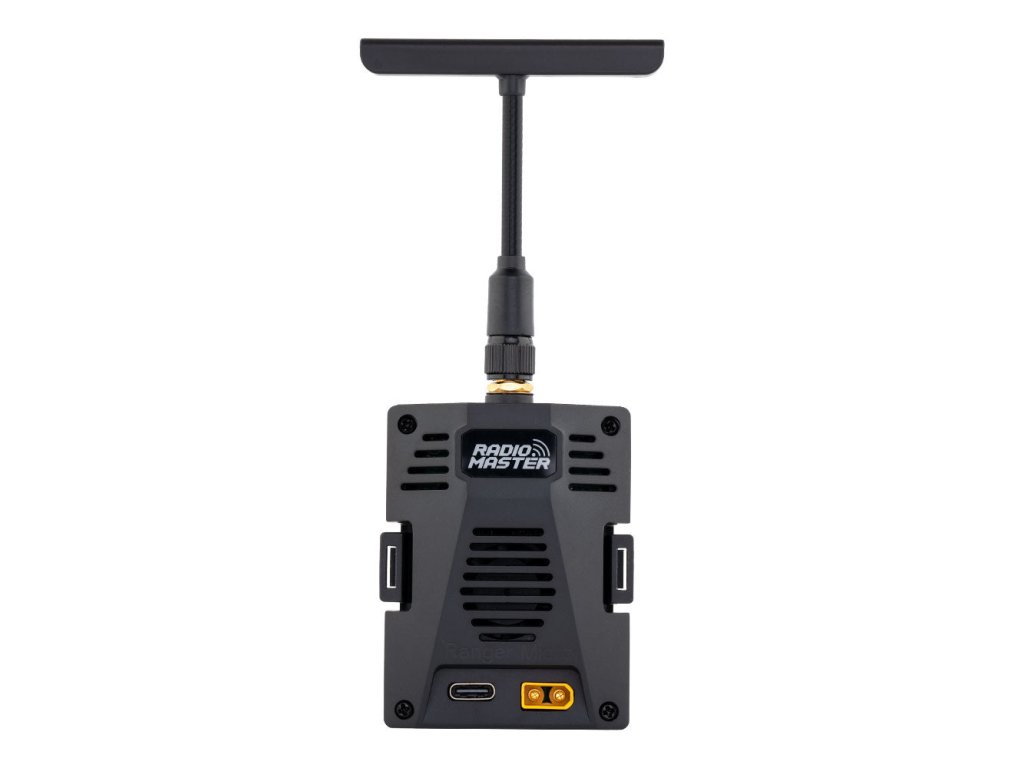

Ranger Micro 2.4GHZ ExpressLRS RF Module (LBT)

Featuring up to 1W output, F-1000Hz refresh rates, and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Compatible radio TX16S, TX16S MkII, TX12, TX12 MkII, and more.

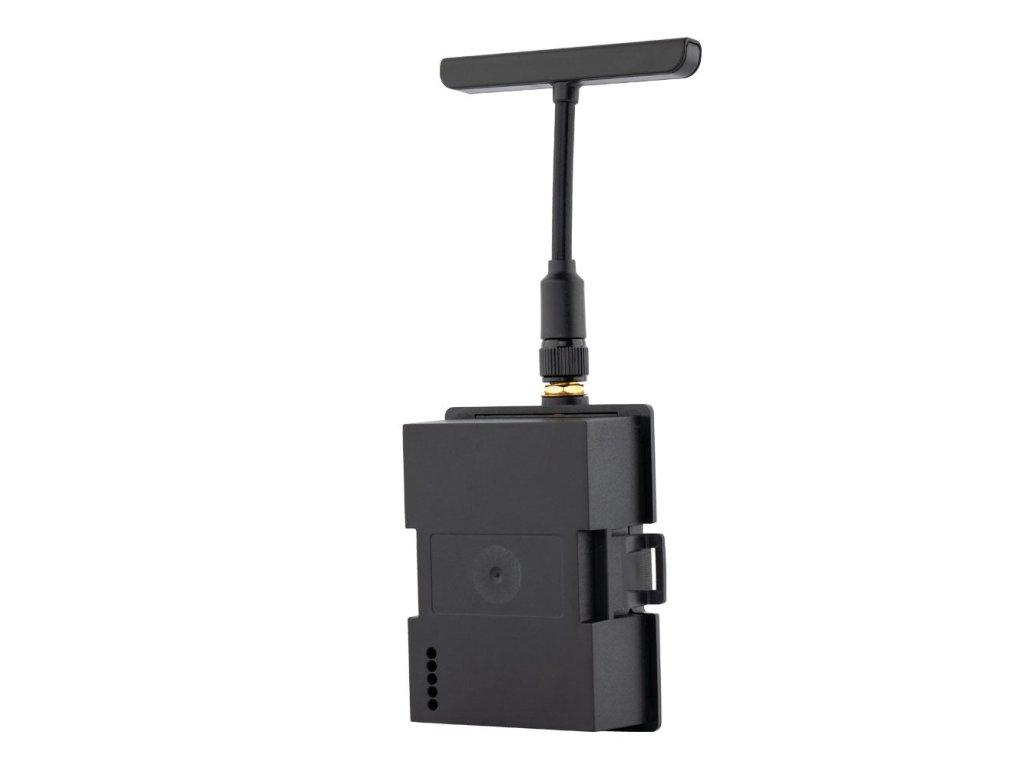

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

Notes:
- The Ranger Micro 2.4GHz ELRS Module fits JR-style micro module bays.
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Features:
- High-efficiency cooling system
- Up to 1Watt Power output
- Wi-Fi and Bluetooth support
- Packet rates up to F-1000Hz
- T-antenna included
- With the Micro connector, support TX16S MKII and TX12 MKII radio

Specification:
Item: Ranger Micro Module (LBT)
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes

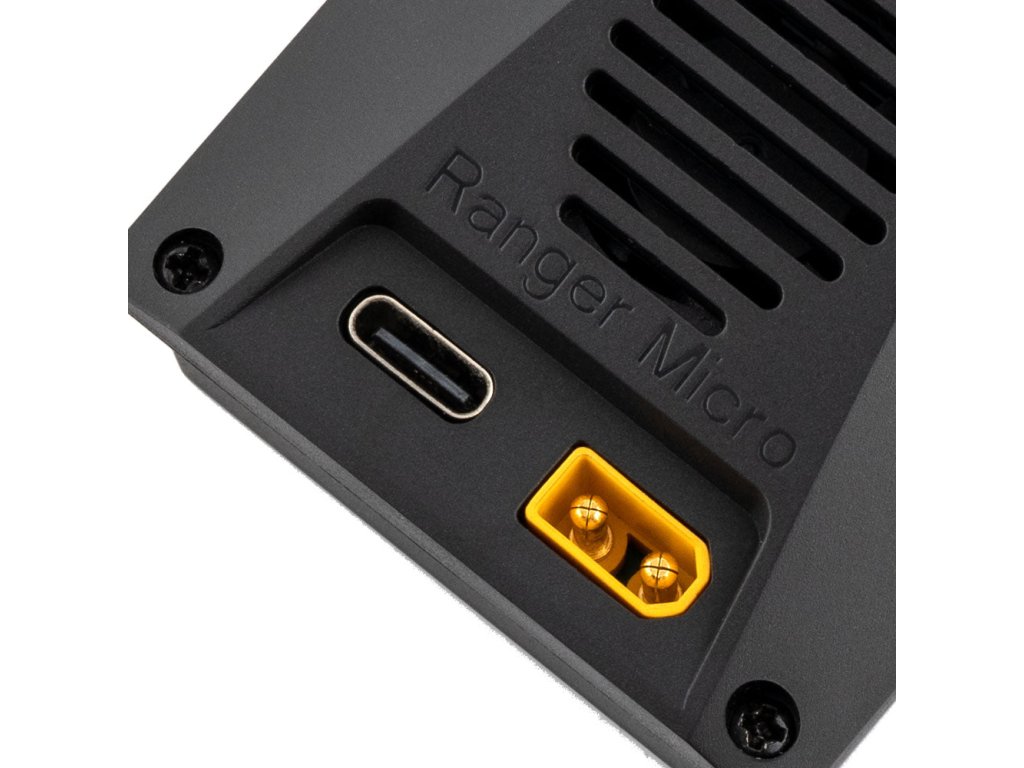

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)
Dimension: 136x49x33mm (with T antenna) / 74x49x33mm (without antenna)
