TX Module RadioMaster Ranger 2.4GHZ ExpressLRS Starter Combo LBT

Opis szczegółowy produktu

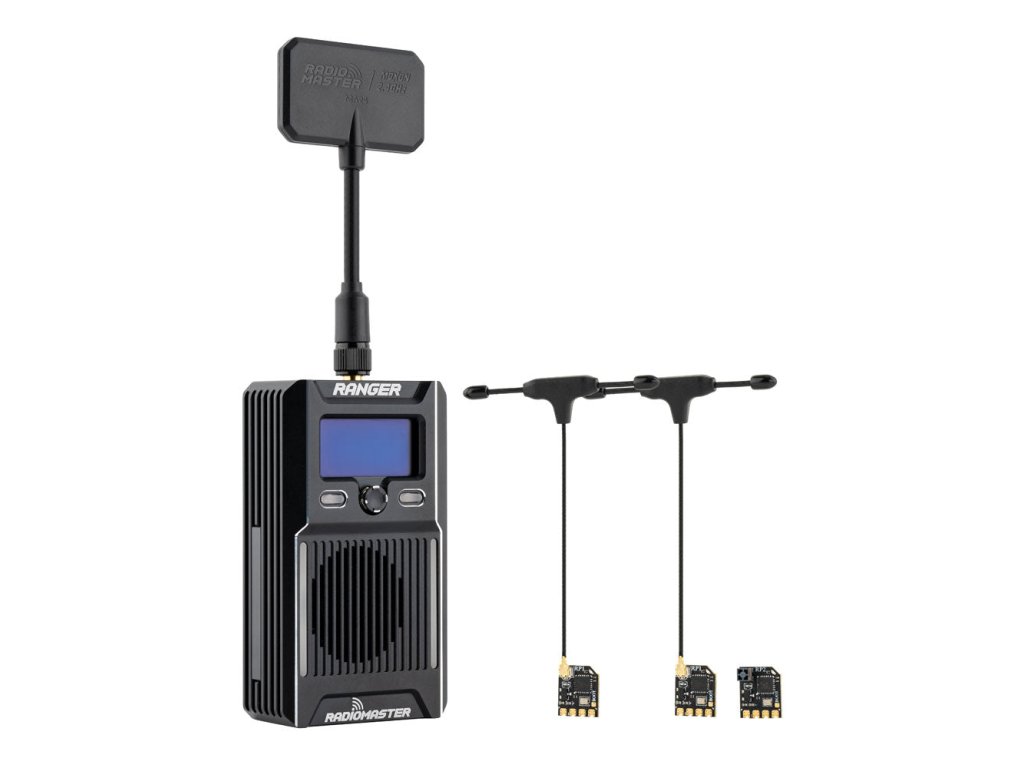

Ranger 2.4GHZ ExpressLRS RF Module Starter Combo (LBT)

The RadioMaster Ranger features an OLED display, a directional menu key, and two assignable shortcut keys. The Ranger can be adjusted on the fly and personalized to your needs. The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.

Features:
-OLED Display
-Rugged CNC Case
-Built-in Accelerometer
-Packet rates up to F-1000Hz
-Up to 1 Watt Power output
-Wi-Fi and Bluetooth support
-High-efficiency cooling system
-5 Direction Nav key and customizable shortcut buttons
-Micro and Nano adapters included
-Moxon and T-antenna included
-CRSF cable for compatible Futaba radios included

Specification
Item: Ranger 2.4GHz ELRS Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux, as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz - 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
Futaba CRSF socket cable: Included
OLED screen: 64x128px
Wifi Support: Yes
Bluetooth support: Yes
3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
Built-in RGB light strip
XT30 Power supply voltage: DC 6V - 16.8V
Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
Dimension: 95x51x25mm (without antenna)

Notes:
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Package includes:
1 x Ranger Module
2 x RP1
1 x RP2
