FPV Drone iFlight ProTek35 V1.4 Analog 6S BNF (ELRS 2.4GHz)

Opis szczegółowy produktu

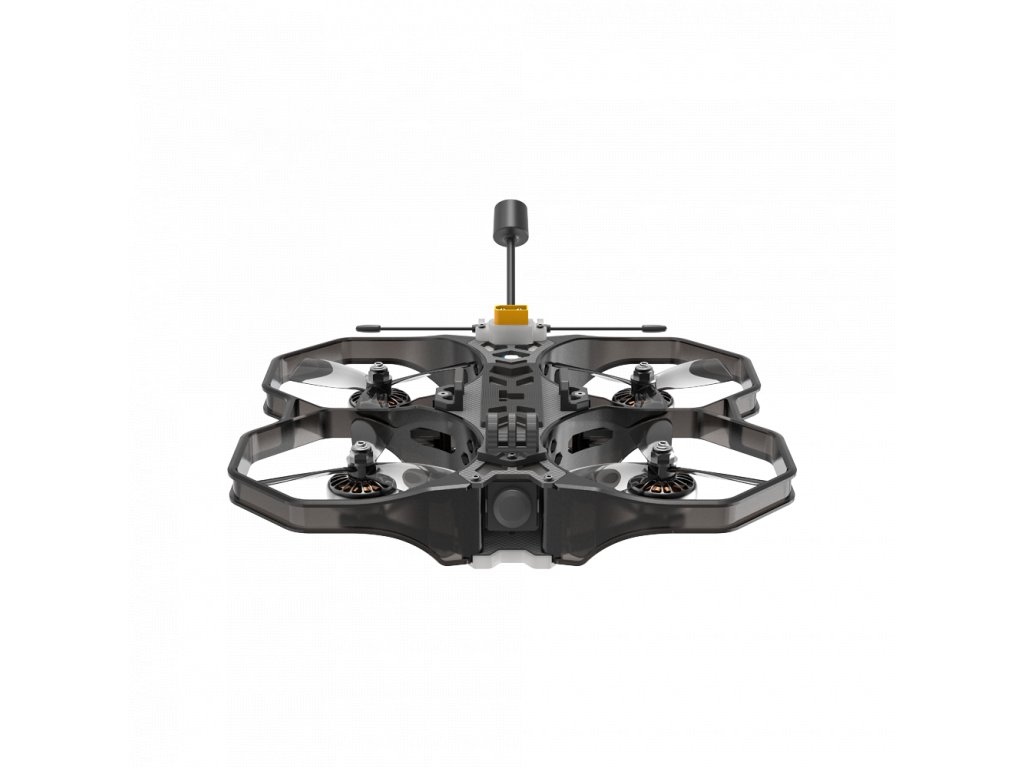

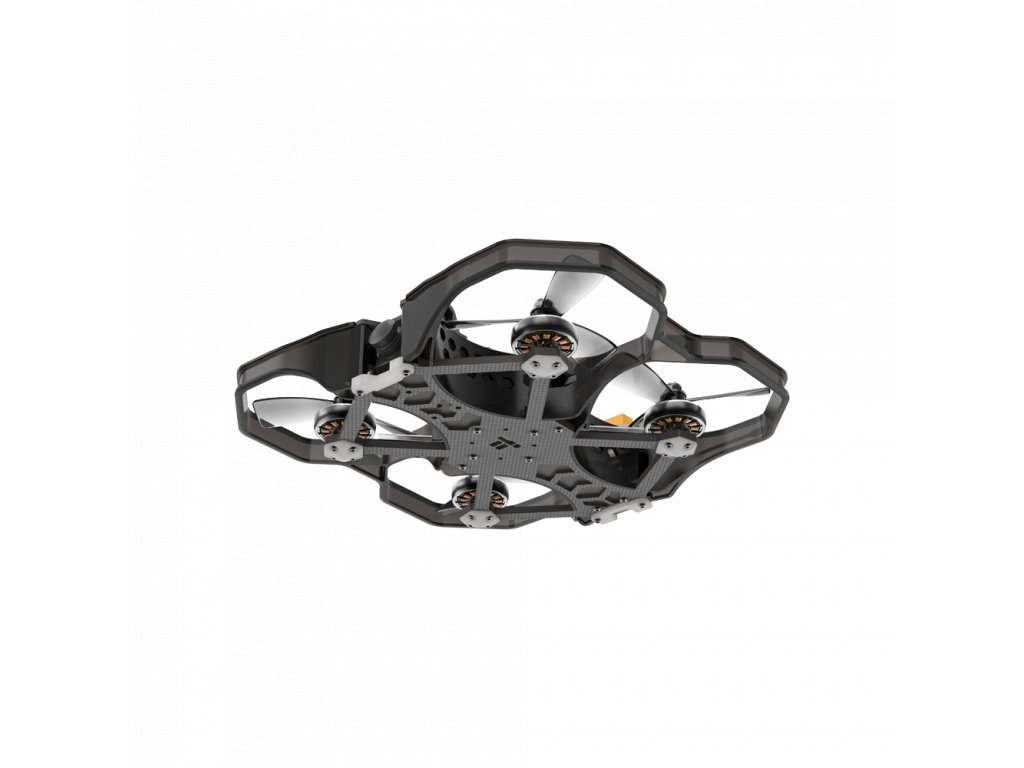

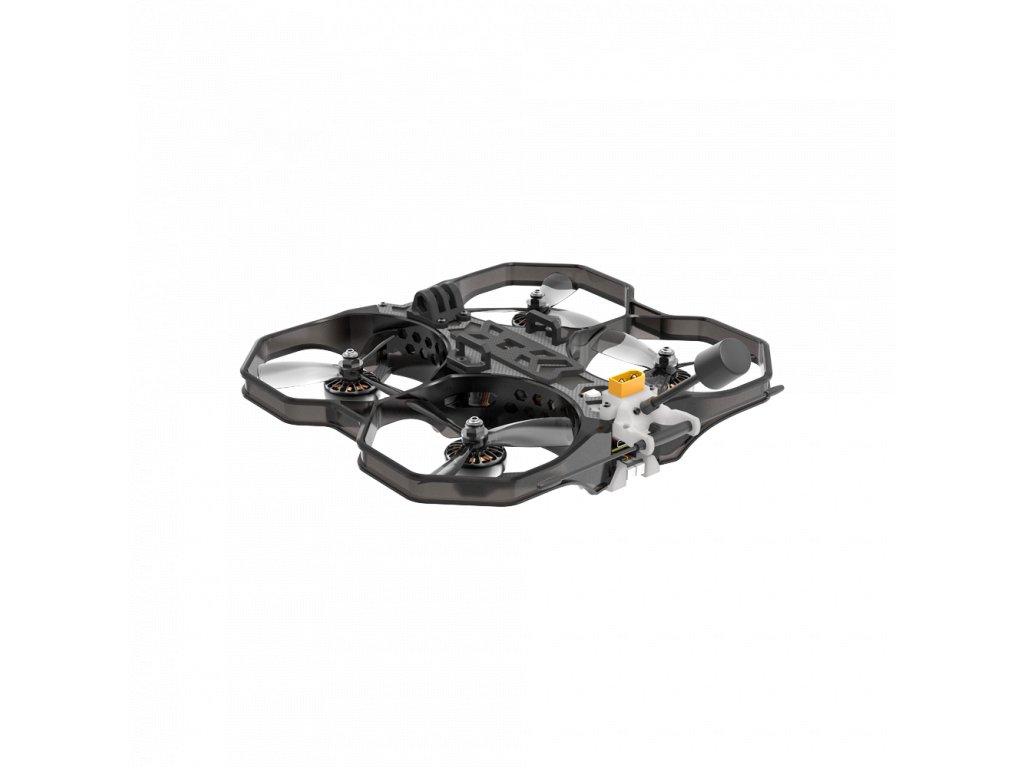

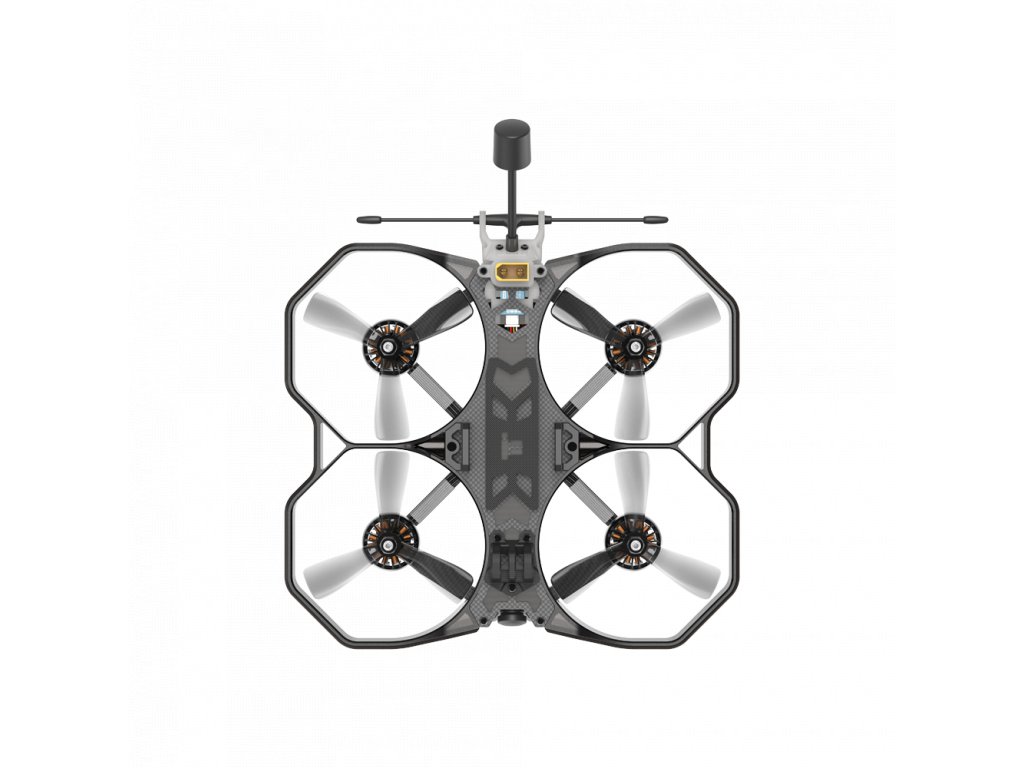

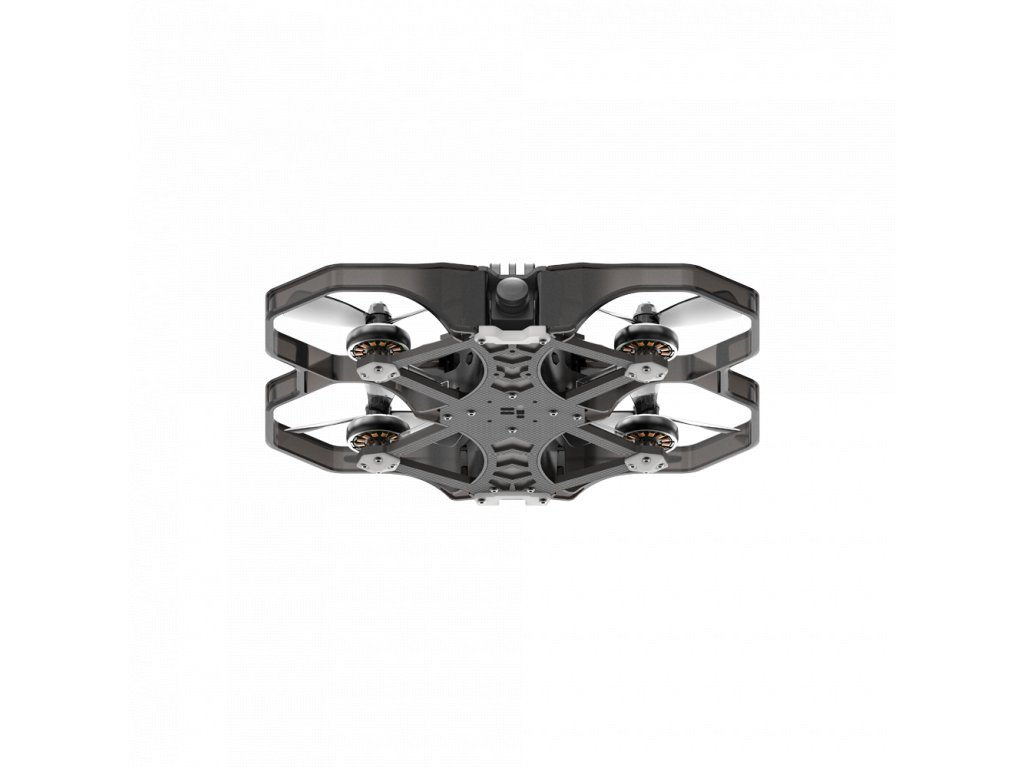

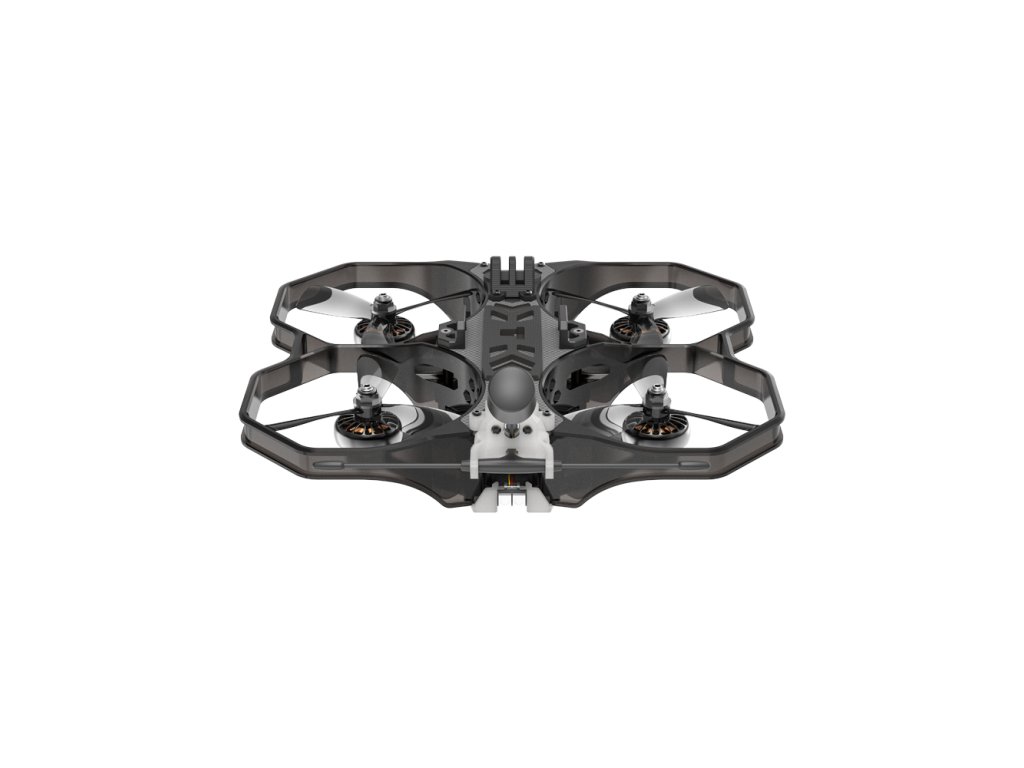

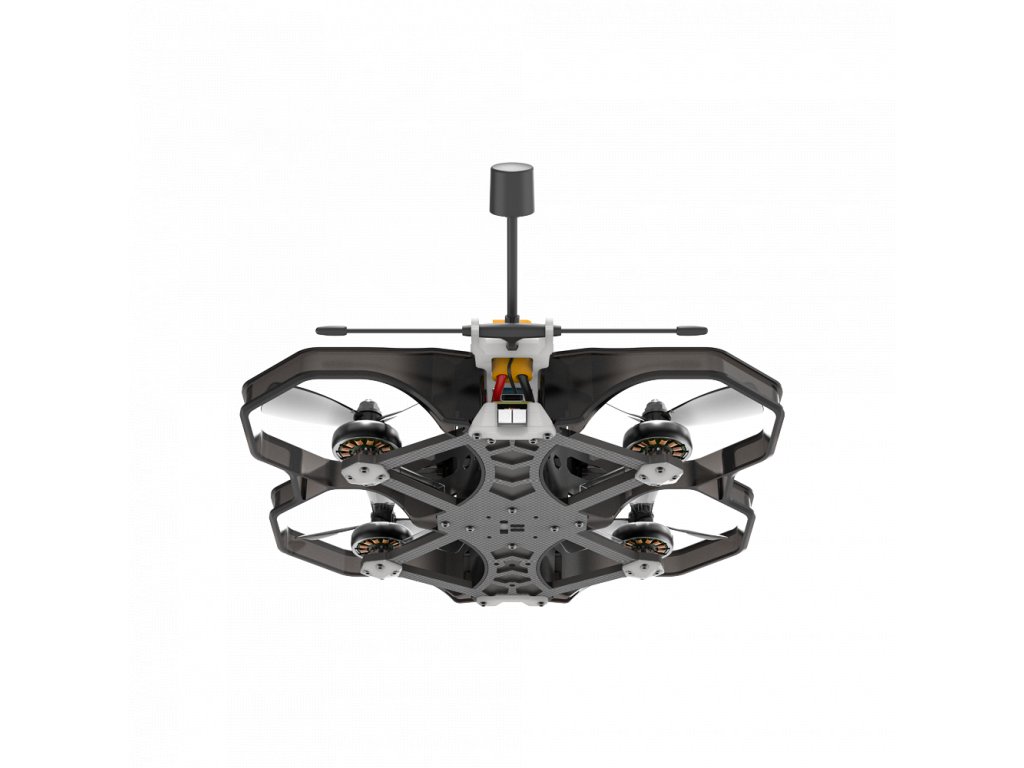

ProTek35 V1.4 Analog 6S BNF (ELRS 2.4GHz)

The ProTek35 V1.4 6S Analog CineWhoop offers longer flight times and reduced weight compared to previous models. The latest version, Protek35, introduces the Secured Battery Plug function and the Butter Smooth 2205 2300KV Motors. It also includes the RaceCam R1 Mini FPV Camera, BLITZ whoop F7 AIO, 55A 2-6S ESC, 5.8GHz BLITZ Mini 600mW VTX, Nazgul 3535 propellers, and more.

Features:
- No Props or frame in view.
- Secured Battery Plug and CNC bracket - Easy to install battery straps.
- High-performance True-AIO Board BLITZ F7 AIO 55A to save weight and space.
- T700 Quality Carbon - 40% more tensile strength compared to common 3K carbon.
- Lightweight one-piece frame design - Less flexibility, more Rigid, more Durable.
- Low Resonance frame construction - Less Jello, more Cinematic footage.
- RaceCam R1 Mini FPV Camera 19*19.
- Pre-tuned with smooth freestyle settings.

Specifications:
Product Name: ProTek35 V1.4 6S Analog
Receiver Option: iFlight ELRS 2.4GHz RX
Camera: RaceCam R1 Micro 1200TV
AIO: BLITZ Whoop F7 AIO
Video Transmission: BLITZ Mini 600mW VTX
Frame: 151mm wheelbase
Motor: XING 2205 motors
Prop: Nazgul 3535 propellers
Takeoff Weight: Approx. 335g (Without Battery)
Dimensions (L×W×H): 217×194×32.5 mm
Max Speed: 140 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 6 mins (With 6S 1400 battery no load)
Max Wind Speed Resistance: Level 4
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: N/A

Video Transmission
Product Name: BLITZ Mini 600mW VTX
Output Power: 0-25-200-400-600mW
Input Volts: 5V
Working Current: ≤pit @80mA, ≤25mw@280mA, ≤100mw@405mA, ≤400mw@485mA, ≤600mw@575mA
Transmission: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 20×20/Φ3mm/ 25×25/Φ2mm
Weight: 4 grams (Without antenna)
Dimensions: L29mm*W29mm

Package Includes:
1 x ProTek35 V1.4 6S analog BNF (ELRS 2.4GHz)
1 x 3.5 inch prop (2 pairs)
2 x Battery pad
2 x Battery strap
