FPV Drone BETAFPV Pavo20 Brushless Whoop (For DJI O3 HD Digital VTX) ELRS 2.4G

Opis szczegółowy produktu

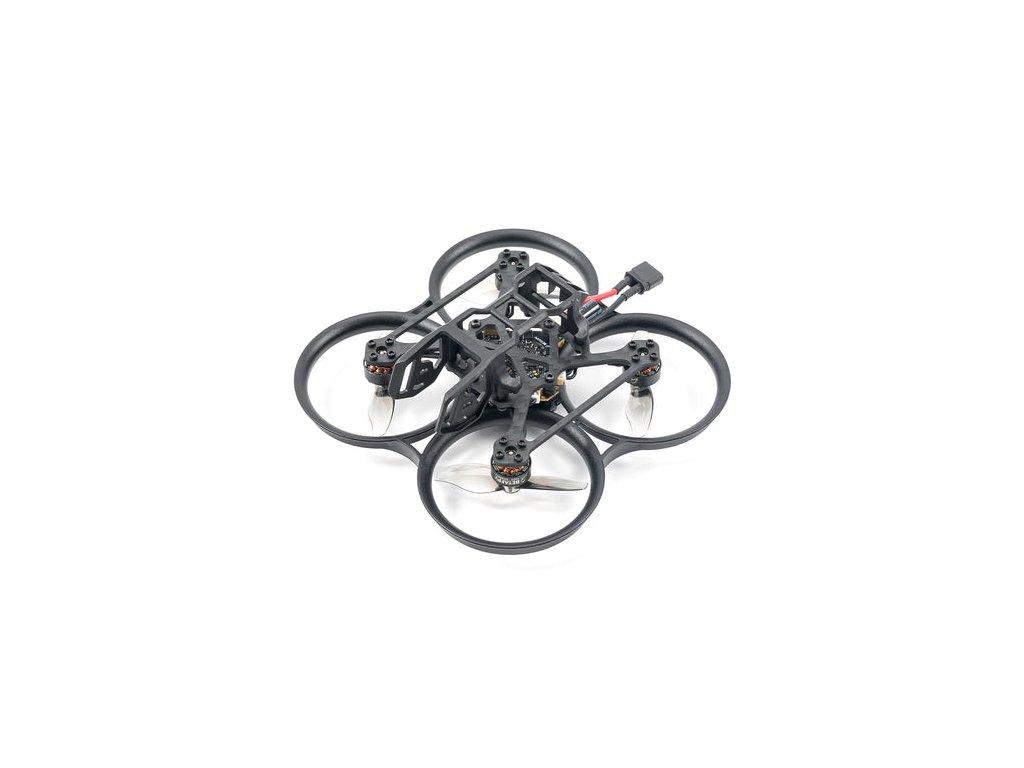

Pavo20 Brushless Whoop Quadcopter (For DJI O3 HD Digital VTX) ELRS 2.4G

Pavo 20 is designed as a 2″ DJI O3 cinewhoop under 150g, also compatible with the Caddx Vista and RunCam Link. Innovative PA12 material thickened cross-section whoop duct, ingeniously employing the principles of aerodynamics and synergizing flawlessly with an enhanced 3S powerful propulsion system, will deliver unparalleled thrust. The camera mount has undergone a comprehensive redesign, ensuring precise protection. It accommodates COB LED stripes seamlessly. It showcases unparalleled performance indoors and outdoors flight.

Features

- Pavo20 is an ideal choice for small indoor and outdoor lightweight 2'' DJI O3 cinewhoop under 150g.

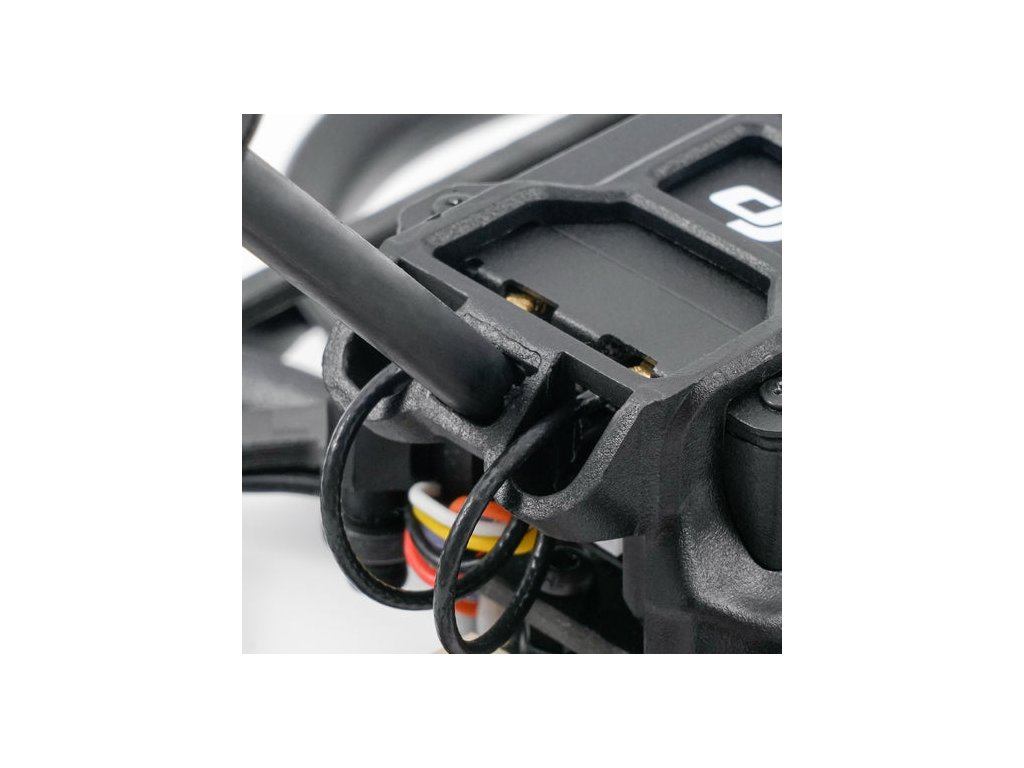

- Integrated injection molding HD VTX mounting bracket, effortless installation. The camera side panel and 4-point fixation hole design precisely safeguard the lens, guaranteeing uncompromised lens protection.
- Innovative PA12 material thickened cross-section whoop duct, ingeniously employing the principles of aerodynamics and synergizing flawlessly with an enhanced 3S powerful propulsion system, will deliver unparalleled thrust.

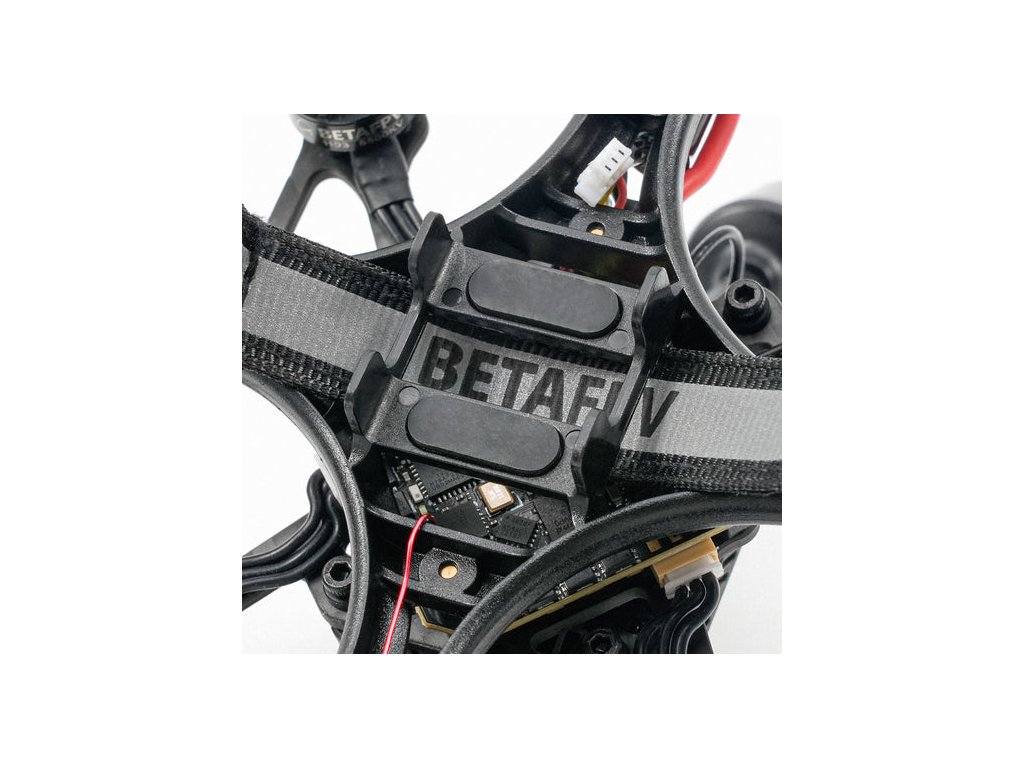

- The new F4 2-3S 20A AIO FC V1 weighs only 5.92 grams and is optimized for HD digital VTX. Its improved computing power, high response speed, and stable flight make it an ideal choice for HD whoops.

Please note that the HD VTX & Camera are not included in the kit

Specification

Model: Pavo20
Wheelbase: 90mm

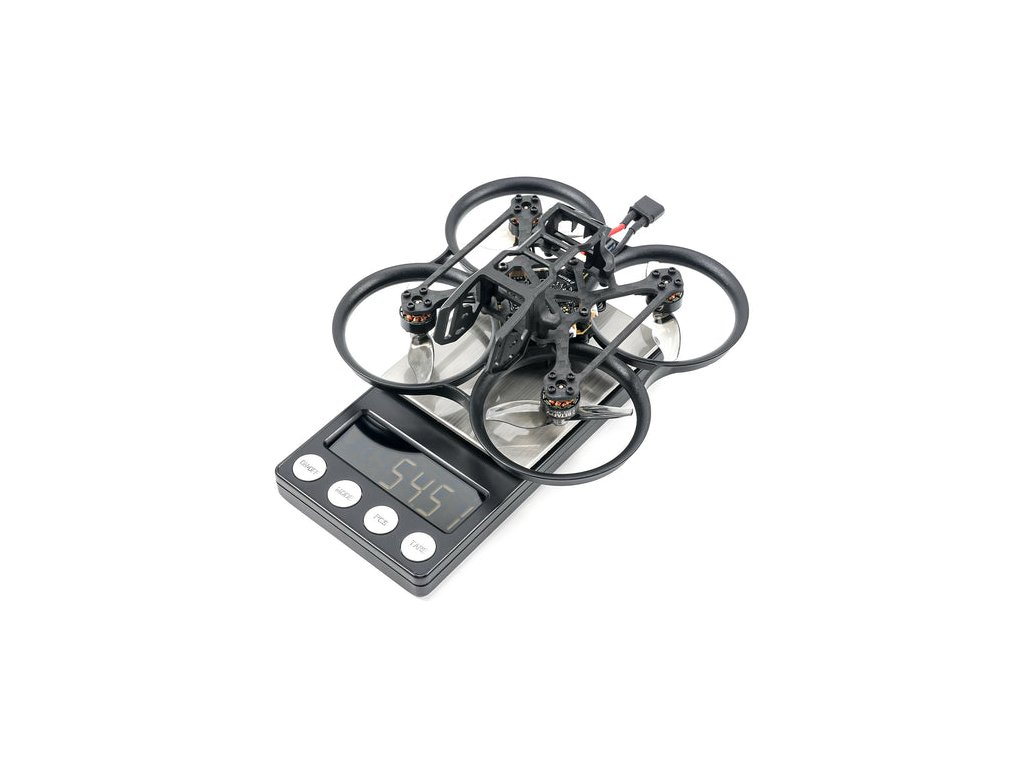

Empty Weight (No Battery, Air Unit): 54.51g
Support VTX: DJI O3 Air Unit / Caddx Vista Kit / RunCam Link
Support Camera: DJI O3 Camera / Caddx Series / RunCam Series 19mm, 20mm
Camera Filter Installation: Vertical
Battery Slot:  20mm*Unlimited Height

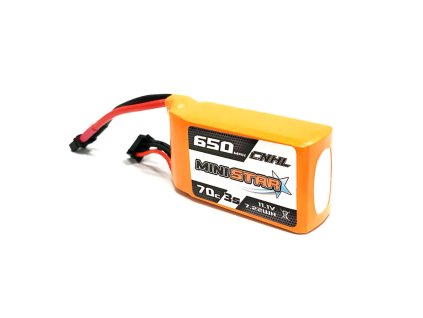

Recommend Battery: Only 3S 450mAh~650mAh

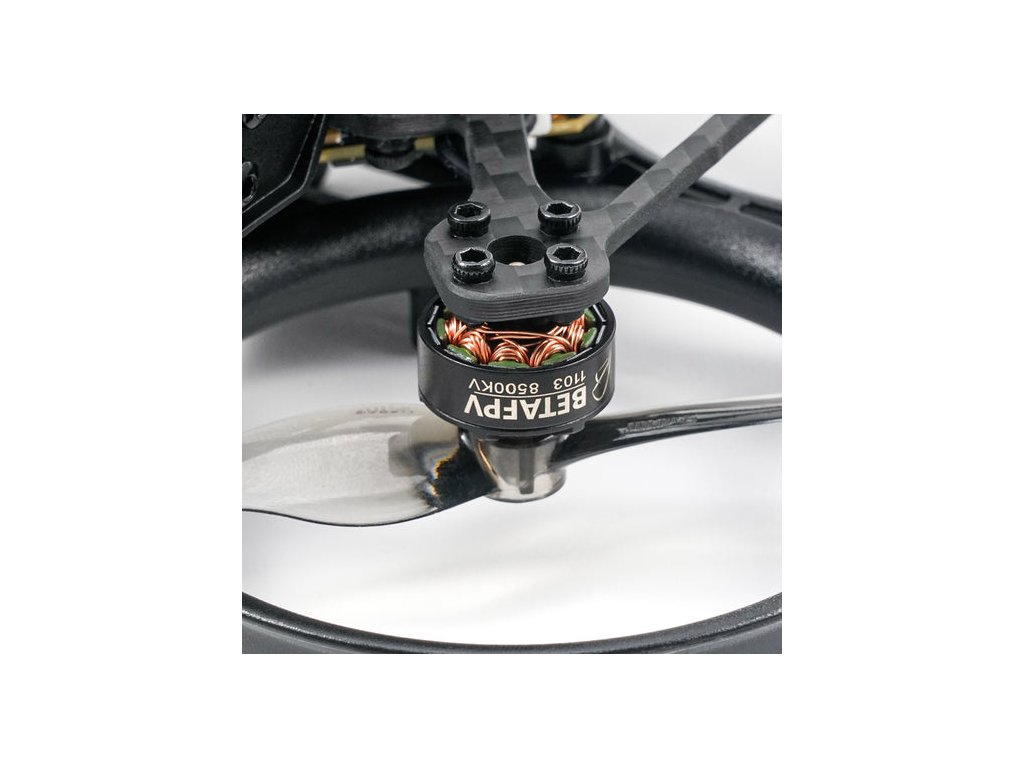

Motor: 1103 8500KV Brushless
Props: GF 2015 2-Blade Props
Flight Time (8.4V~6.8V): 5min(3S 450mAh)
FC: F405 2-3S 20A ELRS V1.0 FC
RX Version: ELRS
Battery Connector: XT30
Quadcopter Color: Black

Recommend Parts

FC&ESC: F4 1S 12A AIO FC V3, F4 2-3S 20A AIO FC V1
Motor: 1103 8000kv/8500kv/11000kv
Propellers: GF 2015-2B, GF 2020-4B
Battery: 3S 450mAh~650mAh
VTX: DJI O3, Caddx Vista, RunCam Link
Filter: BETAFPV ND filter

Package Includes:

1 * Pavo20 Brushless Whoop Quadcopter (Without HD VTX&Camera)
1 * Pavo20 HD VTX Bracket
1 * HD VTX Bracket Screw Package

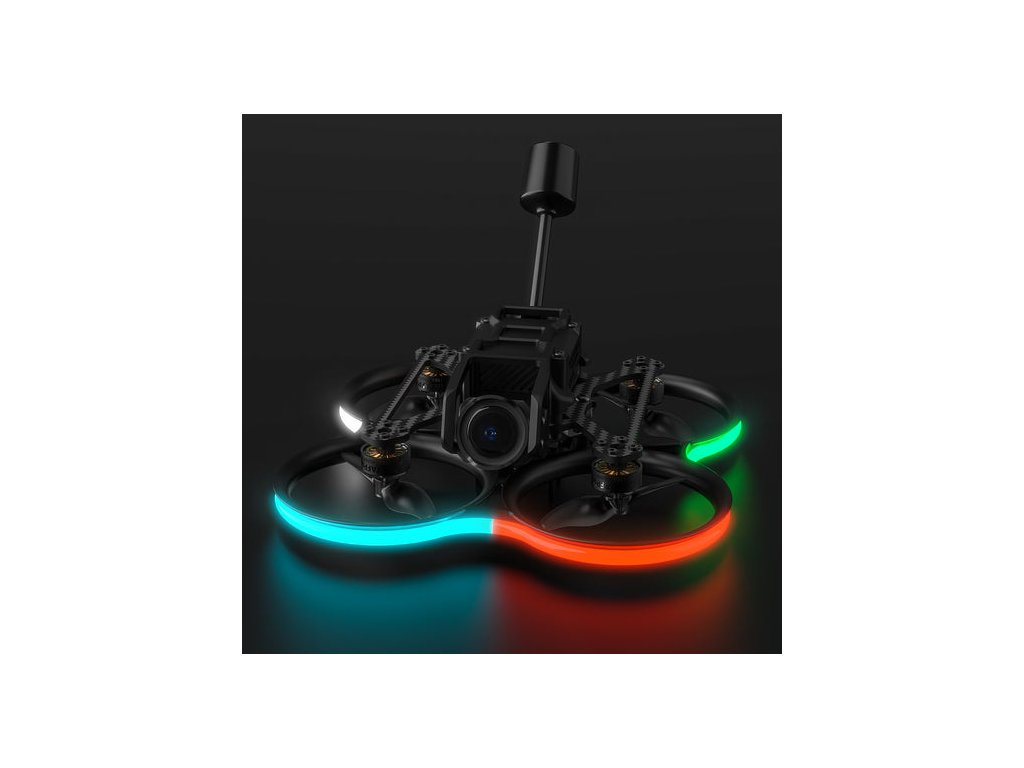

1 * Pavo Series COB LED Strip Accessory Kit(Ice Blue)
4 * GemFan 2015 2-Blade Propeller
1 * Type-C Adapter Board
1 * 4Pin Adapter Cable
