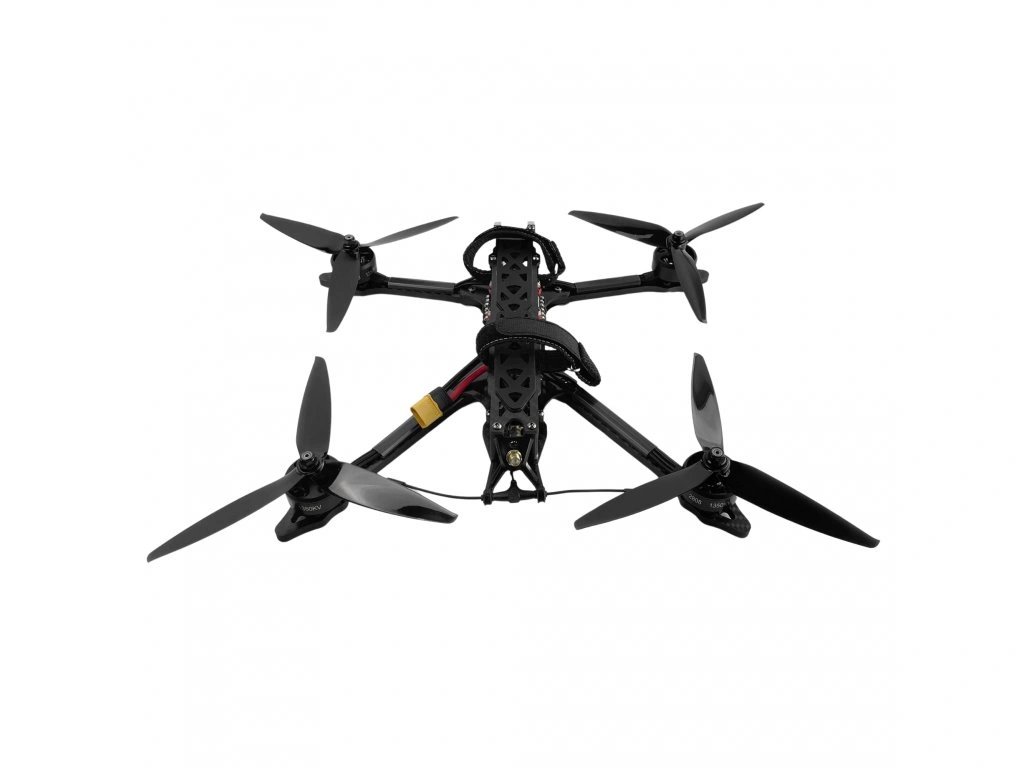

FPV Drone Partizan Rocky7 TBS 5.8G 2.5W

Opis szczegółowy produktu

Partizan Rocky7 TBS 5.8G 2.5W

The Partizan Rocky 7 TBS is a 7-inch FPV drone specially designed for long-range flights. It features a 5.8G video transmitter with a 2.5W output, ensuring robust signal transmission. This version includes an analog Caddx H1 camera, providing high-quality video feed and clear imaging for FPV applications

Specifications

Model: Rocky7 TBS 5.8G 2.5W
Frame: 7” Partizan DC Foldable Frame
Dimensions: 302x242x60mm
Weight: 450g
Wheelbase: 309mm
Arm plate thickness: 6mm
Bottom/top plate thickness: 2.5mm
Stack: F405 (F4 FC + 60A ESC 4in1)
Firmware: Betaflight 4.4.2
VTX: 5.8G 2.5W
VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
Motor: Partizan 2807 1300KV(6S)
Propeller: Gemfan 7040-3
Camera: Caddx H1
Gimbal System: None
RX: TBS Crossfire
GPS: none
Recommended Battery: 6S 4000mAh Lipo
Flight time with 4000mah battery:
- 30 minutes(no payload)
- 15 minutes(1.2kg payload)
- 8 minutes(2kg payload)
MAX Speed: 150km/h
Stable Working Temperature Range: -10° to 40° C (14° to 104° F)
Payload: up to 1.5kg

Package includes:
1x Partizan Rocky7 TBS 5.8G 2.5W
