FPV Camera CaddxFPV Nebula Pro Nano Vista Kit (8cm)

Opis szczegółowy produktu

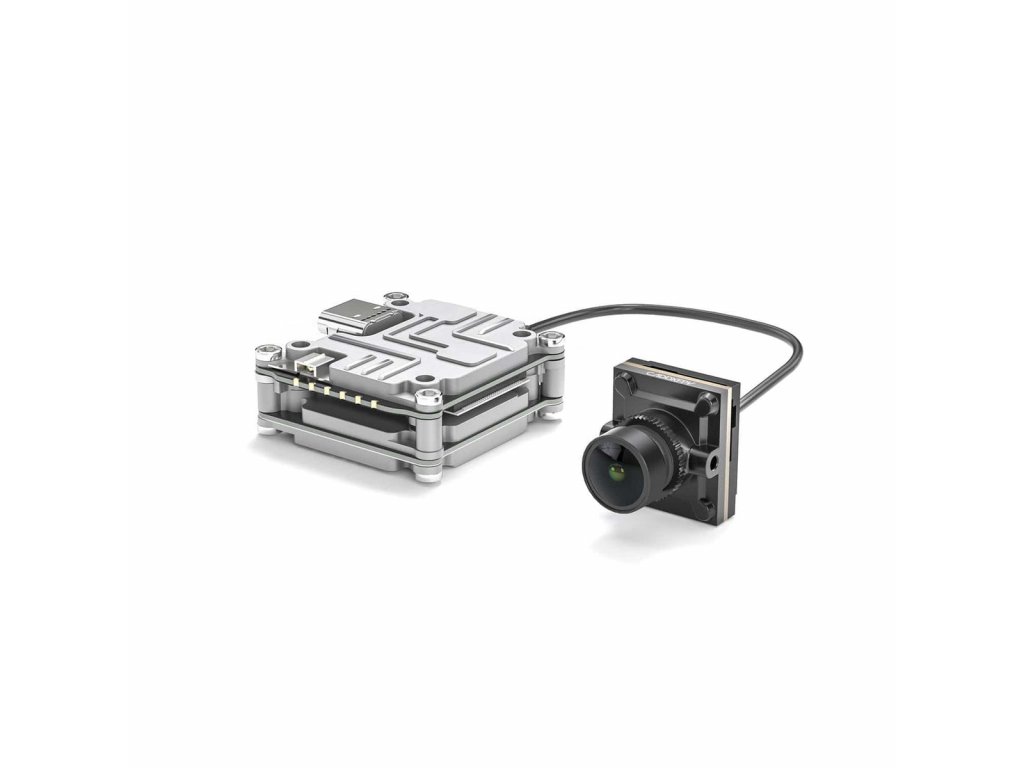

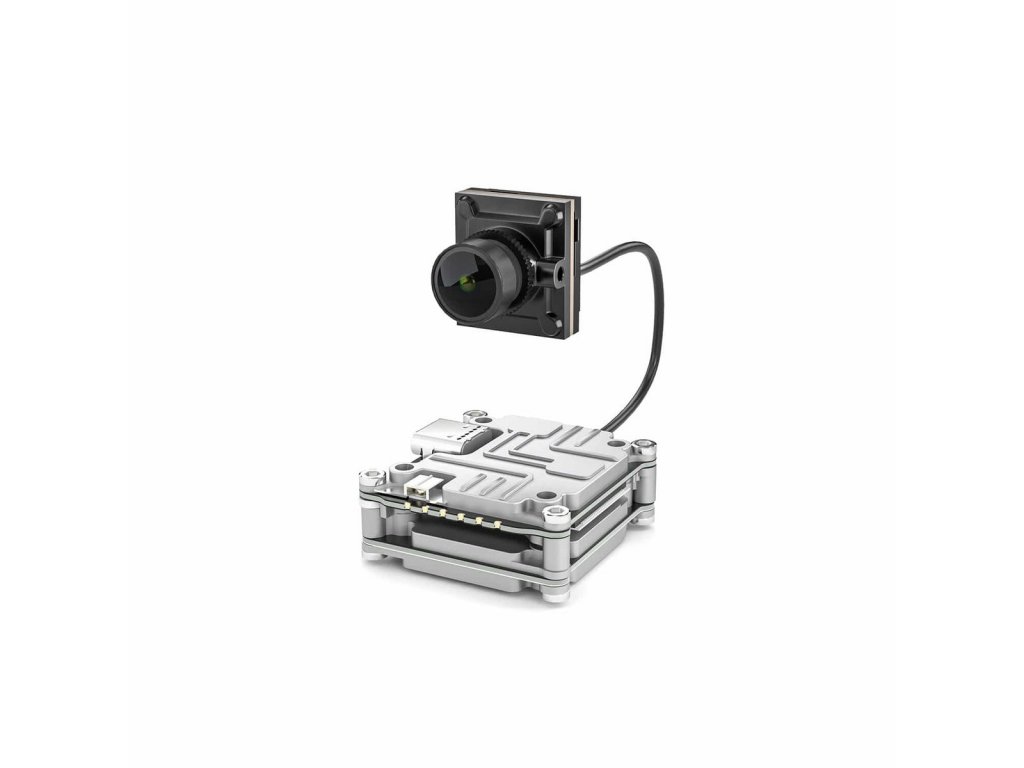

Nebula Pro Nano Vista Kit (8cm)

The Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission. The Caddx Nebula Pro Nano with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range of up to 4km. The Nebula Pro NANO Vista Kit comes with a Nebula Pro Nano camera with an 8cm connecting cable.

Specifications

Camera:
Model: Nebula Pro Nano
Image Sensor: 1/3 inch CMOS Sensor
Field of View: 150°(D); 122°(H); 93°(V)
Aspect Ratio: 16:9 & 4:3 (Switchable)

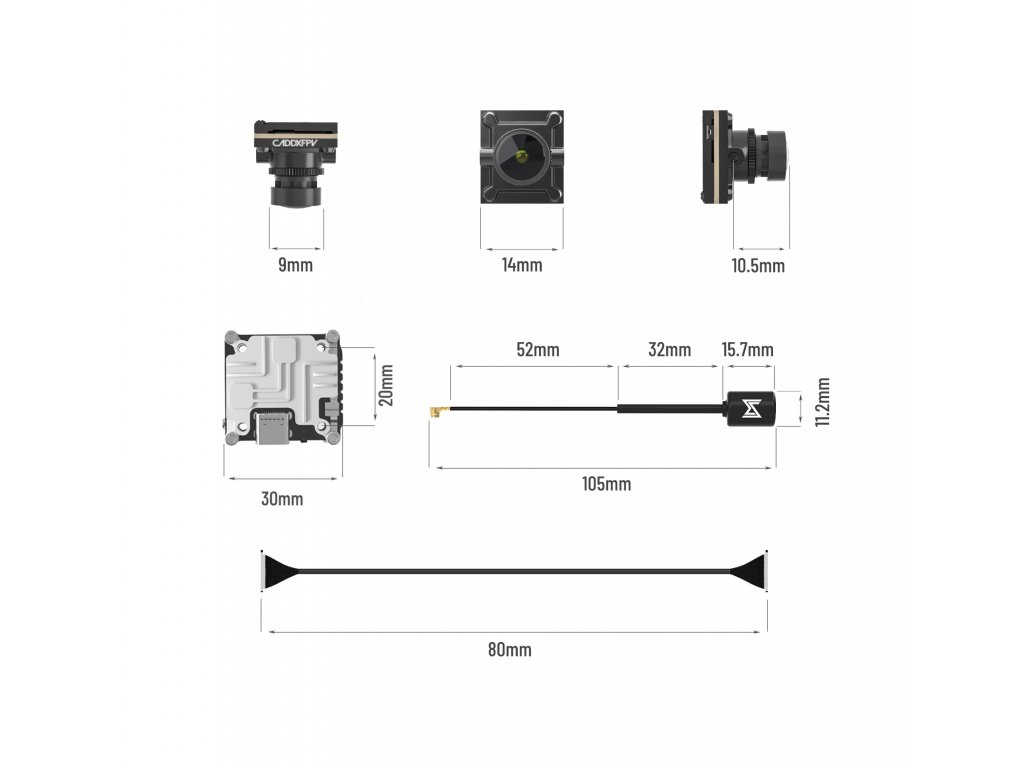

Dimensions: 16.5x16x14mm
Resolution: 720p/120fps
Lens Size: 2.1mm f/2.1
Cable Length: 8cm
Aperture: F/2.0
Weight: 3.5g

Vista Unit:
Min.latency: (end-to-end) Low Latency Mode (720p 120fps): 21-28ms
Transmitter Power: (EIRP) FCC/SRRC/MIC: <30dBm / CE: <14dBm
Max.Transmission Distance: FCC/SRRC: 4km / CE: 0.7km
Power Output: 25mW / 200mW / 500mW / 700mW
Supported Flight Controller System: F3 / F4 / F7
High Quality Mode: (720p 60fps): 30-40ms
I/O Interface: USB-C, Ipex3, 3-in-1 port
Operating Frequency: 5.725-5.850GHz
Dimensions: 30x29x13mm
Weight: 20.8g (unit only)
Input Power: 7.4-26.4V

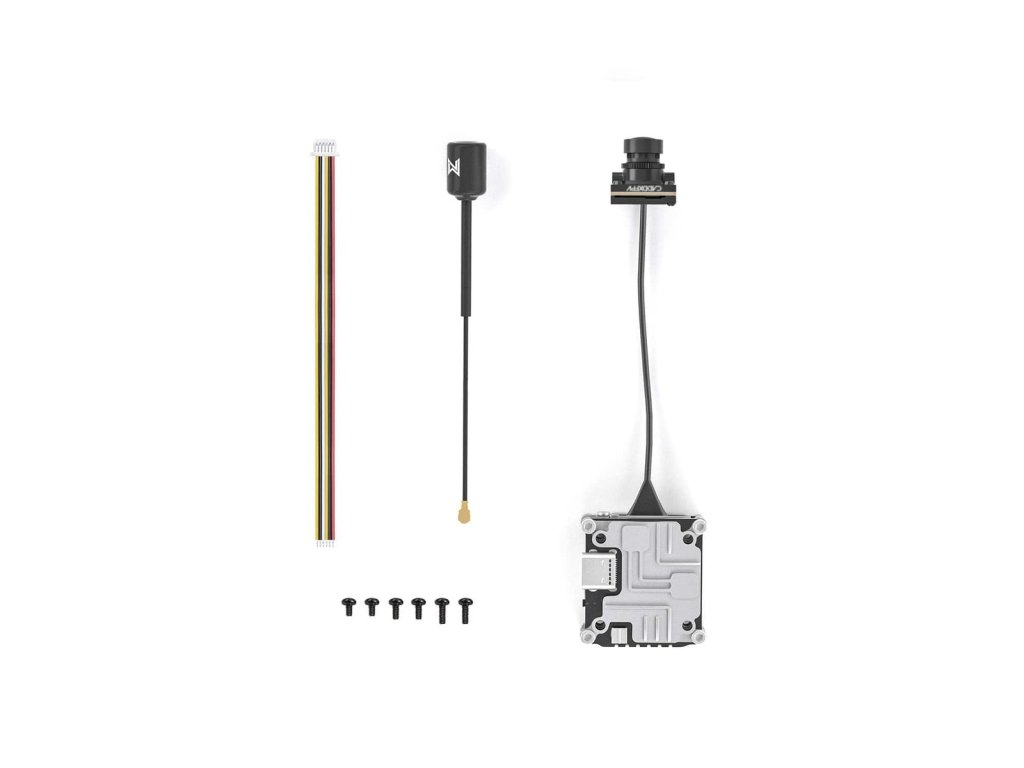

Package Includes:
1 x Nebula Pro Nano Vista Kit
1 x Screws kit
1 x 3-in-1 cable
1 x User manual
