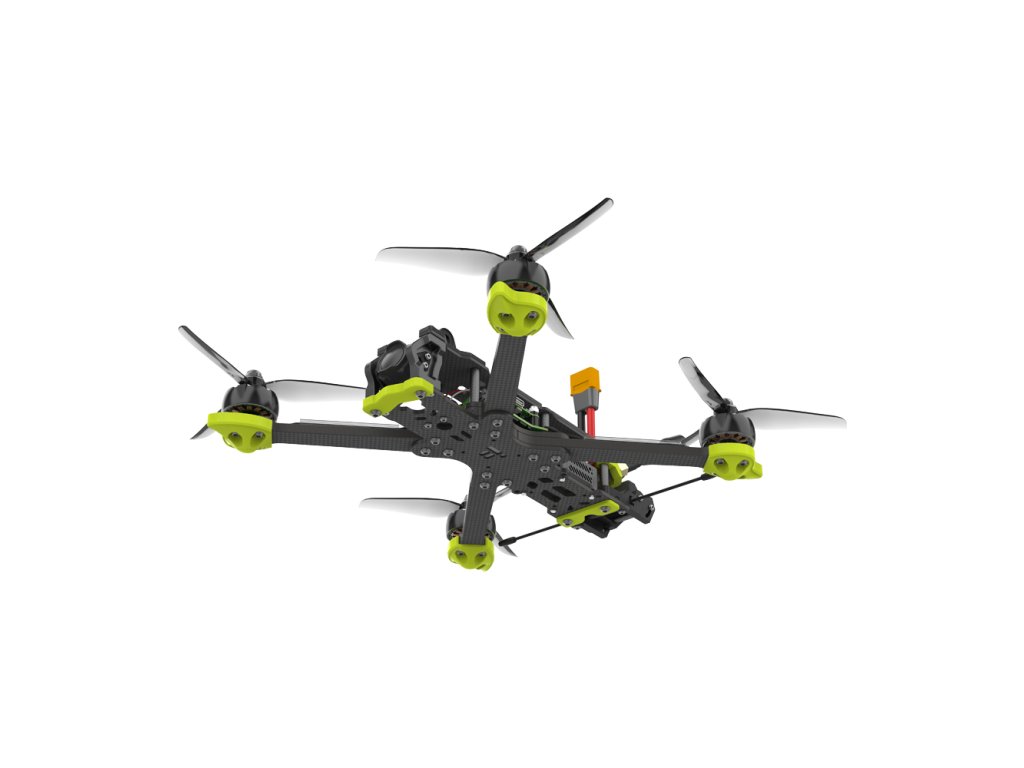

FPV Drone iFlight Nazgul5 V3 HD 6S BNF (TBS)

Opis szczegółowy produktu

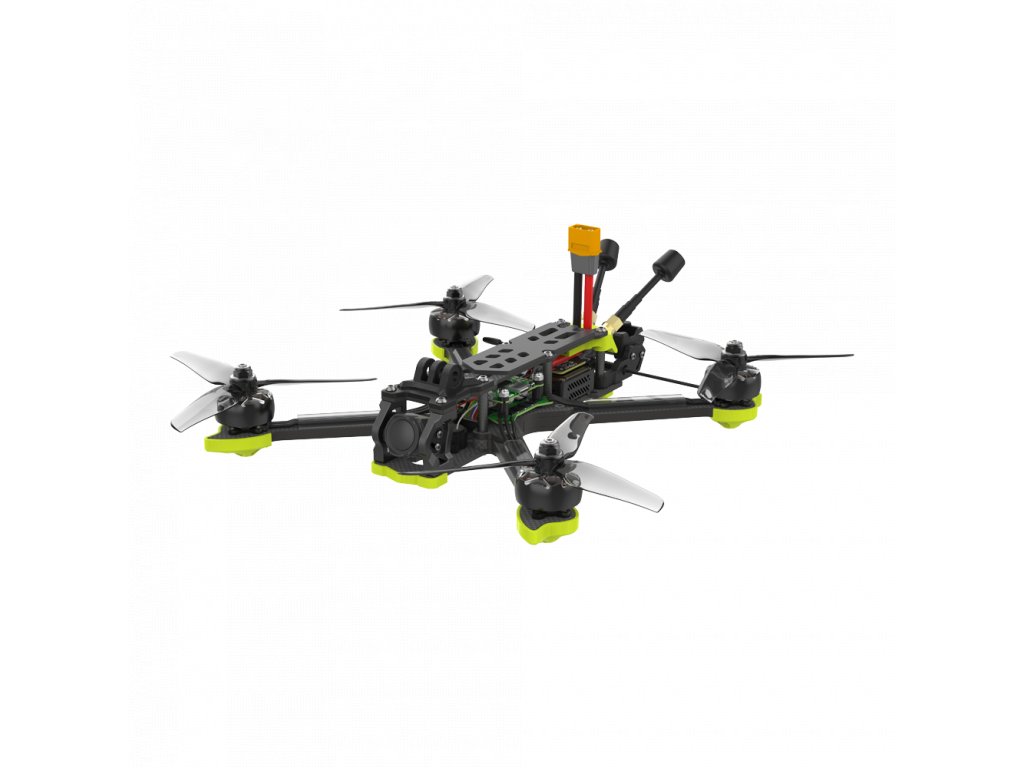

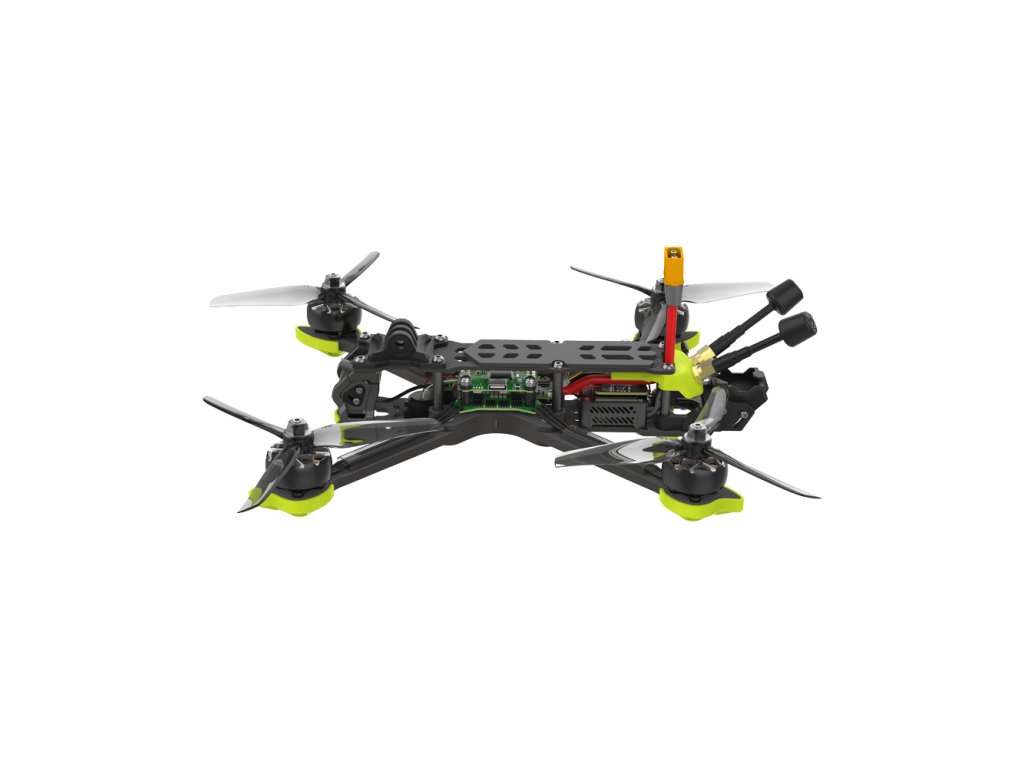

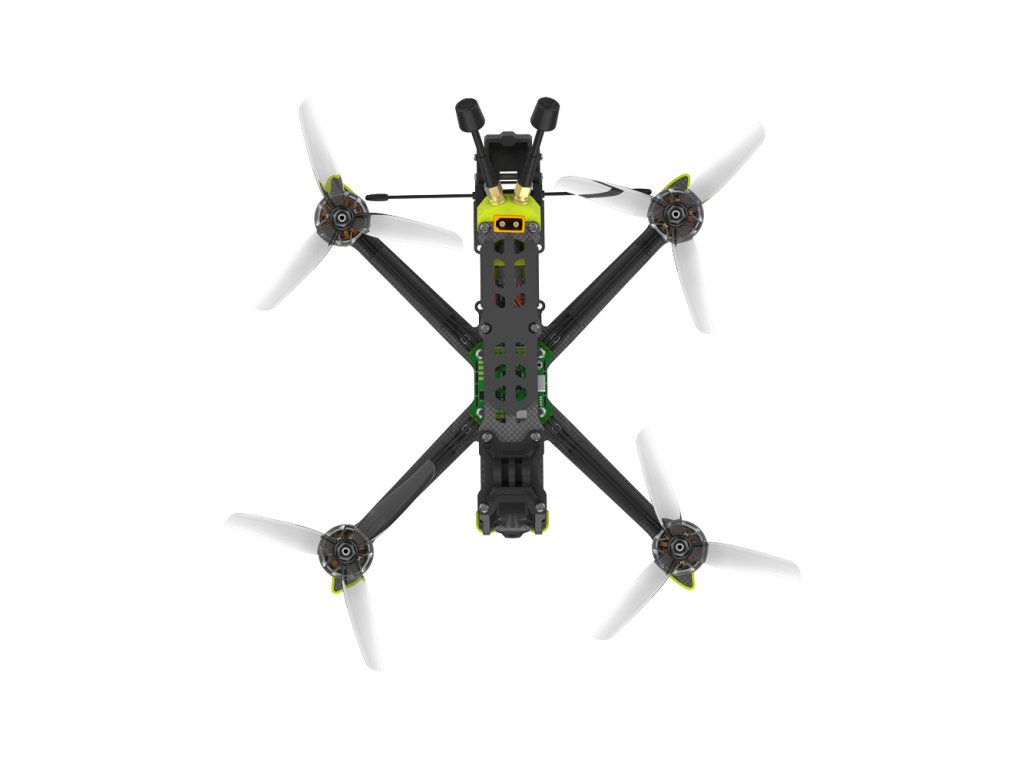

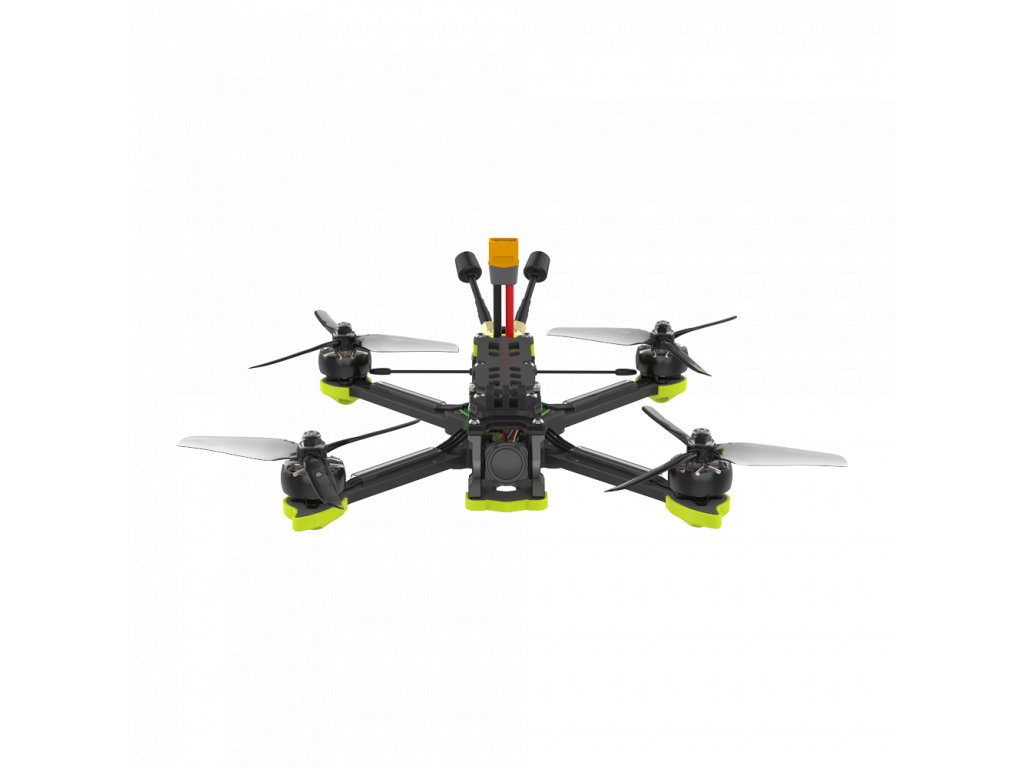

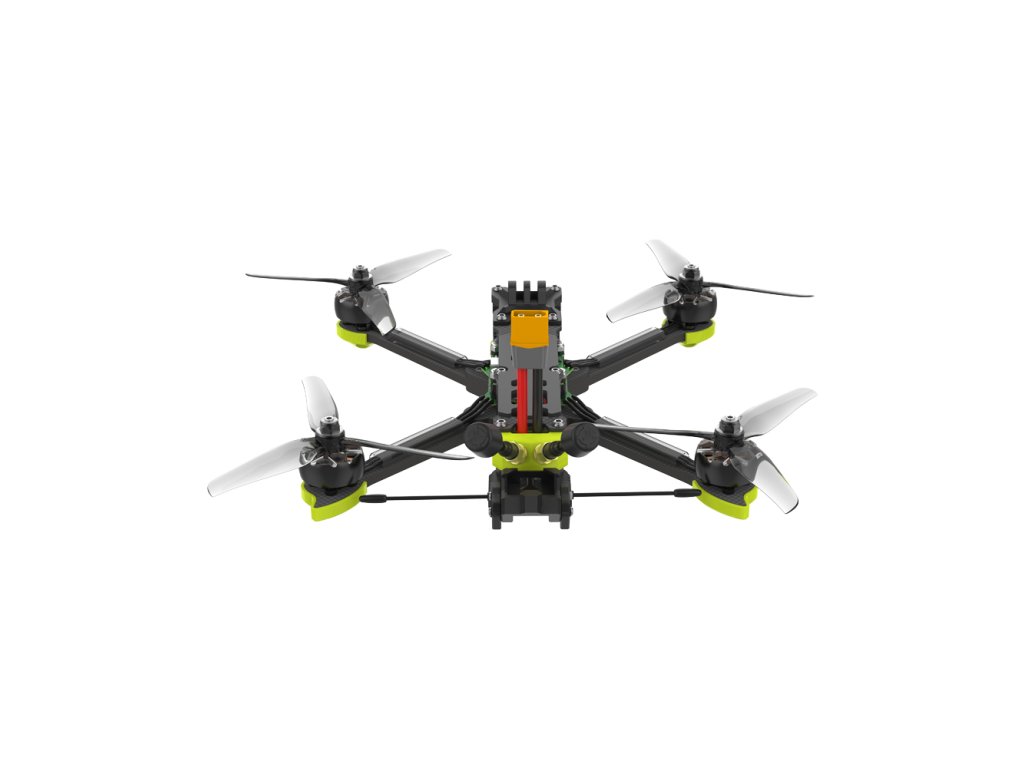

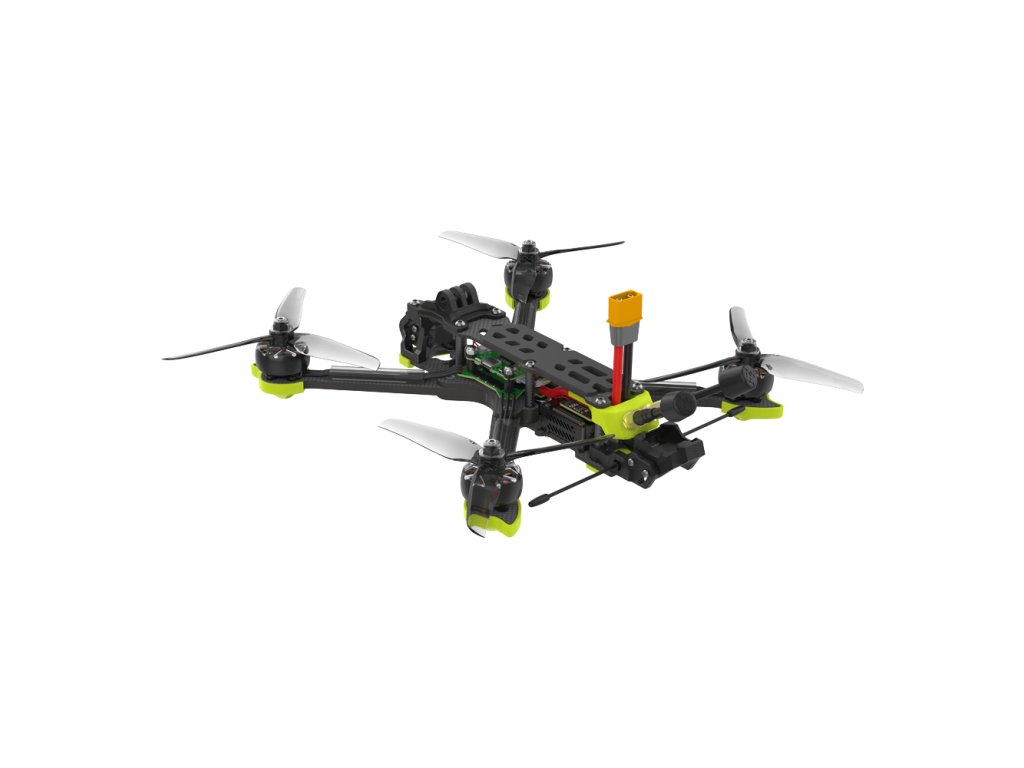

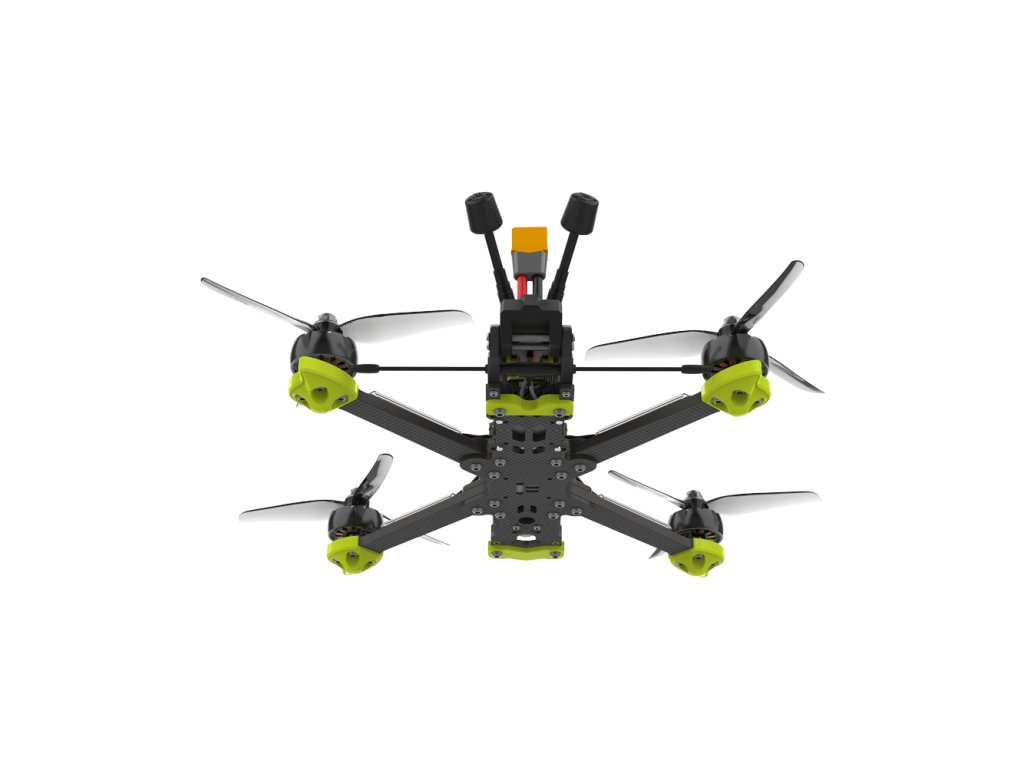

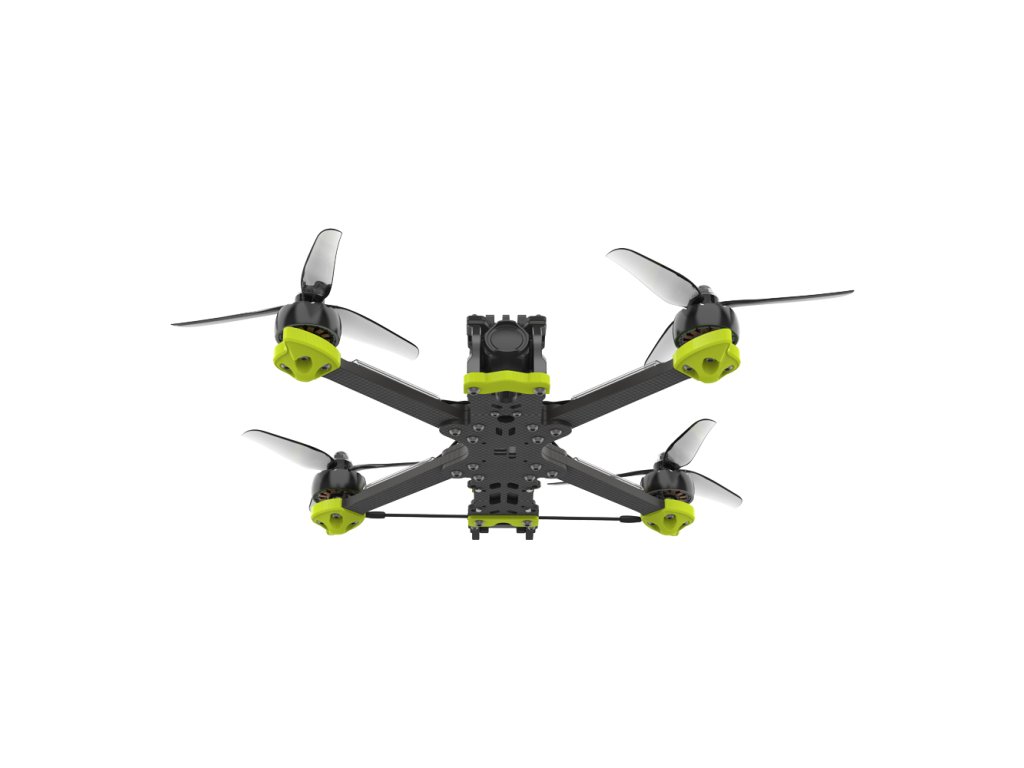

Nazgul5 V3 HD 6S BNF (TBS)

Features:

- XING-E 2207 motors and NAZGUL 5140 props
- 5" version also fits 5.1" style propellers
- Fits both 30.5x30.5 and 20x20 stacks
- DJI O3 HD System
- 5mm arm design for more durability
- Popular True-X configuration
- LED illuminated Logo
- TPU crash-guards
- Easy-Swap arms

Specifications
Product Name: Nazgul5 V3 6S HD
Geometry: Squashed-X
FC: BLITZ F722 FC
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video Transmission: DJI O3 Air Unit
Frame: 245mm wheelbase
Motor: XING-E Pro 2207 motors
Prop: Nazgul F5 propellers
Takeoff Weight: Approx. 457 g
Dimensions (L×W×H): 173×173×34±2 mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 2 Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
Receiver Option: TBS Crossfire NANO RX

Video Transmission
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (headband included)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5mm
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
End-to-End Latency
With DJI FPV Goggles V2:
-810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
-810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2
-1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
-1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package includes:
1 x Nazgul5 V3 O3 HD BNF (TBS)
2 x Antennas
2 x Battery pads
2 x Prop(Pairs)
