FPV Drone iFlight Nazgul Evoque F6X V2 Analog 6S BNF (ELRS 2.4GHz)

Opis szczegółowy produktu

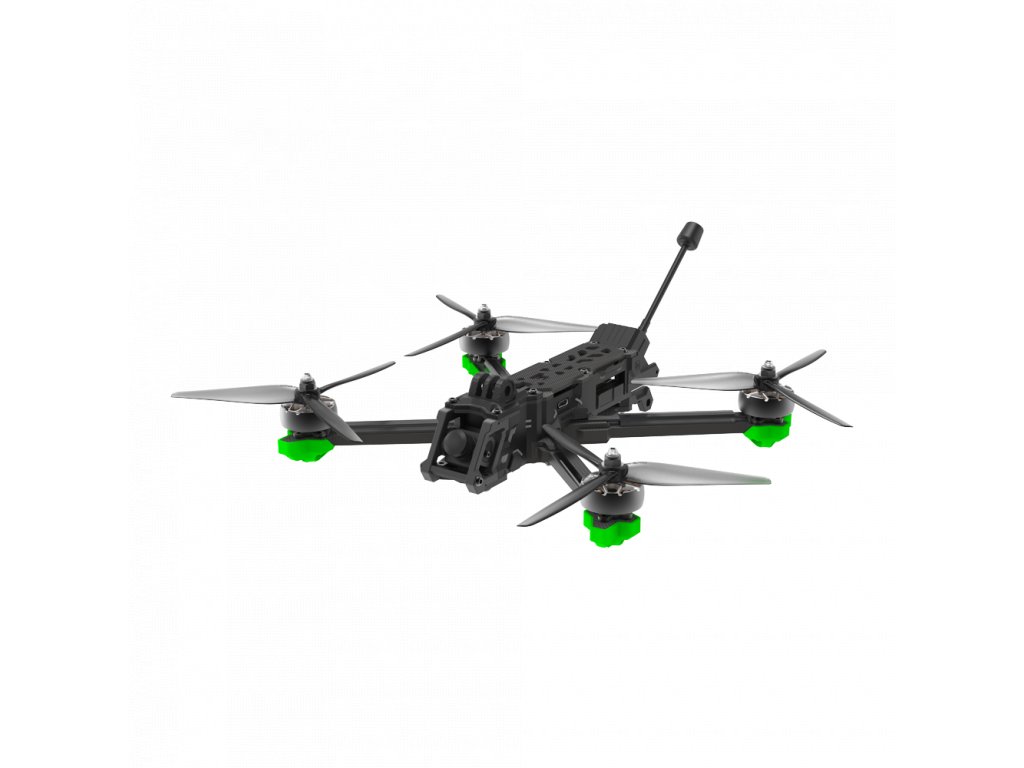

Nazgul Evoque F6X V2 Analog 6S BNF (ELRS 2.4GHz)

The Nazgul Evoque F6X V2 Analog 6S is a high-performance 6-inch freestyle drone built on the Squashed X frame, offering improved agility and speed. The Evoque F6X V2 Analog is equipped with RaceCam R1 Mini 1200TVL 2.5mm and offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915MHz, ELRS 2.4GHz, or Without RX (PNP). It provides flexibility for different preferences. A 6-inch drone features longer flight time with a bigger battery and more efficiency with the lower KV motors. This version has a pre-install GPS Module.

Features:

-Smooth and Powerful XING2 Motors-
Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash-resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and the XING O-ring bushing gap protection.

-Latest Nazgul Frame for Maximum Protection-
The latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortcuts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.

-Secured Battery Plug with Anti-Spark Filter-
Added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.

Specifications:
Product Name: Nazgul Evoque F6X V2 Analog 6S
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 255mm (Squashed X)
Motor: XING2 2506 1500KV motors
Prop: 6 inch propellers
Weight: 480g
Dimensions (L×W×H): 196×164×36±2mm (Squashed X)
Max Speed: 180 Km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 8.5 mins (With 6S 1400mAh)
Max Flight Distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver Option: ELRS 2.4GHz RX

Video Transmission
Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 5V
Interface: IPEX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 25x25mm/Φ1.6
Lightweight: 16.5g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

Package includes:
1 x Evoque F6X 6S Analog BNF
1 x Antennas
2 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
