Multifunction Smart Battery Checker ISDT BG-8S

Opis szczegółowy produktu

The ISDT BG-8S Battery Tester is an advanced device designed to optimize battery performance, enhance user experience, and provide comprehensive monitoring for various battery types. Here’s a detailed overview of its features and specifications:

Key Features:

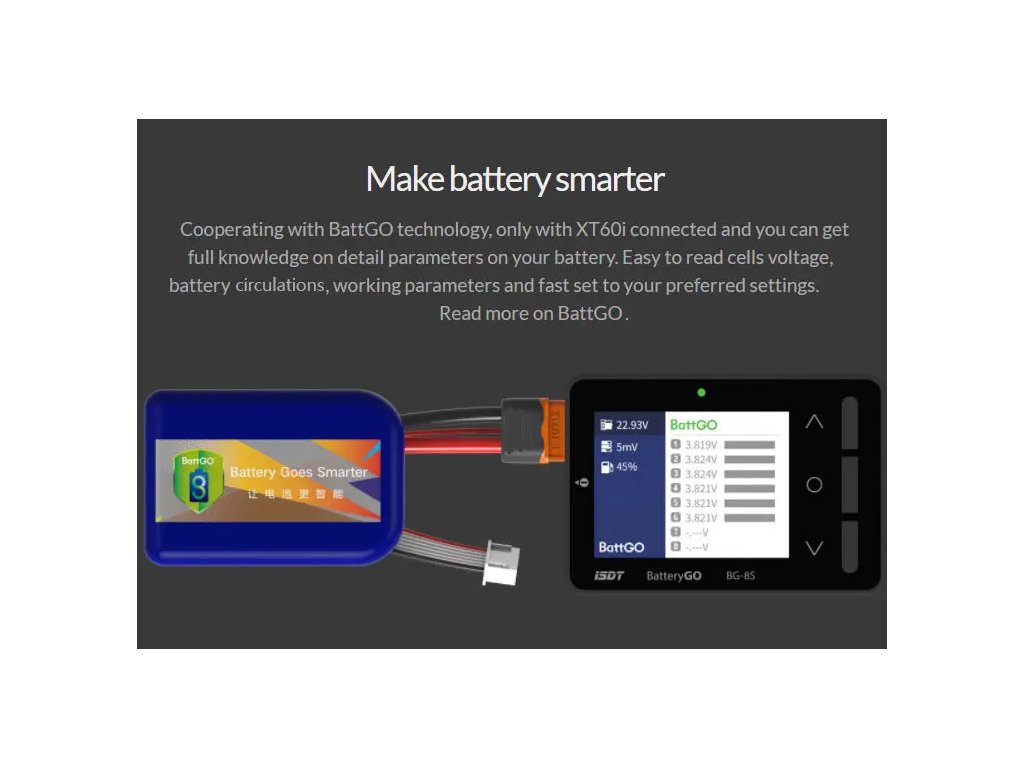

1. Smart Battery Management with BattGO Technology:

   • When connected via the XT60i connector, the BG-8S provides full information about your battery's parameters, such as cell voltage, battery cycles, working conditions, and allows quick adjustments to your preferred settings. This feature simplifies battery management and enhances safety.

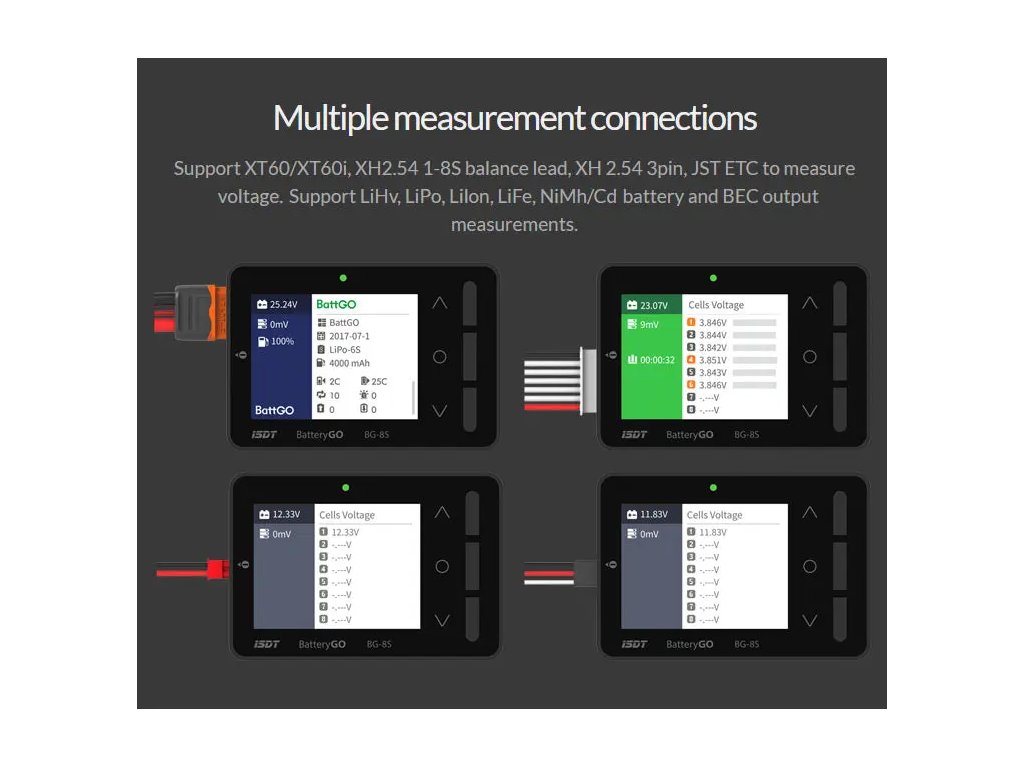

2. Multiple Measurement Connections:

   • Supports various connectors including XT60 / XT60i, XH2.54 1-8S balance leads, XH 2.54 3-pin, and JST connectors to measure voltage across different battery types. This versatility makes it compatible with a wide range of battery chemistries, including:
     • LiHv, LiPo, Lilon, LiFe, NiMH/Cd

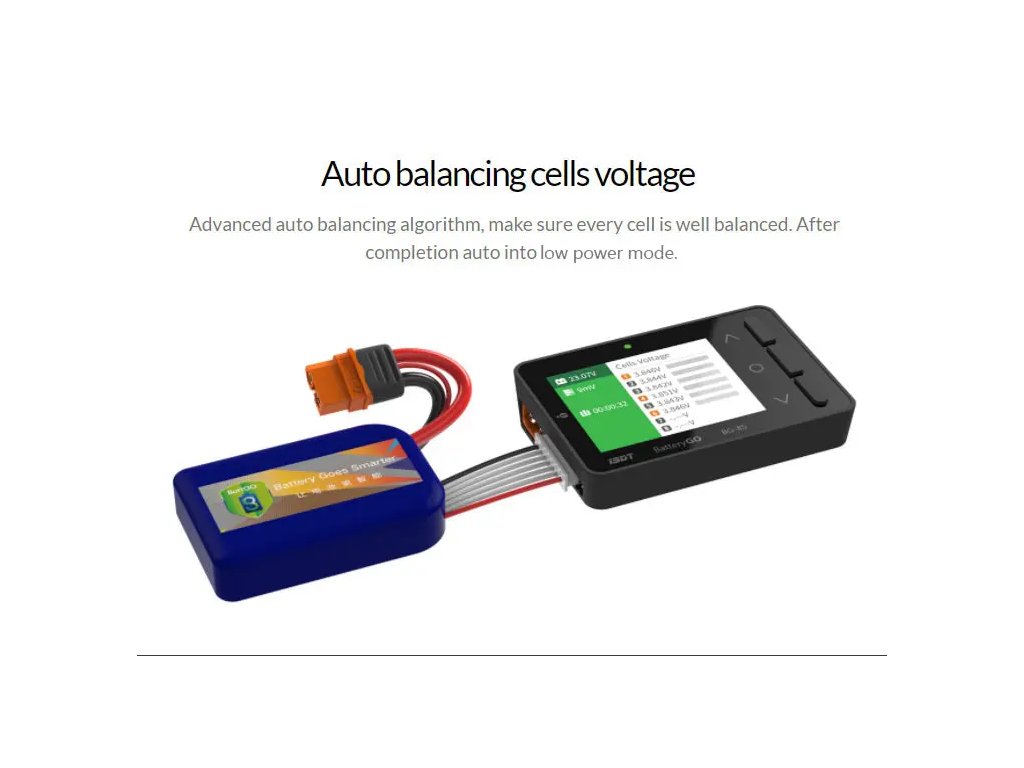

3. Auto-Balancing Functionality:

   • The BG-8S features a cell balancing function that optimizes battery performance by ensuring all cells are balanced. It employs an advanced automatic matching algorithm to achieve this. After balancing, it automatically enters power-saving mode to conserve energy.

4. Portable Charging Capability:

   • The BG-8S can act as a power bank for mobile devices. It supports Qualcomm Quick Charge 2.0/3.0, which is also compatible with BC1.2 and Apple devices, providing a maximum output of 12V/2A for charging.

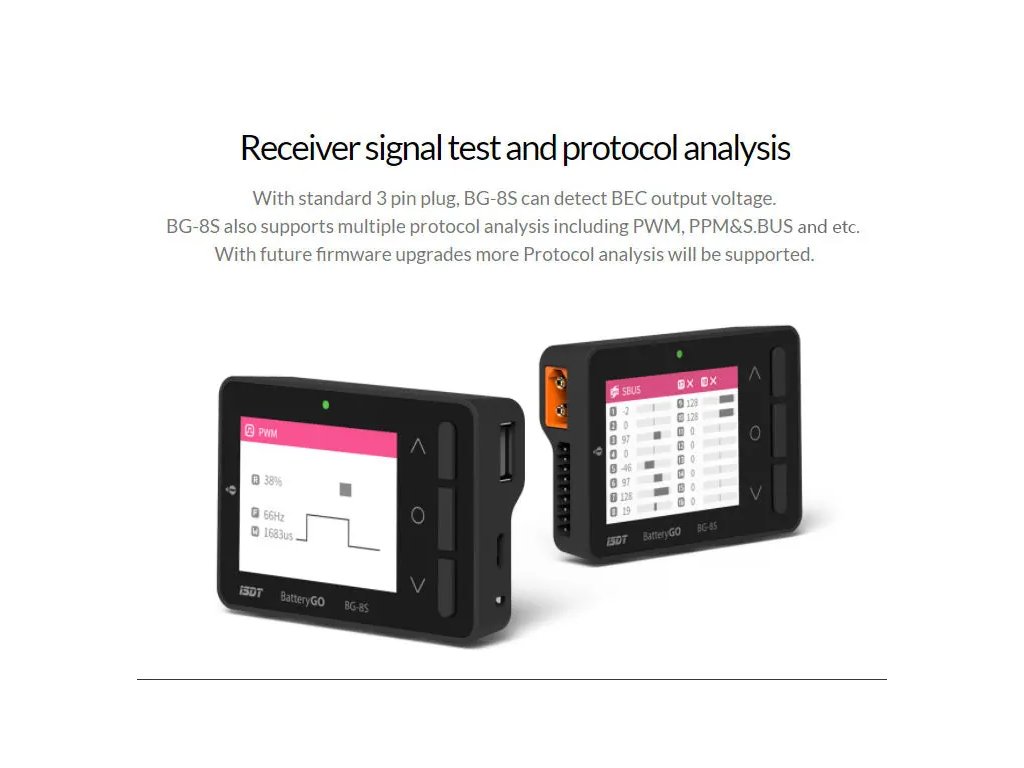

5. Receiver Signal Testing and Protocol Analysis:

   • Equipped with a standard 3-pin connector, the BG-8S can detect BEC output voltage and supports multi-protocol analysis including PWM, PPM, and S.BUS. Additional protocol analysis capabilities may be added with future firmware updates.

Specifications:

• Working Voltage: 5.0V - 36V
• Input Voltage:
  • 1S: 0.8V - 15V
  • 2-8S: 0.8V - 4.8V
• Battery Cells Supported: 1 - 8S
• Voltage Measurement Accuracy: 0.005V @ 4.2V
• Balancing Cells Accuracy: High precision for effective balancing
• USB Charging Support: QC 2.0 / 3.0, BC1.2
• Maximum Output: 12V / 2A
• Supported Battery Types:
  • LiHv (1-8S) / LiPo (1-8S) / LiFe (1-8S) / Lilon (1-8S) / NiMH/Cd (1-10S)

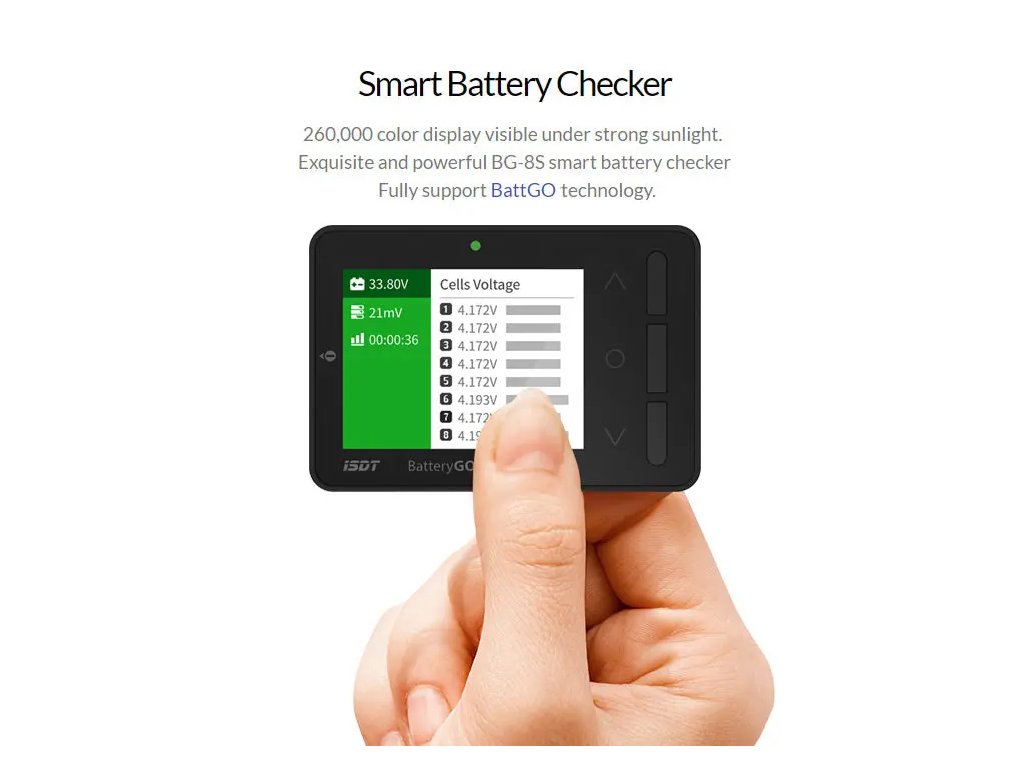

• Display: 2.4-inch IPS LCD, 260,000 colors
• Dimensions: 80 x 55 x 19 mm
• Weight: 59 g
• Operating Temperature: 0 - 40°C
• Working Humidity: 10% - 90% RH (non-condensing)
• Storage Temperature: -20 - 60°C
• Storage Humidity: 5% - 90% RH (non-condensing)

Package Includes:

• 1 x ISDT BG-8S Battery Tester
