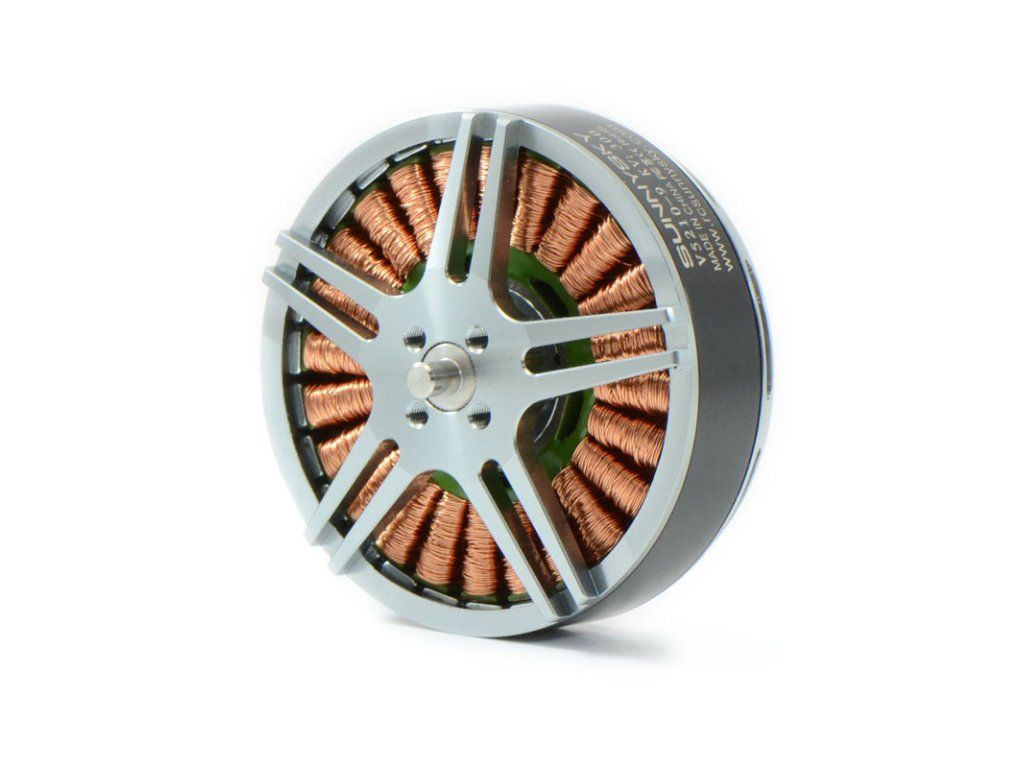

Motor SunnySky V5210 300KV

Opis szczegółowy produktu

Motor SunnySky V5210 300KV

The SunnySky V5210 300KV motor is engineered for long-range drone flights, offering high efficiency and smooth operation. With low RPM torque, it provides optimal power at peak efficiency during flight. The motor features Sunnysky’s patented stepped and knurled design, which prevents loosening and reduces the risk of power instability.

Equipped with original Japanese EZO bearings, the V5210 ensures quiet, stable performance in the air. The motor caps are precision hollow-cut to reduce weight, maximizing the thrust-to-weight ratio for longer flight times. Each motor undergoes strict quality control testing, including dynamic balancing and rigorous axial and radial runout inspections, ensuring top-level performance for multirotor applications.

Specifications:

Motor Model: V5210
KV: 300KV
Stator/Rotor Poles: 24N28P
Internal resistance: 76mΩ
Motor size: φ59*25mm
Shaft diameter: 4.0mm
AWG: 20AWG 600mm
Motor weight(wire included): 200g
Rated operational voltage: 4-6S
No-load current: 0.9A/10V
Maximum continuous power: 1100W
Maximum continuous current: 44A/30s
ESC recommended: EOLO 50A
Propeller size recommended: EOLO CN17*6.2/C18*6.5/C20*6.2/CN22*6.5

Package Includes:
1x Motor SunnySky V5210 300KV
