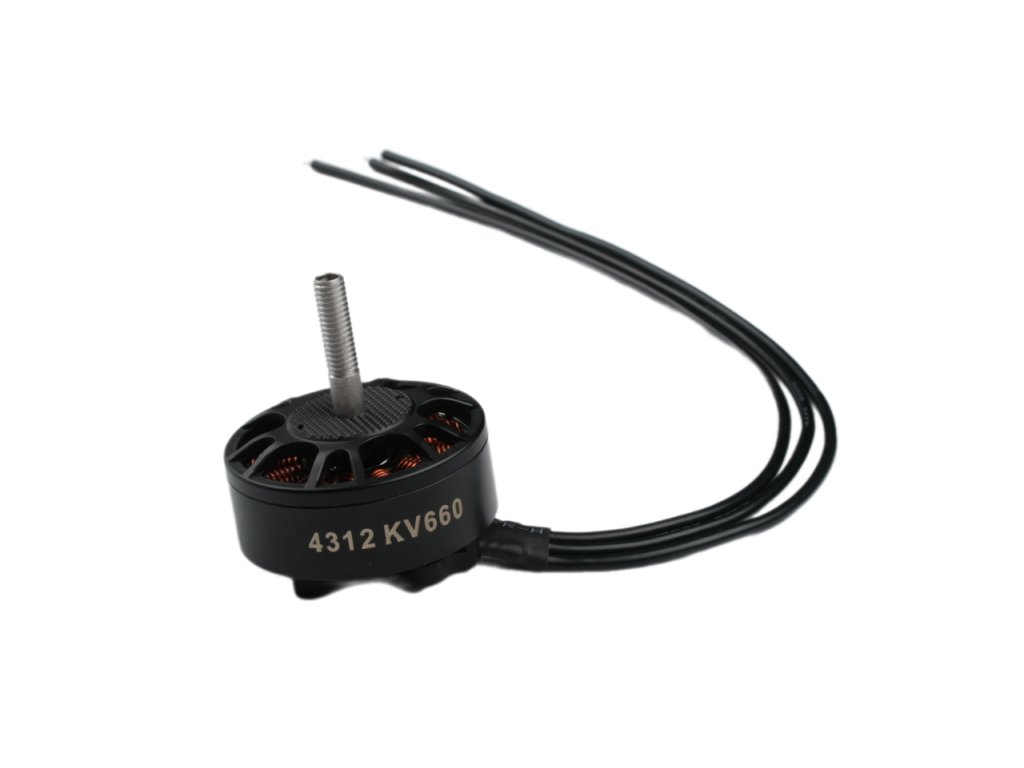

Motor Pilotix 4312 660KV

Opis szczegółowy produktu

Motor Pilotix 4312 660KV

The Motor Pilotix 4312 660KV is a high-performance brushless motor designed for demanding applications. This motor delivers powerful and efficient performance with a KV rating of 660 RPM/V. It operates on a voltage range of up to 22.2V, providing a lift force of over 7900g at full throttle. Weighing 167.5g, the Motor Pilotix 4312 660KV is an ideal choice for professionals seeking reliability and power.

Specifications:

Model: Pilotix 4312
KV value: KV660
Weight: 167.5g
Diameter: 42 mm
Height: 31.1 mm
Shaft length: 18 mm
Mounting hole diameter: 4 mm
Shaft diameter: 6 mm
Rated Voltage (Lipo): 6S
Voltage (No Load Test): 10V
Speed: 6930 ± 670 RPM
Current: 2.6A Max
Lift Force: ≥ 3200 g
Voltage (Load Test): 22.2V at 100% throttle
Current: ≤ 98A
Lift Force: ≥ 7900 g

Mechanical Performance
Shaft End Runout: ≤ 0.04 mm
Housing Runout: ≤ 0.04 mm
Dynamic Balance Value: ≤ 5 mg
Motor Weight: 167.5 ± 5 g
Shaft Pull-Off Force: ≥ 40 kg
Core and Stator Seat Pull-Off Force: ≥ 5 kg
Axial Clearance (Dummy): 0 ~ -0.10 mm

Motor Operating Noise
Operating Noise: ≤ 90 dB
Test Environment Noise: ≤ 50 dB

Test Conditions
Voltage Regulator, Brushless Integrated Tester
Stabilized Power Supply 16*6 Two-Blade Paddle

Package Includes:
1x Motor Pilotix 4312 660KV
