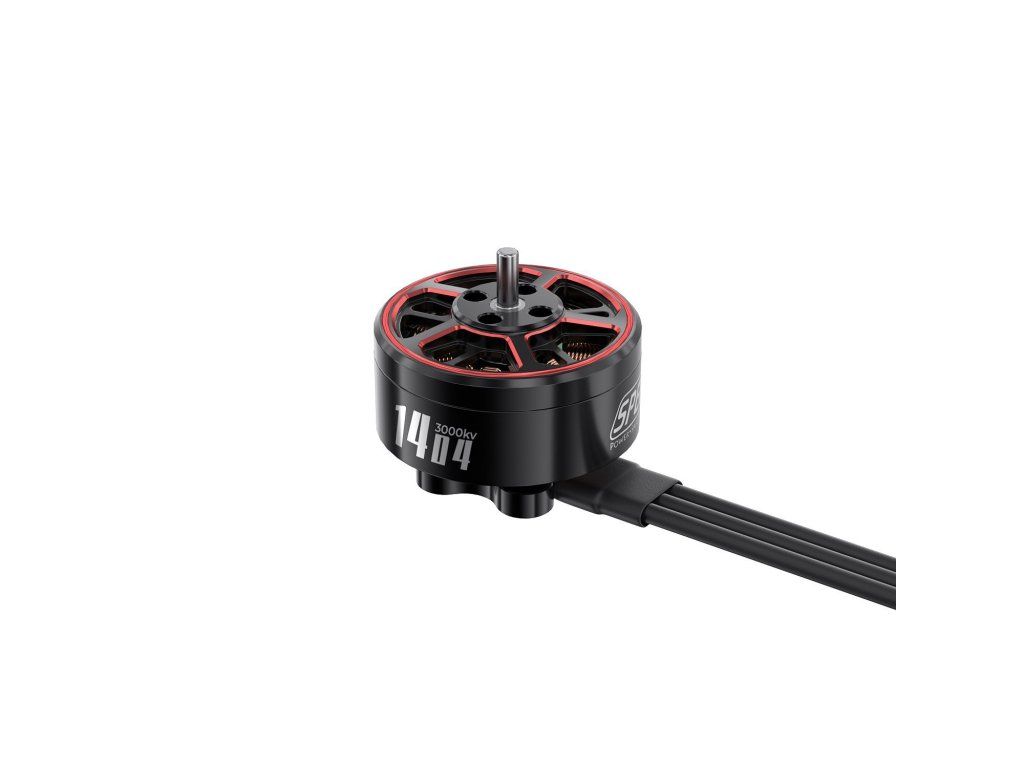

Motor GEPRC SPEEDX2 1404 4600kv
Kod: GP106230Opis szczegółowy produktu
Feature
- Red with black color is obviously high-end.
- Use bearings with excellent performance and strong anti-wear ability.
- Lightweight silhouette, strong power.
- Suitable for 2-inch-4-inch lightweight chassis.
Specifications
SPEEDX2 1404 4600KV Motor
- Model: SPEEDX2 1404 4600KV Motor
- Max Watt: 180W
- Peak current: 14.3A/3″
- Interphase resistance: 0.19Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P
- Dimension: φ18.2mm*13.8mm
- Shaft Diameter: φ1.5mm
- Shaft Protruding Length: 4mm
- Mounting holes: 9mm*9mm（M2）
- Lead: 160mm/26AWG
- ESC: 20A/2-4S（7.4V-14.8V）
- Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
- Winding: Single strand copper winding
- Weight: 10.5g (included wire)
- Suitable for: 2 inch – 3 inch lightweight models
