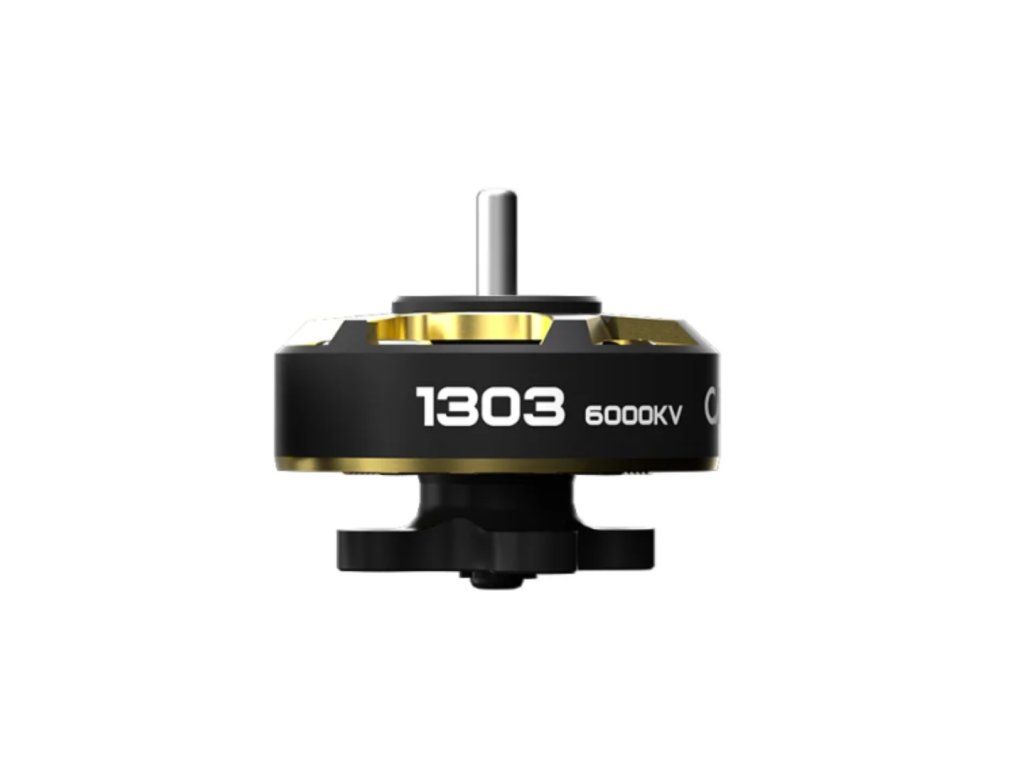

Motor CADDXFPV 1303 6000KV Brushless
Kod: C0PJ-DJ004Opis szczegółowy produktu
Motor CADDXFPV 1303 6000KV Brushless
The CADDXFPV 1303 motor is a perfect candidate for a lightweight 2S to 4S setup. It can be built using regular one-piece injection molding to run 2-inch props on. And take it to the next level with our Gofilm 20 Brushless Whoop Quadcopter. CADDXFPV T2-2-3 3-Blade Propellers 1.3mm Shaft will be the best match with CADDXFPV 1303 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels. Perfectly matched with Super F405HD ELRS AIO, this motor will bring pilots a powerful flight experience.
Specifications:
Model: 1303 6000KV Brushless Motors
KV: 6000
Configuration: 12N14P
Stator Diameter: 13mm
Stator Length: 3.2mm
Shaft Diameter: 1.5mm
Motor Dimension (Diameter * Length): Ф 16.5*10.1mm
Weight(g): 5.6(5cm wire)
Idle current(5)@5V(A): 0.7
No.of Cells(Lipo): 2-4S
Max ContinuousPower(W)3s: 250
Internal Resistance: 166mΩ
Max Current(3S): 16.9A
Max.Efficiency Current: (2-5A)>85%
Package includes:
1pc x Motor CADDXFPV 1303 6000KV Brushless
