Motor BETAFPV 0702SE 23000KV(4PCS)

Opis szczegółowy produktu

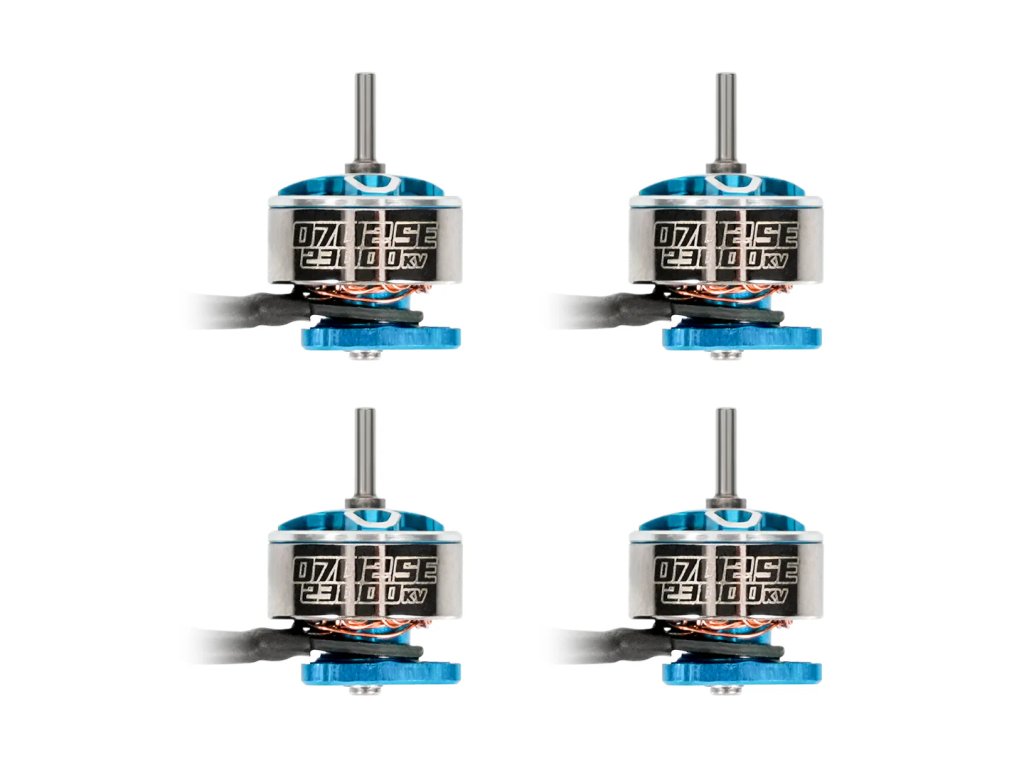

0702SE 23000KV Brushless Motors (4PCS)

Features

- The 0702SE motors are designed for lightweight 65mm whoop drones

- Weighing just 1.42g, making them the lightest motors available.

- The 0702SE motor with brass bushings is more affordable and durable.

- Despite the availability of larger motors achieving similar thrust, the 0702 motors are preferred for their ability to reduce weight away from the center of gravity, enhancing agility.

- PEEK screws, weighing only 0.10 grams/12pcs, contribute to weight savings and offer heat resistance, anti-friction, anti-shock, and anti-fatigue properties.

- Combined with Gemfan 1210 2-blade or 1208 3-blade propellers, these motors deliver robust power and responsiveness, meeting the demands of lightweight whoop drone installations.

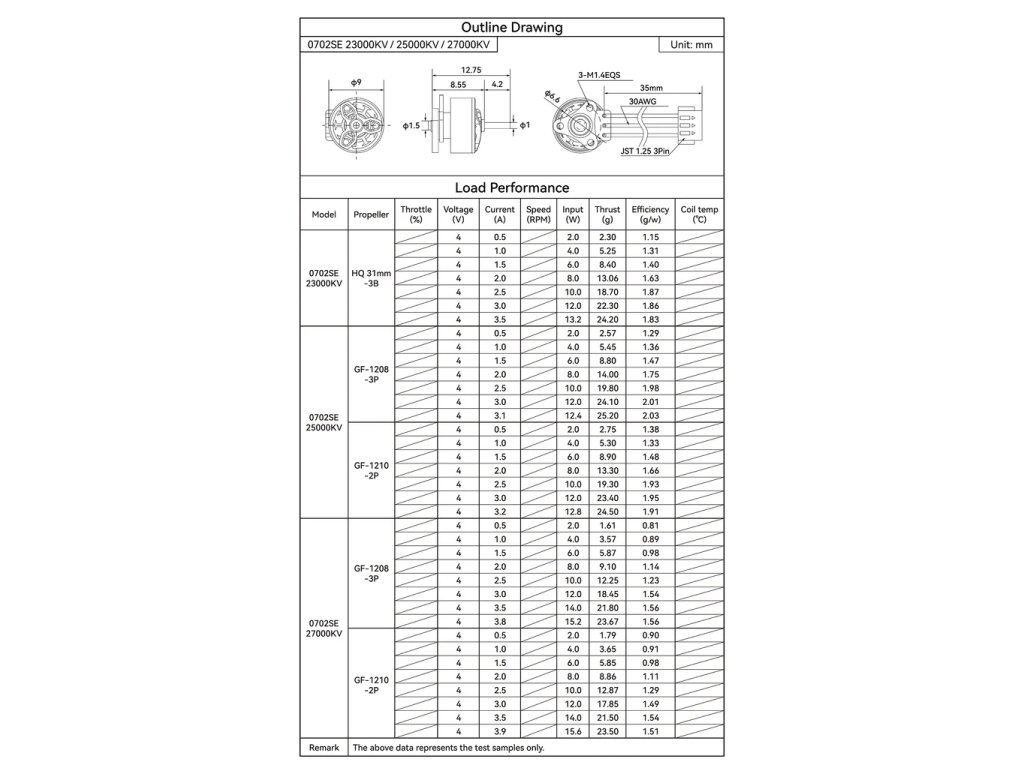

Specifications

Item: 0702SE Brushless Motors

Bearing: Brass Bushings

KV: 23000KV

Weight: 1.42g±0.03g

Weight Without Connector: 1.35g

Color: Ice Blue

Shaft Diameter: 1mm

Shaft Length: 4.2mm

Hole Distance: 6.6mm

Motor Mount Holes: M1.4

Input Voltage: 1S

Cables: 35mm including connector, 30AWG cables

Dimensions: 12.75*φ9mm

Recommended Parts

Propellers: GF 1210 2B Props, GF 1208 3B Props

Frame: Meteor65 frame, Meteor65 Pro frame

FC: F4 1S 5A AIO Brushless Flight Controller

Battery: BT2.0 300mAh 1S 30C Battery (8PCS)

Screws: Meteor Series Motor Fixing Screws Pack

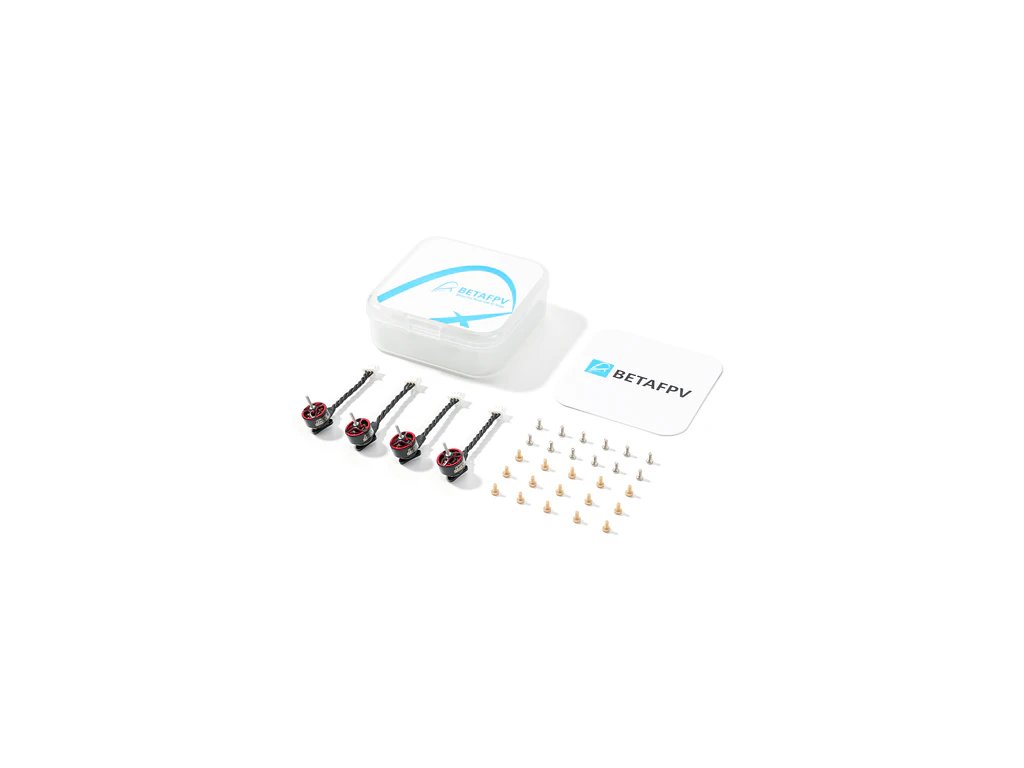

Package

4 * 0702SE brushless motor 23000KV

15 * M1.4*3 PEEK screws

12 * M1.4*3 metal screws
