Micro-Nano module Adapter BETAFPV PCBA only

Opis szczegółowy produktu

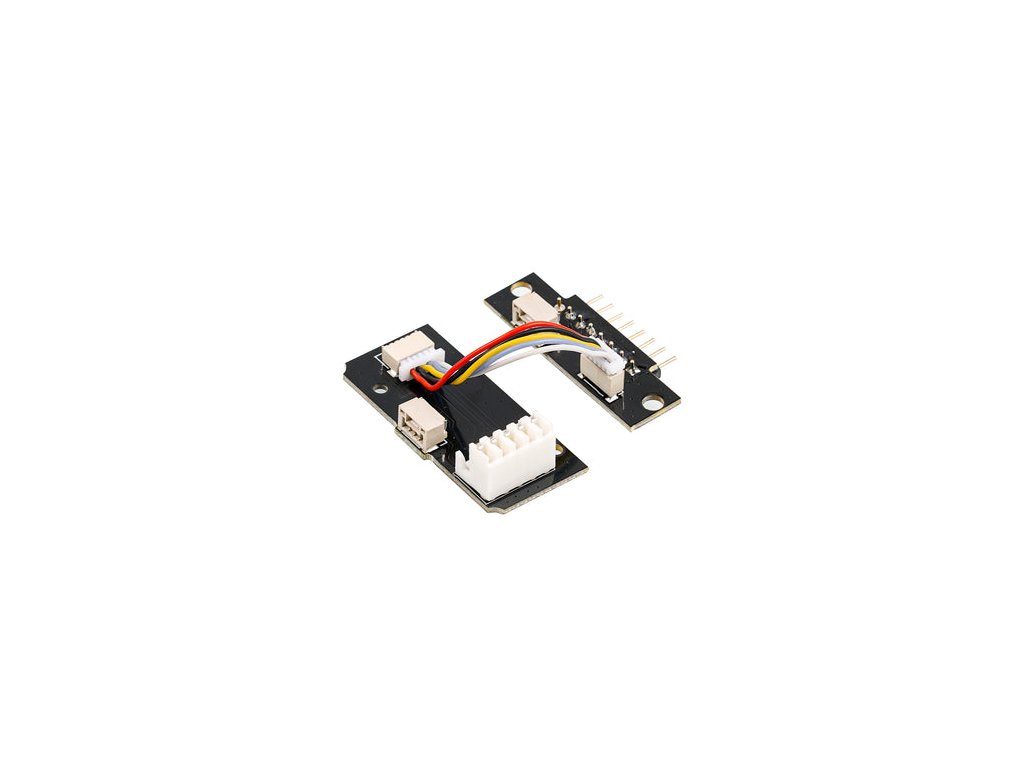

Micro-Nano module Adapter (PCBA only)

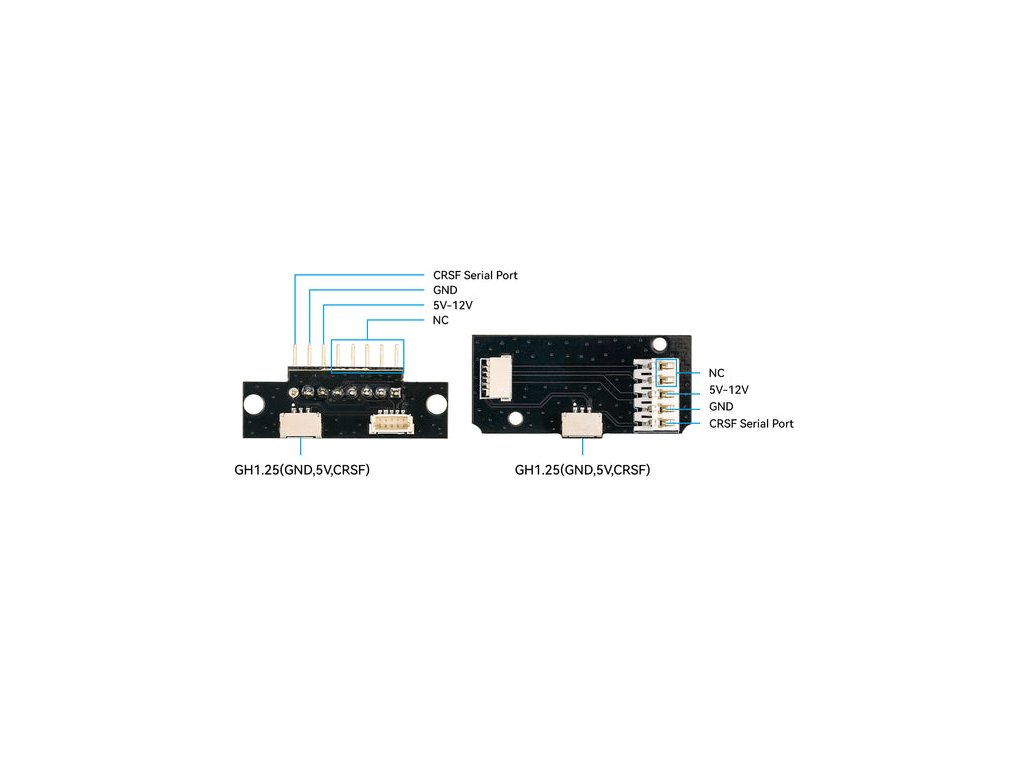

Compared with the previous version, the appearance of PCBA is modified. 3PIN GH1.25 terminal socket is also added to the boards, which is suitable for other no-OpenTX radio controllers. Besides, the PCBA can be used directly without a case or used with a printed case.

Note: Please make sure the wiring is correct if the PCBA is used without a case.

Specifications:
Item: Micro-Nano Module PCBA
Input: JR module bay (Micro module bay)
Output: Nano module bay (Lite module bay)
Supported radio transmitter: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
Radiomaster TX16S/TX18S, TBS Mambo
Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
