TX Module RadioMaster Micro/Nano 4in1 LBT

Opis szczegółowy produktu

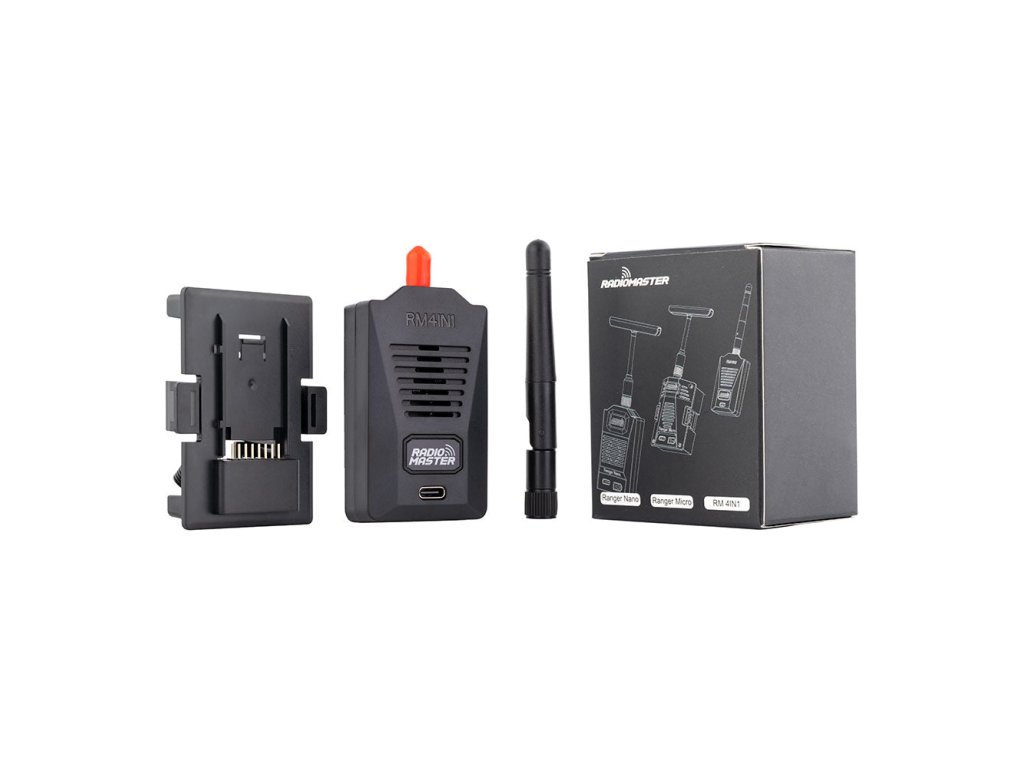

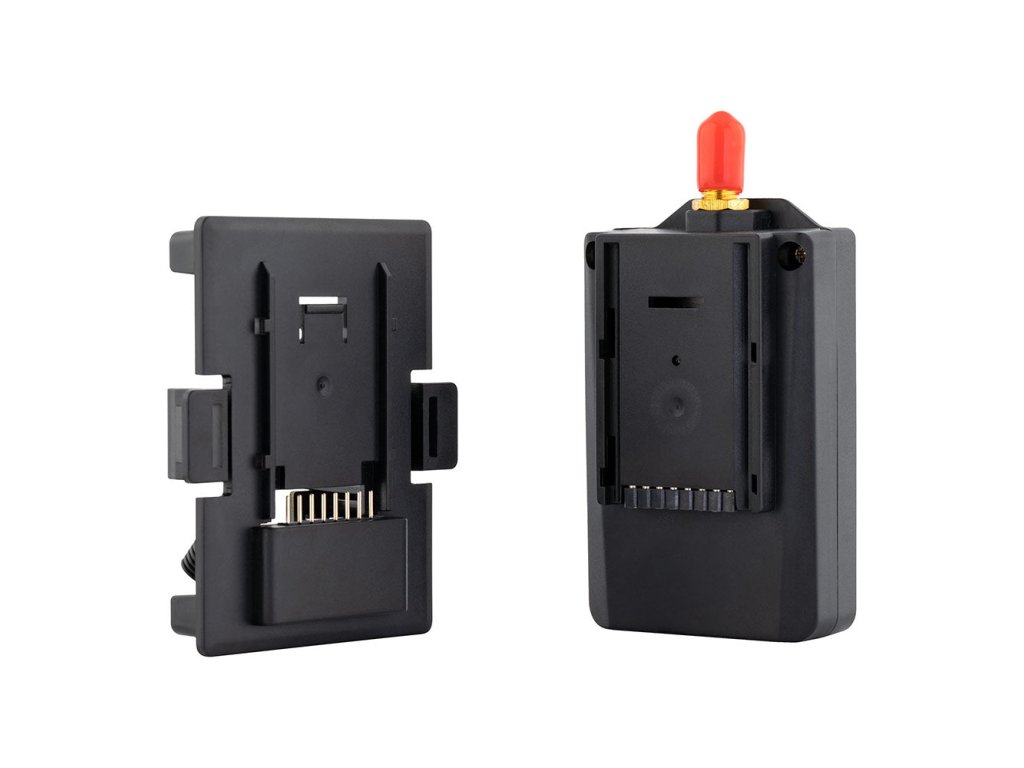

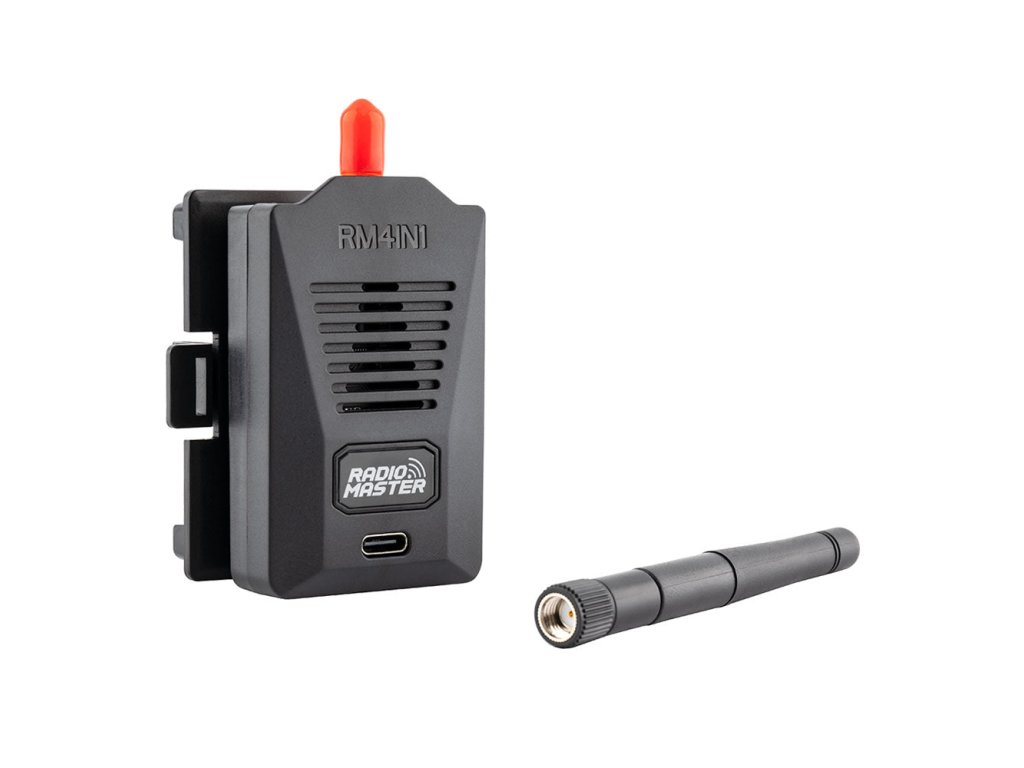

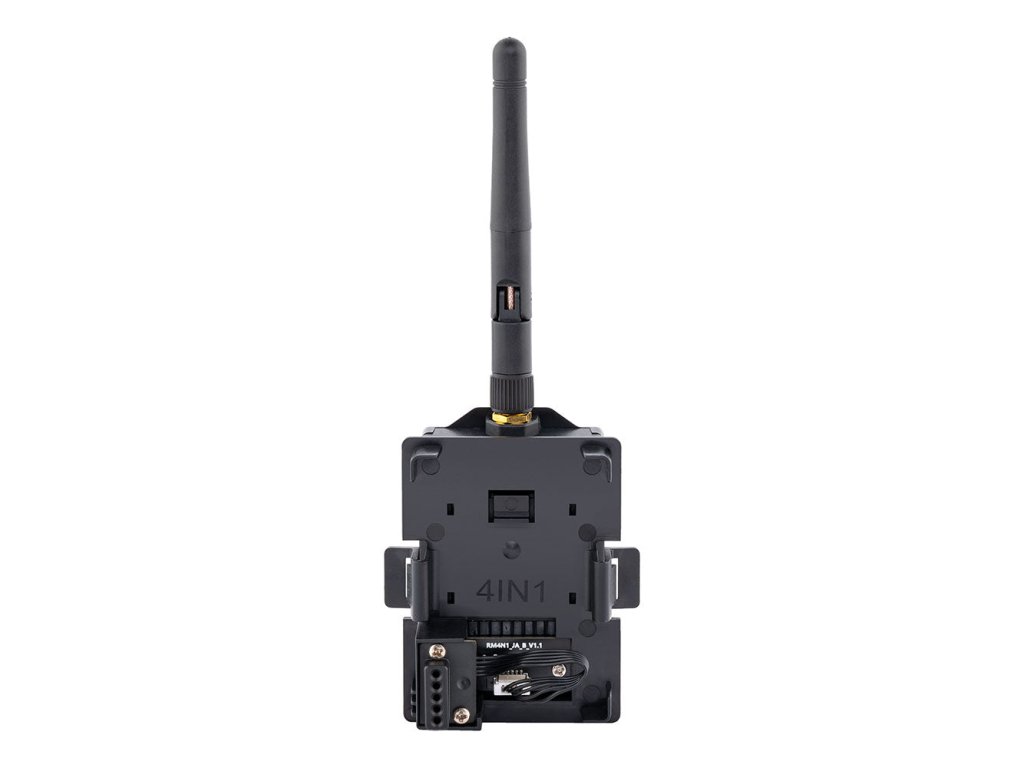

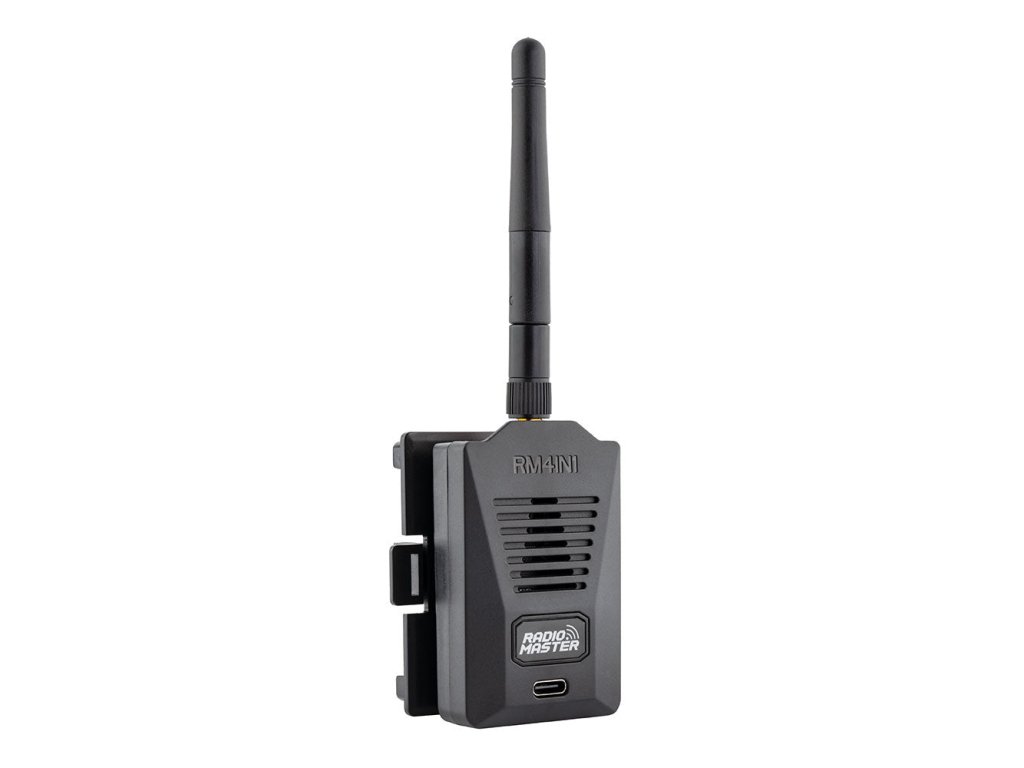

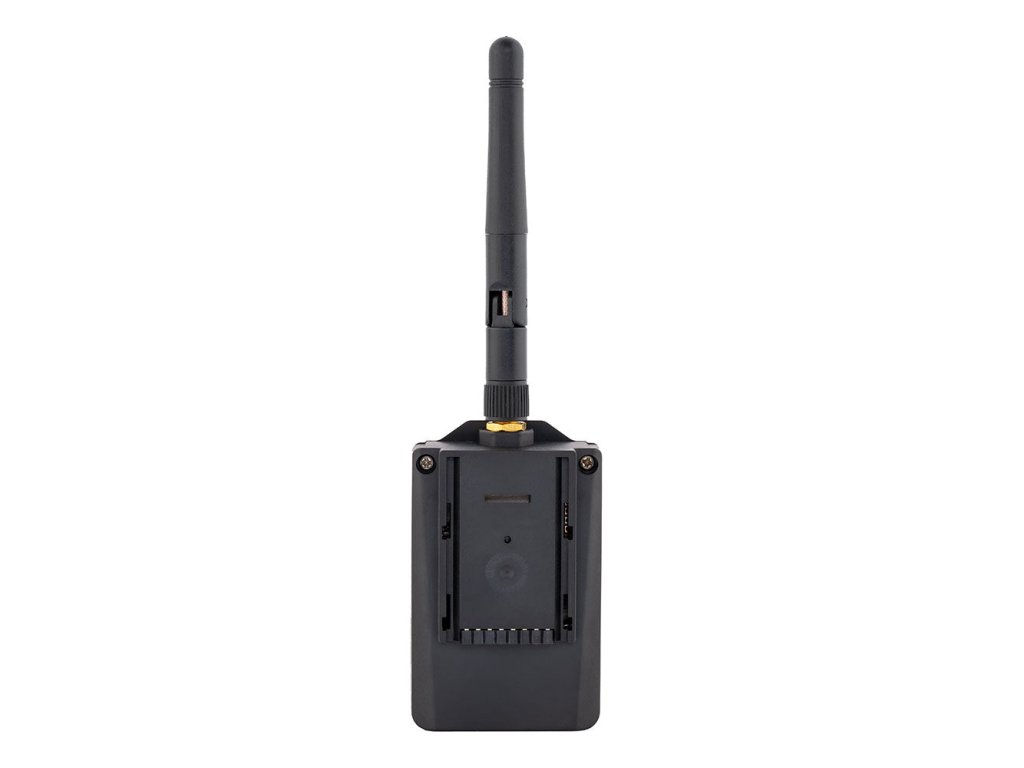

Micro/Nano 4in1 Module

The RadioMaster 4IN1 external module is a multi-protocol module that integrates CC2500, NRF24L01, A7105, and CYRF6936 RF chips. Designed for OpenTX and EdgeTX systems, the RM 4IN1 module allows the radio to connect with most mainstream protocols on the market. JR and Nano module bay compatible

Features:
- Up to 20dBm power output
- Compatible with more than 70 RF Protocols
- Wireless trainer function
- For Zorro, TX16S MKII, TX12 MKII and more

Specification:
Item: RM 4IN1 Module
Region: LBT (4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX)
Operational voltage: 4.5-8.4V
Operational frequency: 2.4G ISM band (2400mHz - 2483mHz)
RF Chipsets: CC2500, NRF24L01, A7105 and CYRF6936
Operational current: =100mA
RF Gain: +20dBm
Weight: 30g (without antenna)
Dimension: 73x42x22mm (without antenna)
