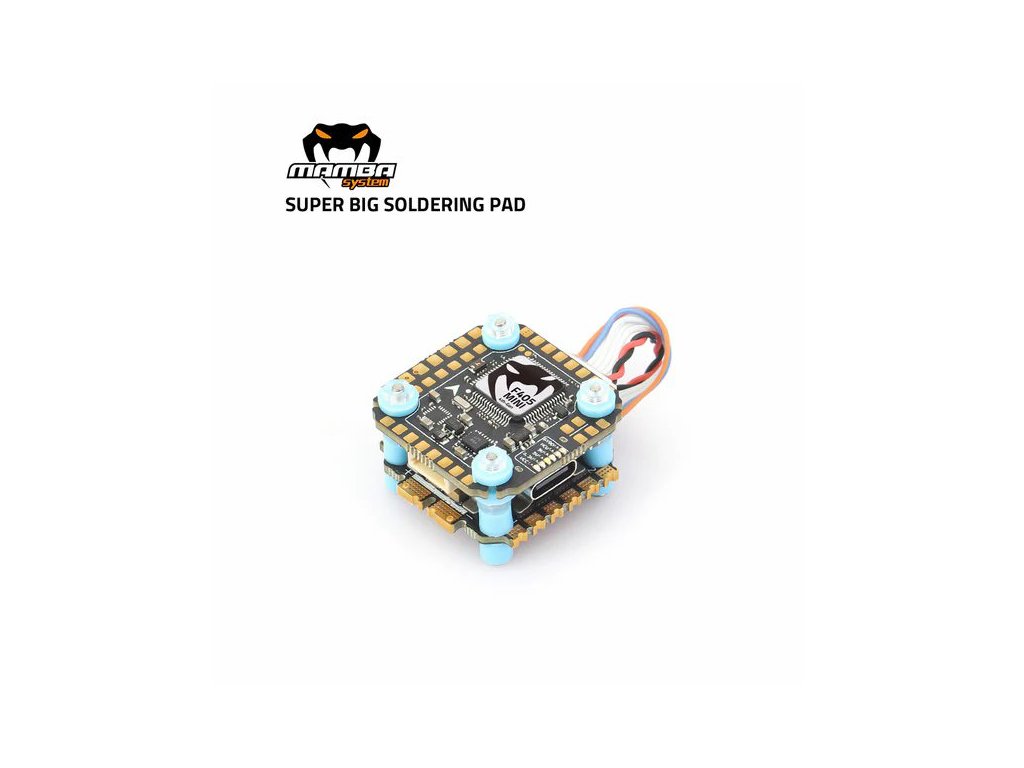

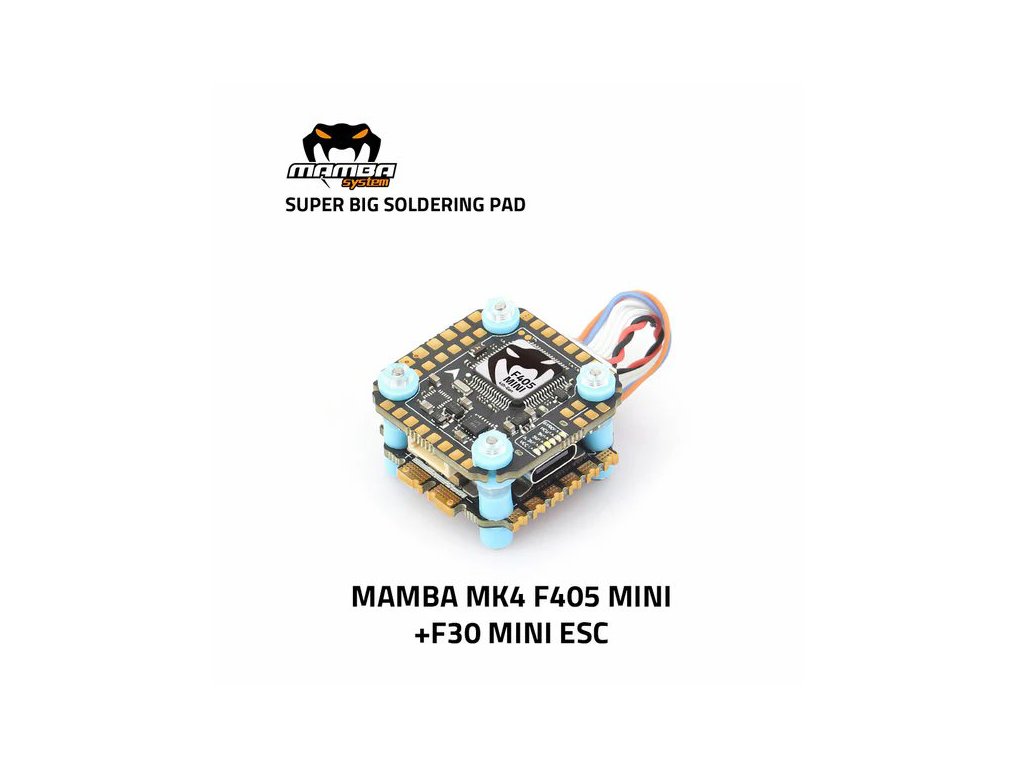

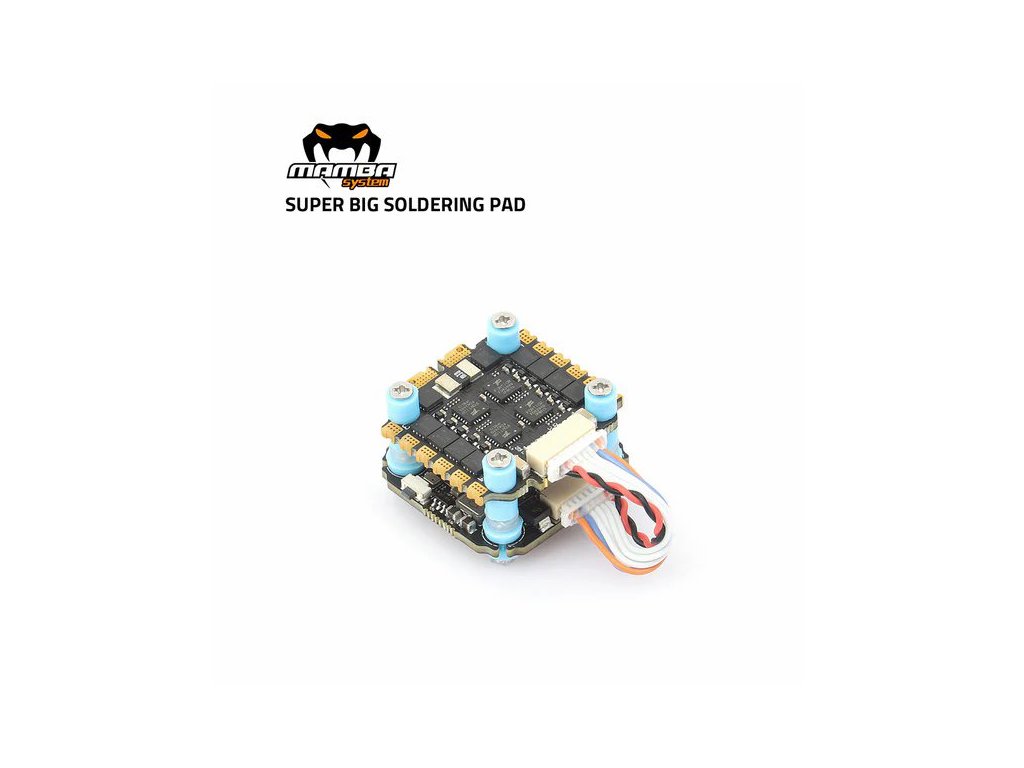

Stack Diatone MAMBA MK4 F405MINI 30A 3-5S 8bit
Kod: JH61217Opis szczegółowy produktu
MAMBA Stack MK4 F405MINI 30A 3-5S 8bit FC Specifications MCU: 168MHz STM32F405 GYRO: MPU6000 Target：MAMBA F405_2022A OSD: Yes Blacbox: 16M Flash Memory Barometer: SPL06 Uarts: 6Set I2C: Yes F.Port: Yes RSSI: No Buzzer Pad: Yes CURR Pad: Yes ESC Signal: 6 Set ESC Soft: Dshot300/600 ESC Telemetry: Yes Power Led: Yes LED Controller:BF LED AIR UNIT Port: Yes WIFI: No VTX Switch: Yes Receiver Protection: Yes TVS Protection: Yes BEC:3.3V 0.5A& 5V 2.5A& 9V 2A Input: 3~6S Lipo (12.6~25.2V) Mounting size: 20mm,M2/M3 ESC Specifications MAMBA F30 MINI Input voltage: 3~5S Lipo (12.6V~21V) Continue current: 30A×4 Burst current: 40A (10S) BEC: No Target：BLHeli_S CH40 SOFT: Dshot300/600 TVS Protection: Yes Mounting size: 20mm,M2 Supply : High Frequency 470uF/35V ×1 8pin sh1.0 ×2 AIR UNIT sh1.0 ×2 18AWG 60mm ×2 AMASS Original XT30
