FPV Drone iFlight Mach R5 Analog 6S Racing Drone (PNP)

Opis szczegółowy produktu

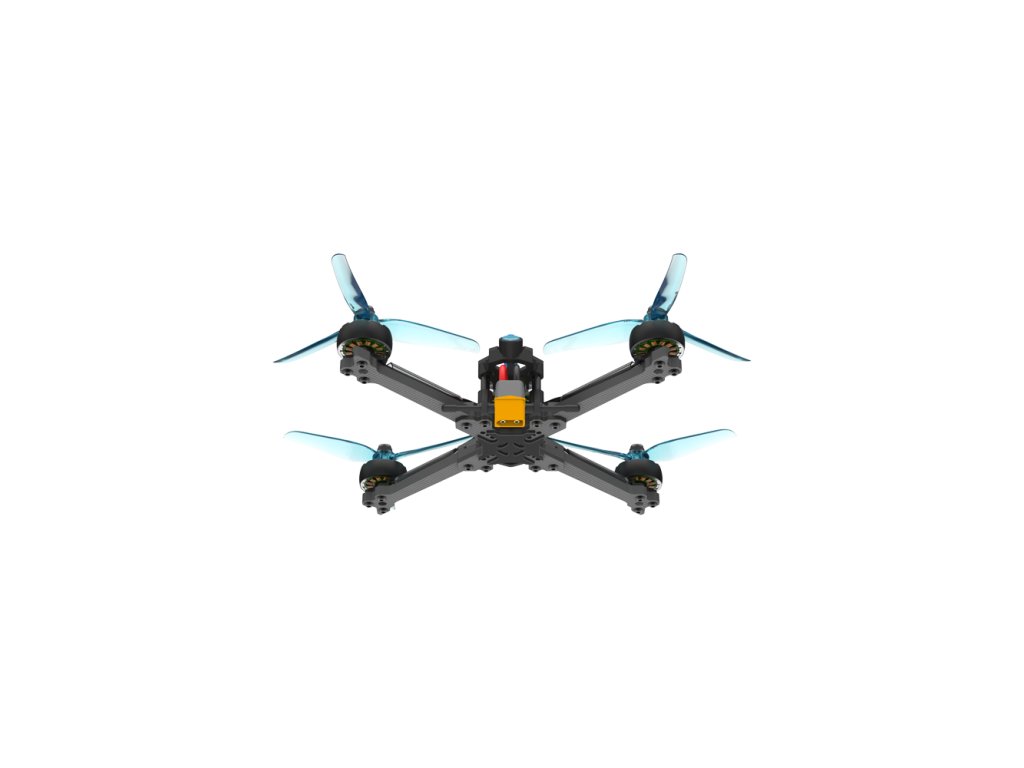

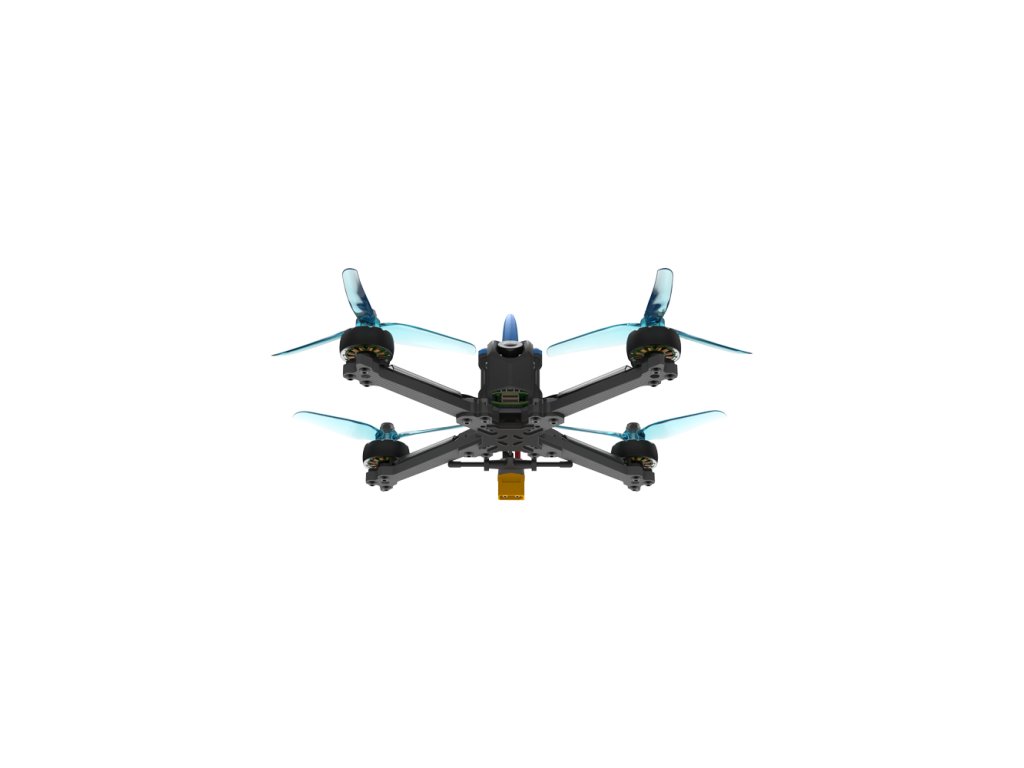

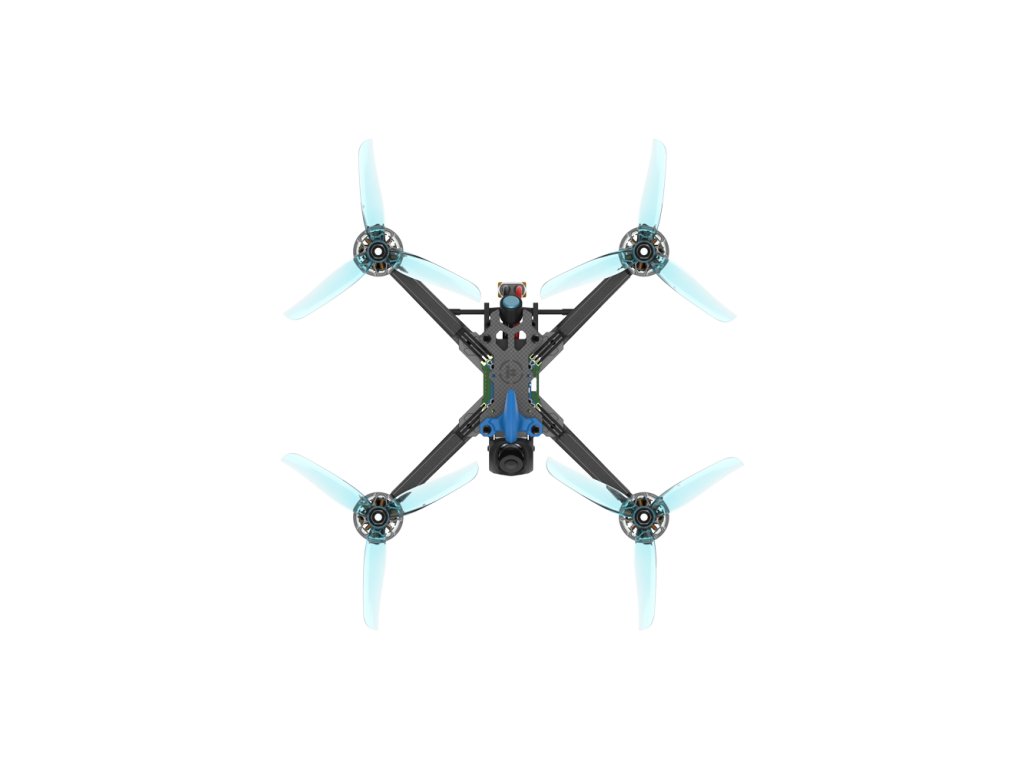

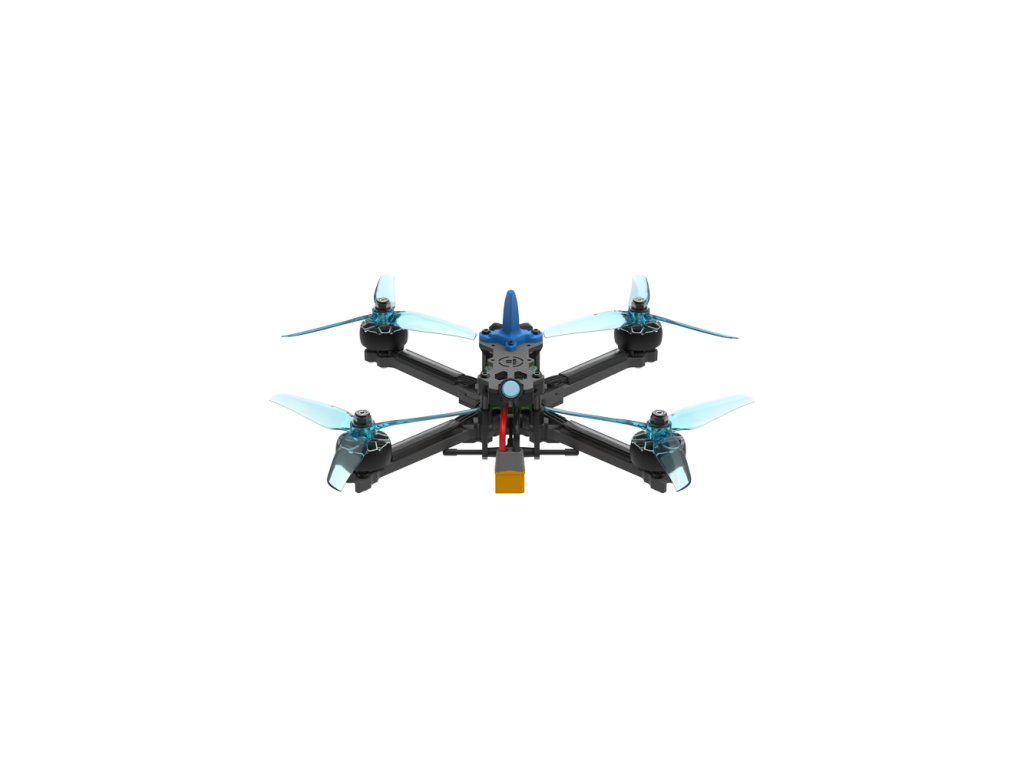

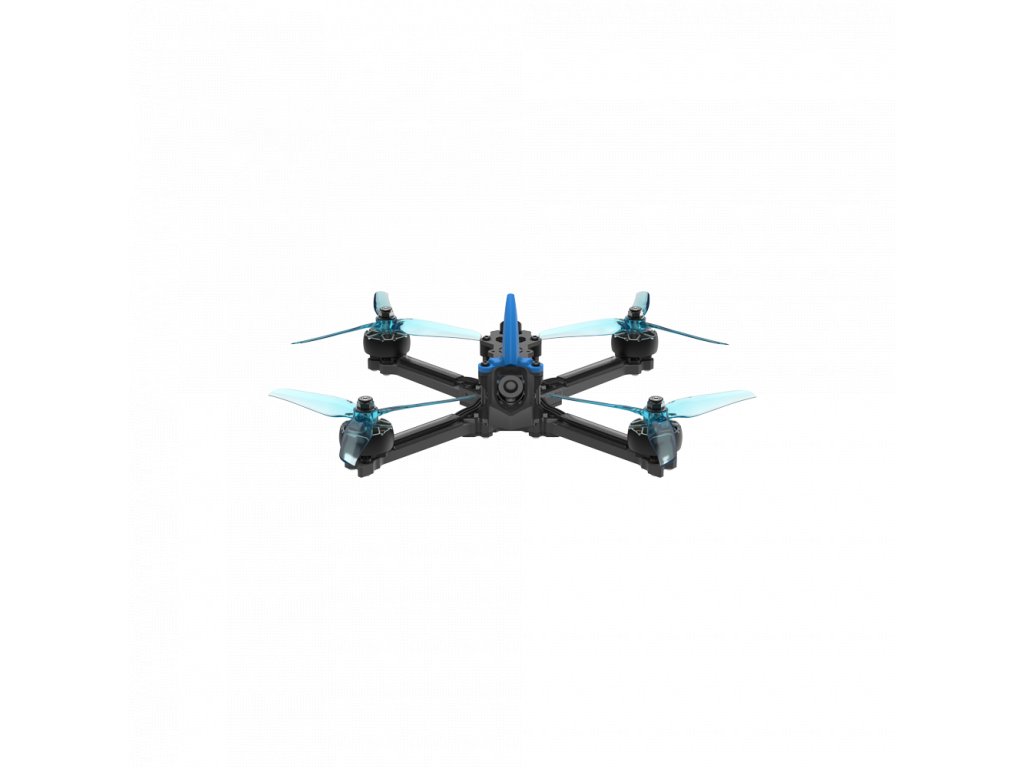

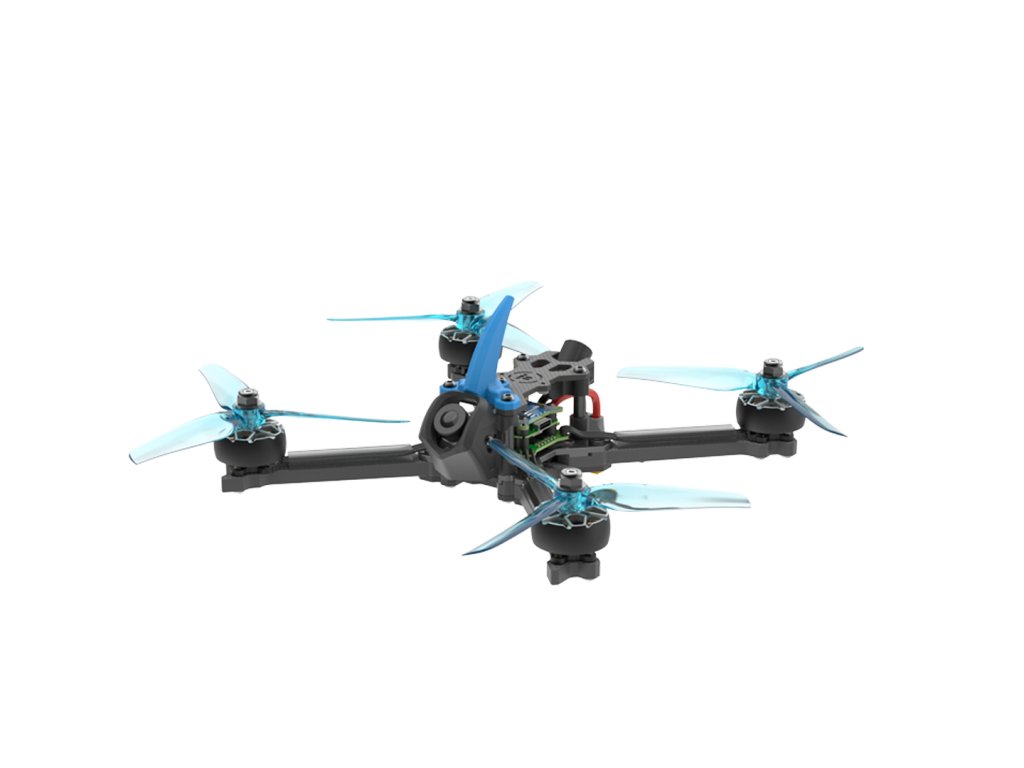

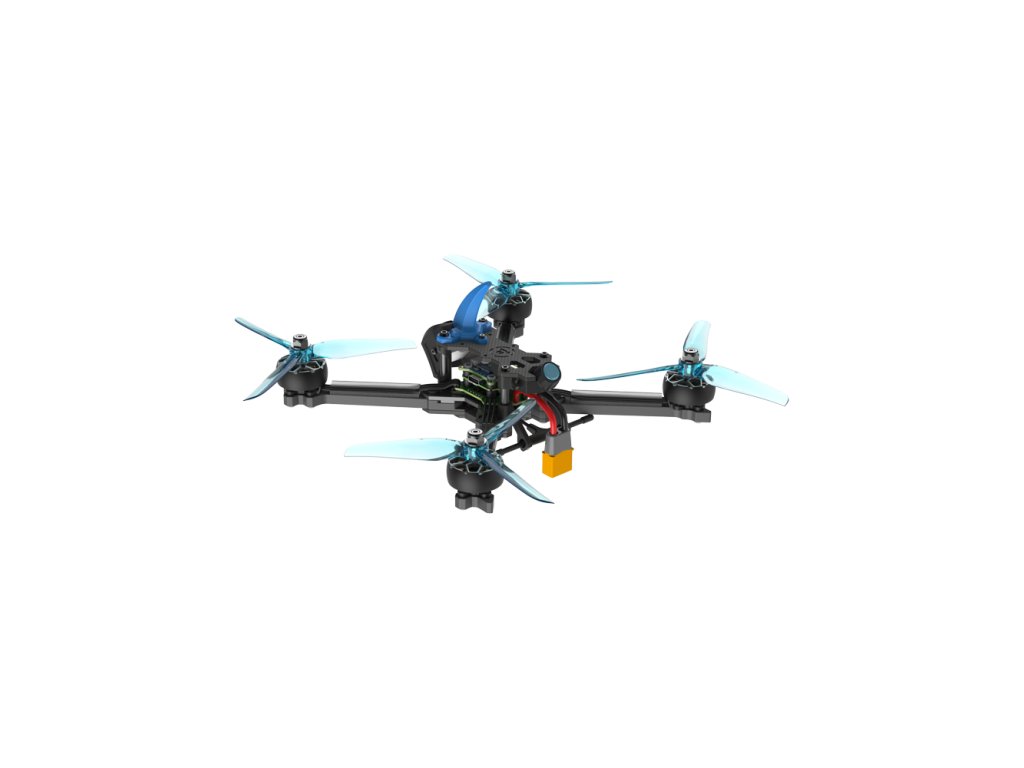

Mach R5 Analog 6S Racing Drone (PNP)

The iFlight Mach R5 Analog is a 5-inch racing drone equipped with R5 2207 motors for more torque and efficiency as well as high speed and consistent lap times. The iFlight Mach R5 uses the newest BLITZ F7 55A AIO, the most powerful of our iFlight AIOs available currently. Quick-swap arm assembly for easy repair on your flying spot or race day. Enhanced canopy design with low wind resistance for maximum speed and efficiency.

Features:

- Super lightweight but superpower with the newest R5 2207 motors
- Super durable design, 6mm arms, and 7075 CNC middle plate
- SucceX Mini VTX 600mW
- R5 2207 2050KV motors
- Newest BLITZ Mini F7 Stack(F7+55A)
- RaceCam R1 Camera

Specifications:

Product Name: Mach R5 6S Analog
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
Video Transmission: SucceX Mini VTX 600mW
Frame: 225mm wheelbase
Motor: R5 2207 motors
Prop: Nazgul 5 inch propellers
Weight: 235grams
Takeoff Weight: Approx. 430 g
Dimensions (L×W): 152×152 mm
Diagonal Distance: 120 mm
Max Speed: 27 m/s (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Max Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 1 Antenna
GNSS: N/A
Receiver Option: PNP

Video Transmission
Product Name: SucceX Mini VTX 600mW
Output Power: 0-25-200-400-600mw
Input Volts: 6-36V
Working Current: ≤450mA@12V,800mW; ≤850mA@12V,2500mw
Transmission: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 30.5*30.5mm--20*20mm
Weight: 11 g (W/O antenna)
Dimensions: L38mm*W36.5mm*H7.2mm

Package includes:
1 x Mach R5 6S Analog BNF
1 x Battery strap
2 x R5 Prop(Pairs)
1 x Battery pad
