Power Meter ImmersionRC v2

Opis szczegółowy produktu

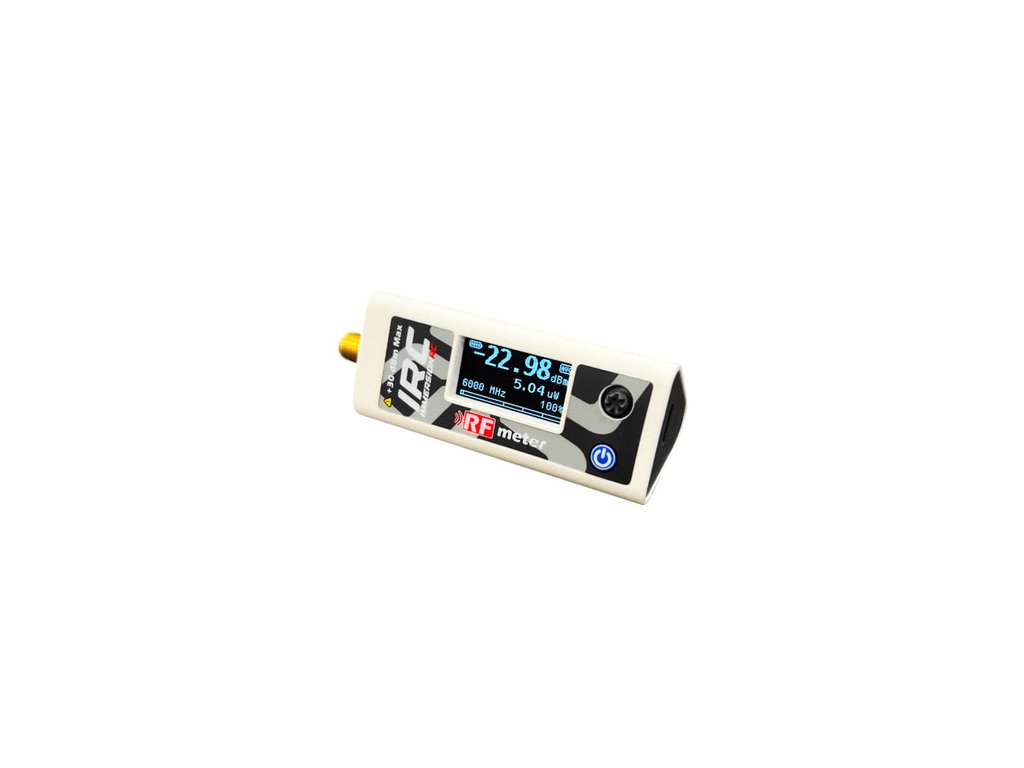

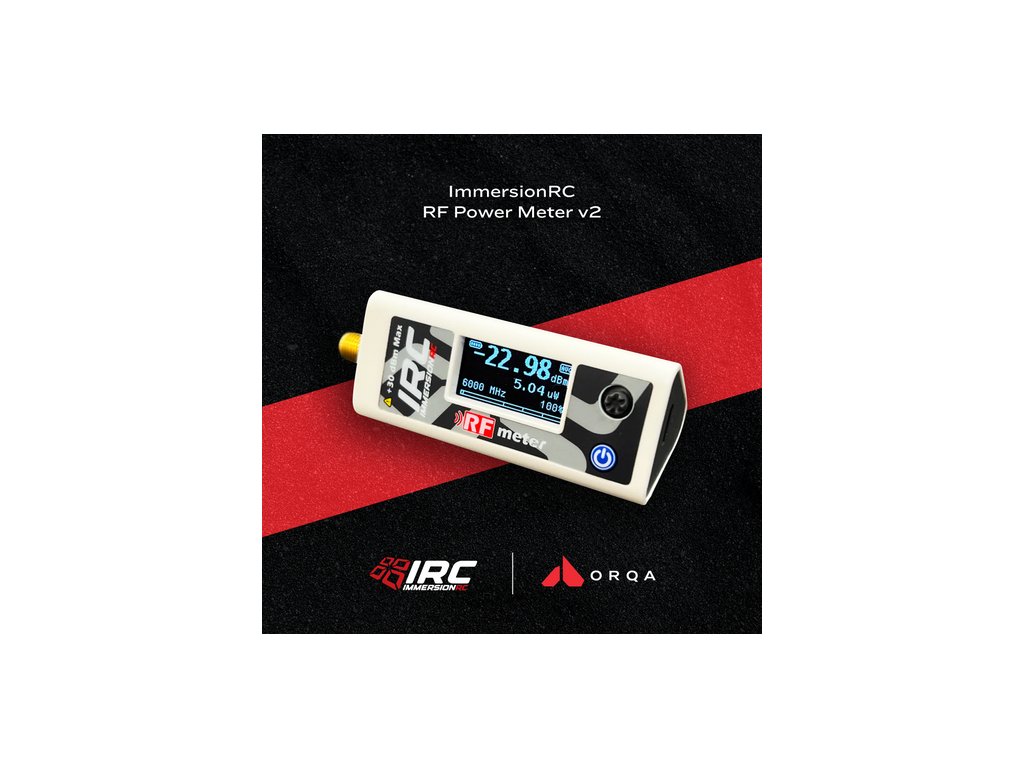

ImmersionRC Power Meter v2

FPV is made possible thanks to two RF links: a control link, and a video link. With an RF Power Meter, you can test these critical RF links.

- The RF Power Meter v2 can deliver accurate power measurements for a steady stream and a stream of pulsed RF signals.
- The v2 contains an integrated Lithium-Ion battery, which will power the meter for at least 8 solid hours. With auto-shutdown after periods of inactivity, a single charge will power your meter for days at the race track.
- Recharged using a standard micro-USB connector in less than one hour.

Specifications:

Power Level: -20dBm up to +30dBm
Calibrated Frequencies: 35, 72, 433, 1200, 2400, 5600-6000MHz in 50MHz steps
Accuracy: +/- 0.5dB
Attenuator: 30dB (Internal)
Battery: 3.7V Lithium Ion cell, 10440 size, 600mAh
Current Consumption: ~35mA
Battery Life: ~8 hours
Auto Shutdown: 5-minute timeout
Charging: Micro USB cable
Display: OLED, 128×64 pixels, monochrome
User Input: Joystick
Interfaces: USB, power control via CDC
Antenna: 5.8GHz ‘Sniffer Antenna’ (linearly polarized ~2dBi dipole)
Adapter: Male to Male SMA adapter
Dimensions: 8.6x6.5x3.2cm
Weight: 40g

Package includes:
1x ImmersionRC Power Meter v2
