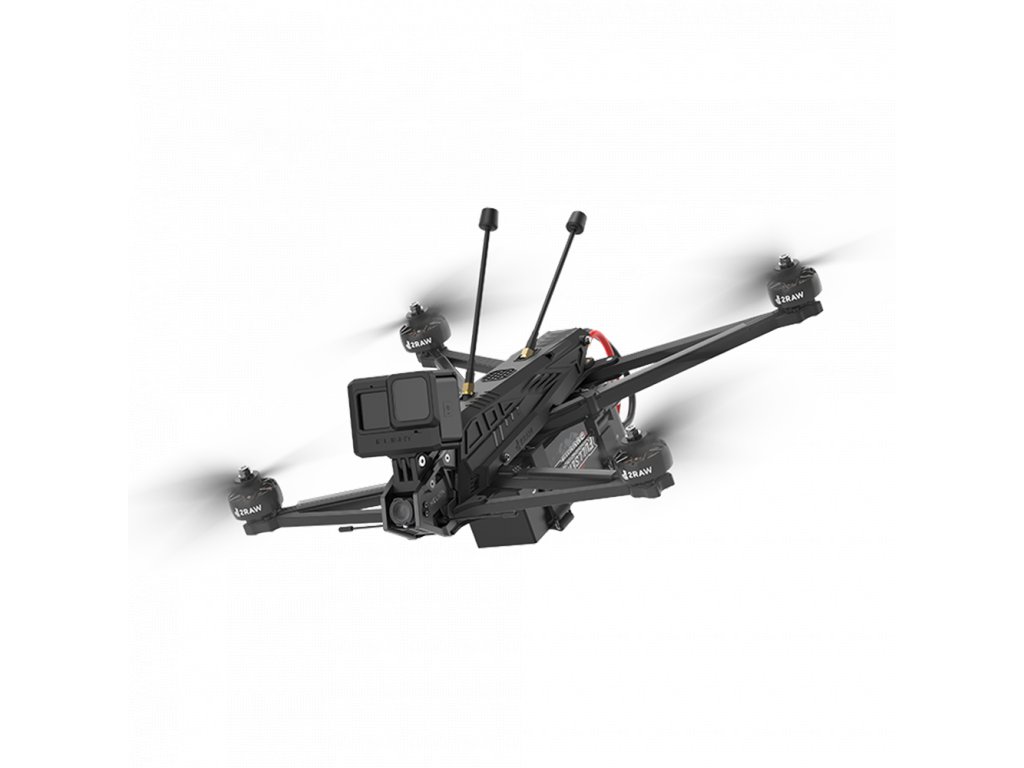

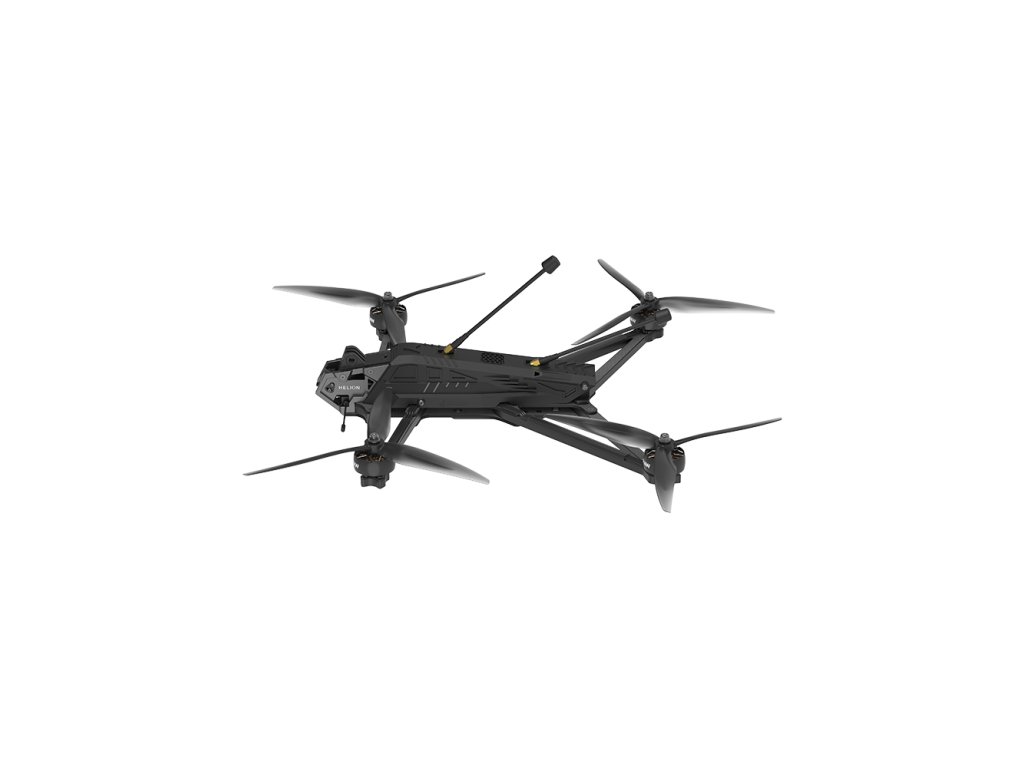

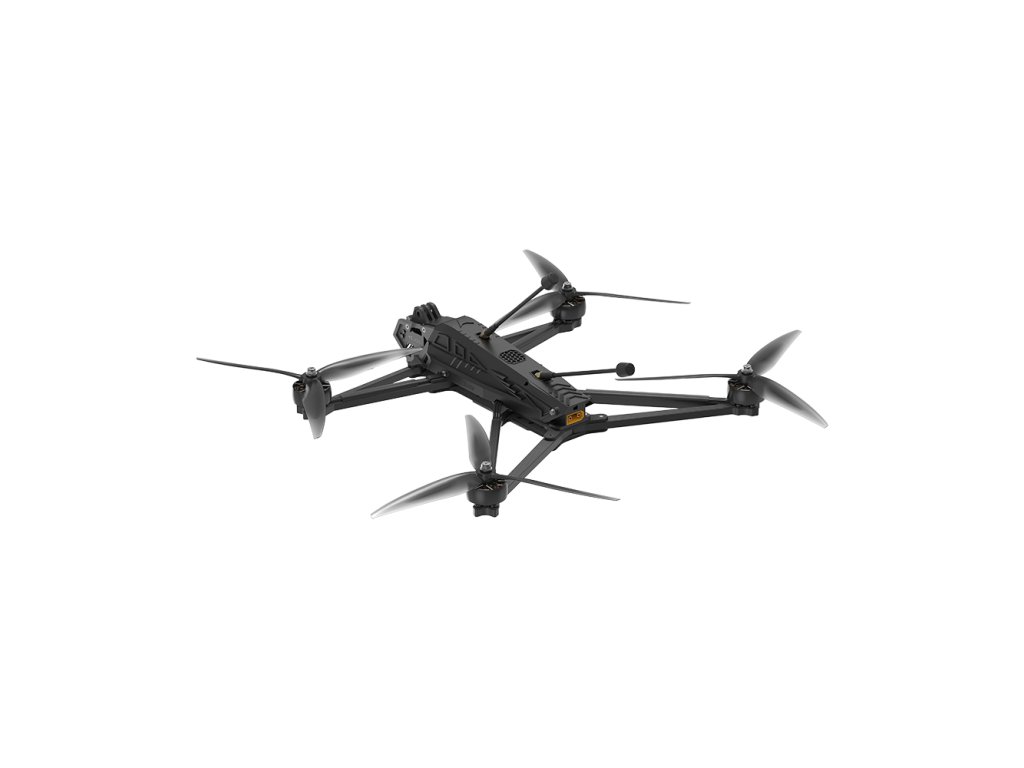

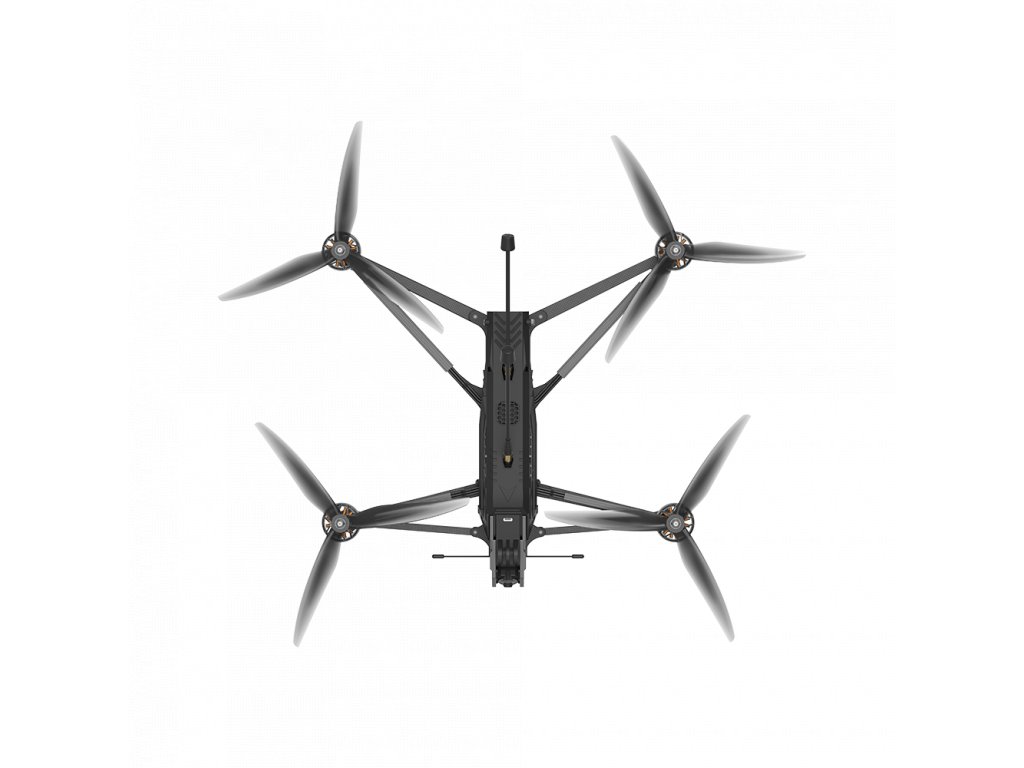

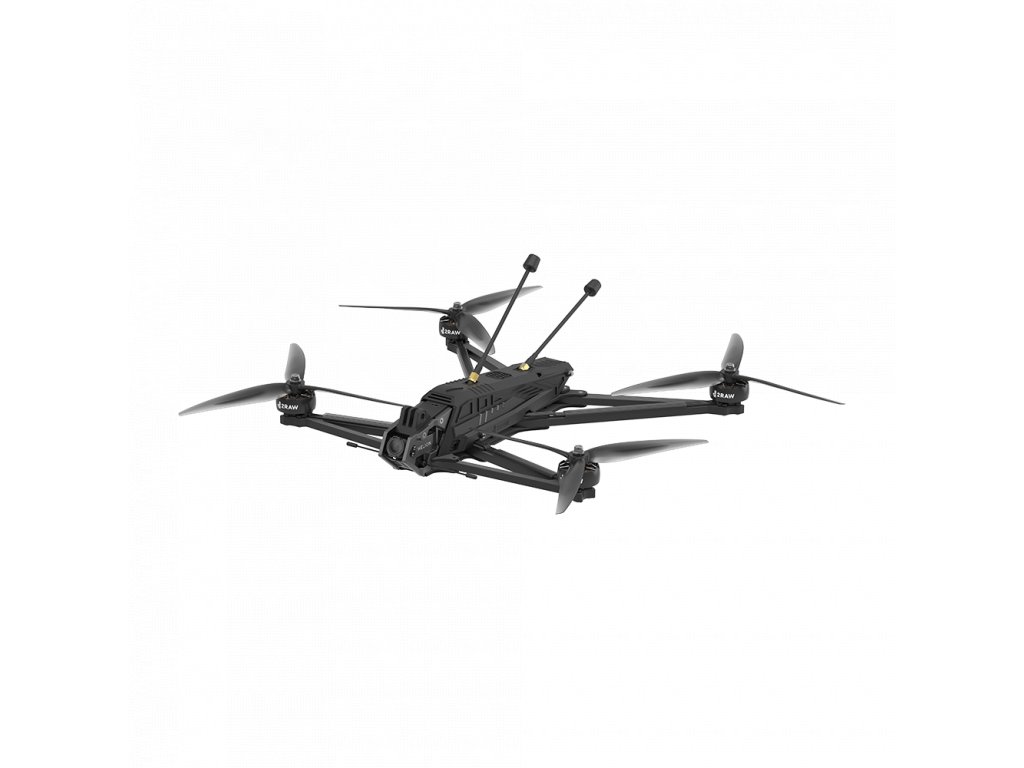

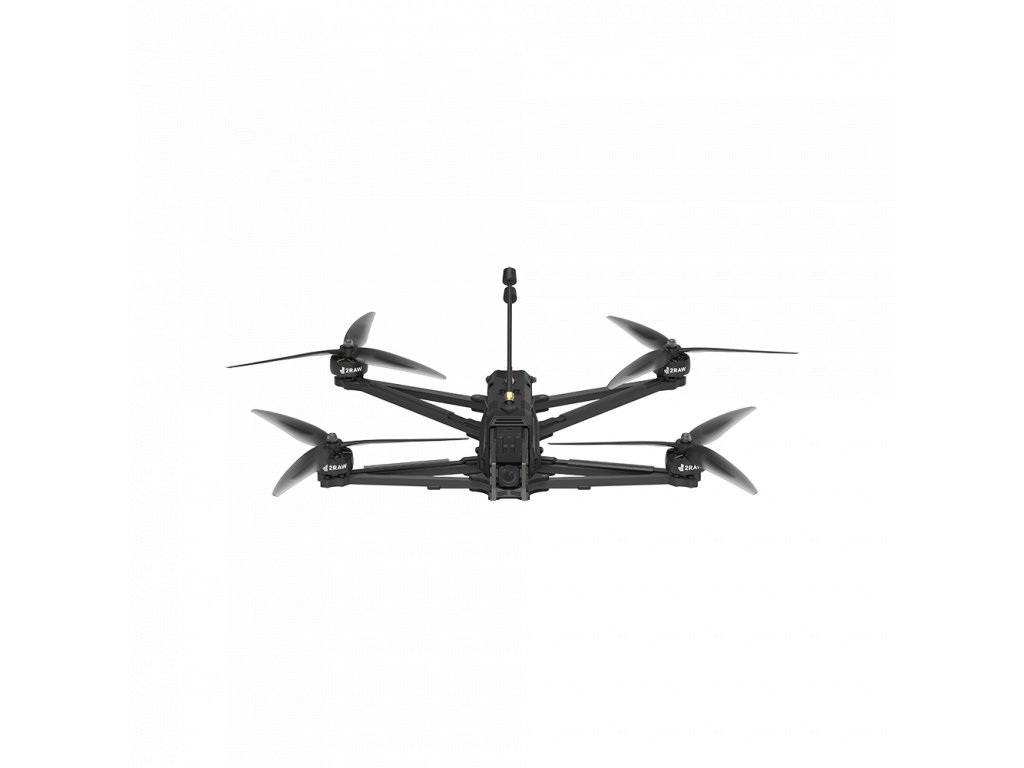

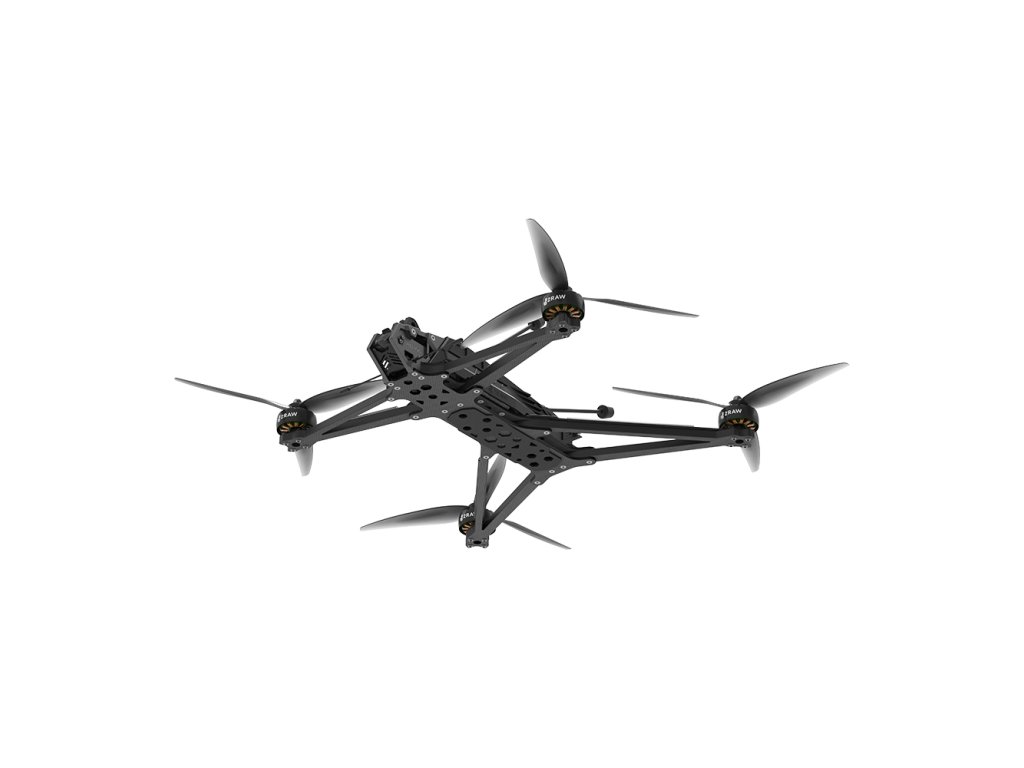

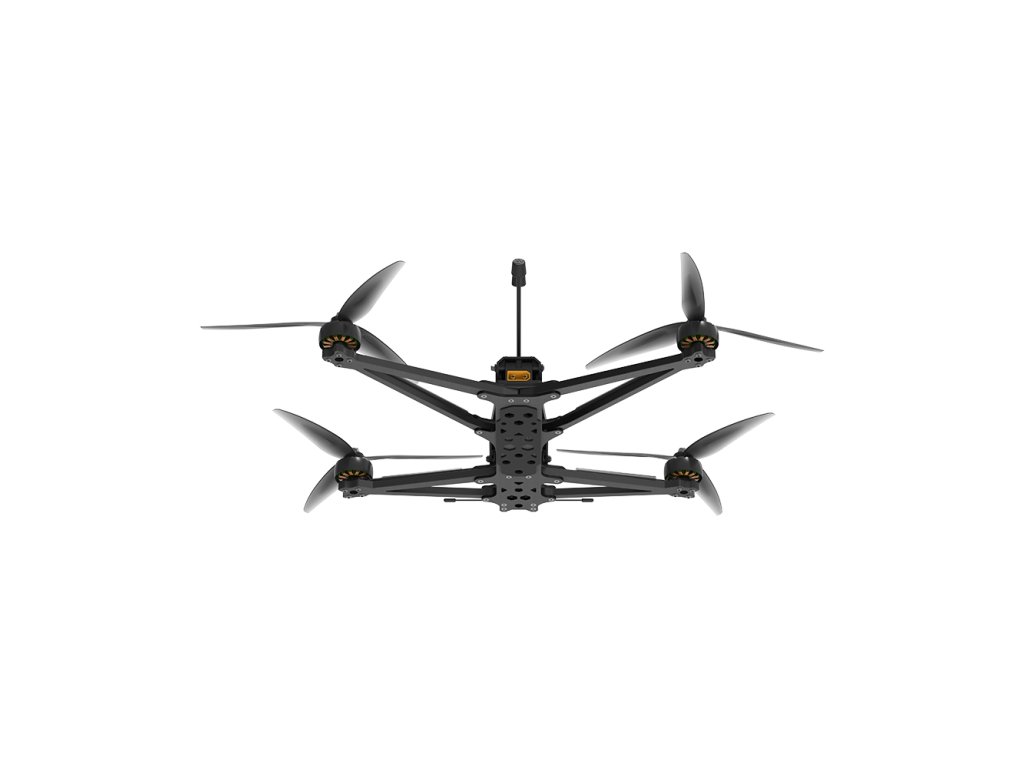

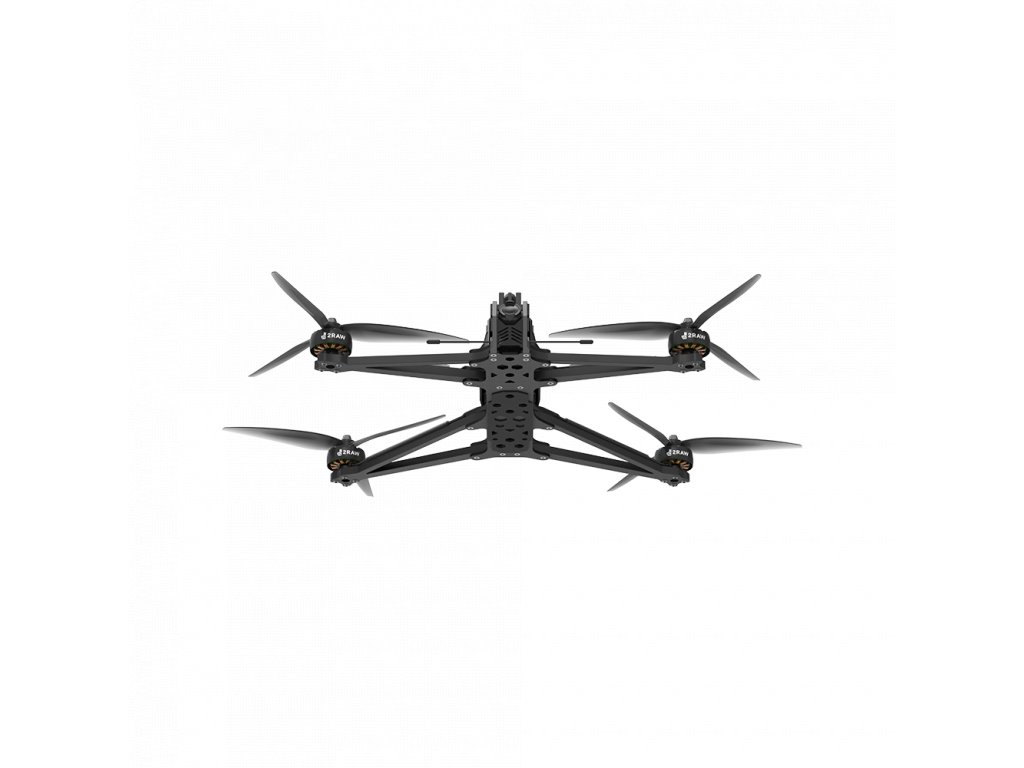

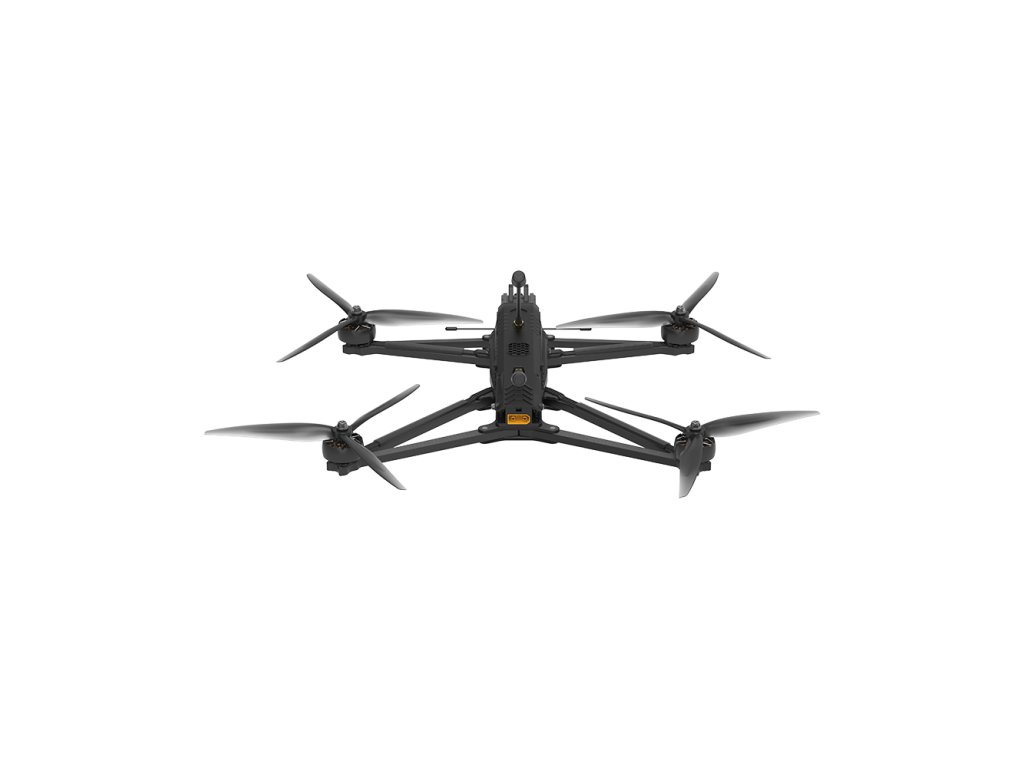

FPV Drone iFlight Helion 10 HD O3 Air Unit 6S BNF (No Receiver)

Opis szczegółowy produktu

Helion 10 HD O3 Air Unit 6S BNF (No receiver)

HELION - The Long Range flagship by 2RAW and iFlight

This drone was designed to revolutionize Long Range flights. It meets the demand for increased range and flight time while maintaining stability, even in windy conditions. With 10-inch propellers, the Helion can efficiently carry large batteries (recommended 4500mAh Lipo and above), providing better overall control compared to traditional long-range drones. Its aerodynamic shell allows for easy maintenance while protecting the powertrain. The Helion’s frame design was scientifically optimized to balance stability, weight, and rigidity.

Features:
- Optimised Motors & Propeller.
- The unique aerodynamic shell. Users can simply open and close the shell when working on the drone.
- Innovative A-Frame for Maximum Performance. The A-Frame design minimizes vibrations as well as torsion, one of the biggest problems with larger drones.
- USB-C Power.
- DJI O3 HD Air Unit Low-Latency Digital Transmission.
- 4K Stabilized Video with 155° Ultra-Wide Angle.
- GPS Pre-Installed for More Safety at A Distance.

Specifications:
Product Name: Helion10 O3 6S HD
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Geometry: A-Frame
Frame: 418mm wheelbase
Motor: XING2 3110 900KV motors
Prop: GEMFAN 1050 propellers
Receiver option: No additional receiver
Weight: 950±20g (Without Battery)
Dimensions (L×W×H): 324x264x63mm
Max Speed: 140km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 26mins with 6S Lipo 5600mAh battery / 30mins with 6S 8000mAh Li-ion battery
Max Cruising Time: Approx. 23mins with 6S Lipo 5600mAh battery / 26mins with 6S 8000mAh Li-ion battery
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission
Product Name: DJI O3 Air Unit
Communication Bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End Latency
With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate: 50 Mbps
Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating Temperature Range: -10º to 40º C (14° to 104° F)
Power Input: 7.4-26.4 V
Audio Transmission: N/A

Package Includes:
1 x Helion 10 6S HD (No additional receiver)
2 x Battery pad
2 x GEMFAN 1050 propellers (Pairs)
2 x Battery strap
1 x Screw bag
1 x Amass XT90 to XT60 H Adapter Cable
