HD system DJI O4 Air Unit PNP Install version

Opis szczegółowy produktu

DJI O4 Air Unit PNP Install version

The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. This system can automatically select the most stable frequency.

It is capable of recording 4K/60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery.

The DJI O4 Air Unit introduces a new Racing mode with video transmission latency as low as 15 milliseconds. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies. It also features a 1/2-inch image sensor, capable of capturing 4K/60fps video — no need for an external action camera to achieve ultra-wide-angle, high-definition footage.

Have full control over what's displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios.

PLEASE NOTE: This product is the PNP version for installation.

Specifications:

Model: DJI O4 Air Unit
Weight (camera module included): 8.2 g.
Antenna weight: 0.75 g
Antenna length: 80 mm

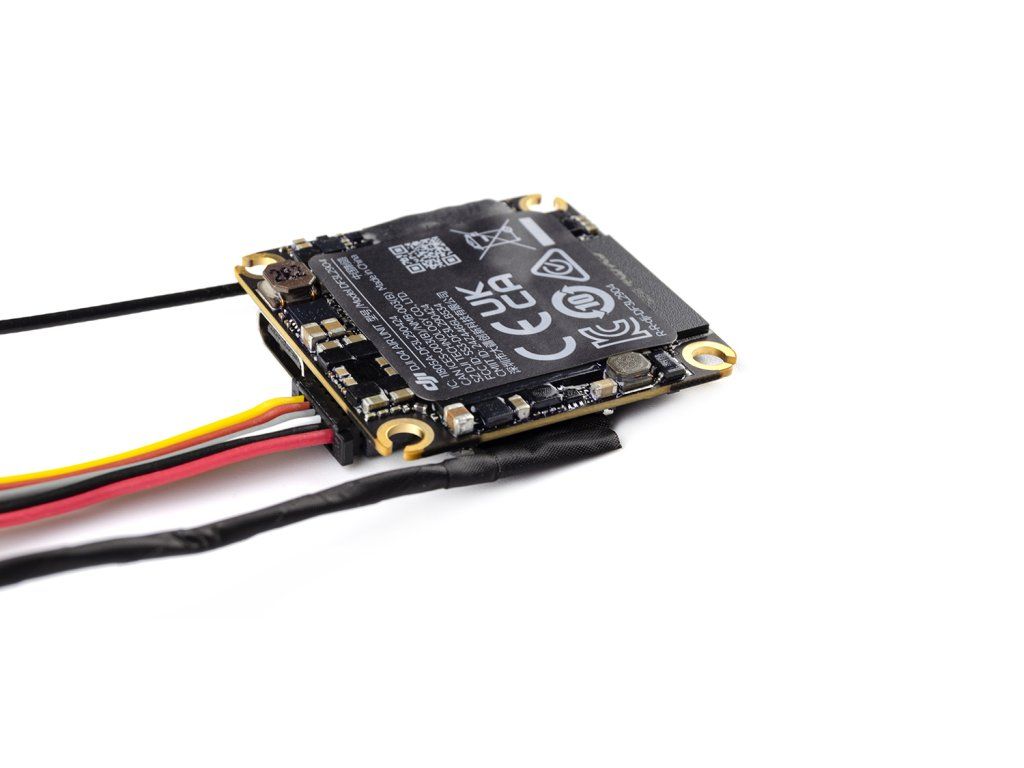

Transmission Module size: 30×30× 6 mm (L×W×H)
Camera Module size: 13.44×12.36×16.50 mm (L×W×H)
Coaxial Cable length: 50 mm
3-in-1 Cable length: 50 mm

VTX Operating Frequency:
- 5.170-5.250 GHz
- 5.725-5.850 GHz

Transmitter Power (EIRP)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <30 dBm (FCC)
<14 dBm (CE)
< 30 dBm (SRRC)

Lowest Latency
With DJI Goggles 3 and pick racing mode:
- With 1080p/100fps video transmission quality, the latency is as low as 20 ms.
With DJI Goggles N3 and pick racing mode:
- With 1080p/100fps video transmission quality, the latency is as low as 24 ms.
With DJI Goggles 2 or Goggles Integra:
- With 1080p/100fps video transmission quality, the video transmission latency is less than 35 ms.

Max Video Transmission Range With DJI Goggles 3/DJI Goggles N3:
10 km (FCC), 6 km (CE), 6 km (SRRC)

Live View Quality: 1080P@30/50/60/100fps
Communication Bandwidth: Max 60 MHz
Antenna: 1 antenna, 1T1R
Channels: Supports auto/manual mode FCC/SRRC/CE

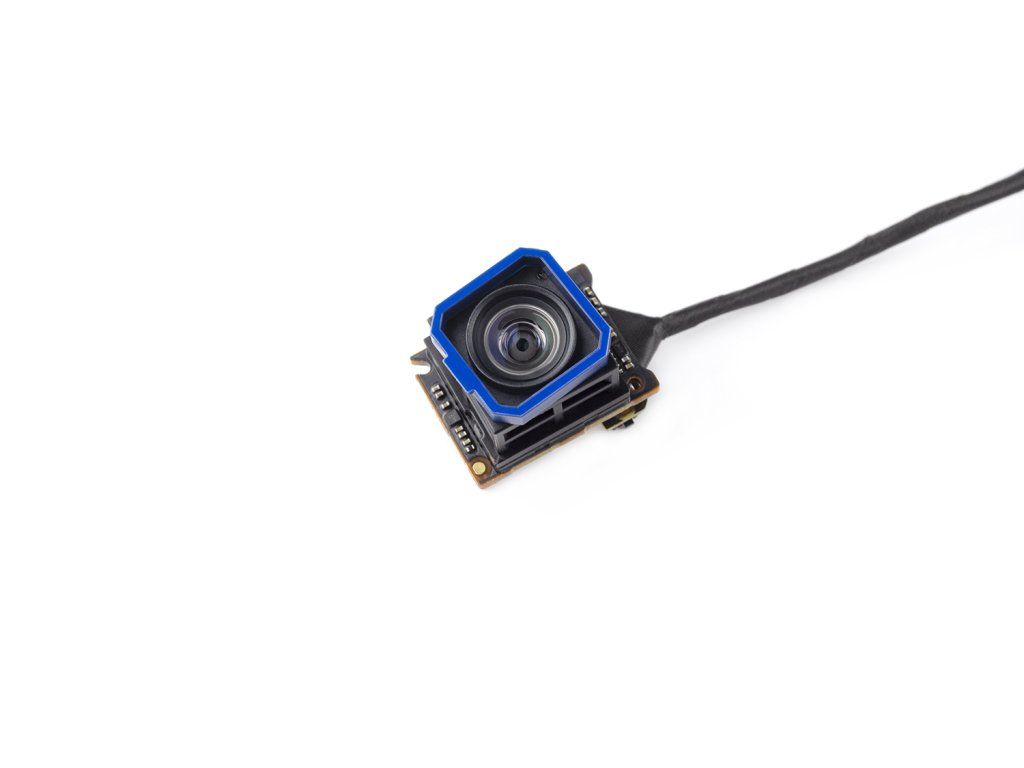

Camera
Image Sensor: 1/2-inch CMOS Sensor
Lens FOV: 117.6°
The equivalent focal length: 14 mm
Aperture: f/2.8
Focus: 0.6 m to ∞
ISO Range: 100-6400 (Auto), 100-12800 (Manual)
Video Resolution:
- 4K (4:3): 3840×2880@30/50/60fps
- 4K (16:9): 3840×2160@30/50/60fps
- 1080p (4:3): 1440×1080@30/50/60/100/120fps
- 1080p (16:9): 1920×1080@30/50/60/100/120fps
Video Format: MP4
Max Video Bitrate: 100 Mbps
Color Mode: Normal Mode
Camera FOV: Standard, Wide-Angle
EIS: RockSteady 3.0+; Stabilization function off (supports Gyroflow)

Hardware
Input Voltage: 3.7-13.2 V
Operating Temperature: -10° to 40° C

Storage
Built-in Storage: 23GB
Supported SD Cards: Not supported

Compatibility
Supported Flight Controller System: Betaflight 4.3.0 and higher versions
Supported DJI Goggles and Remote Controllers:
- DJI Goggles 3 + DJI FPV Remote Controller 3
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2/Goggles Integra + DJI FPV Remote Controller 2

*The flight control firmware needs to be configured to support the SBUS protocol in order to use the DJI FPV remote controller.

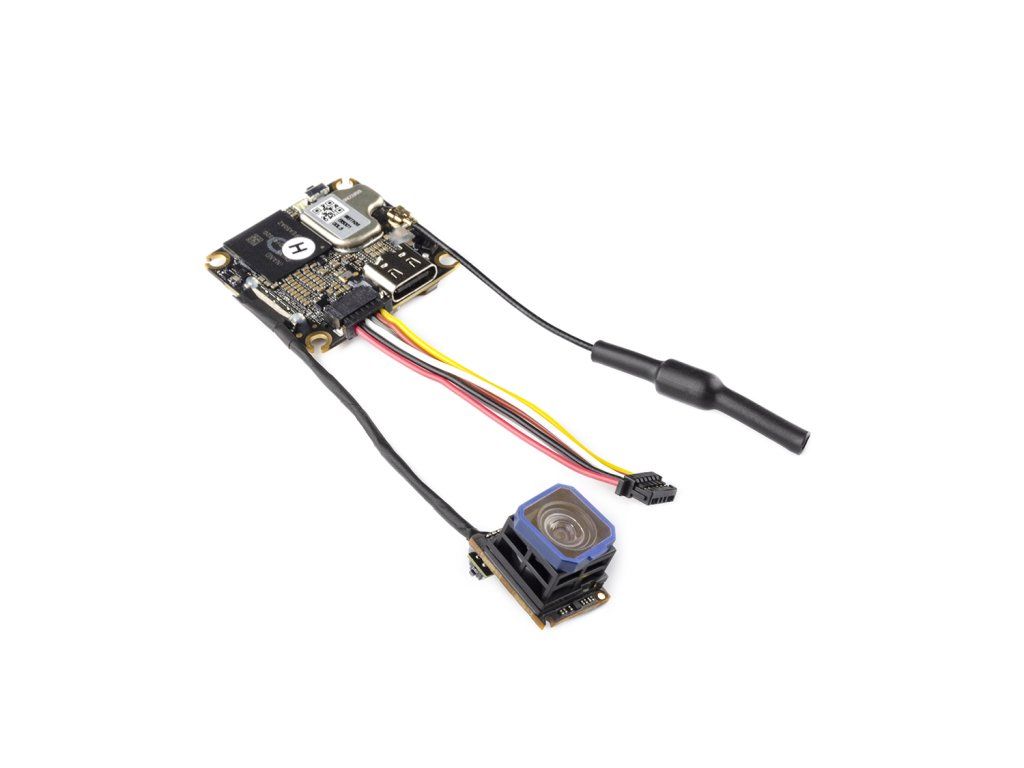

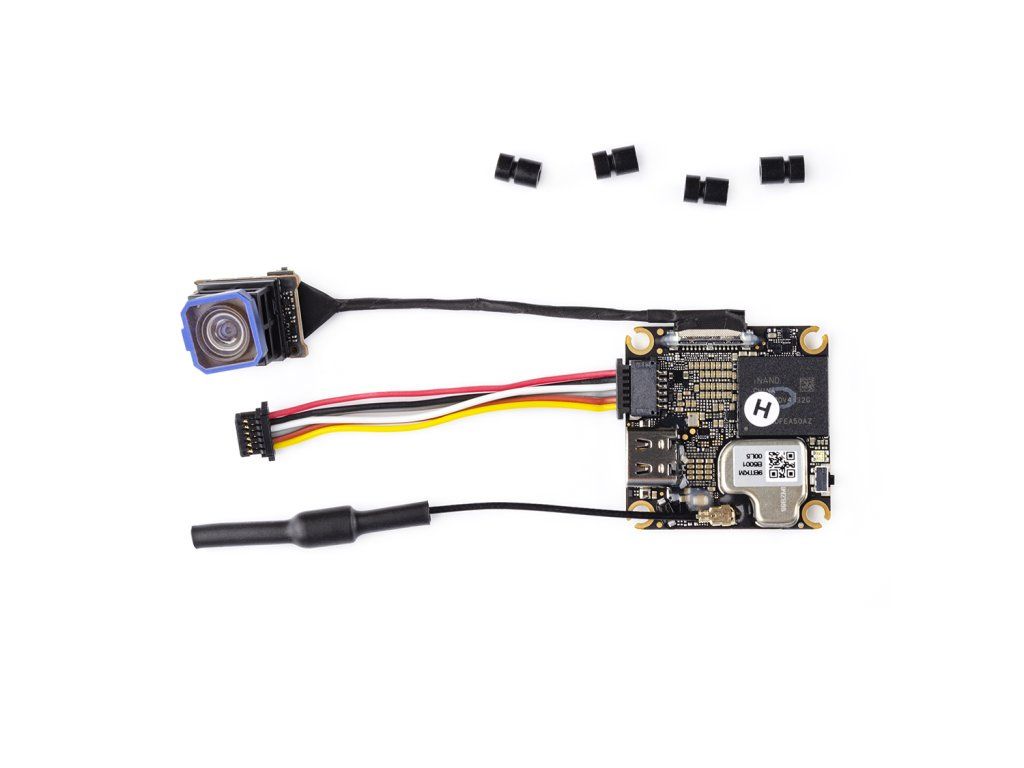

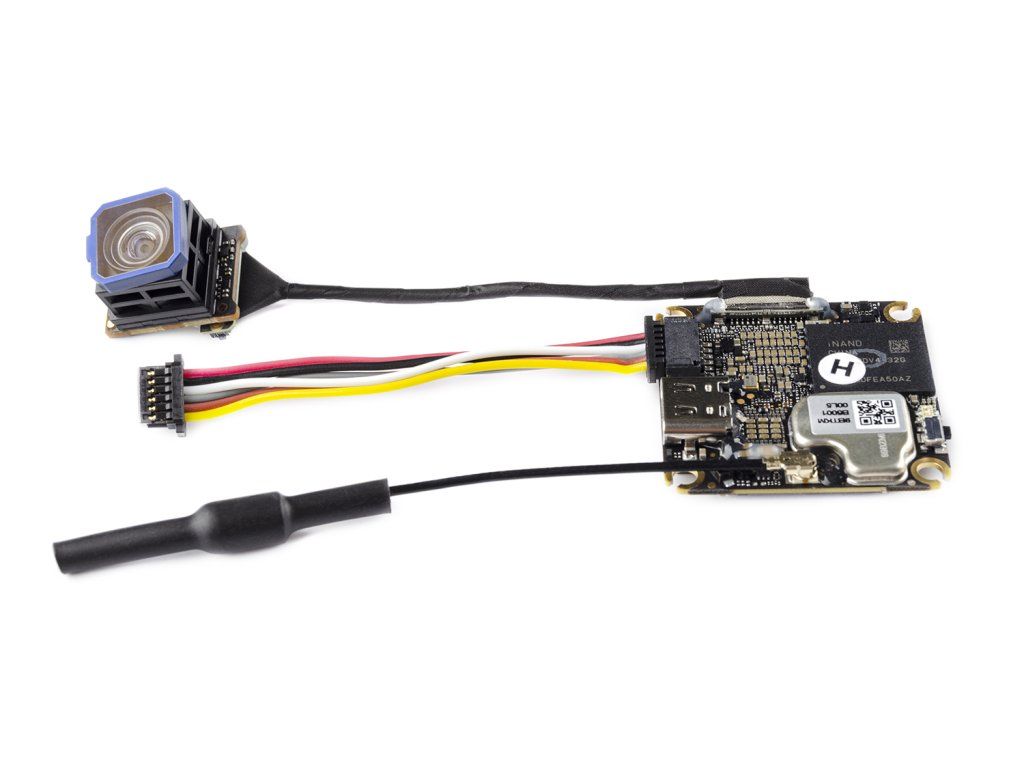

Package Includes:

1x DJI O4 Air Unit Camera Module
1x DJI O4 Air Unit Transmission Module
1x DJI O4 Air Unit Antenna
1x DJI O4 Air Unit 3-in-1 Cable
