GPS Module CUAV NEO 3X

Opis szczegółowy produktu

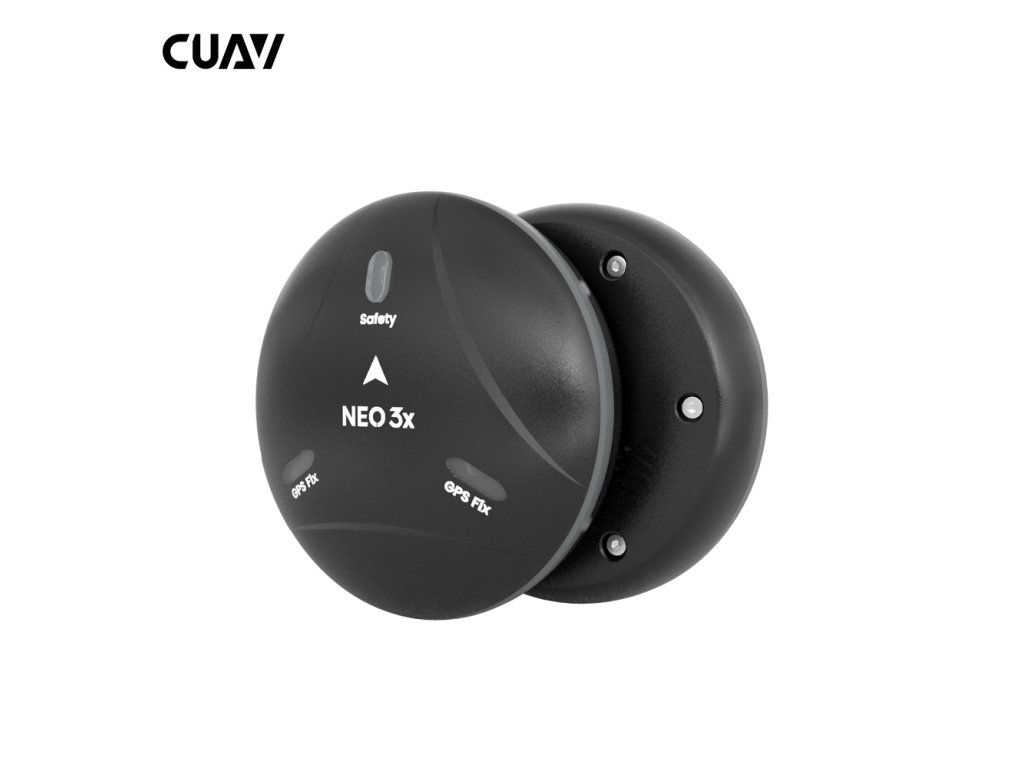

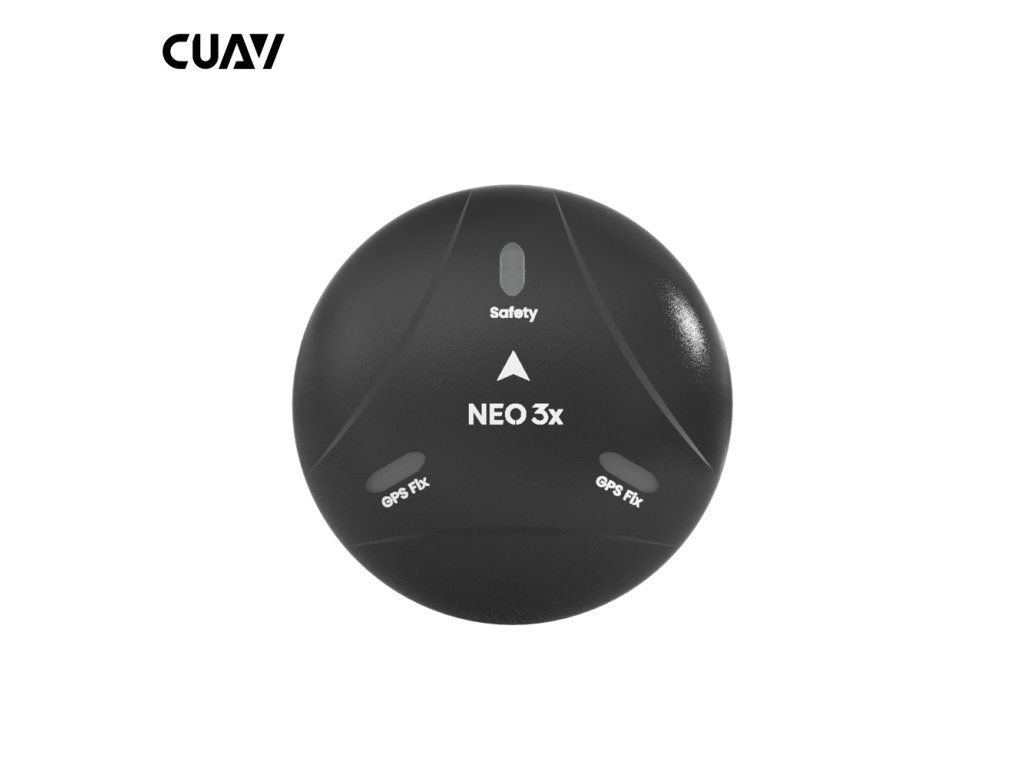

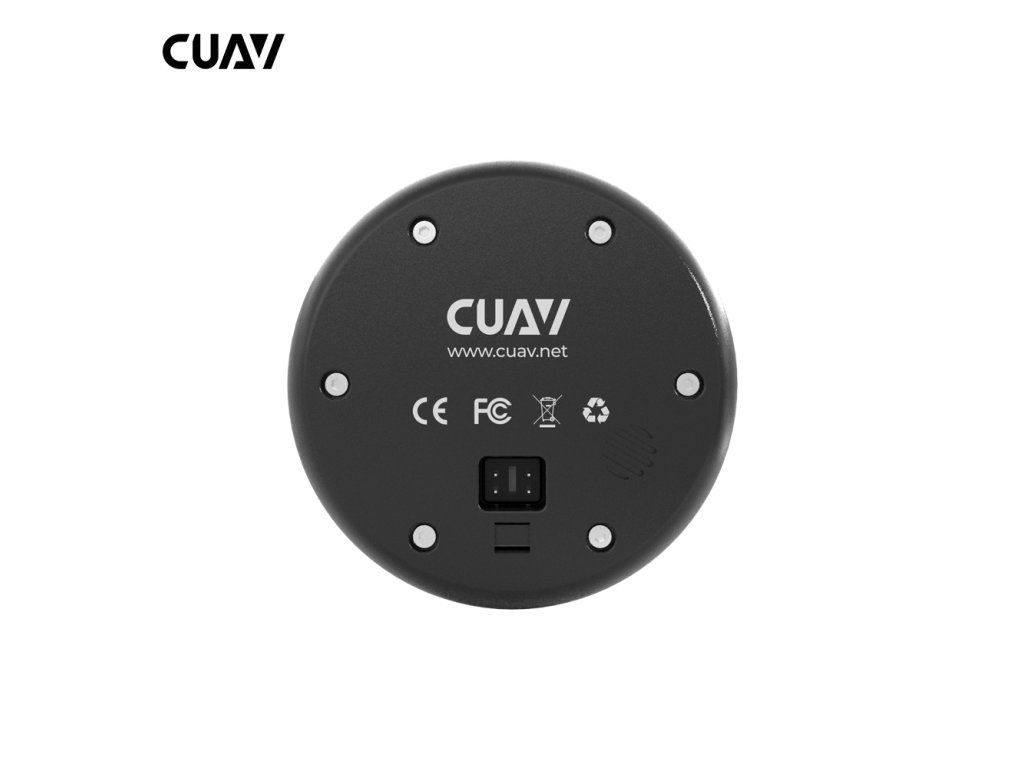

GPS module CUAV NEO 3x

• Processor: STM32F412
• Protocol: DroneCAN (used for UAV communication)
• Compass: RM3100
• Barometer: ICP-20100
• GNSS Receiver: u-blox M9N

GNSS Specifications:

• Frequency Bands:
  • GPS: L1C/A
  • GLONASS: L10F
  • BeiDou: B1I
  • Galileo: E1B/C
• Concurrent GNSS: 4
• Positioning Accuracy: 1.5m
• Number of Satellites: 32+
• Capture Speeds:
  • Cold start: 24s
  • Hot start: 2s
  • Aided start: 2s
• Navigation Update Rate: 5Hz (default), 25Hz (MAX)

Sensitivity:

• Tracking and Navigation: -167dBm
• Cold/Hot Start: -148dBm
• Reacquisition: -160dBm

Protection & Environment:

• Protection Level: IP66 (dust-tight and water-resistant)
• Operating Voltage: 4.7~5.2V
• Operating Temperature: -10°C to 70°C
• Dimensions: 67x67x21.2mm
• Weight: 46g (excluding the cable)
