GPS module CUAV NEO 3

Opis szczegółowy produktu

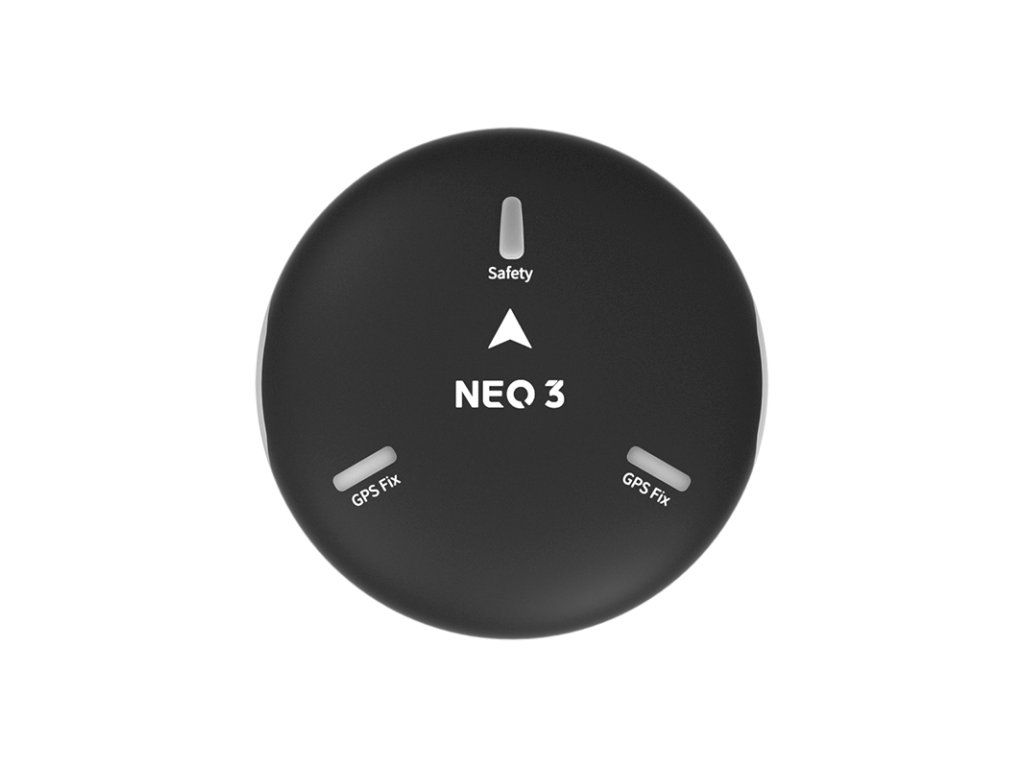

GPS module CUAV NEO 3

Description
CUAV NEO 3 GNSS U-Blox M9N GPS module for Pixhawk Compass, supports Ardupilot PX4 with open-source UAV 4, star-based navigation.

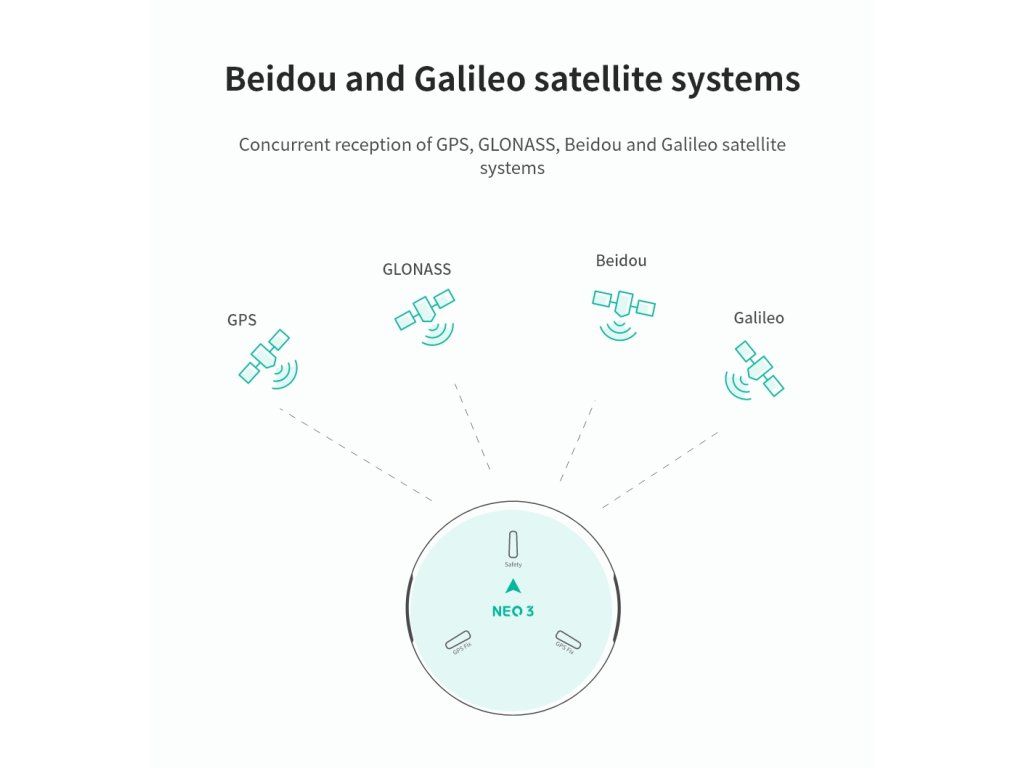

NEO continues the hardware design of NEO V2, upgrading the GNSS module to Ublox NEO M9N. It supports simultaneous reception of Beidou, Galileo, GLONASS, and GPS, with horizontal positioning accuracy of up to 0.7 meters. It has an integrated safety switch, buzzer, and RGB indicator.

Specifications

• Model Number: CUAV-NEO3
• Brand Name: Feetech
• Processor: STM32F412
• Sensors:
  • Compass: IST8310
  • Barometer: MS5611
  • RTK Receiver: Ublox M9N

GNSS Ranges:

• GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• Number of Simultaneous GNSS: 4 (Simultaneous satellite information reception)
• Maximum Number of Satellites: Up to 32
• RTK Update Rate: Up to 25 Hz

Position Accuracy: Up to 1.5 meters

• Cold Start: 24 seconds
• Assisted Start: 2 seconds
• Reacquisition: 2 seconds
• Tracking and Navigation Sensitivity: -167 dBm
• Cold Start Sensitivity: -148 dBm
• Reacquisition Sensitivity: -160 dBm

Protocol: UART+I2C+IO
Interface Type: GHR-10V-S
Input Voltage: 5V
Operating Temperature: -10~70°C
Dimensions: 60x60x16 mm
Weight: 33g
