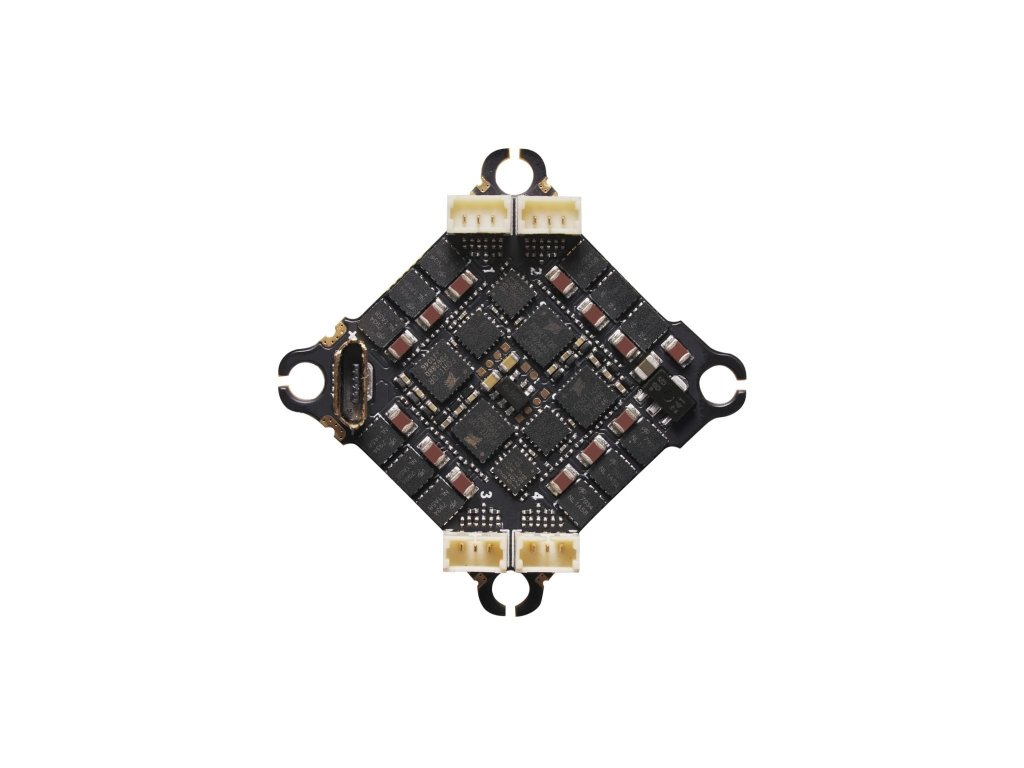

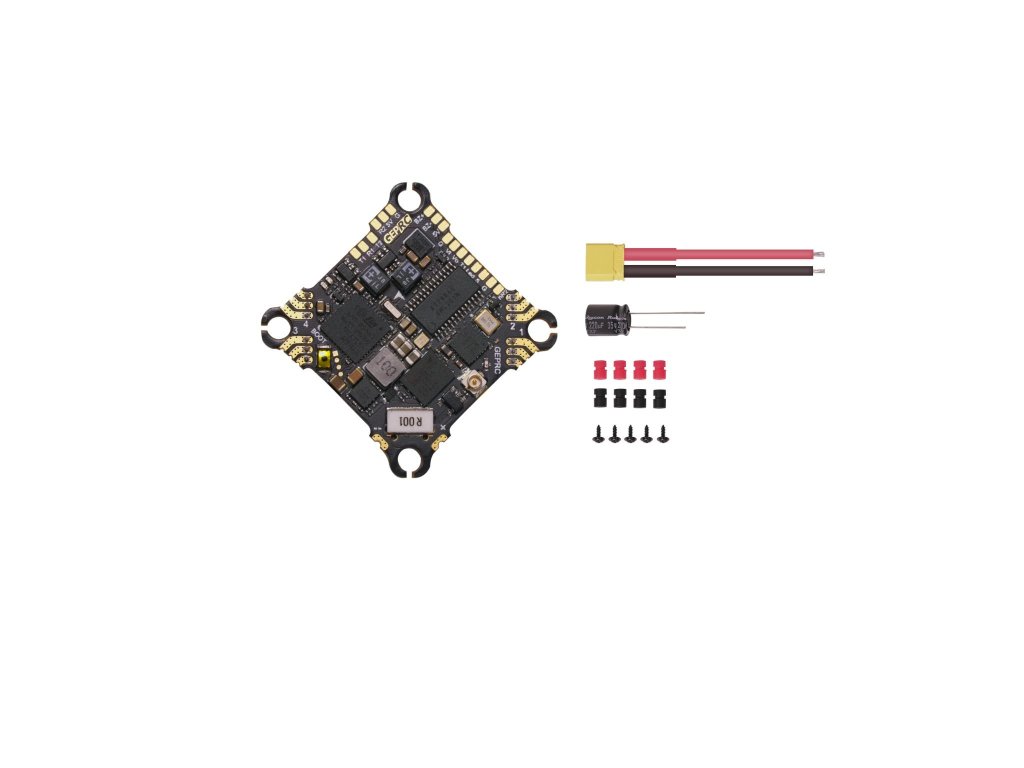

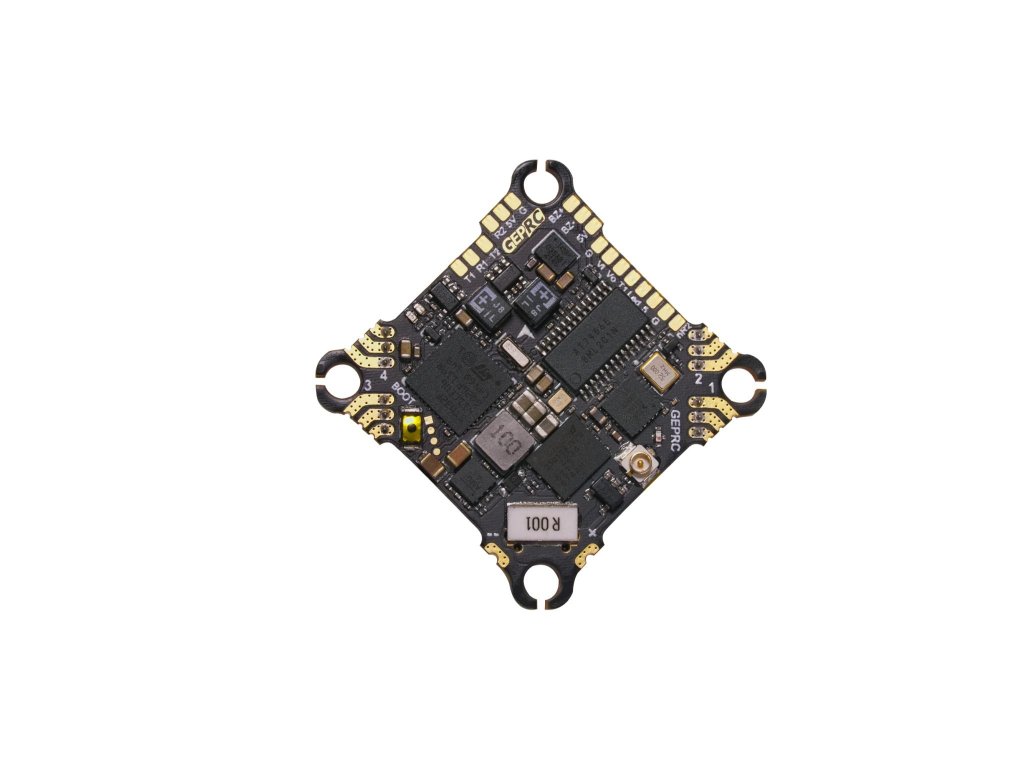

AIO FC GEPRC TAKER F411 8Bit 12A Built-in ELRS
Kod: GP105847Opis szczegółowy produktu

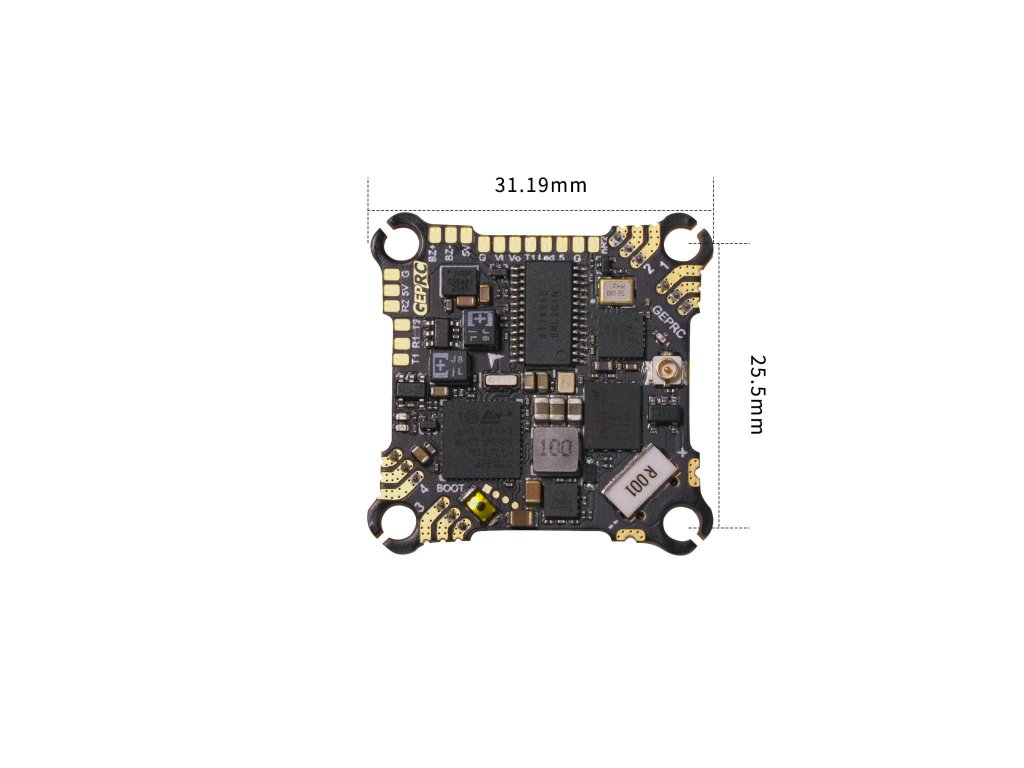

TAKER F411 8Bit 12A AIO Built-in ELRS The TAKER F411 8Bit 12A AIO is designed to provide an efficient and lightweight solution for mini FPV drones, making it suitable for various flying styles, including racing and freestyle. It includes an ICM-42688-P gyro for precise and responsive flying, supports 2-4S batteries, and features a built-in SPI ELRS 2.4G receiver version for convenient control. The AIO board also comes with a 16MB onboard black box for parameter adjustment. Specifications: Model: TAKER F411 8Bit 12A AIO (built-in ELRS receiver) MCU: STM32F411 IMU: ICM42688P Firmware Target: GEPRC_F411_SX1280 OSD: BetaFlight OSD with AT7456E chip UART Ports: R1 T1R2 T2 Reverse Port: NR2 Buzzer: YES LED: YES USB Port: micro USB ESC MCU: BB21F16G Black Box: 16Mb onboard flash memory Continuous Current: 12A Peak Current: 13A Input: 2-4S ESC Protocol: Dshot300, Oneshot, Multishot Current Meter: 210 ESC Firmware: G-H-30 – Bluejay, 0.16, 48kHz Size: 31.2×31.2mm Board Mounting Holes: 25.5mm x 25.5mm hole, M2 hole Weight: 7g
Parametry dodatkowe
| Kategoria: | AIO FC |
|---|---|
| Continuous Current: | 12A |
| Motor Size: | 25.5x25.5mm |
| Power Supply: | 2-4S |
| Processor Type: | F411 |
