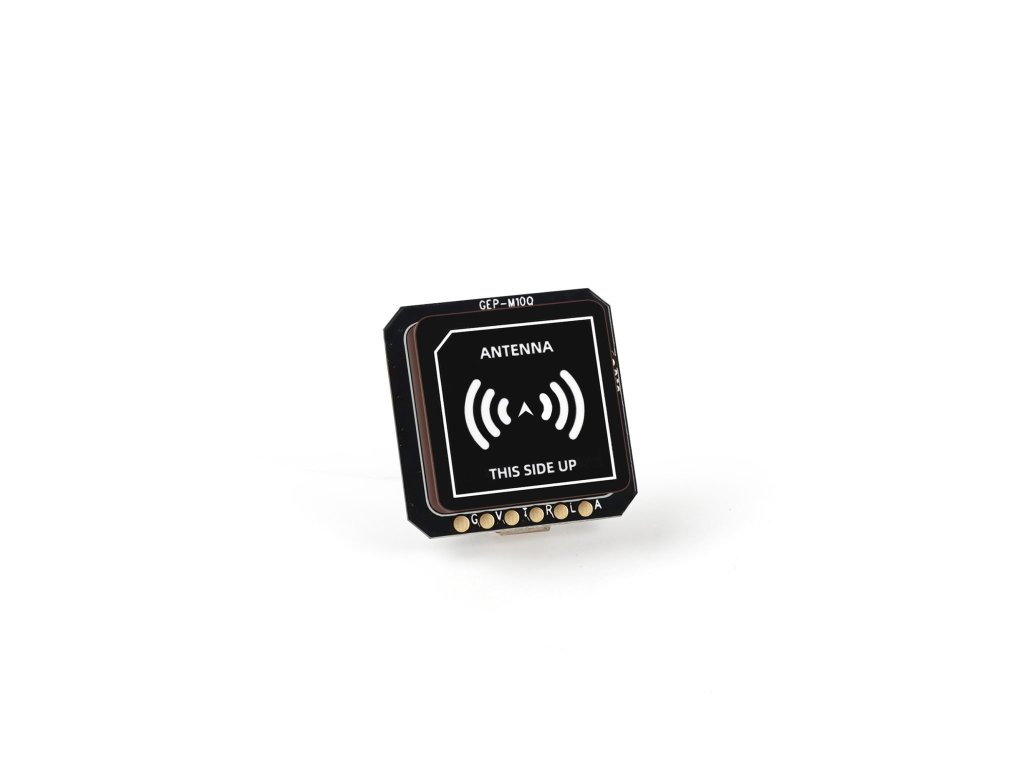

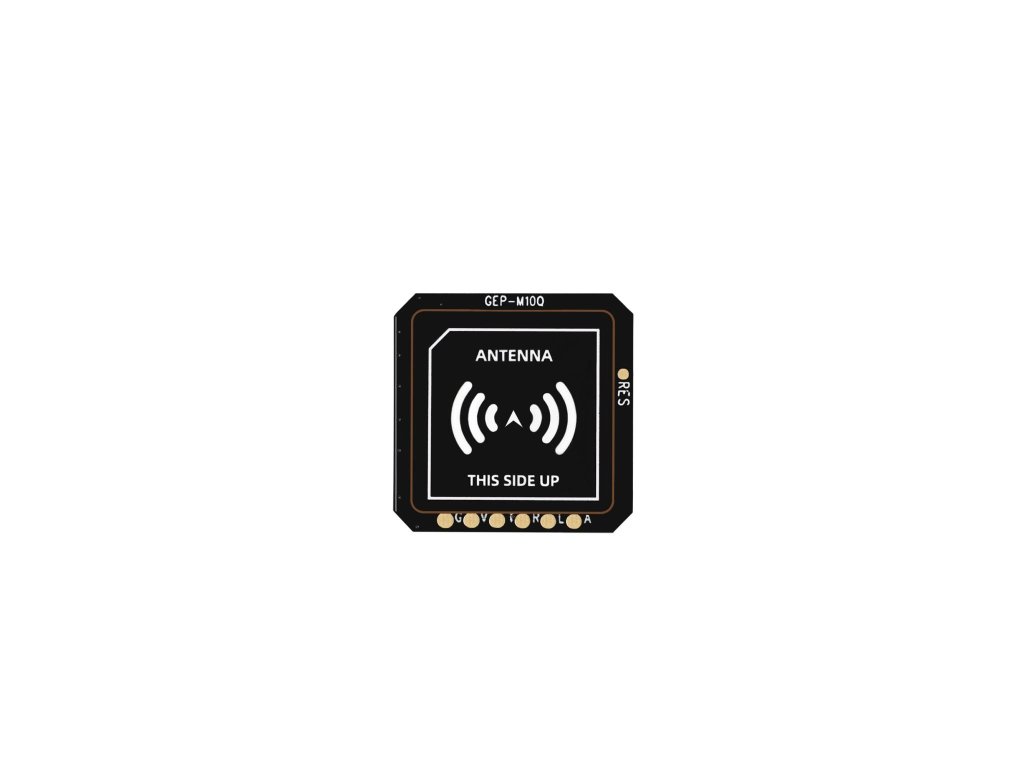

GPS module GEPRC GEP-M10Q

Opis szczegółowy produktu

GEP-M10Q GPS

The GEP-M10 series GPS positioning module is designed for use in FPV drones, multi-rotors, fixed-wing aircraft, and other model products. It offers fast and stable positioning, supports multiple satellite systems, and provides additional features like magnetometer and barometer integration.

Key Features:
1. Utilizes the u-blox M10 series chip for reliable performance.
2. Offers fast positioning capabilities.
3. Supports GPS, BDS, Galileo, QZSS, and SBAS joint positioning.
4. Can connect to a maximum of 32 satellites for enhanced accuracy.
5. Provides a stable and reliable connection quality.
6. Compact and lightweight design.
7. Includes a built-in Flash chip and farad capacitor for configuration and quick hot starts.
8. Onboard indicator light for easy usage.
9. Integrated magnetometer and barometer (available in GEP-M10-DQ model).

Specifications:

Models: GEP-M10-Q
GPS Chip: u-blox M10
Magnetometer GEP-M10Q: QMC5883L
Barometer GEP-M10Q: None
Input Voltage: 3.3V-5V
Receiving Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Operating Mode: GPS + BDS + GALILEO + QZSS + SBAS joint positioning
Channel: 72 channels
Navigation Satellites: Up to 32
Output Protocol: UART (ublox) for GEP-M10nano, GEP-M10, GEP-M10Q, and I2C for GEP-M10Q and GEP-M10-DQ
Baud Rate: 115200bps
Output Frequency: 10Hz
Speed Accuracy: 0.05 m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m (Weather)
Timing Accuracy: 30 ns
Receiver Sensitivity: Trace-162dBm, Capture-160dBm
Dynamic Characteristics: Max Height: 50000m, Max Speed: 500m/s, Maximum Acceleration: 4G
Size: 22x22x8.2mm
Weight: 7.9g
