AIO FC GEPRC GEP-F722-35A

Opis szczegółowy produktu

GEP-F722-35A AIO

The GEP-F7-35A flight controller and ESC combo is designed to offer strong performance and versatile features for drone enthusiasts. It provides a convenient and lightweight solution suitable for a wide range of drone frames.

Features:
1. MCU: STM32F722 with strong performance and higher computing speed.
2. Provides 5 full UART ports for connecting external devices.

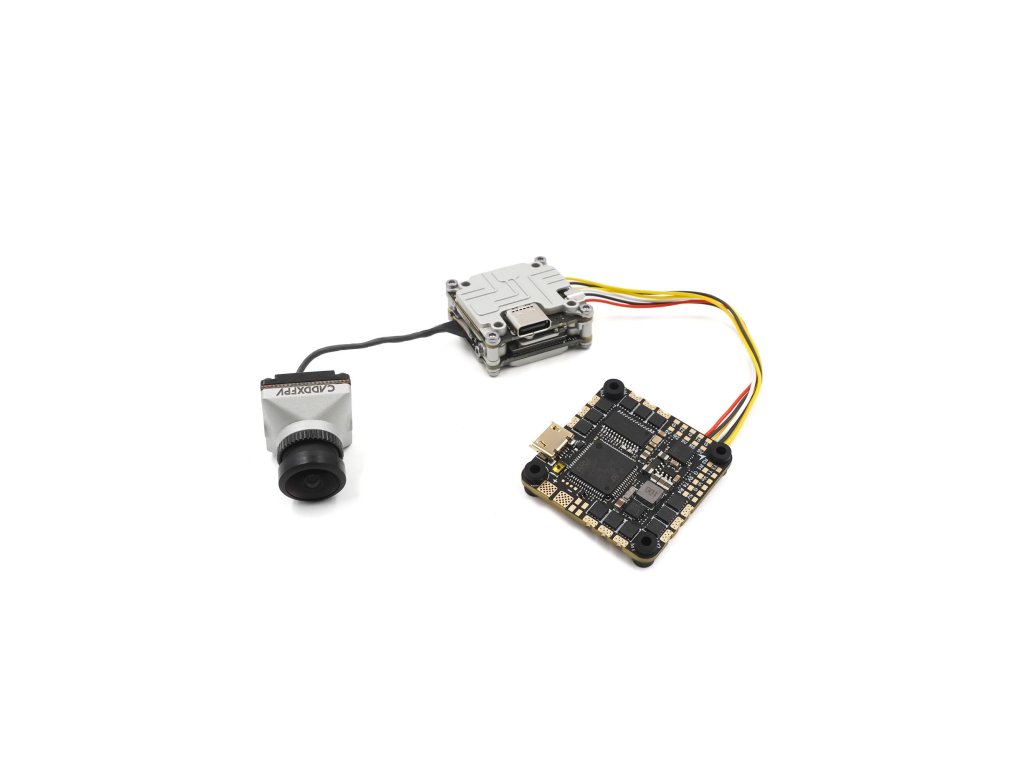

3. Features a 6-pin connector for DJI AIR UNIT MODULE for plug-and-play compatibility.
4. BLheili_S 35A ESC handles 35A continuous current (40A burst) and supports 2-6S LiPo batteries.
5. Supports OSD parameter adjustment, buzzer, LED, and other functions.

Specifications:

Model Name: GEP-F722-35A AIO
MCU: STM32F722
IMU: BMI270/42688 gyro/accelerometer (SPI)
Firmware Target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456E
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC Output: 5V @ 1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous Current: 35A
MAX Current: 40A (10s)
Input: 2-6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16Mb
Target: G_H_30
Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm
Weight: 8.8g
