Frame BETAFPV Pavo25 V2 Brushless Whoop

Opis szczegółowy produktu

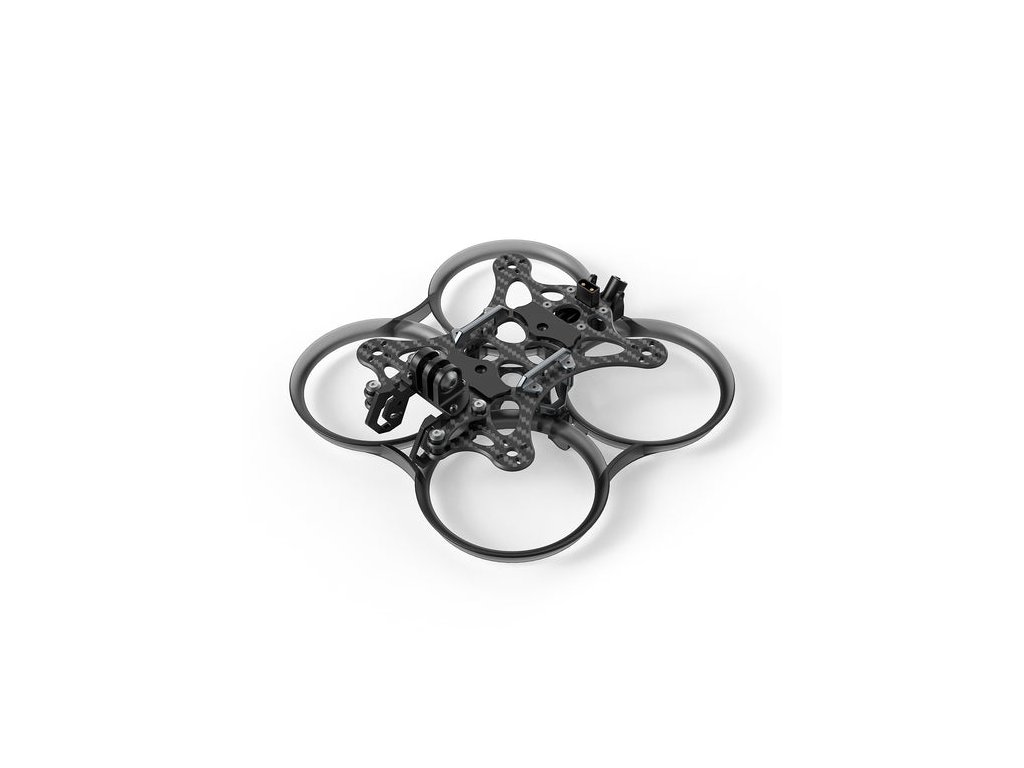

Frame BETAFPV Pavo25 V2 Brusless Whoop

The frame of the BETAFPV Pavo25 V2 Brushless Whoop is designed with advanced features to enhance performance:

- DJI O3 Air Unit Compatibility: The Pavo25 V2 seamlessly integrates with the DJI O3 Air Unit, addressing the limitation of the previous model which couldn't accommodate O3 compatibility.
- Y-shaped CNC Metal Support: This innovative structure improves the overall structural strength, torsion resistance, and vibration characteristics compared to traditional aluminum columns, resulting in faster and smoother response.
- Duct Design: Enhances lateral stability and increases thrust by 200g compared to frames without a propeller guard, providing stronger power and a better flying experience.
- Riveted Whoop Duct Assembly: The new design concept and riveted assembly make installation easier and the structure stronger, contributing to the drone's durability.
- COB Light Strip: The frame supports installing a remotely switchable COB light strip, allowing pilots to enjoy flying in various scenes and conditions.

Specifications:

Item: Pavo25 V2 Brushless Whoop Frame
Wheelbase: 112mm
Top Plate: 2.5mm T700 carbon fiber
Base Plate: 1.5mm T700 carbon fiber
Gimbal Carbon Plate: 2mm T700 carbon fiber
Column: 7075 aluminum alloy CNC
Battery Holder: 7075 aluminum alloy CNC
Whoop Duct: PC injection-molded translucent gray
Whoop Duct Diameter: 65.5mm
Battery Connector: Fixed XT30
Camera Installation Size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX Antenna Mounting Hole Size: 4mm
Flight controller Mounting Hole Size: 25.5*25.5mm
Motor Mounting Hole Size: 4*M2 EQS ø9mm/ø12mm

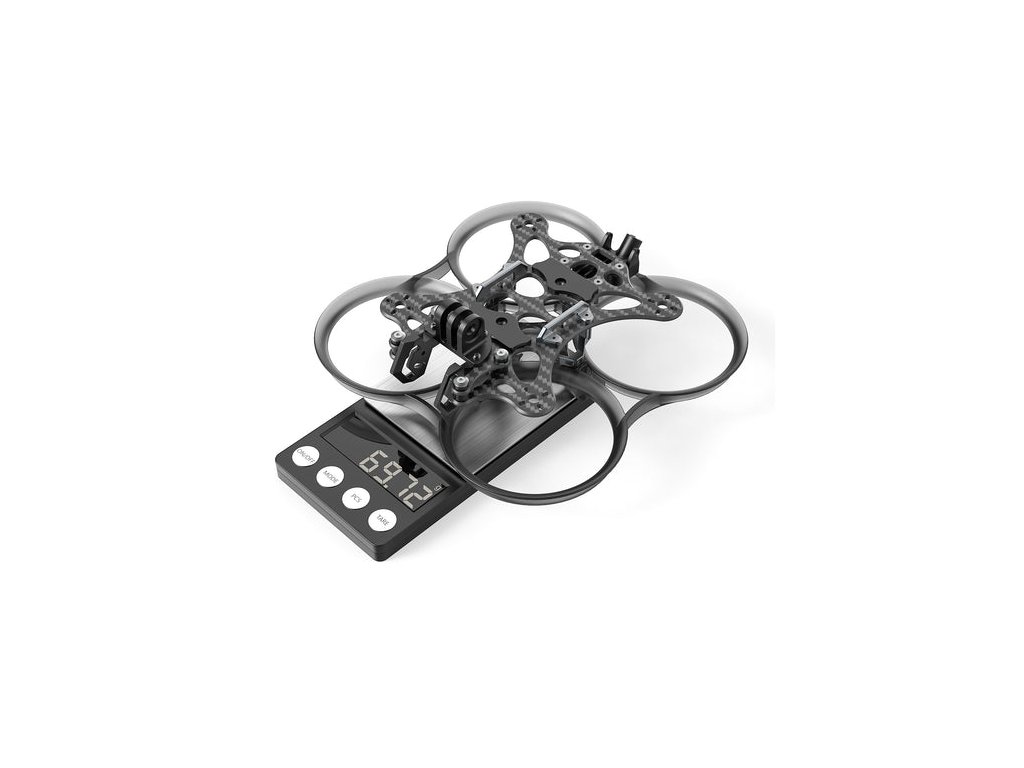

Weight: 70g:

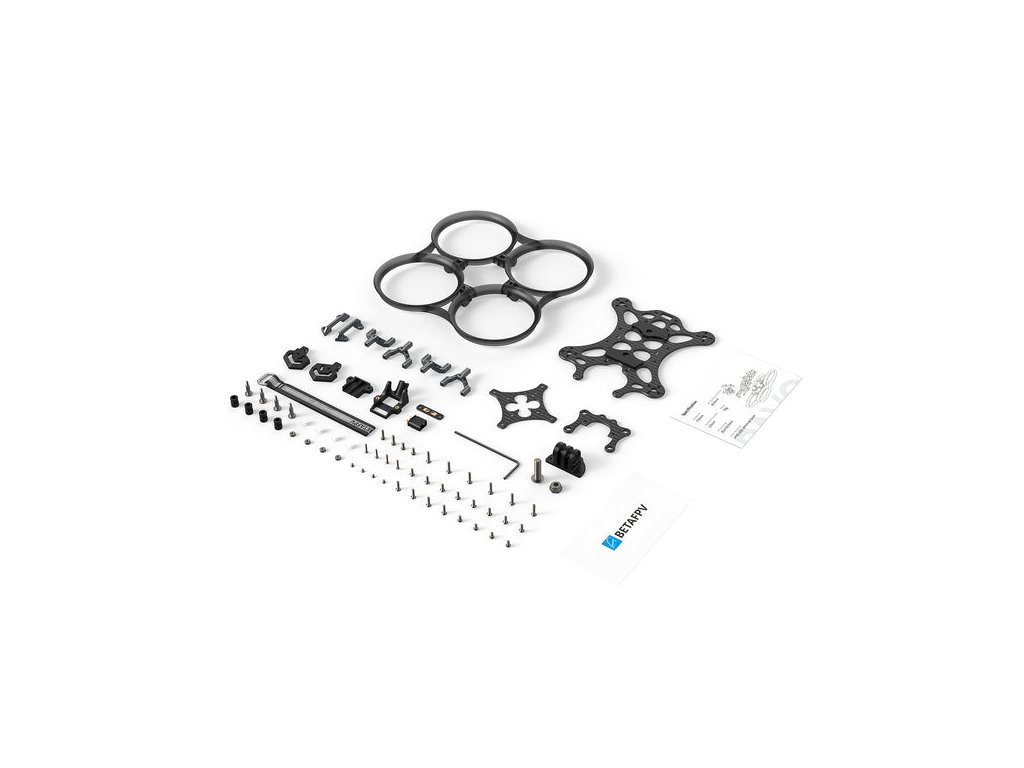

Package Includes:
1x Top Plate
1x Gimbal Carbon Plate
1x Base Plate
2x Battery Tie Holder
4x Y-shaped Aluminum Alloy Bracket
1x Whoop Duct
1x Receiver Holder
1x Socket Holder
1x Amass XT30U-M Socket (Black)
1x XT30 Socket Adapter Board
2x Battery Anti-slip Mat
1x Battery Tie 180mm
4x Flight Controller Amping Ball M2
4x Pan/Tilt Vibration Reduction Ball M3
4x Pan/Tilt Screws
8x Inner Hex Flat Head Screw M2*6
4x Inner Hex Flat Head Screw M2*8
6x Inner Hex Flat Head Screw M2*10
4x Nylon nut M2
1x Accessory package
1x Service Card
1x Frame Manual
