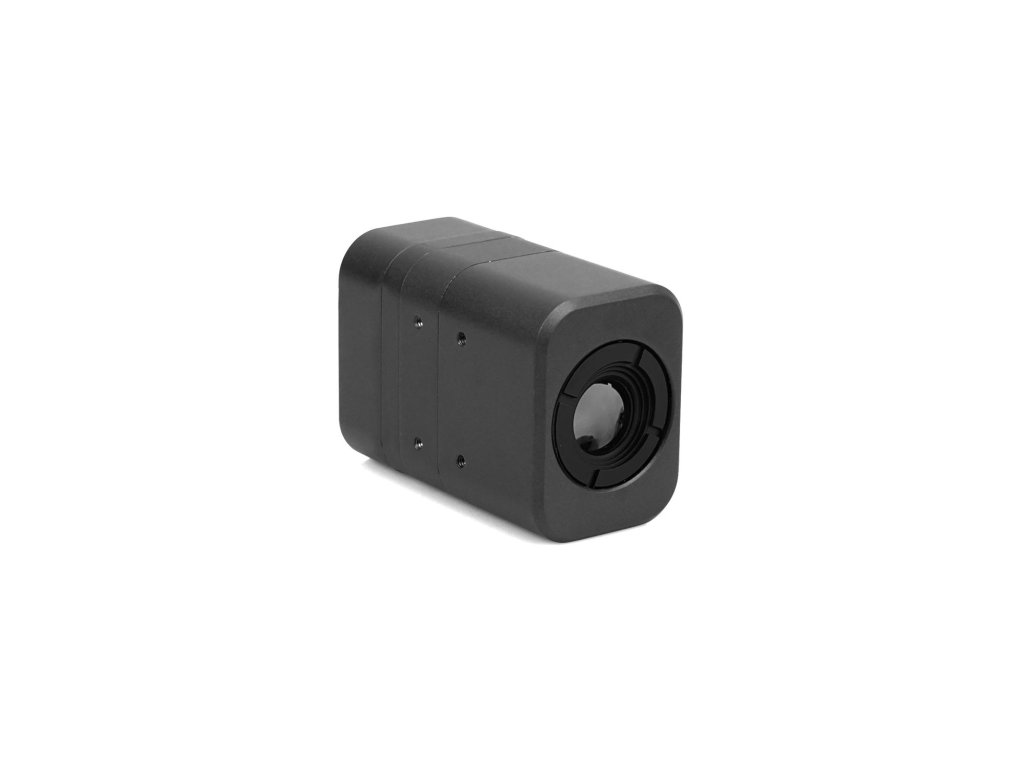

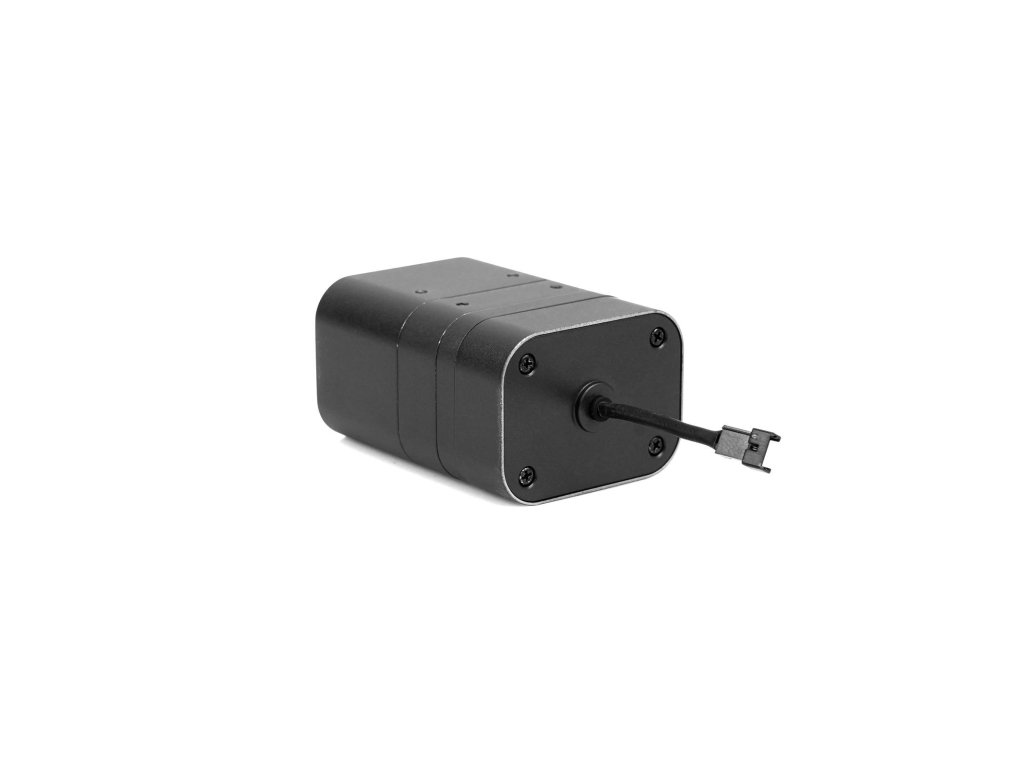

FPV Thermal camera CADDXFPV IRC-006CA

Opis szczegółowy produktu

Thermal Analog Camera Caddx Model IRC-006CA with 640×512 Resolution

In a compact casing with a minimalist design.

Specifications:

• Detection Type: Uncooled Vanadium Oxide
• Resolution: 006CA: 640×512 12μm
• Wavelength Range: 8~14μm
• NETD (Noise Equivalent Temperature Difference): ≤40mK F1 25°C
• Frame Rate: 50Hz
• Power Consumption: Up to 1.5W
• Output: PAL
• Power Supply Voltage: 5 to 16V
• Lens: 006CA: F1.0 / 9.1mm
• Operating Temperature Range: -20°C to 60°C
• Dimensions: 27×37×40mm
• Weight (without cables): 006CA: 60.5g

Package Includes:

• 1x 006CA Camera
• 1x 3-pin JST-SH1.25 Cable
