FPV HD camera SIYI ZT6 Mini Optical Pod Dual Sensor

The SIYI ZT6 Mini Optical Pod is a compact and lightweight dual-sensor gimbal camera designed for UAV applications. It combines an 8MP optical sensor capable of 4K Ultra HD recording and a thermal imaging sensor with a resolution of 640 x 512 pixels. The system supports 6x digital zoom and features a 3-axis stabilizer for enhanced image stability. It offers multiple video output options, including Ethernet, HDMI, and CVBS, and is compatible with ArduPilot and PX4 flight control systems via Mavlink protocol.

Why Choose the SIYI ZT6 Mini Optical Pod?

- 640 x 512 High-Resolution Thermal Imaging.
Ideal for detecting heat signatures, identifying temperature anomalies, and monitoring thermal changes in real time. Applications include search and rescue, firefighting, industrial inspections, and environmental monitoring.

- 4K Ultra HD Recording & Photography
Provides sharp, detailed visuals for professional-grade imagery. Perfect for aerial photography, inspection, and detailed visual analysis.

- Split Image, Synchronized Zoom
Enhances situational awareness by allowing operators to compare visual and thermal data simultaneously. Synchronized zoom ensures both perspectives focus on the same point of interest.

- Yaw Axis 540-Degree Rotation
Ensures wide-area coverage without repositioning the drone. This feature is especially beneficial in tasks like large-scale inspections, surveying, and tracking moving targets.

- Nose Mode
A gimbal orientation that keeps the camera aligned with the drone’s front. Ensures that the camera always points in the drone’s direction of travel, making it easier to align visuals with flight paths.

- Upside Down Mode
A mode where the camera is inverted, allowing it to operate in tight or unconventional spaces. Perfect for scenarios where drones need to operate under bridges, inside tunnels, or in areas with limited vertical clearance.

Specifications:

Video Output Port: Ethernet / CVBS, Micro-HDMI
Control Signal Input Port: S.Bus, UART, Ethernet UDP / TCP
Control Signal Output Port: S.Bus
High Accuracy 3 Axis Stabilization: Yaw, Pitch, Roll
Working Voltage: 11 - 25.2 V
Power Consumption: Average 6.5 W, Summit 15 W
Waterproof Level: IP53
Working Temperature: -10 ~ 50 ℃
Dimension: 73.5 x 75 x 131.5 mm
Weight:

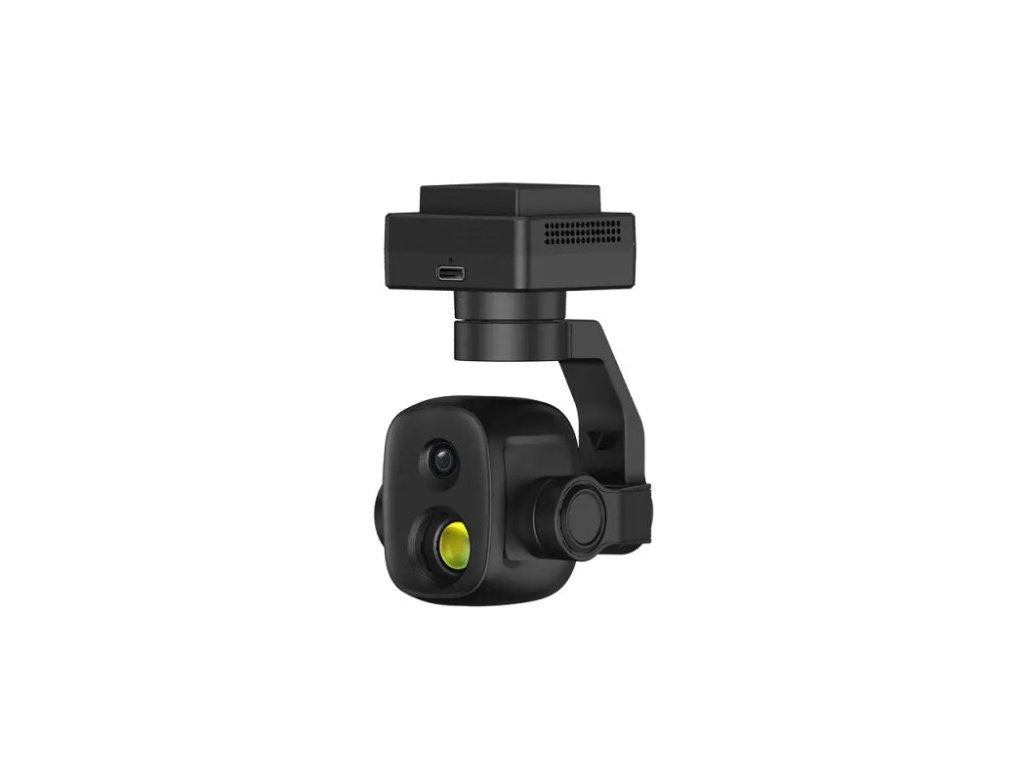

- Excluding Anti-Vibration Board: 177 g

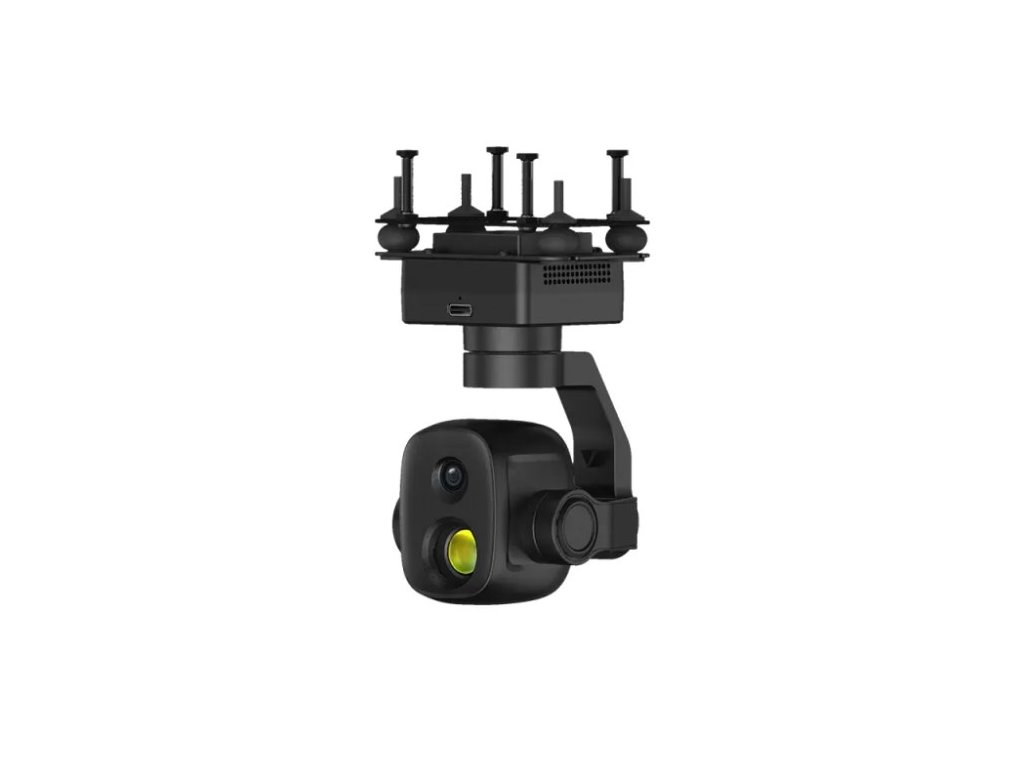

- Including Anti-Vibration Board: 197 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° ~ +25°
Controllable Yaw Angle: -270° ~ +270°
Rotatable Roll Angle: -45° ~ +45°

Optical Camera
Lens: Fixed Focal Length, 6x Digital Zoom
Equivalent Focal Length: 20 mm
Image Sensor: Sony 1/2.7 Inch CMOS, 8 MP Effective Resolution
Aperture: F2.8
FOV: Diagonal 93°, Horizontal 84.5°
Video Recording Resolution:
- 4K (3840 x 2160) @ 30 fps
- 2K (2560 x 1440) @ 30 fps
- 1080p (1920 x 1080) @ 30 fps
- 720p (1280 x 720) @ 30 fps
Still Photo Resolution: 4K (3840 x 2160)

Thermal Imaging Camera
Thermal Sensor: Uncooled VOx Microbolometer
Resolution: 640 x 512
Zoom: 2X Digital
Focal Length: 13 mm
Aperture: F1.0
Fixed Focus: yes
Athermalization: yes
Wavelength Range: 8 ~ 14 µm
Temperature Measuring Range:
- High Gain: -20 ~ +150℃
- Low Gain: 50 ~ +550℃
Temperature Measuring Accuracy:
- ±2℃ (-20 ~ +150℃)
- ±5℃ (50 ~ +550℃)
Temperature Measuring Mode:
- Point Anywhere Measurement
- Full Image Measurement
- Selected Box Measurement

General Camera Specs
Video Storage Bitrate: 15 Mbps (H.265 Codec)
File Storage Format: FAT32, ExFAT
Image Format: JPG
Video Format: MP4
Supported MicroSD Cards: MicroSD Class10, Max 256 GB
Still Photography Mode: Single
White Balance: Auto

Package includes:
1x SIYI ZT6 Mini Optical Pod Dual Sensor Gimbal Camera
